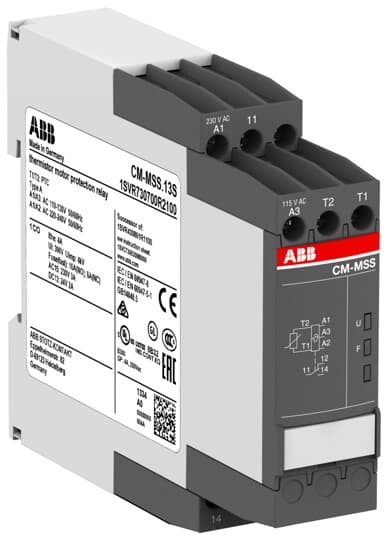

1SVR730700R2100 ABB - CM-MSS.13S

1SVR730700R2100 ABB - CM-MSS.13S

Ordering

EAN:
4013614496707
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.155 kg

Technical

Function:
1 sensor circuit
Auto reset
1 sensor circuit
Auto reset
Rated Control Supply Voltage (Us):
110 ... 130 V AC
220 ... 240 V AC
110 ... 130 V AC
220 ... 240 V AC
Rated Operational Voltage:
Auxiliary Circuit 250 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 c/o (SPDT) contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Auxiliary Circuit 1 ... 1.2 N·m
Main Circuit 2.5 ... 2.7 N·m
0.6 ... 0.8 N·m
Auxiliary Circuit 1 ... 1.2 N·m
Main Circuit 2.5 ... 2.7 N·m
Wire Stripping Length:
8 mm
Auxiliary Circuit 9 mm
Main Circuit 12 mm
8 mm
Auxiliary Circuit 9 mm
Main Circuit 12 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
(NC:) Q600
(NO:) Q600
(NC:) B600
(NO:) D300
B300
(NC:) Q600
(NO:) Q600
(NC:) B600
(NO:) D300
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Connecting Capacity Main Circuit UL/CSA:
Flexible 1/2x 14-6 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 18-12 AWG
Pilot Duty UL/CSA:
B300
NC B600
NC Q600
NO D300
NO Q600
B300
NC B600
NC Q600
NO D300
NO Q600
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
1aeb5956-7c8e-41ae-a798-0308b4d56e3f Germany
Simplified SCIP:
86f00cd0-047a-411a-9959-f17068c48b93 Poland
e260a696-e1e9-4db3-8210-d011ef81d5b4 Germany
2312ec59-9456-4a91-b665-982cc5ab7ee2 Poland
e3629db1-f156-404f-b122-4bffb315806a France
b4f60efd-821b-4495-89f9-830e97c14bb5 Germany
fc683a32-78ef-4463-a064-22b1db459ba5 Hungary
9e243fc2-6be0-465c-971c-127eda5a1a2b Bulgaria
06b5dded-f1be-430b-a91a-272765a5bddd Sweden
3371f6fd-cfb7-437d-b1b6-a4df883e4bd1 Estonia
f09ea11e-119d-46f5-90be-a9cc2db1ca3c Netherlands
dc698c11-bd61-4200-93c6-139a8bfccc39 Greece
e9833486-76dc-4454-8119-df3307d39f8e Czech Republic
fe72a0dc-9985-4c58-bc57-d297175a8160 Norway
1df7ead7-56ea-4c43-b730-be48b73d7e99 Croatia
d759576b-1c7d-444b-8a9a-7d29c7ac379c Sweden
adb91112-b42f-40eb-a50d-bca68fa4df03 France
397dc399-4d77-43b1-9d3a-3c7d2fe40a15 Spain
e08db696-18f9-40f5-b14d-14492ef2916e Portugal
b10917a0-bb55-4cf7-8845-ed16001553c5 Hungary
d8b36110-7047-4394-b3b6-cd847ac8a6f6 Belgium
04dcc0d8-bb66-42ee-bb3d-100c862b5adf Belgium
2231d9e9-fb93-4cbe-816a-443949155de7 Poland
4d99429c-d40e-4c01-9fd7-b4630c78714f Denmark
00640e70-f378-42b3-b84c-f118383c149a Germany
941c5f2a-03e2-42b7-857a-a20dd496fb06 Finland
45a712e7-38fb-4cac-9637-19e574c4f441 Italy
9e28287f-4672-4009-b648-67d793409a51 Germany
86f00cd0-047a-411a-9959-f17068c48b93 Poland
e260a696-e1e9-4db3-8210-d011ef81d5b4 Germany
2312ec59-9456-4a91-b665-982cc5ab7ee2 Poland
e3629db1-f156-404f-b122-4bffb315806a France
b4f60efd-821b-4495-89f9-830e97c14bb5 Germany
fc683a32-78ef-4463-a064-22b1db459ba5 Hungary
9e243fc2-6be0-465c-971c-127eda5a1a2b Bulgaria
06b5dded-f1be-430b-a91a-272765a5bddd Sweden
3371f6fd-cfb7-437d-b1b6-a4df883e4bd1 Estonia
f09ea11e-119d-46f5-90be-a9cc2db1ca3c Netherlands

ABB EcoSolutions

ABB EcoSolutions:
Yes

Certificates and Declarations

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.179 kg
Package Level 1 EAN:
4013614496707

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC002568 - Relay for thermistor protection (PTC)
ETIM 8:
EC002568 - Relay for thermistor protection (PTC)
ETIM 9:
EC002568 - Relay for thermistor protection (PTC)
eClass:
V11.0 : 27371503
UNSPSC:
39122331
E-Number (Finland):
2712397
E-Number (Norway):
4185880
E-Number (Sweden):
3860720
Price on request
Ask for quote

Notify Me When Available

Ordering

EAN:
4013614496707
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.155 kg

Technical

Function:
1 sensor circuit
Auto reset
1 sensor circuit
Auto reset
Rated Control Supply Voltage (Us):
110 ... 130 V AC
220 ... 240 V AC
110 ... 130 V AC
220 ... 240 V AC
Rated Operational Voltage:
Auxiliary Circuit 250 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 c/o (SPDT) contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Auxiliary Circuit 1 ... 1.2 N·m
Main Circuit 2.5 ... 2.7 N·m
0.6 ... 0.8 N·m
Auxiliary Circuit 1 ... 1.2 N·m
Main Circuit 2.5 ... 2.7 N·m
Wire Stripping Length:
8 mm
Auxiliary Circuit 9 mm
Main Circuit 12 mm
8 mm
Auxiliary Circuit 9 mm
Main Circuit 12 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
(NC:) Q600
(NO:) Q600
(NC:) B600
(NO:) D300
B300
(NC:) Q600
(NO:) Q600
(NC:) B600
(NO:) D300
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Connecting Capacity Main Circuit UL/CSA:
Flexible 1/2x 14-6 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 18-12 AWG
Pilot Duty UL/CSA:
B300
NC B600
NC Q600
NO D300
NO Q600
B300
NC B600
NC Q600
NO D300
NO Q600
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
1aeb5956-7c8e-41ae-a798-0308b4d56e3f Germany
Simplified SCIP:
86f00cd0-047a-411a-9959-f17068c48b93 Poland
e260a696-e1e9-4db3-8210-d011ef81d5b4 Germany
2312ec59-9456-4a91-b665-982cc5ab7ee2 Poland
e3629db1-f156-404f-b122-4bffb315806a France
b4f60efd-821b-4495-89f9-830e97c14bb5 Germany
fc683a32-78ef-4463-a064-22b1db459ba5 Hungary
9e243fc2-6be0-465c-971c-127eda5a1a2b Bulgaria
06b5dded-f1be-430b-a91a-272765a5bddd Sweden
3371f6fd-cfb7-437d-b1b6-a4df883e4bd1 Estonia
f09ea11e-119d-46f5-90be-a9cc2db1ca3c Netherlands
dc698c11-bd61-4200-93c6-139a8bfccc39 Greece
e9833486-76dc-4454-8119-df3307d39f8e Czech Republic
fe72a0dc-9985-4c58-bc57-d297175a8160 Norway
1df7ead7-56ea-4c43-b730-be48b73d7e99 Croatia
d759576b-1c7d-444b-8a9a-7d29c7ac379c Sweden
adb91112-b42f-40eb-a50d-bca68fa4df03 France
397dc399-4d77-43b1-9d3a-3c7d2fe40a15 Spain
e08db696-18f9-40f5-b14d-14492ef2916e Portugal
b10917a0-bb55-4cf7-8845-ed16001553c5 Hungary
d8b36110-7047-4394-b3b6-cd847ac8a6f6 Belgium
04dcc0d8-bb66-42ee-bb3d-100c862b5adf Belgium
2231d9e9-fb93-4cbe-816a-443949155de7 Poland
4d99429c-d40e-4c01-9fd7-b4630c78714f Denmark
00640e70-f378-42b3-b84c-f118383c149a Germany
941c5f2a-03e2-42b7-857a-a20dd496fb06 Finland
45a712e7-38fb-4cac-9637-19e574c4f441 Italy
9e28287f-4672-4009-b648-67d793409a51 Germany
86f00cd0-047a-411a-9959-f17068c48b93 Poland
e260a696-e1e9-4db3-8210-d011ef81d5b4 Germany
2312ec59-9456-4a91-b665-982cc5ab7ee2 Poland
e3629db1-f156-404f-b122-4bffb315806a France
b4f60efd-821b-4495-89f9-830e97c14bb5 Germany
fc683a32-78ef-4463-a064-22b1db459ba5 Hungary
9e243fc2-6be0-465c-971c-127eda5a1a2b Bulgaria
06b5dded-f1be-430b-a91a-272765a5bddd Sweden
3371f6fd-cfb7-437d-b1b6-a4df883e4bd1 Estonia
f09ea11e-119d-46f5-90be-a9cc2db1ca3c Netherlands

ABB EcoSolutions

ABB EcoSolutions:
Yes

Certificates and Declarations

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.179 kg
Package Level 1 EAN:
4013614496707

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC002568 - Relay for thermistor protection (PTC)
ETIM 8:
EC002568 - Relay for thermistor protection (PTC)
ETIM 9:
EC002568 - Relay for thermistor protection (PTC)
eClass:
V11.0 : 27371503
UNSPSC:
39122331
E-Number (Finland):
2712397
E-Number (Norway):
4185880
E-Number (Sweden):
3860720
Object Classification Code:
B
ETIM 7:
EC002568 - Relay for thermistor protection (PTC)
ETIM 8:
EC002568 - Relay for thermistor protection (PTC)
ETIM 9:
EC002568 - Relay for thermistor protection (PTC)
eClass:
V11.0 : 27371503
UNSPSC:
39122331
E-Number (Finland):
2712397
E-Number (Norway):
4185880
E-Number (Sweden):
3860720

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

Need More?

Contact Us

You can call, email, or chat us
we're here to support your business.

(847) 242-1595

Chat

support@plc-direct.com

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
