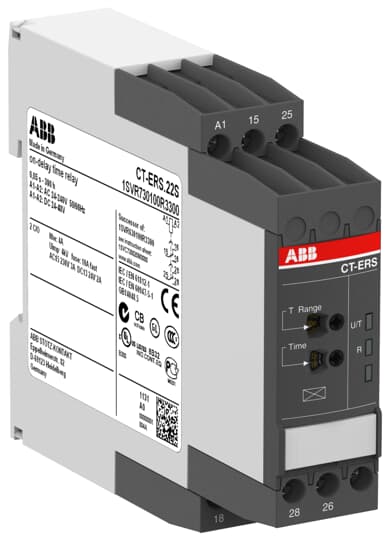

1SVR730100R3300 ABB - CT-ERS.22S

1SVR730100R3300 ABB - CT-ERS.22S

Ordering

EAN:
4016779851466
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.121 kg

Technical

Timer Relay Type:
ON-Delay
Time Range:
0.05 s ... 300 h
Rated Control Supply Voltage (Us):
24 ... 240 V AC
24 ... 48 V DC
24 ... 240 V AC
24 ... 48 V DC
Rated Operational Voltage:
Auxiliary Circuit 250 V
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
100 mA
12 V
100 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
b8b5c7ab-21e8-46a1-9fd4-3dccfac3b41a Germany
Simplified SCIP:
4073b224-3f9a-4987-a14c-eff08ce13e33 Bulgaria
29e2c0a9-ffde-44bb-9d6a-af6e2069dbf1 Portugal
399c25bf-ea42-4ac9-9333-d11fdddcaf1c Hungary
a9e34c9c-8644-457d-81f0-7de6e593769c Poland
81aa51df-bde9-412a-8aad-16537b059ced Belgium
44383660-bd43-4dcd-9d0e-bebc12c1244e France
47177b8a-618b-4df5-a0aa-1a7eb9fbebfb Germany
3cc24ec7-6082-438f-98cc-d2b328c3836d Norway
2f75f8bf-ec86-49bc-a81f-7fa1ebe59860 Sweden
6179ce36-91ad-47e2-9916-599d6e0f2f96 Poland
fe551b47-4794-4fb3-8902-d64e1c8f835b Greece
cff2b508-3627-48d4-9b6f-db42b4a28175 Estonia
0917e32e-16f4-44cf-a9ee-8872362da346 Germany
712fadd1-ee39-4603-91c0-83aa4cfb3889 Czech Republic
b97b4b6c-77b0-459b-8d90-724c611e0f15 Poland
163a6e7b-47b1-40b3-9529-1a6c712c2ae5 Finland
2f753e2c-0163-41a9-9aad-ae1f2e21bc0f Italy
71f7a69b-274c-4e5f-ab4b-7f2894dd0ab6 Germany
6f59f910-fa79-48a4-8802-4dd68fffcaff Netherlands
33be5290-410f-4c00-9ae9-0893de6fd991 France
fc0940e9-ca5a-4128-a671-12afcc7e6b86 Spain
83d70711-ad5d-48c1-a25c-661a29ea4d88 Croatia
6bcaa60a-98fb-4ac0-ac4c-b5a1c91b994d Sweden
6d7330cc-1aff-42a4-9c44-debf3caa8331 Germany
47b1a0e6-f9a9-45ba-846d-3797b36ed740 Hungary
c02f0d68-67e6-4830-b466-7aa8a406d019 Denmark
9a67cf16-be6a-4af3-9cd4-3fcacaa079b4 Belgium
4073b224-3f9a-4987-a14c-eff08ce13e33 Bulgaria
29e2c0a9-ffde-44bb-9d6a-af6e2069dbf1 Portugal
399c25bf-ea42-4ac9-9333-d11fdddcaf1c Hungary
a9e34c9c-8644-457d-81f0-7de6e593769c Poland
81aa51df-bde9-412a-8aad-16537b059ced Belgium
44383660-bd43-4dcd-9d0e-bebc12c1244e France
47177b8a-618b-4df5-a0aa-1a7eb9fbebfb Germany
3cc24ec7-6082-438f-98cc-d2b328c3836d Norway
2f75f8bf-ec86-49bc-a81f-7fa1ebe59860 Sweden
6179ce36-91ad-47e2-9916-599d6e0f2f96 Poland

ABB EcoSolutions

ABB EcoSolutions:
Yes
Environmental Product Declaration - EPD:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.144 kg
Package Level 1 EAN:
4016779851466

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712204
E-Number (Norway):
4187948
E-Number (Sweden):
4033116
Price on request
Ask for quote

Notify Me When Available

Ordering

EAN:
4016779851466
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.121 kg

Technical

Timer Relay Type:
ON-Delay
Time Range:
0.05 s ... 300 h
Rated Control Supply Voltage (Us):
24 ... 240 V AC
24 ... 48 V DC
24 ... 240 V AC
24 ... 48 V DC
Rated Operational Voltage:
Auxiliary Circuit 250 V
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
100 mA
12 V
100 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
b8b5c7ab-21e8-46a1-9fd4-3dccfac3b41a Germany
Simplified SCIP:
4073b224-3f9a-4987-a14c-eff08ce13e33 Bulgaria
29e2c0a9-ffde-44bb-9d6a-af6e2069dbf1 Portugal
399c25bf-ea42-4ac9-9333-d11fdddcaf1c Hungary
a9e34c9c-8644-457d-81f0-7de6e593769c Poland
81aa51df-bde9-412a-8aad-16537b059ced Belgium
44383660-bd43-4dcd-9d0e-bebc12c1244e France
47177b8a-618b-4df5-a0aa-1a7eb9fbebfb Germany
3cc24ec7-6082-438f-98cc-d2b328c3836d Norway
2f75f8bf-ec86-49bc-a81f-7fa1ebe59860 Sweden
6179ce36-91ad-47e2-9916-599d6e0f2f96 Poland
fe551b47-4794-4fb3-8902-d64e1c8f835b Greece
cff2b508-3627-48d4-9b6f-db42b4a28175 Estonia
0917e32e-16f4-44cf-a9ee-8872362da346 Germany
712fadd1-ee39-4603-91c0-83aa4cfb3889 Czech Republic
b97b4b6c-77b0-459b-8d90-724c611e0f15 Poland
163a6e7b-47b1-40b3-9529-1a6c712c2ae5 Finland
2f753e2c-0163-41a9-9aad-ae1f2e21bc0f Italy
71f7a69b-274c-4e5f-ab4b-7f2894dd0ab6 Germany
6f59f910-fa79-48a4-8802-4dd68fffcaff Netherlands
33be5290-410f-4c00-9ae9-0893de6fd991 France
fc0940e9-ca5a-4128-a671-12afcc7e6b86 Spain
83d70711-ad5d-48c1-a25c-661a29ea4d88 Croatia
6bcaa60a-98fb-4ac0-ac4c-b5a1c91b994d Sweden
6d7330cc-1aff-42a4-9c44-debf3caa8331 Germany
47b1a0e6-f9a9-45ba-846d-3797b36ed740 Hungary
c02f0d68-67e6-4830-b466-7aa8a406d019 Denmark
9a67cf16-be6a-4af3-9cd4-3fcacaa079b4 Belgium
4073b224-3f9a-4987-a14c-eff08ce13e33 Bulgaria
29e2c0a9-ffde-44bb-9d6a-af6e2069dbf1 Portugal
399c25bf-ea42-4ac9-9333-d11fdddcaf1c Hungary
a9e34c9c-8644-457d-81f0-7de6e593769c Poland
81aa51df-bde9-412a-8aad-16537b059ced Belgium
44383660-bd43-4dcd-9d0e-bebc12c1244e France
47177b8a-618b-4df5-a0aa-1a7eb9fbebfb Germany
3cc24ec7-6082-438f-98cc-d2b328c3836d Norway
2f75f8bf-ec86-49bc-a81f-7fa1ebe59860 Sweden
6179ce36-91ad-47e2-9916-599d6e0f2f96 Poland

ABB EcoSolutions

ABB EcoSolutions:
Yes
Environmental Product Declaration - EPD:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.144 kg
Package Level 1 EAN:
4016779851466

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712204
E-Number (Norway):
4187948
E-Number (Sweden):
4033116
Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712204
E-Number (Norway):
4187948
E-Number (Sweden):
4033116

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

Need More?

Contact Us

You can call, email, or chat us
we're here to support your business.

(847) 242-1595

Chat

support@plc-direct.com

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
