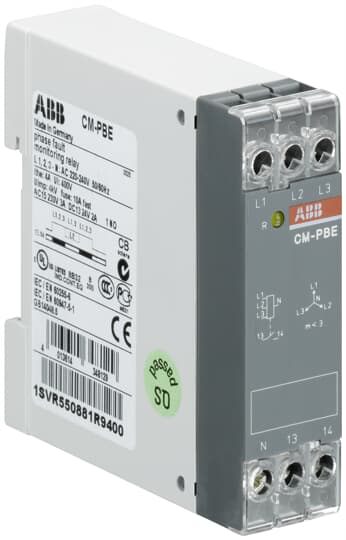

1SVR550881R9400 ABB - CM-PBE

1SVR550881R9400 ABB - CM-PBE

Ordering

EAN:
4013614350498
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
78 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.066 kg

Technical

Function:
Phase failure detection
Interrupted neutral monitoring
Phase failure detection
Interrupted neutral monitoring
Sub-Function:
Phase loss
Measuring Range:
(L-L) 380 ... 440 V AC
(L-N) 220 ... 240 V AC
(L-L) 380 ... 440 V AC
(L-N) 220 ... 240 V AC
Time Range:
500 ms start-up delay
150 ms tripping delay
500 ms start-up delay
150 ms tripping delay
Rated Control Supply Voltage (Us):
(L-L) 380 ... 440 V AC
(L-N) 220 ... 240 V AC
(L-L) 380 ... 440 V AC
(L-N) 220 ... 240 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 n/o contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 400 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
10 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 250 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300

Environmental

Ambient Air Temperature:
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
b3388d08-0e78-4c87-916b-2857dd9f20f7 Germany
Simplified SCIP:
f405e86b-a0e7-46c0-9e84-a31083eddd0d Germany
40b08846-17e3-4c2e-b3ef-117be45f751b Poland
05d40a35-4f8d-47d7-92f2-e61413942b25 Denmark
f24e031d-1c00-4eb8-99b6-938fbba3bea5 Germany
8674d20a-8138-4db3-a912-eabaf267e9a5 Finland
2a40256d-88c5-4f69-86c0-7fa9e96af47e Czech Republic
b2fa228b-66cc-40aa-8b60-8c180239c815 Poland
e68a1ace-24fd-45fd-a326-ee9248297841 France
6350685f-5690-4751-8911-93353e219179 Germany
6240ceb2-b1cc-4d16-a265-69fdeda7b024 Hungary
b924531f-26f2-4eed-86f0-708d820f7528 Spain
bf675e2f-fc07-44fb-865a-5b65c1996f2d Estonia
e309ca6c-d9de-4c11-92a7-856be7c625b4 Sweden
b1a17e79-34e9-42bc-b582-fe5bb57f8b56 Italy
d11296b2-081d-4bbb-aecd-1628830c034d Germany
2c4d1109-5288-4eb9-810f-7c12e29dacd4 Netherlands
a80ef049-d958-4ca8-8f01-924438cbe1af Norway
9644bad3-42f6-4467-be9e-019c5c5264d2 Croatia
db3a0a69-fbd8-49ae-91d9-f66b1fe58cb7 Sweden
cceae64b-c968-4aa0-8966-84a9cb8671ad France
b42bce03-4c05-4c0b-ae0d-91e30c832300 Greece
7011d538-a265-41c4-b40f-2a2ebf3ca0ba Portugal
4d3cf70c-c755-4870-90e2-4bb83dbfcff0 Hungary
3a05fc70-9670-4bd4-80c6-15c7f7f1b588 Belgium
4f5ea56e-2a1b-4097-949c-a0242c24ee2e Belgium
40c3198c-7492-4d66-8da3-e9ab4ac807e8 Bulgaria
f8eefe35-1a12-4521-b8e3-bb741a80f262 Poland
f405e86b-a0e7-46c0-9e84-a31083eddd0d Germany
40b08846-17e3-4c2e-b3ef-117be45f751b Poland
05d40a35-4f8d-47d7-92f2-e61413942b25 Denmark
f24e031d-1c00-4eb8-99b6-938fbba3bea5 Germany
8674d20a-8138-4db3-a912-eabaf267e9a5 Finland
2a40256d-88c5-4f69-86c0-7fa9e96af47e Czech Republic
b2fa228b-66cc-40aa-8b60-8c180239c815 Poland
e68a1ace-24fd-45fd-a326-ee9248297841 France
6350685f-5690-4751-8911-93353e219179 Germany
6240ceb2-b1cc-4d16-a265-69fdeda7b024 Hungary

Certificates and Declarations

CB Certificate:
cUL Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
23 mm
Package Level 1 Depth / Length:
82 mm
Package Level 1 Height:
82 mm
Package Level 1 Gross Weight:
0.078 kg
Package Level 1 EAN:
4013614350498

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001441 - Phase monitoring relay
ETIM 8:
EC001441 - Phase monitoring relay
ETIM 9:
EC001441 - Phase monitoring relay
eClass:
V11.0 : 27371803
UNSPSC:
39122332
E-Number (Finland):
2712853
E-Number (Norway):
4187168
E-Number (Sweden):
3860175
Price on request
