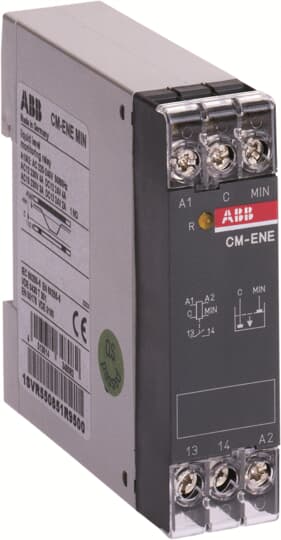

1SVR550851R9500 ABB - CM-ENE MIN

Ordering

EAN:
4013614348082
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
78 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.106 kg

Technical

Function:
Draining monitoring
Sub-Function:
Dry running protection
Number of Electrodes:
2
Measuring Range:
0 ... 100 kΩ
Rated Control Supply Voltage (Us):
220 ... 240 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 n/o contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Measuring Circuit / Output Circuit 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 250 V
Supply Circuit / Measuring Circuit 250 V
Supply Circuit / Output Circuit 250 V
Measuring Circuit / Output Circuit 250 V
Supply Circuit / Measuring Circuit 250 V
Supply Circuit / Output Circuit 250 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Short-Circuit Protective Devices:
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
10 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Tightening Torque UL/CSA:
7.08 in·lb

Environmental

Ambient Air Temperature:
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
385033bf-5587-4423-bc65-c70594b293ca Germany
Simplified SCIP:
b39e6cea-9498-48a6-8217-76a0595379f8 Bulgaria
7d136558-b600-4129-8844-63d9d20266b4 Spain
2a1dd21c-b0e3-46ed-88f1-9dd13aba4aac Sweden
72cbbc08-f3c3-4079-b143-14cdf5d95312 Poland
d96b70db-0b0c-442b-ab37-47252210b2bb Germany
cb026571-b80f-49bf-a2f3-c2f97e6d6c95 France
5dfea25d-db52-469c-9ab8-c14d1c1a542c Italy
878066b3-0170-4159-bfb9-5b594f64f352 Germany
70dcaa20-2e28-43c8-94a4-1117d06b214e Greece
e58a6f84-74ef-4769-bffc-cbacd7a22df6 Norway
1ed661c4-19c9-4371-98e0-ff5b090ab9f0 Netherlands
9b86f4aa-5437-4231-b286-9a2fe089ce79 Hungary
6452e7d9-3add-4854-af0e-64e74f17ac27 Belgium
dd5a0a2f-211e-4caa-8501-b2390ad1e3f1 Belgium
977c76bf-3bb5-411b-a3b1-bb9cbf422423 Hungary
d5bb1305-597c-43fa-aeb3-50cd7f20fc25 Portugal
ee296a8b-0c91-4b27-afb9-f4f49e3ca5b2 France
edd15ead-9bb7-48cb-8f9d-526ccd221b96 Sweden
cb8e9252-dca0-4653-aa51-218bd1a023cf Croatia
ab06cdbe-c5be-47a3-ab99-21168efa7b2a Poland
b252d730-2067-437d-adfc-2dfa22192350 Denmark
8dbe9cf3-1b9f-4674-8b20-0a8d3c8872f2 Czech Republic
1a53bb33-0272-4d3b-a3f7-4f62c0c1ed04 Germany
e796a57f-b5d9-48a2-88a4-468633275e82 Estonia
f229f3ec-5bdf-4366-9832-ddc0c7a505ad Poland
e528a204-a1ce-411c-9d17-f521467db52b Germany
e43a99c3-e219-49cf-9481-b2f47a9e459f Finland
b39e6cea-9498-48a6-8217-76a0595379f8 Bulgaria
7d136558-b600-4129-8844-63d9d20266b4 Spain
2a1dd21c-b0e3-46ed-88f1-9dd13aba4aac Sweden
72cbbc08-f3c3-4079-b143-14cdf5d95312 Poland
d96b70db-0b0c-442b-ab37-47252210b2bb Germany
cb026571-b80f-49bf-a2f3-c2f97e6d6c95 France
5dfea25d-db52-469c-9ab8-c14d1c1a542c Italy
878066b3-0170-4159-bfb9-5b594f64f352 Germany
70dcaa20-2e28-43c8-94a4-1117d06b214e Greece
e58a6f84-74ef-4769-bffc-cbacd7a22df6 Norway

Certificates and Declarations

CB Certificate:
cUL Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
23 mm
Package Level 1 Depth / Length:
82 mm
Package Level 1 Height:
82 mm
Package Level 1 Gross Weight:
0.118 kg
Package Level 1 EAN:
4013614348082

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001447 - (Fill) level monitoring relay
ETIM 8:
EC001447 - (Fill) level monitoring relay
ETIM 9:
EC001447 - (Fill) level monitoring relay
eClass:
V11.0 : 27371813
UNSPSC:
39122331
E-Number (Finland):
2712850
E-Number (Norway):
4187268
E-Number (Sweden):
3860805
