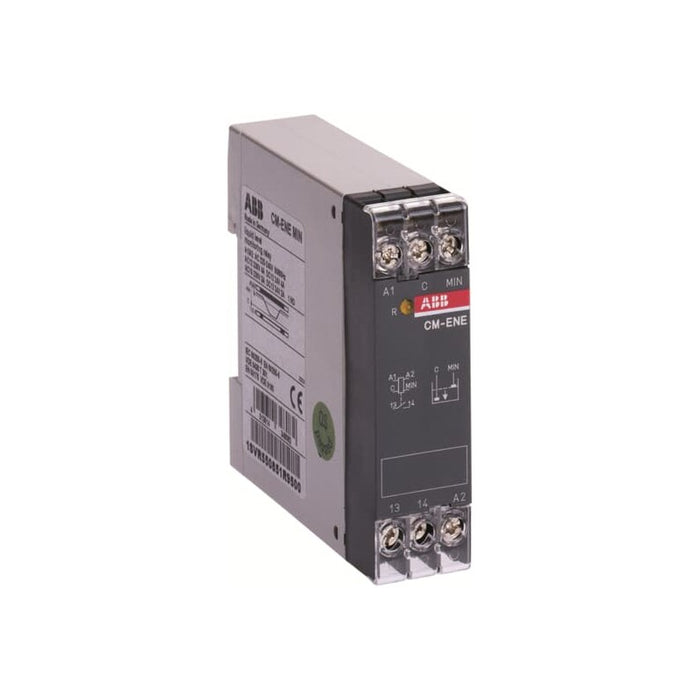

1SVR550850R9500 ABB - cm-ene min

Ordering

EAN:
4013614348068
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
78 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.106 kg

Technical

Function:
Draining monitoring
Sub-Function:
Dry running protection
Number of Electrodes:
2
Measuring Range:
0 ... 100 kΩ
Rated Control Supply Voltage (Us):
110 ... 130 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 n/o contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Measuring Circuit / Output Circuit 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 250 V
Supply Circuit / Measuring Circuit 250 V
Supply Circuit / Output Circuit 250 V
Measuring Circuit / Output Circuit 250 V
Supply Circuit / Measuring Circuit 250 V
Supply Circuit / Output Circuit 250 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Short-Circuit Protective Devices:
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
10 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Tightening Torque UL/CSA:
7.08 in·lb

Environmental

Ambient Air Temperature:
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
667e80f9-dcc6-4d48-a0f8-792cb25f5614 Germany
Simplified SCIP:
c6157497-950f-418b-87a7-03e1831f32e9 Bulgaria
4396b637-cbac-43d3-beb4-a51c0081d20a France
3d6424d4-8806-4fc7-b9ff-270d37d5ce2c Hungary
b7f5e505-e327-4a9e-9d05-cf8e68e7c544 Belgium
1c6cd452-1138-4a61-9a8e-d0189498d8c5 Germany
a2c2ae7b-0adf-401f-a370-8297c1713a0f Czech Republic
d384edc1-1c7e-40ac-a5e3-01d02d9bba2b Germany
f2331ec6-ecbc-460b-98ff-e5f222d45d27 Denmark
2f6ff324-b75a-414f-9f45-e31d80dd9f05 Hungary
bb215159-b91a-4908-9f18-1de006a7da21 Poland
f72bad55-6620-44ac-8610-783d84f31ed8 Italy
3c279a53-9305-496c-9d26-62ae442c2798 Germany
1ea5d937-ecd0-4559-9fe9-4dc38df96611 Estonia
023d825f-b2a3-4d5f-a718-1161ced66291 Netherlands
cc124eb7-8bb2-4e2d-9405-74d797f4f1ff Greece
e0420150-375e-41cd-9436-79411c7bca3d Sweden
8e20c20b-8afe-4cb2-9932-61b3f7925cc8 France
e8a67dd6-a6fa-4b14-827d-98de732a9ccb Spain
fceed05d-ce01-4234-9462-7898df6ff20e Croatia
6523b815-2c68-4303-8ae2-605f6d02a81d Norway
630f06eb-628a-4754-8bd2-f2fb4707afd5 Portugal
07edfdb5-fc89-4d19-bb53-51d576e83815 Sweden
9a30dbc5-f9c2-4e75-9457-0b677b114712 Poland
92483407-8edc-442a-99c8-b7144dc697ce Belgium
820365c8-0139-4fb0-a9a4-cdf24360f58f Poland
72574a5e-7a6e-4e83-ba43-f1b800681c6e Germany
c19ecd4e-8600-4fb8-82b4-eafaa8f44f26 Finland
c6157497-950f-418b-87a7-03e1831f32e9 Bulgaria
4396b637-cbac-43d3-beb4-a51c0081d20a France
3d6424d4-8806-4fc7-b9ff-270d37d5ce2c Hungary
b7f5e505-e327-4a9e-9d05-cf8e68e7c544 Belgium
1c6cd452-1138-4a61-9a8e-d0189498d8c5 Germany
a2c2ae7b-0adf-401f-a370-8297c1713a0f Czech Republic
d384edc1-1c7e-40ac-a5e3-01d02d9bba2b Germany
f2331ec6-ecbc-460b-98ff-e5f222d45d27 Denmark
2f6ff324-b75a-414f-9f45-e31d80dd9f05 Hungary
bb215159-b91a-4908-9f18-1de006a7da21 Poland

Certificates and Declarations

CB Certificate:
cUL Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
23 mm
Package Level 1 Depth / Length:
82 mm
Package Level 1 Height:
82 mm
Package Level 1 Gross Weight:
0.118 kg
Package Level 1 EAN:
4013614348068

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001447 - (Fill) level monitoring relay
ETIM 8:
EC001447 - (Fill) level monitoring relay
ETIM 9:
EC001447 - (Fill) level monitoring relay
eClass:
V11.0 : 27371813
UNSPSC:
39122331
E-Number (Finland):
2712848
E-Number (Norway):
4187267
E-Number (Sweden):
3860804
Price on request
Ask for quote


Notify Me When Available

Ordering

EAN:
4013614348068
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
78 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.106 kg

Technical

Function:
Draining monitoring
Sub-Function:
Dry running protection
Number of Electrodes:
2
Measuring Range:
0 ... 100 kΩ
Rated Control Supply Voltage (Us):
110 ... 130 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 n/o contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Measuring Circuit / Output Circuit 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 250 V
Supply Circuit / Measuring Circuit 250 V
Supply Circuit / Output Circuit 250 V
Measuring Circuit / Output Circuit 250 V
Supply Circuit / Measuring Circuit 250 V
Supply Circuit / Output Circuit 250 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Short-Circuit Protective Devices:
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
10 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Tightening Torque UL/CSA:
7.08 in·lb

Environmental

Ambient Air Temperature:
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
667e80f9-dcc6-4d48-a0f8-792cb25f5614 Germany
Simplified SCIP:
c6157497-950f-418b-87a7-03e1831f32e9 Bulgaria
4396b637-cbac-43d3-beb4-a51c0081d20a France
3d6424d4-8806-4fc7-b9ff-270d37d5ce2c Hungary
b7f5e505-e327-4a9e-9d05-cf8e68e7c544 Belgium
1c6cd452-1138-4a61-9a8e-d0189498d8c5 Germany
a2c2ae7b-0adf-401f-a370-8297c1713a0f Czech Republic
d384edc1-1c7e-40ac-a5e3-01d02d9bba2b Germany
f2331ec6-ecbc-460b-98ff-e5f222d45d27 Denmark
2f6ff324-b75a-414f-9f45-e31d80dd9f05 Hungary
bb215159-b91a-4908-9f18-1de006a7da21 Poland
f72bad55-6620-44ac-8610-783d84f31ed8 Italy
3c279a53-9305-496c-9d26-62ae442c2798 Germany
1ea5d937-ecd0-4559-9fe9-4dc38df96611 Estonia
023d825f-b2a3-4d5f-a718-1161ced66291 Netherlands
cc124eb7-8bb2-4e2d-9405-74d797f4f1ff Greece
e0420150-375e-41cd-9436-79411c7bca3d Sweden
8e20c20b-8afe-4cb2-9932-61b3f7925cc8 France
e8a67dd6-a6fa-4b14-827d-98de732a9ccb Spain
fceed05d-ce01-4234-9462-7898df6ff20e Croatia
6523b815-2c68-4303-8ae2-605f6d02a81d Norway
630f06eb-628a-4754-8bd2-f2fb4707afd5 Portugal
07edfdb5-fc89-4d19-bb53-51d576e83815 Sweden
9a30dbc5-f9c2-4e75-9457-0b677b114712 Poland
92483407-8edc-442a-99c8-b7144dc697ce Belgium
820365c8-0139-4fb0-a9a4-cdf24360f58f Poland
72574a5e-7a6e-4e83-ba43-f1b800681c6e Germany
c19ecd4e-8600-4fb8-82b4-eafaa8f44f26 Finland
c6157497-950f-418b-87a7-03e1831f32e9 Bulgaria
4396b637-cbac-43d3-beb4-a51c0081d20a France
3d6424d4-8806-4fc7-b9ff-270d37d5ce2c Hungary
b7f5e505-e327-4a9e-9d05-cf8e68e7c544 Belgium
1c6cd452-1138-4a61-9a8e-d0189498d8c5 Germany
a2c2ae7b-0adf-401f-a370-8297c1713a0f Czech Republic
d384edc1-1c7e-40ac-a5e3-01d02d9bba2b Germany
f2331ec6-ecbc-460b-98ff-e5f222d45d27 Denmark
2f6ff324-b75a-414f-9f45-e31d80dd9f05 Hungary
bb215159-b91a-4908-9f18-1de006a7da21 Poland

Certificates and Declarations

CB Certificate:
cUL Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
23 mm
Package Level 1 Depth / Length:
82 mm
Package Level 1 Height:
82 mm
Package Level 1 Gross Weight:
0.118 kg
Package Level 1 EAN:
4013614348068

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001447 - (Fill) level monitoring relay
ETIM 8:
EC001447 - (Fill) level monitoring relay
ETIM 9:
EC001447 - (Fill) level monitoring relay
eClass:
V11.0 : 27371813
UNSPSC:
39122331
E-Number (Finland):
2712848
E-Number (Norway):
4187267
E-Number (Sweden):
3860804
Object Classification Code:
B
ETIM 7:
EC001447 - (Fill) level monitoring relay
ETIM 8:
EC001447 - (Fill) level monitoring relay
ETIM 9:
EC001447 - (Fill) level monitoring relay
eClass:
V11.0 : 27371813
UNSPSC:
39122331
E-Number (Finland):
2712848
E-Number (Norway):
4187267
E-Number (Sweden):
3860804

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
