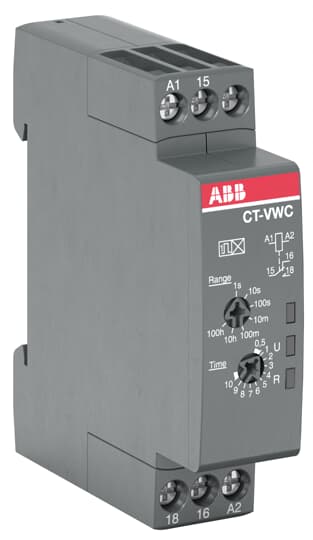

1SVR508130R0000 ABB - CT-VWC.12

Ordering

EAN:
4013614534270
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
17.5 mm
Product Net Height:
70 mm
Product Net Depth / Length:
63 mm
Product Net Weight:
0.052 kg

Technical

Timer Relay Type:
Impulse ON
Time Range:
0.05 s ... 100 h
Rated Control Supply Voltage (Us):
24 ... 240 V AC
24 ... 48 V DC
24 ... 240 V AC
24 ... 48 V DC
Rated Operational Voltage:
Auxiliary Circuit 250 V
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Output:
1 c/o (SPDT) contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
100 mA
12 V
100 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 1.5 mm²
Tightening Torque:
0.5 ... 0.8 N·m
Wire Stripping Length:
7 mm
Recommended Screw Driver:
0.8 x 4
Pozidriv 1
0.8 x 4
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC 61812-1
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC 61812-1
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-16 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-16 AWG
Tightening Torque UL/CSA:
4.43 ... 7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-2

Environmental

Ambient Air Temperature:
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
dbdd7999-9686-4053-88bb-fb6c81e41bb6 Germany
Simplified SCIP:
24fb8790-b931-4428-b3dc-36683b2648a0 Germany
cd07e955-ecc7-41ba-969f-f20803b205ee Belgium
109683cd-f3e9-44ad-88eb-7898f2cbf941 Spain
06fdf2ae-3acd-4c71-bbe4-e857c2188a0e France
b5186cd0-1ac4-484e-952e-c7fea90d3c45 Poland
455eaf85-6f94-41c9-9c51-0493aa4132ca Netherlands
3e864fe9-91a0-4268-acca-88127a5dde94 Hungary
f2ce3af7-1088-41b3-ba78-0542cbbdb437 Estonia
38fe5980-d450-4495-a1c9-4592ffdfcc6d Norway
1faffecb-5c74-4bb3-9123-22fe6f18515b Poland
5616578c-b395-4e73-8dfc-ca83692d429b Greece
090f5d34-1ced-43c1-b7ed-10548dfe4256 Finland
960b0c55-55a9-4dee-ad7f-abe26097141d Belgium
5f6d48c1-a1b7-4aa1-901c-966cac26614b Italy
d8bab652-9b04-4ade-bcea-bb321f069dae Portugal
de479f0b-b5c3-4c5c-b198-42a28d6f6457 Sweden
07c191a9-85a5-40ae-b894-c56227132ac3 Poland
450af7dd-d8ef-4c85-877d-08c31062b0c1 Bulgaria
7cab38f8-0aa7-482f-8edb-ac6caac4e80d Germany
51a0118d-935c-4fb0-b1ea-59e510351399 Denmark
b0b3ea06-da89-45e9-9bf0-8b12a13d745a Croatia
d986fb41-bd27-42d6-bda7-dd4ccb73ecb2 Czech Republic
ab72255a-6f6f-4c69-b868-10599f3ad7a6 Germany
1b665a4a-5ca9-4cd2-83a6-35c8e52e2f6d Germany
beac6dbb-4bfa-4a50-b261-7bac983db396 Sweden
8af81c19-88f6-4bd3-b6da-f3f74e2c780b France
99b959b5-105d-4619-8d12-4f6a33bf11ce Hungary
24fb8790-b931-4428-b3dc-36683b2648a0 Germany
cd07e955-ecc7-41ba-969f-f20803b205ee Belgium
109683cd-f3e9-44ad-88eb-7898f2cbf941 Spain
06fdf2ae-3acd-4c71-bbe4-e857c2188a0e France
b5186cd0-1ac4-484e-952e-c7fea90d3c45 Poland
455eaf85-6f94-41c9-9c51-0493aa4132ca Netherlands
3e864fe9-91a0-4268-acca-88127a5dde94 Hungary
f2ce3af7-1088-41b3-ba78-0542cbbdb437 Estonia
38fe5980-d450-4495-a1c9-4592ffdfcc6d Norway
1faffecb-5c74-4bb3-9123-22fe6f18515b Poland

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
89 mm
Package Level 1 Depth / Length:
20 mm
Package Level 1 Height:
65 mm
Package Level 1 Gross Weight:
0.065 kg
Package Level 1 EAN:
4013614534270

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712831
E-Number (Norway):
4189323
E-Number (Sweden):
4030222
Price on request
Ask for quote


Notify Me When Available
