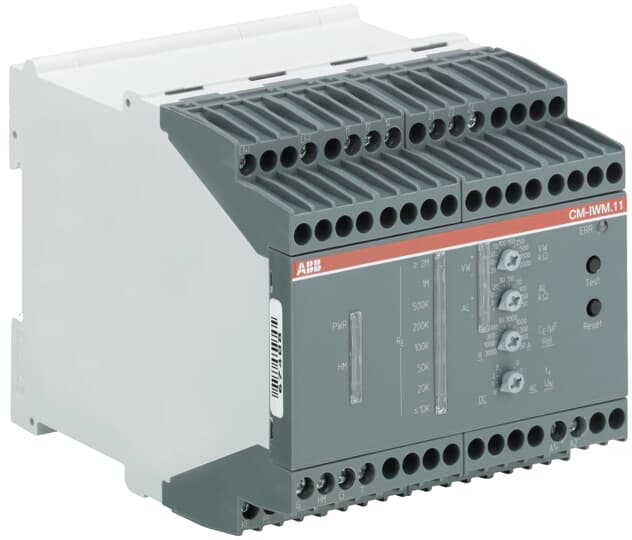

1SVR470670R1100 ABB - CM-IWM.11

Ordering

EAN:
4013614515323
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Dimensions

Product Net Width:
90 mm
Product Net Height:
90 mm
Product Net Depth / Length:
121 mm
Product Net Weight:
0.5 kg

Technical

Function:
Unearthed mixed AC / DC systems
Up to 1500 V DC
Up to 1100 V AC
Unearthed AC systems
Unearthed DC systems
Unearthed mixed AC / DC systems
Up to 1500 V DC
Up to 1100 V AC
Unearthed AC systems
Unearthed DC systems
Measuring Range:
20 ... 2000 kΩ
Rated Control Supply Voltage (Us):
24 V DC
Rated Frequency (f):
Measuring Circuit 16 ... 1000 Hz
Measuring Circuit DC Hz
Supply Circuit DC
Measuring Circuit 16 ... 1000 Hz
Measuring Circuit DC Hz
Supply Circuit DC
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 8 kV
Supply Circuit / Measuring Circuit 8 kV
Supply Circuit / Output Circuit 8 kV
Measuring Circuit / Output Circuit 8 kV
Supply Circuit / Measuring Circuit 8 kV
Supply Circuit / Output Circuit 8 kV
Degree of Protection:
Housing IP20
Pollution Degree:
2
System Leakage Capacitance (CE):
3000 µF
Connecting Capacity:
Flexible with Insulated Ferrule 1x 2.5 mm²
Flexible with Insulated Ferrule 2x 1.5 mm²
Rigid 1x 4 mm²
Flexible with Insulated Ferrule 1x 2.5 mm²
Flexible with Insulated Ferrule 2x 1.5 mm²
Rigid 1x 4 mm²
Tightening Torque:
0.8 N·m
Wire Stripping Length:
8 mm
Standards:
IEC/EN 63000
IEC/EN 61557-8
IEC/EN 63000
IEC/EN 61557-8

Environmental

Ambient Air Temperature:
Storage -40 ... +70 °C
Maximum Operating Altitude Permissible:
Without Derating 4000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
Package Level 1 Depth / Length:
126 mm
Package Level 1 Height:
145 mm
Package Level 1 Gross Weight:
0.62 kg
Package Level 1 EAN:
4013614515323

External Classifications and Standards

ETIM 7:
EC001444 - Insulation and earth fault monitoring relay
ETIM 8:
EC001444 - Insulation and earth fault monitoring relay
ETIM 9:
EC001444 - Insulation and earth fault monitoring relay
eClass:
V11.0 : 27371807
E-Number (Finland):
2712549
Price on request
Ask for quote


Notify Me When Available

Ordering

EAN:
4013614515323
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Dimensions

Product Net Width:
90 mm
Product Net Height:
90 mm
Product Net Depth / Length:
121 mm
Product Net Weight:
0.5 kg

Technical

Function:
Unearthed mixed AC / DC systems
Up to 1500 V DC
Up to 1100 V AC
Unearthed AC systems
Unearthed DC systems
Unearthed mixed AC / DC systems
Up to 1500 V DC
Up to 1100 V AC
Unearthed AC systems
Unearthed DC systems
Measuring Range:
20 ... 2000 kΩ
Rated Control Supply Voltage (Us):
24 V DC
Rated Frequency (f):
Measuring Circuit 16 ... 1000 Hz
Measuring Circuit DC Hz
Supply Circuit DC
Measuring Circuit 16 ... 1000 Hz
Measuring Circuit DC Hz
Supply Circuit DC
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 8 kV
Supply Circuit / Measuring Circuit 8 kV
Supply Circuit / Output Circuit 8 kV
Measuring Circuit / Output Circuit 8 kV
Supply Circuit / Measuring Circuit 8 kV
Supply Circuit / Output Circuit 8 kV
Degree of Protection:
Housing IP20
Pollution Degree:
2
System Leakage Capacitance (CE):
3000 µF
Connecting Capacity:
Flexible with Insulated Ferrule 1x 2.5 mm²
Flexible with Insulated Ferrule 2x 1.5 mm²
Rigid 1x 4 mm²
Flexible with Insulated Ferrule 1x 2.5 mm²
Flexible with Insulated Ferrule 2x 1.5 mm²
Rigid 1x 4 mm²
Tightening Torque:
0.8 N·m
Wire Stripping Length:
8 mm
Standards:
IEC/EN 63000
IEC/EN 61557-8
IEC/EN 63000
IEC/EN 61557-8

Environmental

Ambient Air Temperature:
Storage -40 ... +70 °C
Maximum Operating Altitude Permissible:
Without Derating 4000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
Package Level 1 Depth / Length:
126 mm
Package Level 1 Height:
145 mm
Package Level 1 Gross Weight:
0.62 kg
Package Level 1 EAN:
4013614515323

External Classifications and Standards

ETIM 7:
EC001444 - Insulation and earth fault monitoring relay
ETIM 8:
EC001444 - Insulation and earth fault monitoring relay
ETIM 9:
EC001444 - Insulation and earth fault monitoring relay
eClass:
V11.0 : 27371807
E-Number (Finland):
2712549
ETIM 7:
EC001444 - Insulation and earth fault monitoring relay
ETIM 8:
EC001444 - Insulation and earth fault monitoring relay
ETIM 9:
EC001444 - Insulation and earth fault monitoring relay
eClass:
V11.0 : 27371807
E-Number (Finland):
2712549
