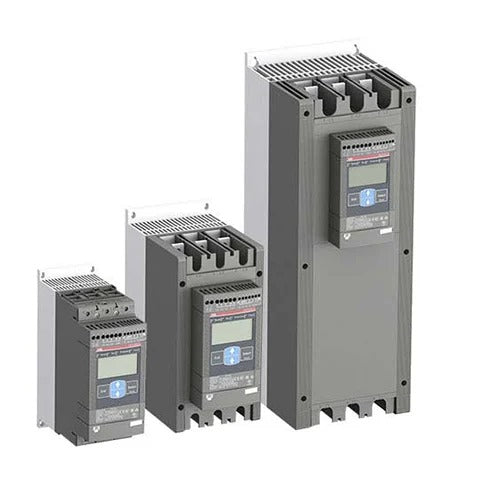

1SFA892004R1002 ABB - PSS44/76-500L

1SFA892004R1002 ABB - PSS44/76-500L

Additional Information

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Ambient Temperature:
-25 ... 60 °C
By-pass Signal Relay:
Yes
CN8:
8503 00 99
Communication:
No
Conflict Minerals Reporting Template (CMRT):
Connecting Capacity Control Circuit:
Rigid 2.5 mm²
Connecting Capacity Main Circuit:
Rigid 1/2 x 2.5 ... 16 mm²
Connecting Capacity Supply Circuit:
Rigid 2.5
Conventional Free-air Thermal Current (Ith):
Signal Relays 5 A
Current Limit Function:
1.5 ... 4 xIe if current transformer is connected
Current Range:
18 ... 44 A
Customs Tariff Number:
8503009999
Data Sheet, Technical Information:
Declaration of Conformity - CE:
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
EAN:
7320500206607
EPLAN Product Categorization:
Main Product WITH Accessories
ETIM 4:
EC002572 - Electronic motor control and protection device
ETIM 5:
EC002572 - Electronic motor control and protection device
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
EU Data Act Applicability and Compliance:
2025 Applicable - Pending Assessment
Environmental Information:
Fault Signal Relay:
Yes, NO contact
Initial Voltage During Start:
30 ... 70 %
Integrated Electronic Overload:
No
Invoice Description:
SOFTSTARTER#PSS44/76-500L
Minimum Order Quantity:
1 piece
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
30
Object Classification Code:
Q
Order Code US and Canada:
PSS44/76-500L
Order Multiple:
1
Overload Protection:
Recommended TA75DU 18 ... 44
Overload Signal Relay:
No
Package Level 1 Depth / Length:
320 mm
Package Level 1 EAN:
7320500206607
Package Level 1 Gross Weight:
3 kg
Package Level 1 Height:
235 mm
Package Level 1 Units:
1 piece
Package Level 1 Width:
175 mm
Power Consumption (@Pcons):
9 W
Power Loss:
142 W
Product Main Type:
PSS44/76
Product Name:
Softstarter
Product Net Depth / Length:
162 mm
Product Net Height:
200 mm
Product Net Weight:
3.2 kg
Product Net Width:
120 mm
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Rated Control Circuit Voltage (Uc):
DC Operation 24 V
Rated Control Supply Voltage (Us):
220 ... 240 V AC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Current - In-Line Connection (Ie):
44 A
Rated Operational Current - Inside Delta Connection:
76 A
Rated Operational Current AC-15 (Ie):
(250 V) 1.5 A
Rated Operational Power - In-Line Connection (Pe):
(230 V) 11 kW
(400 V) 22 kW
(500 V) 25 kW
(230 V) 11 kW
(400 V) 22 kW
(500 V) 25 kW
Rated Operational Power - Inside Delta Connection:
at 230 V 22 kW
at 400 V 37 kW
at 500 V 45 kW
at 230 V 22 kW
at 400 V 37 kW
at 500 V 45 kW
Rated Operational Voltage:
Main Circuit 208 ... 500 V AC
RoHS Date:
0605 2
RoHS Information:
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Run Signal Relay:
No
Selling Unit of Measure:
piece
Service Factor Percentage:
115 %
Short Description:
SOFTSTARTER#PSS44/76-500L
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Fault (LED):
Red
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Step Down Voltage Special Ramp:
No %
Switch for Inside Delta Connection:
Yes
Switch for Kick Start (Kick):
No
Terminal Type:
Screw Terminals
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 2.6 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 2.6 N·m
Supply Circuit 0.5 N·m
Type of Start:
normal
UNSPSC:
39121521
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.0 : 27370907
