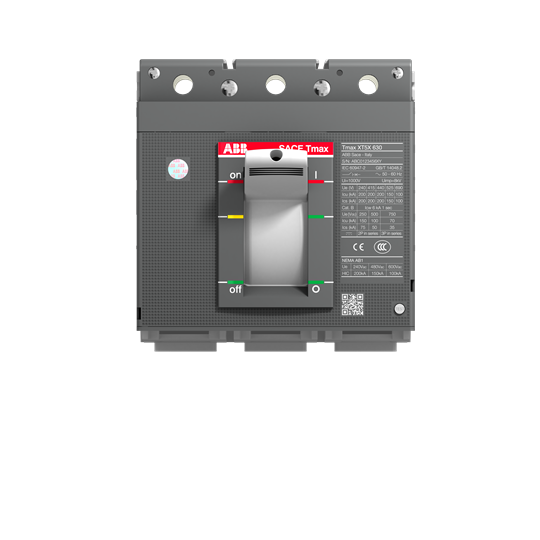

1SDA100551R1 ABB - XT5N 630 BREAKING PART 3p F F

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 59.6 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
6ed89b80-406d-4fdd-821b-b305746782d7 Italy
Simplified SCIP:
1685e0f4-29e7-4e28-b7e9-d866b7e356d9 Germany
28fc462f-0318-4a04-8768-7aadf00941cf Netherlands
33b888c1-f359-4d7e-ac0d-bec8ed2d5181 Spain
896785e8-9a96-41ff-9551-c35bf9d80daa Netherlands
75147bab-0cd4-4076-810c-0e60e34861a4 Poland
3f1bcb65-a96a-4c56-9e20-37aea4ff8af2 Norway
f257a8e5-5fc8-47cf-96b4-13324e19ad7d Finland
3d7fe2f2-13b9-4768-a2ec-0dccbc5da0b9 Netherlands
cb3b3255-fc76-42ec-8ac4-9aa235cebf05 Germany
4ecb141e-522f-4e46-99a3-0b7d06fb027a Denmark
06275461-d62d-431b-ac05-6c7bf5694ff1 Germany
9ae0af0d-d404-4c25-a23c-d07f95e59fa8 Croatia
a12dc1e4-45b2-40ef-8ac9-9e51f6592254 Czech Republic
c2a09c7b-df61-4923-8769-6f61e68a534d Poland
7a53a9da-d9c2-4ace-88bb-ca24b23e214a Netherlands
04870cd6-1382-4f91-b296-a03c24c35270 Netherlands
c9a8f67d-dd11-49d4-964a-17e3d384eee1 Estonia
a0353b7d-8cc3-493b-9d5e-75dc8d77555a Portugal
13ccca24-d1bb-43d0-8126-1a7c07844227 Bulgaria
5888fa81-8d49-4c3a-90a1-ce176e330e19 Sweden
28fc8b75-e399-4bbb-84bd-d63658197b0f Poland
4b8bc105-67c4-4aaa-8abb-53cb9dc6ed59 France
5b29fef9-6158-4d51-a1ce-c3cd29512831 Sweden
901067a5-6a0a-41a4-8ba2-892bf2ca2551 Greece
e5a98e56-3c8d-4206-a985-0f8494277aa6 Germany
457b8b69-e222-4236-bc39-ce2b43580c0d Germany
d1998aaa-b188-4f92-8690-33c1a37d5cfa France
1685e0f4-29e7-4e28-b7e9-d866b7e356d9 Germany
28fc462f-0318-4a04-8768-7aadf00941cf Netherlands
33b888c1-f359-4d7e-ac0d-bec8ed2d5181 Spain
896785e8-9a96-41ff-9551-c35bf9d80daa Netherlands
75147bab-0cd4-4076-810c-0e60e34861a4 Poland
3f1bcb65-a96a-4c56-9e20-37aea4ff8af2 Norway
f257a8e5-5fc8-47cf-96b4-13324e19ad7d Finland
3d7fe2f2-13b9-4768-a2ec-0dccbc5da0b9 Netherlands
cb3b3255-fc76-42ec-8ac4-9aa235cebf05 Germany
4ecb141e-522f-4e46-99a3-0b7d06fb027a Denmark

Environmental

Environmental Information:

Ordering

E-Number (Finland):
3641398
E-Number (Norway):
4380324
EAN:
8056221006279
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.425 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
3.8 kg
Package Level 1 EAN:
8056221006279

Additional Information

Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Breaking Part
Version:
F

Technical

Electrical Durability:
5000 cycle
60 cycles per hour
5000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Order Multiple:
1 piece
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
750 V DC
690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 2 Poles in Series 25 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 25 kA
Rated Short-time Withstand Current Low Voltage (Icw):
6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 2 Poles in Series 25 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 25 kA
Rated Uninterrupted Current (Iu):
630 A
Short-Circuit Performance Level:
N
Standards:
IEC60947-2
Sub-type:
XT5
Terminal Connection Type:
Front

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
