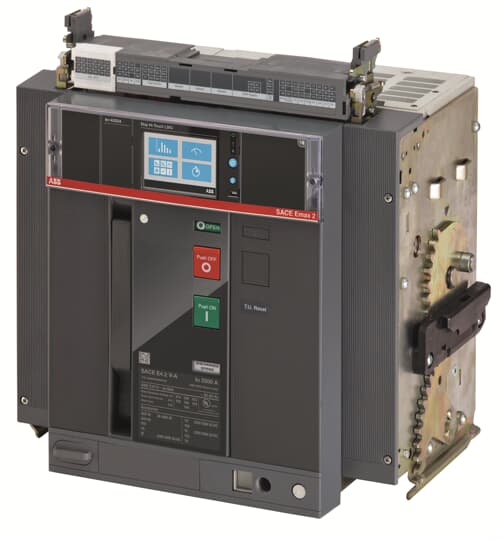

1SDA078373R1 ABB - E4.2H-A 2500 Ekip Touch LSIG 3p WMP

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 79.3 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
2eb16f84-c470-47ea-861a-2f73cc18e2fb Italy
Simplified SCIP:
14937b07-ccd1-4004-b46a-062bff15b141 Belgium
d3e8a340-f784-43be-8016-b1b23028ab3d Spain
4ee54f7d-6608-4994-a9cb-8f5471d6851c Poland
d3b32685-84dd-4b93-8c63-09729c537486 France
b966d652-4516-4212-b385-9fdda7e2c60c Sweden
f0c251dd-6570-4c9f-bc90-fdd54b74802b Germany
f83d182b-8ed1-4d6b-b33c-4fc8d377f1be Sweden
4e65e13a-640f-438d-9250-c459b3f1dedc Estonia
83a87389-bcee-40d9-b7ac-34a7cc3cbe75 Poland
64d6b94d-592d-4f4c-85aa-11e0f9746076 France
f2814c59-9e9f-4309-9321-9c3efd2528d2 Hungary
5bc6a0aa-f9ac-49c2-8599-47aa11ffa7a0 Hungary
4e65e13a-640f-438d-9250-c459b3f1dedc Estonia
d391d5a5-26f9-4d0b-b451-856c71ffd09d Czech Republic
1c214c8a-17a5-4ff2-9450-fb5168fc29a2 Netherlands
9c556352-199e-4316-8df4-cb3e1920c3fb Bulgaria
83a87389-bcee-40d9-b7ac-34a7cc3cbe75 Poland
c091023e-b313-478c-b5ee-4961404e1b64 Portugal
4c72e121-684a-4cce-b372-ceba28818a4d Greece
05437676-6f47-4f83-80d7-5e1fb0ea0683 Poland
b966d652-4516-4212-b385-9fdda7e2c60c Sweden
0c952f34-be3f-448a-b560-fc630bb0ea9f Germany
de69df27-7b0a-4858-bb42-7f31f80a697c Germany
1ced01f5-55bb-4eb7-a9aa-a753eb350a1a Belgium
43959ecc-2044-402b-85fc-b7d9bdabf1f4 Germany
456dbe76-227d-4e78-b0c3-7636f756081a Finland
4c72e121-684a-4cce-b372-ceba28818a4d Greece
0c952f34-be3f-448a-b560-fc630bb0ea9f Germany
ae294a14-d2be-4aba-bcde-619caab71c3a Croatia
fa5182e8-afc4-40b3-8648-6b0cd5c887c3 Denmark
d391d5a5-26f9-4d0b-b451-856c71ffd09d Czech Republic
4ee54f7d-6608-4994-a9cb-8f5471d6851c Poland
05437676-6f47-4f83-80d7-5e1fb0ea0683 Poland
fa5182e8-afc4-40b3-8648-6b0cd5c887c3 Denmark
9c556352-199e-4316-8df4-cb3e1920c3fb Bulgaria
de69df27-7b0a-4858-bb42-7f31f80a697c Germany
a4dd7ecb-75b4-46f0-bf85-500d4b43fa5a Norway
1ced01f5-55bb-4eb7-a9aa-a753eb350a1a Belgium
14937b07-ccd1-4004-b46a-062bff15b141 Belgium
64d6b94d-592d-4f4c-85aa-11e0f9746076 France
28cd0955-d458-4ef0-b5ea-999788b4b532 Germany
f2814c59-9e9f-4309-9321-9c3efd2528d2 Hungary
d3e8a340-f784-43be-8016-b1b23028ab3d Spain
c091023e-b313-478c-b5ee-4961404e1b64 Portugal
43959ecc-2044-402b-85fc-b7d9bdabf1f4 Germany
456dbe76-227d-4e78-b0c3-7636f756081a Finland
d3b32685-84dd-4b93-8c63-09729c537486 France
a4dd7ecb-75b4-46f0-bf85-500d4b43fa5a Norway
f83d182b-8ed1-4d6b-b33c-4fc8d377f1be Sweden
ae294a14-d2be-4aba-bcde-619caab71c3a Croatia
1c214c8a-17a5-4ff2-9450-fb5168fc29a2 Netherlands
f0c251dd-6570-4c9f-bc90-fdd54b74802b Germany
5bc6a0aa-f9ac-49c2-8599-47aa11ffa7a0 Hungary
28cd0955-d458-4ef0-b5ea-999788b4b532 Germany
14937b07-ccd1-4004-b46a-062bff15b141 Belgium
d3e8a340-f784-43be-8016-b1b23028ab3d Spain
4ee54f7d-6608-4994-a9cb-8f5471d6851c Poland
d3b32685-84dd-4b93-8c63-09729c537486 France
b966d652-4516-4212-b385-9fdda7e2c60c Sweden
f0c251dd-6570-4c9f-bc90-fdd54b74802b Germany
f83d182b-8ed1-4d6b-b33c-4fc8d377f1be Sweden
4e65e13a-640f-438d-9250-c459b3f1dedc Estonia
83a87389-bcee-40d9-b7ac-34a7cc3cbe75 Poland
64d6b94d-592d-4f4c-85aa-11e0f9746076 France

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
Z4HGULAF000A000000XX
EAN:
8015644847968
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
425 mm
Product Net Height:
425 mm
Product Net Depth / Length:
393 mm
Product Net Weight:
85 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
610 mm
Package Level 1 Depth / Length:
615 mm
Package Level 1 Gross Weight:
100 kg
Package Level 1 EAN:
8015644847968

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W

Technical

Current Type:
AC
Electrical Durability:
Ue =< 508 V 8000 cycle
Ue = 508 ... 635 V 8000 cycle
20 cycles per hour
Ue =< 508 V 8000 cycle
Ue = 508 ... 635 V 8000 cycle
20 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 410 W
Rated Current (In):
2500 A
Rated Insulation Voltage (Ui):
AC 635 V
Rated Operational Voltage:
600 V AC
Rated Voltage (Ur):
600 V
Release:
Ekip Touch LSIG
Release Type:
EL
Short-Circuit Performance Level:
H
Standards:
UL
Sub-type:
E4.2

Technical UL/CSA

Interrupting Rating acc. to UL1066:
(254 V) 85 kA
(508 V) 85 kA
(635 V) 85 kA
(254 V) 85 kA
(508 V) 85 kA
(635 V) 85 kA

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
