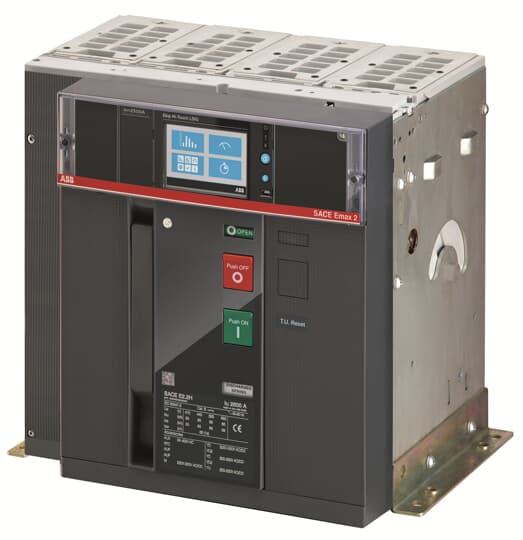

1SDA071548R1 ABB- E2.2H 800 Ekip Hi-Touch LSI 4p F HR

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 79.1 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
80828c5c-34ff-44cf-9751-d8c6bc4e6d95 Italy
Simplified SCIP:
2dce2bdb-b9e8-4801-95fa-8045d2bd5cbc Germany
8978011c-4a9f-4227-b6a1-c5115fd27ba5 Sweden
6e8afd27-b512-47ae-ad0f-6f1e7f580cba Portugal
28663e31-06c2-4802-b74f-4da073d51350 Poland
0c6fc08e-da49-455b-95da-fc36cff195cc Poland
902c14ac-4113-4a60-bec7-a232632dbeb1 Czech Republic
9fe0c174-8f5d-46dc-bd01-c6e81a8c4fb6 Belgium
dbed2743-afd1-4f14-afe5-b6c1d264dfa2 Finland
f42a73c2-3cd7-4702-aa83-749d169f2f6b Greece
edcc67d3-eb99-4a01-93e0-69621c8cb527 Netherlands
c4d68e50-b7c0-4082-86b8-65b21226504a Estonia
3dcfb7fe-8293-451d-87a3-67ab9e804334 Sweden
19c01223-eb49-4df3-a619-7c57c0fce625 Bulgaria
d084ed44-7f00-4aea-94f3-a052a4ad8dae France
2327f261-adfa-46bb-ba63-e4985515a65d Croatia
34dafd24-c09f-4b75-b962-8284a186aed0 Germany
227e02d5-15c6-4387-bea5-e3f2313daf83 Germany
2f9e0815-6f28-43c4-aae0-2d9e22c136f8 Germany
4c74e5c8-94fa-4975-9bac-ddab0159dc7c Germany
7976933a-e361-4118-8e0d-8850cd4a6af2 Denmark
1965c8f7-706b-4047-8f5c-f4a3b6c90e7a France
26a961e9-d85c-405e-9303-2fe89b95203a Norway
3618cdf6-c1cb-4cde-ae85-d2c1739c61f0 Poland
9a2caa11-5a1c-4091-afde-d33244cdca51 Hungary
be3f130e-ca54-42b4-911a-c48f89387209 Hungary
b6a09759-2e2a-4634-b6f8-327366cc6c4c Belgium
68940a30-b952-459c-a2d5-1bb66cf6fbcb Spain
2dce2bdb-b9e8-4801-95fa-8045d2bd5cbc Germany
8978011c-4a9f-4227-b6a1-c5115fd27ba5 Sweden
6e8afd27-b512-47ae-ad0f-6f1e7f580cba Portugal
28663e31-06c2-4802-b74f-4da073d51350 Poland
0c6fc08e-da49-455b-95da-fc36cff195cc Poland
902c14ac-4113-4a60-bec7-a232632dbeb1 Czech Republic
9fe0c174-8f5d-46dc-bd01-c6e81a8c4fb6 Belgium
dbed2743-afd1-4f14-afe5-b6c1d264dfa2 Finland
f42a73c2-3cd7-4702-aa83-749d169f2f6b Greece
edcc67d3-eb99-4a01-93e0-69621c8cb527 Netherlands

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZBHPEFBJ200A000000XX
EAN:
8015644753986
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
366 mm
Product Net Height:
371 mm
Product Net Depth / Length:
270 mm
Product Net Weight:
53 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
610 mm
Package Level 1 Depth / Length:
615 mm
Package Level 1 Gross Weight:
58 kg
Package Level 1 EAN:
8015644753986

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Ue =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu]):
100 %
Number of Poles:
4P
Power Loss:
34 W
Rated Current (In):
800 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 85 kA
for 3 s 66 kA
for 1 s 85 kA
for 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 85 kA
(690 V AC) 85 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 85 kA
(690 V AC) 85 kA
Rated Uninterrupted Current (Iu):
800 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M12
Release:
Ekip Hi-Touch LSI
Release Type:
EL
Short-Circuit Performance Level:
H
Standards:
IEC
Sub-type:
E2.2
Suitable for IT Networks:
Yes, 690V
Terminal Connection Type:
Rear flat Horizontal
Terminal Type:
Bolt
Tightening Torque:
70 N·m

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
