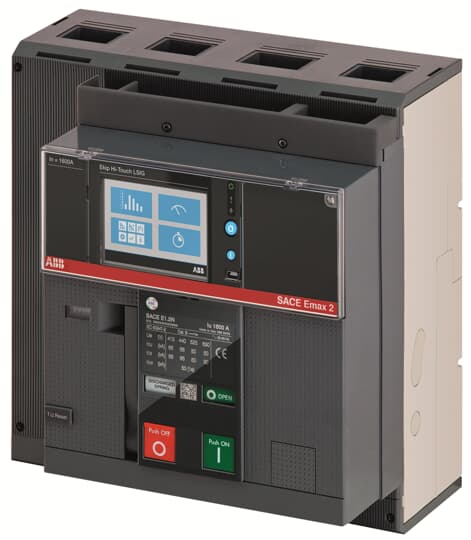

1SDA071346R1 ABB - E1.2C 630 Ekip Touch LSIG 4p F F

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
759caf62-7632-4c6b-bbc0-6d4946f2a7f5 Italy
Simplified SCIP:
a47782a2-342d-4681-9e25-9735abe01842 Germany
3435cc0e-1a70-4a6f-9a30-dfaac91324cc France
cf8877a0-54c2-48c3-bb2e-06107fcce08a Germany
9f07f429-e819-4f26-9596-f1728fc46b85 Poland
f87231ca-4cbb-454f-ba10-52ccda84750b Sweden
4261c019-d384-4a5a-9b96-6d6fd6c4bf2e France
08427cd6-2864-47b7-97d5-29ba9d4d9226 Hungary
95d5be3b-163e-4137-ac02-ffcf7f2a902c Greece
62c337b3-24ca-404b-99c9-6c548abe4c5c Estonia
b3f3ab3f-3279-40c5-b2c5-9d48902a16a1 Poland
3435cc0e-1a70-4a6f-9a30-dfaac91324cc France
62c337b3-24ca-404b-99c9-6c548abe4c5c Estonia
125bdf73-34bd-474f-bfab-a1c22787363d Spain
ddad17af-1afc-4bf8-9920-b3be357ad175 Netherlands
e14c9282-d228-4a3a-a669-a991f7a36706 Sweden
349d5a30-3e83-4310-8c1e-bf34a087c64a Poland
ddad17af-1afc-4bf8-9920-b3be357ad175 Netherlands
b3f3ab3f-3279-40c5-b2c5-9d48902a16a1 Poland
757b000f-94fb-46d6-96fd-a007930293e2 Denmark
95d5be3b-163e-4137-ac02-ffcf7f2a902c Greece
7da9cee1-e7b4-4fb9-9a23-787df3d0b1c0 Germany
9f07f429-e819-4f26-9596-f1728fc46b85 Poland
349d5a30-3e83-4310-8c1e-bf34a087c64a Poland
3c56ba7b-eac4-425e-b162-823b5deaeee6 Hungary
7da9cee1-e7b4-4fb9-9a23-787df3d0b1c0 Germany
bde457ba-972e-4440-84ce-140e21fd0e25 Croatia
69aa94d9-9d50-4b4a-a960-6864adf7bf71 Portugal
23504454-b21c-4dc6-95f7-4ed9fe1b232f Belgium
32a1deee-b0b8-42aa-8bde-959e5548f6eb Germany
b0d560e4-4ea2-45df-9efa-24ca3878accc Bulgaria
757b000f-94fb-46d6-96fd-a007930293e2 Denmark
32a1deee-b0b8-42aa-8bde-959e5548f6eb Germany
23504454-b21c-4dc6-95f7-4ed9fe1b232f Belgium
826715d4-b636-4594-a692-e60db83e38de Belgium
15f59c30-3523-4c31-a3a3-a6b84b9d8674 Norway
2f9e8df5-7382-42e8-9b1c-f88fdeaf7d73 Finland
71ce48c4-ad9c-48e6-9fae-9141a7124b88 Germany
e14c9282-d228-4a3a-a669-a991f7a36706 Sweden
826715d4-b636-4594-a692-e60db83e38de Belgium
3c56ba7b-eac4-425e-b162-823b5deaeee6 Hungary
125bdf73-34bd-474f-bfab-a1c22787363d Spain
8a491f89-adef-4e01-a4fd-436c05d0e26e Czech Republic
b0d560e4-4ea2-45df-9efa-24ca3878accc Bulgaria
cf8877a0-54c2-48c3-bb2e-06107fcce08a Germany
4261c019-d384-4a5a-9b96-6d6fd6c4bf2e France
15f59c30-3523-4c31-a3a3-a6b84b9d8674 Norway
71ce48c4-ad9c-48e6-9fae-9141a7124b88 Germany
2f9e8df5-7382-42e8-9b1c-f88fdeaf7d73 Finland
8a491f89-adef-4e01-a4fd-436c05d0e26e Czech Republic
bde457ba-972e-4440-84ce-140e21fd0e25 Croatia
f87231ca-4cbb-454f-ba10-52ccda84750b Sweden
08427cd6-2864-47b7-97d5-29ba9d4d9226 Hungary
a47782a2-342d-4681-9e25-9735abe01842 Germany
69aa94d9-9d50-4b4a-a960-6864adf7bf71 Portugal
a47782a2-342d-4681-9e25-9735abe01842 Germany
3435cc0e-1a70-4a6f-9a30-dfaac91324cc France
cf8877a0-54c2-48c3-bb2e-06107fcce08a Germany
9f07f429-e819-4f26-9596-f1728fc46b85 Poland
f87231ca-4cbb-454f-ba10-52ccda84750b Sweden
4261c019-d384-4a5a-9b96-6d6fd6c4bf2e France
08427cd6-2864-47b7-97d5-29ba9d4d9226 Hungary
95d5be3b-163e-4137-ac02-ffcf7f2a902c Greece
62c337b3-24ca-404b-99c9-6c548abe4c5c Estonia
b3f3ab3f-3279-40c5-b2c5-9d48902a16a1 Poland

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZACNEEBF000A000000XX
EAN:
8015644751968
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
280 mm
Product Net Height:
296 mm
Product Net Depth / Length:
183 mm
Product Net Weight:
16 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
350 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
18 kg
Package Level 1 EAN:
8015644751968

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu]):
100 %
Number of Poles:
4P
Power Loss:
31 W
Rated Current (In):
630 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 50 kA
(230 V AC) 50 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 50 kA
(230 V AC) 50 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 42 kA
for 3 s 24 kA
for 1 s 42 kA
for 3 s 24 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu):
630 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M10
Release:
Ekip Touch LSIG
Release Type:
EL
Short-Circuit Performance Level:
C
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
45 N·m

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote


Notify Me When Available
