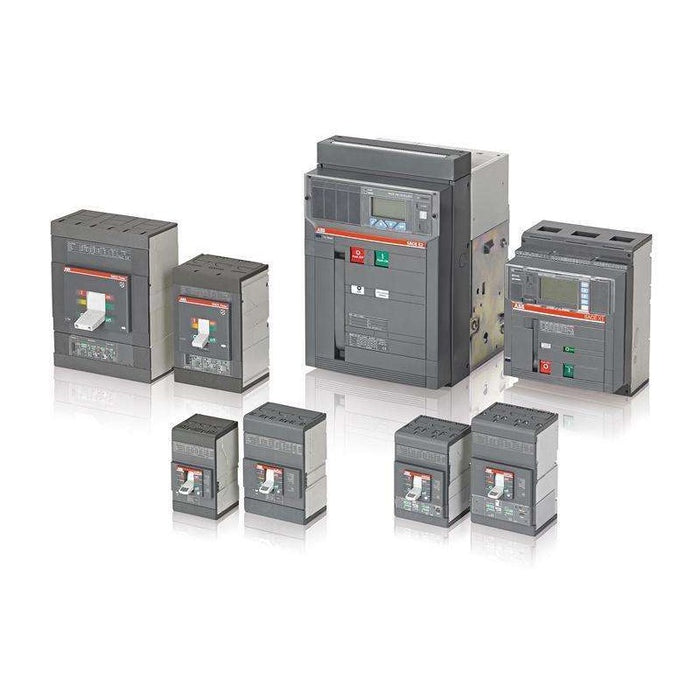

1SDA070802R1 ABB

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
08ff2976-7071-4351-a588-0d80023d1004 Italy
Simplified SCIP:
e9b9519b-dbd8-476b-8303-56c8db7fdbde Belgium
224822d3-c356-41eb-80e0-f3ebfd397c56 Belgium
c880df6e-9c91-47c7-8ca1-684f89227e42 Norway
875a1a1a-69c0-464d-8c04-cca40e29f37b Bulgaria
42bfb2a3-b9d2-47ec-ba45-4d6d9b931564 Germany
73ecc6ad-08e8-4fcd-8661-818b208d30fc Denmark
dd395d2a-a82f-48b5-9853-853a15232df3 Germany
6b1b0b20-2d30-473f-a7fe-628262048583 Finland
82ad7c3a-d9d1-4ca1-8762-93c2731da8d1 Sweden
c0e4d13a-1905-404a-9a56-a1177afadb38 Croatia
224822d3-c356-41eb-80e0-f3ebfd397c56 Belgium
6b1b0b20-2d30-473f-a7fe-628262048583 Finland
aecae8c6-8b9a-4a4d-8a41-2e6264acc5bf Germany
42bfb2a3-b9d2-47ec-ba45-4d6d9b931564 Germany
aecae8c6-8b9a-4a4d-8a41-2e6264acc5bf Germany
dd395d2a-a82f-48b5-9853-853a15232df3 Germany
65233418-01c3-4da2-a713-1ee2efe6ce7a Poland
73ecc6ad-08e8-4fcd-8661-818b208d30fc Denmark
bab078eb-debf-4a97-af0f-b8e2b8ca1929 Poland
094adfb3-ad17-4539-8e3b-467d9e88edd9 Greece
79bf19f2-0e86-47b1-9702-04855a94d5eb Poland
bab078eb-debf-4a97-af0f-b8e2b8ca1929 Poland
95928cc3-1b5d-4486-8964-f96dadeffd51 Netherlands
421fd9ec-82e9-4c9a-9df9-c70e5119a743 France
c880df6e-9c91-47c7-8ca1-684f89227e42 Norway
2cfeb22a-c30b-4a91-b428-fcf8b9ed7f81 Portugal
646ccdee-18b6-402d-a990-2e0db059cb6f Czech Republic
1ac2e415-bd94-4b74-b06d-361f0feab7c9 Germany
4ca6942d-9c52-4ca6-9f2f-bdb420140e49 Sweden
c0e4d13a-1905-404a-9a56-a1177afadb38 Croatia
a813761e-b4d6-4134-bb85-2116075d442d Hungary
875a1a1a-69c0-464d-8c04-cca40e29f37b Bulgaria
70cf80a1-d383-4cdd-a437-6731e806825f Germany
88a58854-4650-432f-bbc4-15805dd3f832 Spain
88770b70-7971-4034-b477-28cff9700460 Hungary
e9b9519b-dbd8-476b-8303-56c8db7fdbde Belgium
2cfeb22a-c30b-4a91-b428-fcf8b9ed7f81 Portugal
65233418-01c3-4da2-a713-1ee2efe6ce7a Poland
421fd9ec-82e9-4c9a-9df9-c70e5119a743 France
4ca6942d-9c52-4ca6-9f2f-bdb420140e49 Sweden
1ac2e415-bd94-4b74-b06d-361f0feab7c9 Germany
70cf80a1-d383-4cdd-a437-6731e806825f Germany
1677dee4-294d-4d46-84ea-49fa049cfa02 France
646ccdee-18b6-402d-a990-2e0db059cb6f Czech Republic
a813761e-b4d6-4134-bb85-2116075d442d Hungary
094adfb3-ad17-4539-8e3b-467d9e88edd9 Greece
1677dee4-294d-4d46-84ea-49fa049cfa02 France
a15af9ee-f48e-4ac9-8158-bfab7ee304c1 Estonia
79bf19f2-0e86-47b1-9702-04855a94d5eb Poland
88770b70-7971-4034-b477-28cff9700460 Hungary
82ad7c3a-d9d1-4ca1-8762-93c2731da8d1 Sweden
95928cc3-1b5d-4486-8964-f96dadeffd51 Netherlands
a15af9ee-f48e-4ac9-8158-bfab7ee304c1 Estonia
88a58854-4650-432f-bbc4-15805dd3f832 Spain
e9b9519b-dbd8-476b-8303-56c8db7fdbde Belgium
224822d3-c356-41eb-80e0-f3ebfd397c56 Belgium
c880df6e-9c91-47c7-8ca1-684f89227e42 Norway
875a1a1a-69c0-464d-8c04-cca40e29f37b Bulgaria
42bfb2a3-b9d2-47ec-ba45-4d6d9b931564 Germany
73ecc6ad-08e8-4fcd-8661-818b208d30fc Denmark
dd395d2a-a82f-48b5-9853-853a15232df3 Germany
6b1b0b20-2d30-473f-a7fe-628262048583 Finland
82ad7c3a-d9d1-4ca1-8762-93c2731da8d1 Sweden
c0e4d13a-1905-404a-9a56-a1177afadb38 Croatia

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
Z1NQEGBB000A000000XX
EAN:
8015644746520
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
296 mm
Product Net Depth / Length:
183 mm
Product Net Weight:
14 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
270 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
16 kg
Package Level 1 EAN:
8015644746520

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
78 W
Rated Current (In):
1000 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 50 kA
for 3 s 30 kA
for 1 s 50 kA
for 3 s 30 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu):
1000 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M10
Release:
Ekip Dip LSI
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
45 N·m

Certificates and Declarations

ATEX Certificate:
CSA Certificate:
CSA Certificate (Intrinsic Safe):
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote


Notify Me When Available
