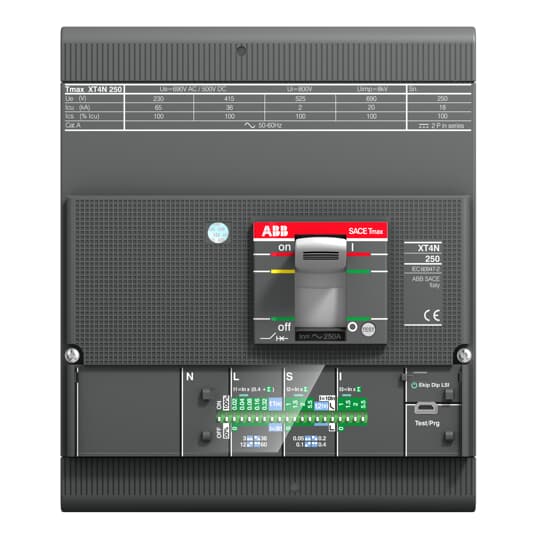

1SDA068157R1 ABB XT4N 250 Ekip LSI In250A 4p F F

1SDA068157R1 ABB XT4N 250 Ekip LSI In250A 4p F F

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 56.30 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
20370b20-eb78-4183-bd17-3b049829face Italy
Simplified SCIP:
bf64471b-a433-4f65-8f0b-f62f11d7d567 Germany
02d4f194-f1f2-4a67-b701-f2a85e11fbee Germany
75972a4f-af60-4cf0-9213-53e0972caf7a Germany
4fdd27b7-3b61-4ce9-a9e5-cdf91d573cb3 France
a2bc0443-d11e-43c6-a938-b638f094bdd2 Netherlands
9fe5f265-8ba6-49dd-9406-6d7cf92fa6c0 Spain
a8e0c15e-1a87-48a7-af20-db4043f5915c Netherlands
62723b14-9a81-4648-a277-0ac5a96439d0 Poland
5a21aa83-fde4-4224-9b6e-590668e585be Norway
de799fce-8b9c-44f2-81a0-3d8df750b0ff Finland
2c26cef0-7500-4cce-9e90-e5f9d39f4585 Netherlands
6a215c86-9b39-4986-a8a2-a2a73c9b202d Germany
d8f875b1-c1f6-4909-82db-68b4981dd6dc Denmark
c78fc46c-a777-4796-8656-ea3dd1c64b8a Germany
77bfed58-3bdf-4506-a0e7-d3ac194d264f Croatia
f05a280b-f2a9-4c29-813c-f8ebc4607750 Czech Republic
1d89f667-15b9-466f-bf4a-6f28644149dc Poland
0c7a0aa1-a36a-4180-9789-f8b8cbf43dcc Netherlands
96ce7bac-6338-44d7-809c-7352af432738 Netherlands
866d9bcb-8879-42f1-afa5-9f79a1040a9a Estonia
dcea451d-2612-4a7e-aacf-82e582112fd1 Greece
06dcb86a-949c-4f8c-995a-775fe6266009 Portugal
52baf9ac-4e5c-4d80-a0eb-7eb0a79d2325 Bulgaria
cba0c243-9f47-4100-a82c-9417ea4412ea Sweden
b16abf66-caa2-4ae2-ab5e-8df05a5f3c44 Poland
d185d8fc-dfa6-4b2c-8c8a-e8c30950c39f France
8c8e22f6-c175-47e9-a53f-9e67cf38ba4c Sweden
bf64471b-a433-4f65-8f0b-f62f11d7d567 Germany
02d4f194-f1f2-4a67-b701-f2a85e11fbee Germany
75972a4f-af60-4cf0-9213-53e0972caf7a Germany
4fdd27b7-3b61-4ce9-a9e5-cdf91d573cb3 France
a2bc0443-d11e-43c6-a938-b638f094bdd2 Netherlands
9fe5f265-8ba6-49dd-9406-6d7cf92fa6c0 Spain
a8e0c15e-1a87-48a7-af20-db4043f5915c Netherlands
62723b14-9a81-4648-a277-0ac5a96439d0 Poland
5a21aa83-fde4-4224-9b6e-590668e585be Norway
de799fce-8b9c-44f2-81a0-3d8df750b0ff Finland

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT4NE4250FFF000XXX
E-Number (Finland):
3641043
E-Number (Norway):
4380143
EAN:
8015644696108
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
160 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
2.937 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
151 mm
Package Level 1 Height:
214 mm
Package Level 1 Depth / Length:
171 mm
Package Level 1 Gross Weight:
3.092 kg
Package Level 1 EAN:
8015644696108

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 85..200 mm²
Current Type:
AC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 16.40 W
Rated Current (In):
250 A
Rated Frequency (f):
50/60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V AC
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
Rated Uninterrupted Current (Iu):
250 A
Rated Voltage (Ur):
690 V AC
Recommended Screw Driver:
Main Circuit M8
Release:
Ekip C Dip LSI
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC60947-2
Sub-type:
XT4
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
8 N·m

Technical UL/CSA

Interrupting Rating acc. to UL489:
(240 V AC) 65 A
(480 V AC) 25 A
(600 V AC) 18 A
(240 V AC) 65 A
(480 V AC) 25 A
(600 V AC) 18 A

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
