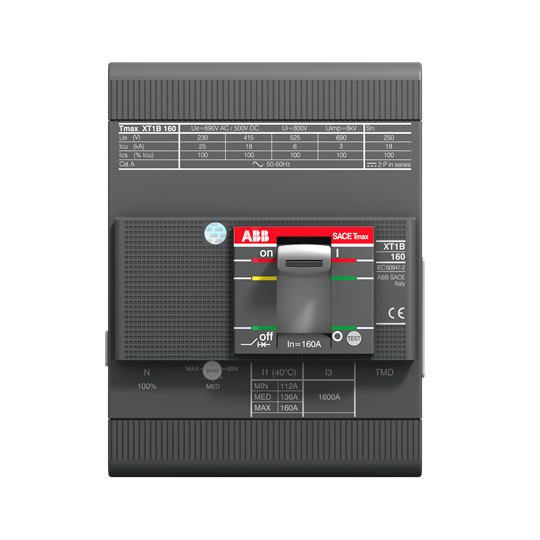

1SDA067410R1 ABB - XT1C 160 TMD 160-1600 4p F F InN=100%

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.9 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
b3a6e17d-8853-4b28-96d6-13ac4a29e0af Italy
Simplified SCIP:
e4ed785f-3095-4d3c-b8a8-3d1f751265d4 Germany
64316cdd-7ef1-48e6-8210-8cd7634e6115 Poland
ddf5c063-a647-4dfc-8837-7781de6c5035 France
0cbd6a1f-8fbe-4ce7-b86c-d905abce4e78 Sweden
46fc09a7-c01c-4a86-8c86-1e15db9ddddd Greece
4d2c1e03-1026-4a24-a714-ba61c1b1aeee Portugal
573806cd-5dc7-4a36-b2c9-3af14e648b64 Bulgaria
f2cec4b9-6375-4b09-a143-cbfcc2ccd71e Sweden
74afcc10-c8eb-4b64-826f-c6e09a31053c Norway
87552666-a6c6-4548-a8e5-40917c1b57dc Finland
249250e9-16fb-4336-840d-3ddc106220b0 Netherlands
4a1567df-fca8-4001-a5f2-636daa499d03 Germany
3bd810fd-8f98-4a28-a7a5-d48686d3b52f Denmark
1089ac8c-be20-4529-88f1-e56272ee5745 Germany
9f570cc2-9e42-4bc1-a196-c64493922610 Croatia
9ca7775f-04be-4da1-95fd-8425bed150ad Czech Republic
d9af99e0-6e58-4be1-b105-7d6331de21e1 Poland
cc8e596f-2606-4b6a-9f71-e1624c107c2a Netherlands
02115938-fed4-4469-bc5b-6f21ac2250c7 Netherlands
56e9af4f-b0db-42d7-8296-ae9b206e45bd Estonia
4d2c1e03-1026-4a24-a714-ba61c1b1aeee Portugal
4e4b3496-d89c-46fc-b3d7-7c3014c9ae11 Germany
04bf539e-4478-4a6d-b752-29b131601c1a Germany
5002da91-49cf-4761-8f5b-0ab42e5e7bdc France
12f6c623-68ef-4936-b8a9-228e974c7950 Netherlands
11f40390-af61-4605-91a7-7be6ad1a47a4 Spain
5e4194ae-657e-453f-bdf9-c3df7d1918b0 Netherlands
46fc09a7-c01c-4a86-8c86-1e15db9ddddd Greece
573806cd-5dc7-4a36-b2c9-3af14e648b64 Bulgaria
f2cec4b9-6375-4b09-a143-cbfcc2ccd71e Sweden
5e4194ae-657e-453f-bdf9-c3df7d1918b0 Netherlands
64316cdd-7ef1-48e6-8210-8cd7634e6115 Poland
ddf5c063-a647-4dfc-8837-7781de6c5035 France
0cbd6a1f-8fbe-4ce7-b86c-d905abce4e78 Sweden
4e4b3496-d89c-46fc-b3d7-7c3014c9ae11 Germany
04bf539e-4478-4a6d-b752-29b131601c1a Germany
5002da91-49cf-4761-8f5b-0ab42e5e7bdc France
12f6c623-68ef-4936-b8a9-228e974c7950 Netherlands
11f40390-af61-4605-91a7-7be6ad1a47a4 Spain
ff3838eb-1489-4dd2-b38a-8d6e6fb45332 Poland
74afcc10-c8eb-4b64-826f-c6e09a31053c Norway
87552666-a6c6-4548-a8e5-40917c1b57dc Finland
249250e9-16fb-4336-840d-3ddc106220b0 Netherlands
4a1567df-fca8-4001-a5f2-636daa499d03 Germany
3bd810fd-8f98-4a28-a7a5-d48686d3b52f Denmark
1089ac8c-be20-4529-88f1-e56272ee5745 Germany
9f570cc2-9e42-4bc1-a196-c64493922610 Croatia
9ca7775f-04be-4da1-95fd-8425bed150ad Czech Republic
d9af99e0-6e58-4be1-b105-7d6331de21e1 Poland
cc8e596f-2606-4b6a-9f71-e1624c107c2a Netherlands
02115938-fed4-4469-bc5b-6f21ac2250c7 Netherlands
56e9af4f-b0db-42d7-8296-ae9b206e45bd Estonia
ff3838eb-1489-4dd2-b38a-8d6e6fb45332 Poland
e4ed785f-3095-4d3c-b8a8-3d1f751265d4 Germany
64316cdd-7ef1-48e6-8210-8cd7634e6115 Poland
ddf5c063-a647-4dfc-8837-7781de6c5035 France
0cbd6a1f-8fbe-4ce7-b86c-d905abce4e78 Sweden
46fc09a7-c01c-4a86-8c86-1e15db9ddddd Greece
4d2c1e03-1026-4a24-a714-ba61c1b1aeee Portugal
573806cd-5dc7-4a36-b2c9-3af14e648b64 Bulgaria
f2cec4b9-6375-4b09-a143-cbfcc2ccd71e Sweden
74afcc10-c8eb-4b64-826f-c6e09a31053c Norway
87552666-a6c6-4548-a8e5-40917c1b57dc Finland

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT1CE4160AFF000XXX
E-Number (Norway):
4309719
EAN:
8015644013042
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
101.6 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.454 kg
Package Level 1 EAN:
8015644013042

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 45.5 ... 80 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 15 W
Rated Current (In):
160 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
1600 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 12.5 kA
(500 V AC) 9 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 3 Poles in Series 25 kA
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 12.5 kA
(500 V AC) 9 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 25 kA
(500 V AC) 18 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 3 Poles in Series 25 kA
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 25 kA
(500 V AC) 18 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M6
Release:
TMD
Release Type:
TM
Setting Range:
112...160 A
Short-Circuit Performance Level:
C
Standards:
IEC60947-2
Sub-type:
XT1
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
Sale price$271.31
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
$271.31
$0.00
$0.00
