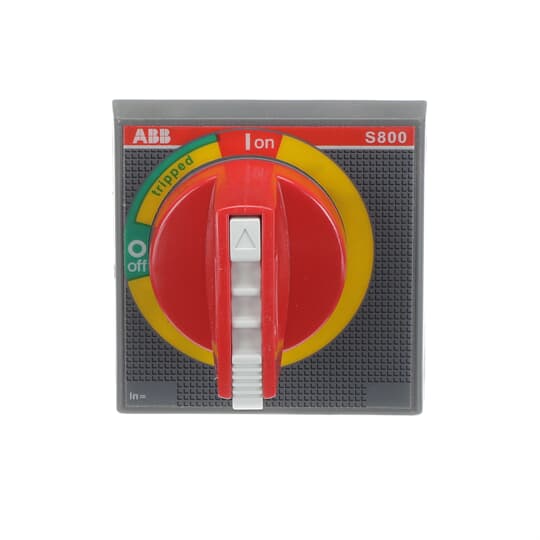

1SDA060151R0001 ABB - S800-RHE-EM

Technical

Suitable For:
S800P
S800S
S800N
S800C
S800B
S800HV
S800U
S800PV-SP
S800PV-SD
S800PV-M-H
S800P
S800S
S800N
S800C
S800B
S800HV
S800U
S800PV-SP
S800PV-SD
S800PV-M-H
Remarks:
Can be used together with S800-RHE-S (axial extension) with 500mm length and S800-RD (rotary drive adapter for 2-4-pole S800)

Design

Color:
Red

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20190320
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Resistance to Vibrations:
1 mm 2 - 13.2 Hz
0.7g with Load 100% x Ie 13.2 - 100 Hz
1 mm 2 - 13.2 Hz
0.7g with Load 100% x Ie 13.2 - 100 Hz
Resistance to Shock acc. to IEC 60068-2-27:
5 g
30 ms
5 g
30 ms
Environmental Information:

Dimensions

Product Net Width:
76 mm
Product Net Height:
76 mm
Product Net Depth / Length:
67 mm
Product Net Weight:
0.02 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.023 kg
E-Number (Finland):
3212418

Certificates and Declarations

Installation

Instructions and Manuals:

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000229 - Handle for power circuit breaker
ETIM 10:
EC000229 - Handle for power circuit breaker
UNSPSC:
31162801
eClass:
V11.0 : 27370414
IDEA Granular Category Code (IGCC):
3038 >> Handles or knobs
Object Classification Code:
F
Price on request
Ask for quote


Notify Me When Available
