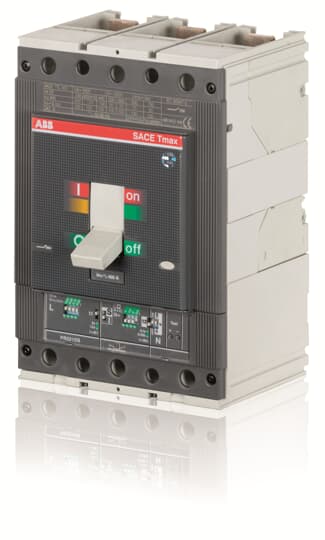

1SDA054404R1 ABB - T5S 630 PR221DS-LS/I In=630 3p F F

1SDA054404R1 ABB - T5S 630 PR221DS-LS/I In=630 3p F F

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
3cc1854c-e229-4e90-8014-2570f5ead86c Italy
Simplified SCIP:
be1e2efc-4e49-451e-b1a6-42f9a17b0941 Germany
99ee55ca-b9a8-4a5a-975c-ba30a7b359e7 Poland
647fb0e9-cfc6-40b1-862b-bd68a95f7af7 Spain
b8687124-e884-4908-a5f6-8fbebaadecfc Netherlands
24a095ec-605d-4ad9-ac91-de08611eed27 Norway
73585117-b278-4945-968d-a4c4f1f1b072 Denmark
6e499506-5174-409c-a3d0-0c8012ef3074 Netherlands
70937a86-88a5-4a00-8aa3-0c36d94606fc Germany
9236f05a-de1f-44be-935e-244a07e65d0c Germany
4859d3fe-7320-484c-a0b4-d79cfeb3825e Croatia
678d50bf-5a3e-4edd-9b51-6b448a7abc5d Czech Republic
7c07d9fa-7935-47a8-b84d-081ffc9b411e Poland
c08b0dd8-f14f-4122-8688-641d6ae8249a Netherlands
8a759fe5-d326-4a8d-a12f-1f228dabc25c Netherlands
56346e37-97a7-4579-afe2-bb916a9cd542 Estonia
9bed9cd3-49f5-43af-a59a-7e889977b607 Greece
b685936c-3573-4c40-982c-8dbab505311a Portugal
b91b3302-a2dc-443d-a88f-e3e8bc60f067 Bulgaria
24454c4b-c18f-4f1a-a21b-23ba28c776c1 Sweden
2040079e-6c07-4d16-ac7c-3ea700f2967d Poland
cc4dc495-9c23-47cb-a8c6-d5291cff5572 France
f8eadf41-fa40-438e-91f8-f1e7c9a3ccea Sweden
64a12dc8-e0aa-45bf-b474-890908632d8c Germany
ff51e356-250d-4ad6-a1ce-b0ebd1ec1502 Germany
ee960abb-8e8f-4052-a4ce-1e12e8b29039 France
d5ce4829-d16c-4479-ac79-b1f0815288fe Netherlands
1ccab4ee-b395-43db-a82e-aa376e72e068 Finland
be1e2efc-4e49-451e-b1a6-42f9a17b0941 Germany
99ee55ca-b9a8-4a5a-975c-ba30a7b359e7 Poland
647fb0e9-cfc6-40b1-862b-bd68a95f7af7 Spain
b8687124-e884-4908-a5f6-8fbebaadecfc Netherlands
24a095ec-605d-4ad9-ac91-de08611eed27 Norway
73585117-b278-4945-968d-a4c4f1f1b072 Denmark
6e499506-5174-409c-a3d0-0c8012ef3074 Netherlands
70937a86-88a5-4a00-8aa3-0c36d94606fc Germany
9236f05a-de1f-44be-935e-244a07e65d0c Germany
4859d3fe-7320-484c-a0b4-d79cfeb3825e Croatia

Ordering

E-Number (Finland):
3655326
E-Number (Norway):
4384074
E-Number (Sweden):
3180384
EAN:
8015644555023
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
4.875 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
5.1 kg
Package Level 1 EAN:
8015644555023

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
5000 cycle
60 cycles per hour
5000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 41 W
Rated Current (In):
630 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
Rated Uninterrupted Current (Iu):
630 A
Release:
PR221DS-LS/I
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V
Test Voltage at Industrial Frequency for 1 Minute:
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
$951.11
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
$951.11
$0.00
$0.00
Need More?
