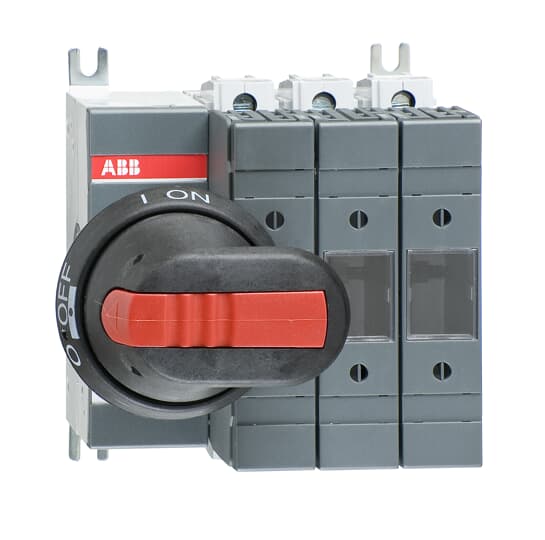

1SCA115207R1001 ABB - OS63GD03P

1SCA115207R1001 ABB - OS63GD03P

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
15a93889-0e81-4e97-97bc-6fc93673cb59 Finland
Simplified SCIP:
dba65f8d-6f45-4849-9e81-2cb3731995a6 Germany
86683a3b-96f6-46de-b118-b29ed8252e46 Poland
b349d11a-acb8-4698-b37b-8be69a91f659 Germany
dcccb2d1-dd60-4c87-8bdf-924245e10745 Estonia
de6eab5b-1390-491a-829a-58920f9ce284 Portugal
9a73ba2e-43d7-42bb-b7a2-29e9dccd0859 Greece
c067c3c7-3763-4308-824f-6e0533d40b13 Belgium
9d4117b0-5dbd-48a7-99bd-e7c1cbe601a8 Italy
8171b840-2960-42f9-9c20-049152a3f774 Poland
cf15aaea-24ec-493a-a4be-b5365b646729 Croatia
f885c043-f6ec-44e4-bf43-530edc3c93e8 Norway
4dc03c93-ba72-496d-9f24-5a138483934f Sweden
a222497b-b2df-4cd2-8b79-6cab618b3b6b Bulgaria
0b072db8-978e-4e37-af35-01d12e059010 Spain
d4d64afd-2b44-4ede-bfec-1a7fea885365 Sweden
9dda95c2-2b39-4ef7-ad0e-e73e84d4616d France
60c21e07-0f18-492e-a673-a6beb77cb686 France
6b09f1ff-f4ca-446f-9a36-e7a0079bda57 Hungary
23a14b2d-a124-4d5e-9406-ff3b165dbceb Denmark
a1d4f0ca-3ef5-48b0-aeeb-f5dfc7e1e774 Czech Republic
4e0d9861-608e-4e15-af95-994f46c9db7b Germany
21e8773b-11b5-4e1f-98b0-1ca097bd93e9 Germany
543f2b96-cd93-4dc9-80b2-a6b089668d75 Poland
d0c3e5ed-6675-4f6c-b402-4aecbfb3071b Hungary
bedc835b-ff3f-4587-8c65-e80a97e3c23a Netherlands
edeacee2-e2a5-48a1-8cf0-4f1beecbed46 Belgium
c3403cb8-47c6-45ba-b0dd-8a55fd1575c2 Germany
dba65f8d-6f45-4849-9e81-2cb3731995a6 Germany
86683a3b-96f6-46de-b118-b29ed8252e46 Poland
b349d11a-acb8-4698-b37b-8be69a91f659 Germany
dcccb2d1-dd60-4c87-8bdf-924245e10745 Estonia
de6eab5b-1390-491a-829a-58920f9ce284 Portugal
9a73ba2e-43d7-42bb-b7a2-29e9dccd0859 Greece
c067c3c7-3763-4308-824f-6e0533d40b13 Belgium
9d4117b0-5dbd-48a7-99bd-e7c1cbe601a8 Italy
8171b840-2960-42f9-9c20-049152a3f774 Poland
cf15aaea-24ec-493a-a4be-b5365b646729 Croatia

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
112 mm
Product Net Height:
125 mm
Product Net Depth / Length:
121 mm
Product Net Weight:
1.18 kg
2.6 lb
1.18 kg
2.6 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.3 kg
2.9 lb
1.3 kg
2.9 lb
Package Level 1 EAN:
6417019476476

Technical

Cable Cross-Section:
2.5 ... 25 mm²
Connecting Capacity:
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 63 A
Conventional Thermal Current (Ithe):
Fully Enclosed 63 A
Fuse Size:
NH000
Fuse System:
DIN
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Current 2 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 63 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 18.5 kW
(400 V) 30 kW
(415 V) 30 kW
(500 V) 37 kW
(690 V) 55 kW
(220 ... 240 V) 18.5 kW
(400 V) 30 kW
(415 V) 30 kW
(500 V) 37 kW
(690 V) 55 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 2.5 kiloampere rms
Recommended Screw Driver:
Main Circuit Hexagon 4
Standards:
IEC 60947-3
Switches Operating Mechanism:
03 (Left Side)
Terminal Type:
Screw Terminals
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m
Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in

Technical UL/CSA

Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in
Recommended Screw Driver:
Main Circuit Hexagon 4
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3660213
Price on request
Ask for quote

Notify Me When Available

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
15a93889-0e81-4e97-97bc-6fc93673cb59 Finland
Simplified SCIP:
dba65f8d-6f45-4849-9e81-2cb3731995a6 Germany
86683a3b-96f6-46de-b118-b29ed8252e46 Poland
b349d11a-acb8-4698-b37b-8be69a91f659 Germany
dcccb2d1-dd60-4c87-8bdf-924245e10745 Estonia
de6eab5b-1390-491a-829a-58920f9ce284 Portugal
9a73ba2e-43d7-42bb-b7a2-29e9dccd0859 Greece
c067c3c7-3763-4308-824f-6e0533d40b13 Belgium
9d4117b0-5dbd-48a7-99bd-e7c1cbe601a8 Italy
8171b840-2960-42f9-9c20-049152a3f774 Poland
cf15aaea-24ec-493a-a4be-b5365b646729 Croatia
f885c043-f6ec-44e4-bf43-530edc3c93e8 Norway
4dc03c93-ba72-496d-9f24-5a138483934f Sweden
a222497b-b2df-4cd2-8b79-6cab618b3b6b Bulgaria
0b072db8-978e-4e37-af35-01d12e059010 Spain
d4d64afd-2b44-4ede-bfec-1a7fea885365 Sweden
9dda95c2-2b39-4ef7-ad0e-e73e84d4616d France
60c21e07-0f18-492e-a673-a6beb77cb686 France
6b09f1ff-f4ca-446f-9a36-e7a0079bda57 Hungary
23a14b2d-a124-4d5e-9406-ff3b165dbceb Denmark
a1d4f0ca-3ef5-48b0-aeeb-f5dfc7e1e774 Czech Republic
4e0d9861-608e-4e15-af95-994f46c9db7b Germany
21e8773b-11b5-4e1f-98b0-1ca097bd93e9 Germany
543f2b96-cd93-4dc9-80b2-a6b089668d75 Poland
d0c3e5ed-6675-4f6c-b402-4aecbfb3071b Hungary
bedc835b-ff3f-4587-8c65-e80a97e3c23a Netherlands
edeacee2-e2a5-48a1-8cf0-4f1beecbed46 Belgium
c3403cb8-47c6-45ba-b0dd-8a55fd1575c2 Germany
dba65f8d-6f45-4849-9e81-2cb3731995a6 Germany
86683a3b-96f6-46de-b118-b29ed8252e46 Poland
b349d11a-acb8-4698-b37b-8be69a91f659 Germany
dcccb2d1-dd60-4c87-8bdf-924245e10745 Estonia
de6eab5b-1390-491a-829a-58920f9ce284 Portugal
9a73ba2e-43d7-42bb-b7a2-29e9dccd0859 Greece
c067c3c7-3763-4308-824f-6e0533d40b13 Belgium
9d4117b0-5dbd-48a7-99bd-e7c1cbe601a8 Italy
8171b840-2960-42f9-9c20-049152a3f774 Poland
cf15aaea-24ec-493a-a4be-b5365b646729 Croatia

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
112 mm
Product Net Height:
125 mm
Product Net Depth / Length:
121 mm
Product Net Weight:
1.18 kg
2.6 lb
1.18 kg
2.6 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.3 kg
2.9 lb
1.3 kg
2.9 lb
Package Level 1 EAN:
6417019476476

Technical

Cable Cross-Section:
2.5 ... 25 mm²
Connecting Capacity:
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 63 A
Conventional Thermal Current (Ithe):
Fully Enclosed 63 A
Fuse Size:
NH000
Fuse System:
DIN
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Current 2 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 63 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 18.5 kW
(400 V) 30 kW
(415 V) 30 kW
(500 V) 37 kW
(690 V) 55 kW
(220 ... 240 V) 18.5 kW
(400 V) 30 kW
(415 V) 30 kW
(500 V) 37 kW
(690 V) 55 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 2.5 kiloampere rms
Recommended Screw Driver:
Main Circuit Hexagon 4
Standards:
IEC 60947-3
Switches Operating Mechanism:
03 (Left Side)
Terminal Type:
Screw Terminals
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m
Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in

Technical UL/CSA

Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in
Recommended Screw Driver:
Main Circuit Hexagon 4
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3660213
Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3660213

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

Need More?

Contact Us

You can call, email, or chat us
we're here to support your business.

(847) 242-1595

Chat

support@plc-direct.com

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
