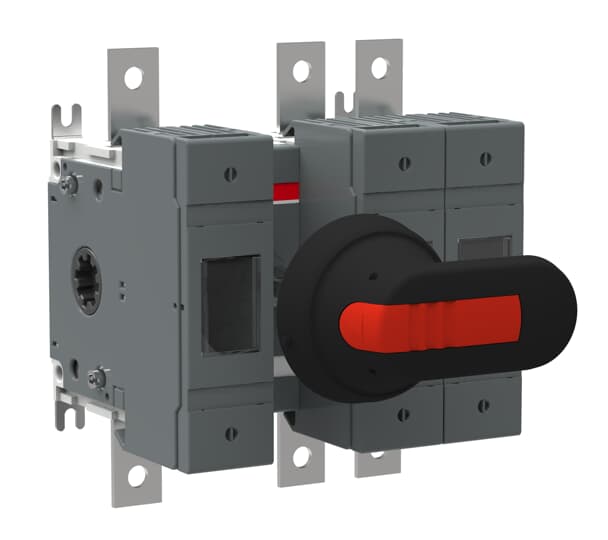

1SCA114586R1001 ABB - OS100GB12P

1SCA114586R1001 ABB - OS100GB12P

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
4524a418-62ca-4a2c-a335-6e240858a200 Finland
Simplified SCIP:
94ed8760-8a3e-4257-8d01-99b3bee41ef2 Germany
c779df45-3a7b-4904-85ca-110e115f4abc Portugal
087f5415-f29a-4994-b50e-ec766130e7f6 Greece
5749bdf4-7ed5-4150-a512-afc9c543a985 Norway
8480eae3-1a7c-40e8-86e5-a3fe6f87807f Italy
49d94e12-0e74-46e1-98f0-8543c274e7a9 Croatia
d57795a4-c699-4f99-8923-163cad7ed29f Estonia
68569f5d-aa2a-4b10-98ab-b4ff29328d7c Germany
4e88f440-bdd4-456d-bf94-fa301e2f191a Sweden
043a5fb8-163d-4e5b-ac70-d33023d07a19 Bulgaria
22b47567-4d26-44fb-8b7b-53db3f0478bf Poland
5990ec7d-bd26-45e2-b813-e01604806681 France
a178642b-4c2c-458f-8b41-68a2b0c9da53 France
9c5d7b43-27ec-4bb2-bf14-48239c9233db Hungary
72b67923-39d5-4591-953c-2902c64091ec Belgium
e88cff6a-aba4-49ee-a2e4-19e226ba76f9 Spain
63ed70f7-cedc-43ad-a0b3-e069f58591a1 Czech Republic
5a659878-5a8d-42fb-a674-0ee8a0681fa5 Denmark
65915a88-5838-410b-8f7b-d5ce6f593e1c Germany
f93b09c1-dcb4-4b79-9496-50f7aadcbffd Poland
746ffa0b-7ccb-40a6-89e3-46750625493a Germany
f7be87cf-e09d-42c2-970a-82703549b975 Belgium
a239062f-fc21-4de0-91f1-a220f22bf500 Poland
15c9679a-e69f-4eca-a933-7fbfd08daf3a Netherlands
be81afe5-5c34-489d-8b60-56413f7381ee Hungary
75cf5b5c-1fca-4edd-9a61-5680b4612c52 Germany
6c05550e-f4d6-4173-aef8-aadbb13bb3ba Sweden
94ed8760-8a3e-4257-8d01-99b3bee41ef2 Germany
c779df45-3a7b-4904-85ca-110e115f4abc Portugal
087f5415-f29a-4994-b50e-ec766130e7f6 Greece
5749bdf4-7ed5-4150-a512-afc9c543a985 Norway
8480eae3-1a7c-40e8-86e5-a3fe6f87807f Italy
49d94e12-0e74-46e1-98f0-8543c274e7a9 Croatia
d57795a4-c699-4f99-8923-163cad7ed29f Estonia
68569f5d-aa2a-4b10-98ab-b4ff29328d7c Germany
4e88f440-bdd4-456d-bf94-fa301e2f191a Sweden
043a5fb8-163d-4e5b-ac70-d33023d07a19 Bulgaria

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
147 mm
Product Net Height:
140 mm
Product Net Depth / Length:
115 mm
Product Net Weight:
2.06 kg
4.54 lb
2.06 kg
4.54 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
220 mm
8.7 in
220 mm
8.7 in
Package Level 1 Height:
150 mm
5.9 in
150 mm
5.9 in
Package Level 1 Gross Weight:
2.2 kg
4.9 lb
2.2 kg
4.9 lb
Package Level 1 EAN:
6417019469911

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 100 A
Conventional Thermal Current (Ithe):
Fully Enclosed 100 A
Fuse Size:
A2-A4
Fuse System:
British Standard
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 100 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 100 A
(690 V) 100 A
(500 V) 100 A
(690 V) 100 A
Rated Operational Current AC-22A (Ie):
(500 V) 100 A
(690 V) 100 A
(500 V) 100 A
(690 V) 100 A
Rated Operational Current AC-23A (Ie):
(500 V) 100 A
(690 V) 100 A
(500 V) 100 A
(690 V) 100 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 30 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 55 kW
(690 V) 90 kW
(220 ... 240 V) 30 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 55 kW
(690 V) 90 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 5 kiloampere rms
Standards:
IEC 60947-3
Switches Operating Mechanism:
12 (Between the Poles)
Terminal Type:
Lug terminals
Terminal Width:
20 mm
Tightening Torque:
15 … 22 N·m

Technical UL/CSA

Tightening Torque:
15 … 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Price on request
Ask for quote
