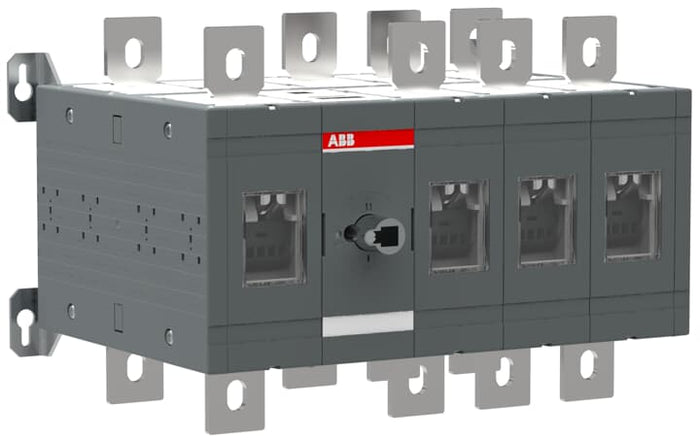

1SCA022785R8930 ABB - OT630E13C

1SCA022785R8930 ABB - OT630E13C

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Popular Downloads

Environmental

Degree of Protection:
Front IP20
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
376 mm
14.8 in
376 mm
14.8 in
Product Net Height:
250 mm
9.84 in
250 mm
9.84 in
Product Net Depth / Length:
280 mm
11.02 in
280 mm
11.02 in
Product Net Weight:
18.14 kg
39.99 lb
18.14 kg
39.99 lb

Container Information

Package Level 1 Units:
box 1 box
Package Level 1 Width:
310 mm
12.2 in
310 mm
12.2 in
Package Level 1 Depth / Length:
560 mm
22.05 in
560 mm
22.05 in
Package Level 1 Height:
330 mm
12.99 in
330 mm
12.99 in
Package Level 1 Gross Weight:
21.28 kg
46.91 lb
21.28 kg
46.91 lb
Package Level 1 EAN:
6417019256160

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 630 A
Conventional Thermal Current (Ithe):
Fully Enclosed 630 A
Degree of Protection:
Front IP20
Distance Between Phases:
Standard
Fourth Pole Position:
Right Side
Fourth Pole Type:
Switched - Simultaneous Function
Handle Color:
Black
Handle Type:
Handle and shaft not included
Mounting Type:
Base mounting
Number of Poles:
4P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 25 W
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 800 A
(500 V) 800 A
(690 V) 800 A
(380 ... 415 V) 800 A
(500 V) 800 A
(690 V) 800 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
Rated Operational Current AC-31B (Ie):
(380 ... 415 V) 630 A
Rated Operational Current AC-33B (Ie):
(380 ... 415 V) 630 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 355 kW
(500 V) 400 kW
(690 V) 630 kW
(380 ... 415 V) 355 kW
(500 V) 400 kW
(690 V) 630 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 20 kiloampere rms
Switches Operating Mechanism:
Mechanism Between the Poles
13 (Between the Poles)
Mechanism Between the Poles
13 (Between the Poles)
Terminal Type:
Screw Terminals
Terminal Width:
40 mm
Tightening Torque:
acc. IEC 60947-1 50 ... 75 N·m
Transition Type:
Open

Technical UL/CSA

Ampere Rating:
630 A
Tightening Torque:
acc. IEC 60947-1 50 ... 75 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Price on request
Ask for quote
