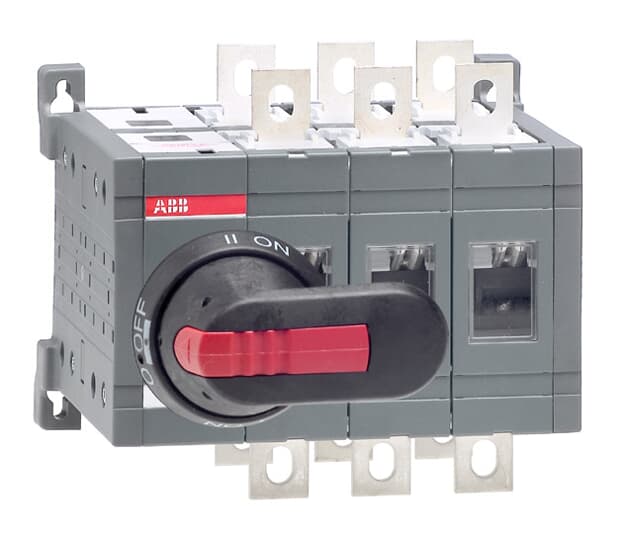

1SCA022772R6510 ABB - OT160E03CP

1SCA022772R6510 ABB - OT160E03CP

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
b6ccb138-fd20-4bc7-baa7-a5ba0989c5d1 Finland
Simplified SCIP:
43787eb1-1dfa-4920-8c65-ead8ac062099 Germany
2b388d46-321f-426f-9ad5-ab0bf40385dd Denmark
4560c79e-fc9c-449a-8134-ae460c468398 Belgium
44dbe3c4-0c0a-44ad-84ec-e71476d26157 Germany
44566878-f18a-44b7-93c6-406ff0da7a5f Italy
9c647756-2226-499f-ba3b-19c15182a591 Hungary
3392038e-e4ff-4390-89e4-506f6a255fdc Greece
b89c8deb-70a8-4f03-b7b4-f93bd199efd1 Estonia
47145e89-bc40-4547-a178-2f129892fa05 Portugal
6104a800-db5d-4a0c-bea1-c744281a9763 Norway
a80396c9-2668-4cea-abcc-d5b10fcb1dbf Netherlands
b9b79f44-2670-476b-8522-ac517e9b26ac Croatia
3f11810d-eb68-48b4-98df-c9dd8c28422b Germany
d1020069-c4f8-40b3-a443-97b4577fb2c3 Germany
2a3a260b-9aa2-4592-aae4-5ba588f94970 Czech Republic
85148437-bd65-4d88-b410-f6fcefc588b3 Poland
9791d55d-ed67-4a08-96c7-dbca6532c924 Sweden
656cb040-4aa9-4bf9-ad77-27a809920d86 Spain
32ca3d22-518a-4176-9afc-bc8349305ba6 Hungary
ea742c70-d150-4eb5-9d04-d7dee8cc33f4 Germany
8e59bf6f-b206-461a-a5a9-7864c9fe71b5 Poland
a55283ea-1991-4209-9ad6-7339289101d1 France
d5376ec6-c26e-468b-8b29-447ab7095824 Poland
e6f6f579-d005-41b0-97f5-17fea01a318f Belgium
22468ccf-0abb-48cc-aad4-1f7d190600cd Bulgaria
f5b13d1b-1c35-435a-bd45-627a0de1d4a0 Sweden
96ff859e-d78f-4c11-9535-a23e2527c0ae France
43787eb1-1dfa-4920-8c65-ead8ac062099 Germany
2b388d46-321f-426f-9ad5-ab0bf40385dd Denmark
4560c79e-fc9c-449a-8134-ae460c468398 Belgium
44dbe3c4-0c0a-44ad-84ec-e71476d26157 Germany
44566878-f18a-44b7-93c6-406ff0da7a5f Italy
9c647756-2226-499f-ba3b-19c15182a591 Hungary
3392038e-e4ff-4390-89e4-506f6a255fdc Greece
b89c8deb-70a8-4f03-b7b4-f93bd199efd1 Estonia
47145e89-bc40-4547-a178-2f129892fa05 Portugal
6104a800-db5d-4a0c-bea1-c744281a9763 Norway

Popular Downloads

Environmental

Degree of Protection:
Front IP20
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
170 mm
6.69 in
170 mm
6.69 in
Product Net Height:
150 mm
5.91 in
150 mm
5.91 in
Product Net Depth / Length:
160 mm
6.3 in
160 mm
6.3 in
Product Net Weight:
3.1 kg
6.83 lb
3.1 kg
6.83 lb

Container Information

Package Level 1 Units:
box 1 box
Package Level 1 Width:
160 mm
6.3 in
160 mm
6.3 in
Package Level 1 Depth / Length:
245 mm
9.65 in
245 mm
9.65 in
Package Level 1 Height:
185 mm
7.28 in
185 mm
7.28 in
Package Level 1 Gross Weight:
3.4 kg
7.5 lb
3.4 kg
7.5 lb
Package Level 1 EAN:
6417019251974

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe):
Fully Enclosed 160 A
Degree of Protection:
Front IP20
Distance Between Phases:
Standard
Handle Color:
Black
Handle Type:
Handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-31B (Ie):
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie):
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 90 kW
(500 V) 110 kW
(690 V) 160 kW
(380 ... 415 V) 90 kW
(500 V) 110 kW
(690 V) 160 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kiloampere rms
Switches Operating Mechanism:
Mechanism at the End of the Switch
03 (Left Side)
Mechanism at the End of the Switch
03 (Left Side)
Terminal Type:
Screw Terminals
Terminal Width:
20 mm
Tightening Torque:
acc. IEC 60947-1 15 ... 22 N·m
Transition Type:
Open

Technical UL/CSA

Ampere Rating:
160 A
Tightening Torque:
acc. IEC 60947-1 15 ... 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122233
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3641502
E-Number (Norway):
4337061
E-Number (Sweden):
3171267
Price on request
Ask for quote

Notify Me When Available

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
b6ccb138-fd20-4bc7-baa7-a5ba0989c5d1 Finland
Simplified SCIP:
43787eb1-1dfa-4920-8c65-ead8ac062099 Germany
2b388d46-321f-426f-9ad5-ab0bf40385dd Denmark
4560c79e-fc9c-449a-8134-ae460c468398 Belgium
44dbe3c4-0c0a-44ad-84ec-e71476d26157 Germany
44566878-f18a-44b7-93c6-406ff0da7a5f Italy
9c647756-2226-499f-ba3b-19c15182a591 Hungary
3392038e-e4ff-4390-89e4-506f6a255fdc Greece
b89c8deb-70a8-4f03-b7b4-f93bd199efd1 Estonia
47145e89-bc40-4547-a178-2f129892fa05 Portugal
6104a800-db5d-4a0c-bea1-c744281a9763 Norway
a80396c9-2668-4cea-abcc-d5b10fcb1dbf Netherlands
b9b79f44-2670-476b-8522-ac517e9b26ac Croatia
3f11810d-eb68-48b4-98df-c9dd8c28422b Germany
d1020069-c4f8-40b3-a443-97b4577fb2c3 Germany
2a3a260b-9aa2-4592-aae4-5ba588f94970 Czech Republic
85148437-bd65-4d88-b410-f6fcefc588b3 Poland
9791d55d-ed67-4a08-96c7-dbca6532c924 Sweden
656cb040-4aa9-4bf9-ad77-27a809920d86 Spain
32ca3d22-518a-4176-9afc-bc8349305ba6 Hungary
ea742c70-d150-4eb5-9d04-d7dee8cc33f4 Germany
8e59bf6f-b206-461a-a5a9-7864c9fe71b5 Poland
a55283ea-1991-4209-9ad6-7339289101d1 France
d5376ec6-c26e-468b-8b29-447ab7095824 Poland
e6f6f579-d005-41b0-97f5-17fea01a318f Belgium
22468ccf-0abb-48cc-aad4-1f7d190600cd Bulgaria
f5b13d1b-1c35-435a-bd45-627a0de1d4a0 Sweden
96ff859e-d78f-4c11-9535-a23e2527c0ae France
43787eb1-1dfa-4920-8c65-ead8ac062099 Germany
2b388d46-321f-426f-9ad5-ab0bf40385dd Denmark
4560c79e-fc9c-449a-8134-ae460c468398 Belgium
44dbe3c4-0c0a-44ad-84ec-e71476d26157 Germany
44566878-f18a-44b7-93c6-406ff0da7a5f Italy
9c647756-2226-499f-ba3b-19c15182a591 Hungary
3392038e-e4ff-4390-89e4-506f6a255fdc Greece
b89c8deb-70a8-4f03-b7b4-f93bd199efd1 Estonia
47145e89-bc40-4547-a178-2f129892fa05 Portugal
6104a800-db5d-4a0c-bea1-c744281a9763 Norway

Popular Downloads

Environmental

Degree of Protection:
Front IP20
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
170 mm
6.69 in
170 mm
6.69 in
Product Net Height:
150 mm
5.91 in
150 mm
5.91 in
Product Net Depth / Length:
160 mm
6.3 in
160 mm
6.3 in
Product Net Weight:
3.1 kg
6.83 lb
3.1 kg
6.83 lb

Container Information

Package Level 1 Units:
box 1 box
Package Level 1 Width:
160 mm
6.3 in
160 mm
6.3 in
Package Level 1 Depth / Length:
245 mm
9.65 in
245 mm
9.65 in
Package Level 1 Height:
185 mm
7.28 in
185 mm
7.28 in
Package Level 1 Gross Weight:
3.4 kg
7.5 lb
3.4 kg
7.5 lb
Package Level 1 EAN:
6417019251974

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe):
Fully Enclosed 160 A
Degree of Protection:
Front IP20
Distance Between Phases:
Standard
Handle Color:
Black
Handle Type:
Handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-31B (Ie):
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie):
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 90 kW
(500 V) 110 kW
(690 V) 160 kW
(380 ... 415 V) 90 kW
(500 V) 110 kW
(690 V) 160 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kiloampere rms
Switches Operating Mechanism:
Mechanism at the End of the Switch
03 (Left Side)
Mechanism at the End of the Switch
03 (Left Side)
Terminal Type:
Screw Terminals
Terminal Width:
20 mm
Tightening Torque:
acc. IEC 60947-1 15 ... 22 N·m
Transition Type:
Open

Technical UL/CSA

Ampere Rating:
160 A
Tightening Torque:
acc. IEC 60947-1 15 ... 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122233
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3641502
E-Number (Norway):
4337061
E-Number (Sweden):
3171267
Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122233
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3641502
E-Number (Norway):
4337061
E-Number (Sweden):
3171267

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

Need More?

Contact Us

You can call, email, or chat us
we're here to support your business.

(847) 242-1595

Chat

support@plc-direct.com

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
