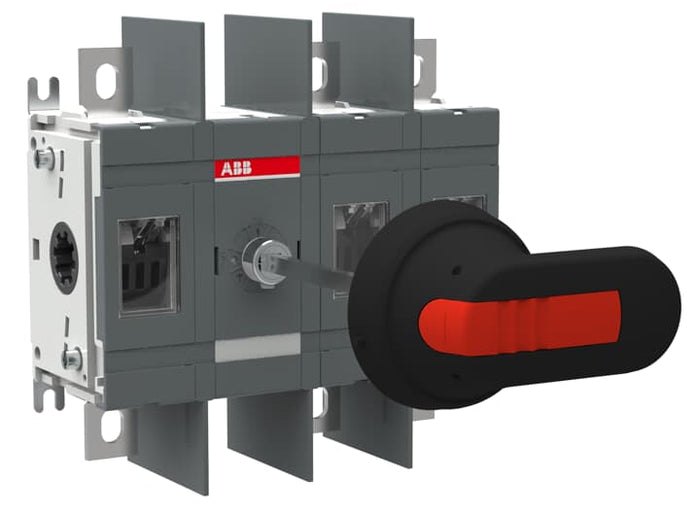

1SCA022745R0000 ABB - OT250E12WP

1SCA022745R0000 ABB - OT250E12WP

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
abf2ff94-3064-4e3e-bb29-dbff40b347d6 Finland
Simplified SCIP:
1c93b357-5438-4177-b4e3-17e634c2e522 Germany
9143f3a2-1531-4d7f-a5fb-f85e6875a7d9 Sweden
dc7d42b0-0cc9-4c7f-97f7-013bbf42dda4 Poland
79382cdf-f04d-4e8e-b6d5-05ccbd6ae995 Germany
a4e99a20-a91d-465f-981f-0e3eb4329f1c Poland
9109410c-4031-49d2-a49d-c5b386738507 Spain
cc8b3a0c-a305-42df-add8-66998244fd16 Denmark
9fd94788-3bcf-40ae-9ccb-e9064d892cd9 Belgium
09efe703-2023-404c-bc32-a58eac735586 Belgium
e5a2db91-f5fc-46af-a346-b291386db86f Greece
2ae5992d-591d-430f-954a-e7c34074494d Portugal
f881e589-1599-41c2-9ac3-fae3c5b5ff80 Netherlands
8f63c77a-35c4-4ffb-8744-5af8fb33a0fb Germany
e15f2f56-9d79-4e01-8b9c-735d11b43dec Sweden
f4b7ce54-223c-429a-b300-e5a03f91f479 Germany
dd82f87a-f81a-42cd-bd4e-2ab23130f1a5 France
9fee1051-9dda-4aa3-9e9d-36a4a7aba434 Hungary
b16f84b8-6379-4542-b738-5e5ff3b97940 Italy
9c00bda7-23e5-499d-a9b5-0d464dc8ad71 Germany
549cebe2-55ad-4899-b18d-8f865ce228b6 Czech Republic
0a9e895b-09a6-4e04-a3dd-16bd511dd721 Poland
57179fdc-50b9-4f56-aa46-2802a773c7f1 Estonia
26a2aabe-f2e3-4192-9a97-59d5c4fb8641 Hungary
5d7e6a19-5059-4799-abc5-53fec007aa65 Croatia
72d14a51-d64b-45ac-826a-d55e6276b9ca Norway
2e437ca1-cc6d-47b6-9c98-afbe1de05702 France
c22b521e-9ecf-485f-b17b-3a7b62cec57b Bulgaria
1c93b357-5438-4177-b4e3-17e634c2e522 Germany
9143f3a2-1531-4d7f-a5fb-f85e6875a7d9 Sweden
dc7d42b0-0cc9-4c7f-97f7-013bbf42dda4 Poland
79382cdf-f04d-4e8e-b6d5-05ccbd6ae995 Germany
a4e99a20-a91d-465f-981f-0e3eb4329f1c Poland
9109410c-4031-49d2-a49d-c5b386738507 Spain
cc8b3a0c-a305-42df-add8-66998244fd16 Denmark
9fd94788-3bcf-40ae-9ccb-e9064d892cd9 Belgium
09efe703-2023-404c-bc32-a58eac735586 Belgium
e5a2db91-f5fc-46af-a346-b291386db86f Greece
