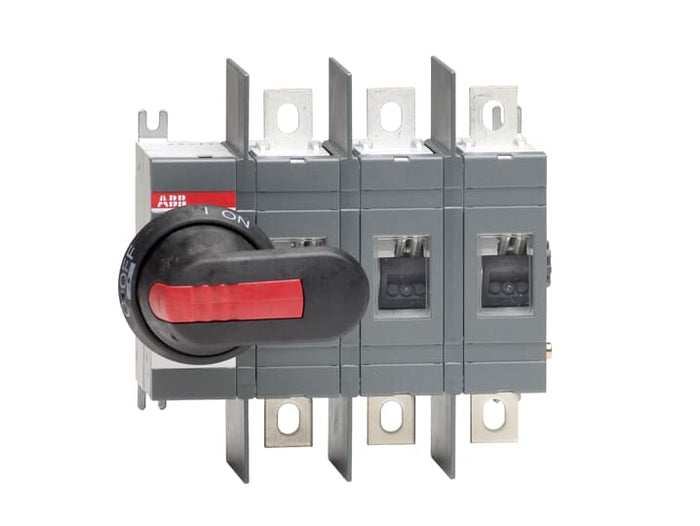

1SCA022744R3560 ABB - OT250E03WP

1SCA022744R3560 ABB - OT250E03WP

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
9d2fd67a-f690-4bf2-b98b-8d1174018ee9 Finland
Simplified SCIP:
ab95594a-afae-43d6-b9d4-9693f3d1ed0b Germany
1c66e088-2940-40c2-a266-cca7762f8ee8 Belgium
7c377033-a217-4b8d-a9c2-75a24b0a2d8f Italy
4b495af2-e067-4217-9dcd-107678ff1413 Germany
ec62897e-a723-4ece-b6c5-c942e2fc6503 Hungary
2098dd86-fae7-4fe7-a7ac-3f1e6729262a Netherlands
f5fb0cb5-75fb-46c7-a1cb-04e6c3d7c60c Sweden
2189db65-0c68-42fc-8491-c652ffaa92d0 Poland
bb37739a-45e0-4765-8fd4-afdd2fe2d8a8 Sweden
ff2cb2e1-73ad-4af3-b605-9f2112a2cfa1 Germany
53c247a3-ea1d-4488-a91a-a46139162232 Portugal
30aa7913-265a-43a6-8ece-75919e3615d3 Poland
f37d1b84-ee7a-4369-a190-809344fc7ffa Estonia
006669de-fd9a-4905-8d7f-e4fb6190d563 Greece
6f0e0560-4060-4df5-b979-0e3c3f72c62f Bulgaria
dec43b05-783a-4935-be7c-922b30e339bd Norway
aa4fd932-1cf1-46c6-a478-c507aa7ef8a0 France
16110378-d1c0-46d1-9c84-d9a3faee245e Poland
9c5e5a1f-057a-439a-a5d8-61cdd0852be8 Spain
74e6ea84-c8bc-4cd1-8b26-6bfcd6de58c3 Belgium
8a2b0926-999b-44a0-af9f-57eb00240450 Hungary
910c4e23-6a9f-485e-93ef-bed8730c69df Czech Republic
fda1dead-6015-42eb-90d1-c3636681e9a6 Germany
b44f5f6f-711a-4466-8655-fe9a1f84d190 Denmark
1b8e8ad8-8fd0-420c-b99e-cc9f50d0eea5 Croatia
1f63380c-2bf4-4f3b-98b8-711074efc6d7 France
ea8683a2-cc66-424b-8750-26456e08e6b8 Germany
ab95594a-afae-43d6-b9d4-9693f3d1ed0b Germany
1c66e088-2940-40c2-a266-cca7762f8ee8 Belgium
7c377033-a217-4b8d-a9c2-75a24b0a2d8f Italy
4b495af2-e067-4217-9dcd-107678ff1413 Germany
ec62897e-a723-4ece-b6c5-c942e2fc6503 Hungary
2098dd86-fae7-4fe7-a7ac-3f1e6729262a Netherlands
f5fb0cb5-75fb-46c7-a1cb-04e6c3d7c60c Sweden
2189db65-0c68-42fc-8491-c652ffaa92d0 Poland
bb37739a-45e0-4765-8fd4-afdd2fe2d8a8 Sweden
ff2cb2e1-73ad-4af3-b605-9f2112a2cfa1 Germany

Environmental

Degree of Protection:
Front IP00
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
169.5 mm
Product Net Height:
170 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.5 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Depth / Length:
290 mm
11.4 in
290 mm
11.4 in
Package Level 1 Height:
110 mm
4.3 in
110 mm
4.3 in
Package Level 1 Gross Weight:
1.7 kg
3.7 lb
1.7 kg
3.7 lb
Package Level 1 EAN:
6417019241418

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 250 A
Conventional Thermal Current (Ithe):
Fully Enclosed 250 A
Degree of Protection:
Front IP00
Distance Between Phases:
Wide phase distance
Handle Color:
Black
Handle Type:
Handle and shaft included
Mechanical Durability:
20000
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Top In - Bottom Out
Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc):
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kA
Special Functions:
Wide phase distance
Standards:
IEC 60947-3
Switches Operating Mechanism:
Mechanism at the End of the Switch
03 (Left Side)
Mechanism at the End of the Switch
03 (Left Side)
Terminal Type:
Lug terminals
Terminal Width:
20 mm
Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Technical UL/CSA

Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Certificates and Declarations

ATEX Certificate:
BV Certificate:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122221
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3661328
E-Number (Norway):
4337884
E-Number (Sweden):
3171190
