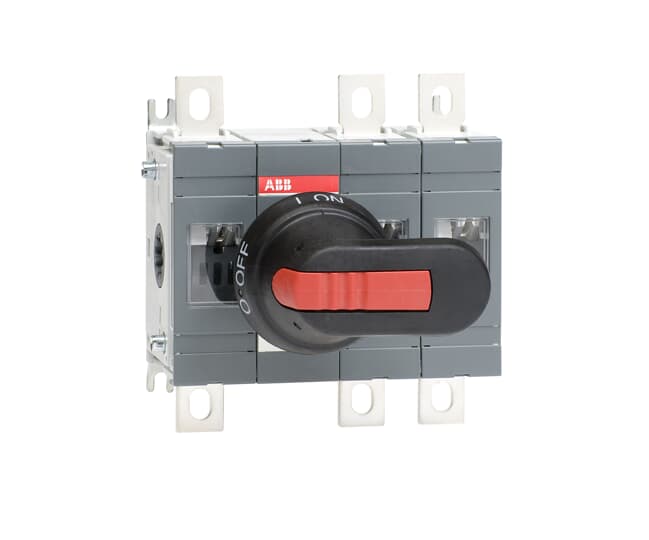

1SCA022721R3990 ABB - OT200E12P

1SCA022721R3990 ABB - OT200E12P

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
6a0d8600-a7e4-4abd-87f5-af992511d65a Finland
Simplified SCIP:
299a92fb-dacc-4726-b3ca-147e262029a3 Germany
17021e57-4bb8-41ac-9955-e541ea54b11c Bulgaria
e3170685-d2c4-45d6-89f1-2368fe61292f Sweden
25625226-d18f-4211-9008-2c7101f07362 France
cb7cfcfc-5bfb-422e-bab5-537157bd4166 Germany
0a7d4edb-3a51-4ae8-9c5c-eaaf61ea6a63 Denmark
5dcdf3e0-615b-4111-b8db-6b5da5a161ef Belgium
15400c71-9dfe-44b9-887b-43d78f835d33 France
cd08ef14-7cdc-4589-9fbc-053a010b2d56 Poland
dbea7483-761d-441d-ae8c-aca7dc226c04 Hungary
7a61d69e-5f69-48f7-a8d6-6f44a537a063 Italy
1b3c2c0f-fbd2-4ed8-bd40-49b71ee688db Estonia
074d5656-99b6-4000-b5b6-42549848a179 Netherlands
ebf6770c-52ed-44c3-91de-05c854d3b492 Hungary
80d6a693-9105-4ce3-aaa5-6596c802c7cf Norway
e15fd24b-7172-447b-bd92-733051849ffe Sweden
65ae29c7-3c5d-4701-b688-65495ca754aa Germany
5c15d01f-aa9f-457a-973f-2c5b5f83c063 Croatia
16f9582f-3804-4bb4-baac-9e19e8f1d2c0 Germany
c265d4b2-0e37-47bd-8f65-e939c0194bb0 Czech Republic
b9db2595-3375-4faf-8446-191f7aeedab8 Poland
f9beeeb0-c812-40f2-a1a3-2cde3fe72c97 Germany
bf07771c-f947-4edb-9f58-0dc2a103d8ba Spain
f5e7739e-8f4d-45bd-b643-f990edee69ab Poland
6de35f16-785c-4c84-beb2-eff2ad2c2fbf Belgium
f6cd2e04-9428-4c61-bfbe-01cb4c8e7c80 Portugal
640d6867-eb95-4f68-963e-1a84c6c5f183 Greece
299a92fb-dacc-4726-b3ca-147e262029a3 Germany
17021e57-4bb8-41ac-9955-e541ea54b11c Bulgaria
e3170685-d2c4-45d6-89f1-2368fe61292f Sweden
25625226-d18f-4211-9008-2c7101f07362 France
cb7cfcfc-5bfb-422e-bab5-537157bd4166 Germany
0a7d4edb-3a51-4ae8-9c5c-eaaf61ea6a63 Denmark
5dcdf3e0-615b-4111-b8db-6b5da5a161ef Belgium
15400c71-9dfe-44b9-887b-43d78f835d33 France
cd08ef14-7cdc-4589-9fbc-053a010b2d56 Poland
dbea7483-761d-441d-ae8c-aca7dc226c04 Hungary

Environmental

Degree of Protection:
Front IP00
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
150.5 mm
Product Net Height:
150 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.5 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.6 kg
3.6 lb
1.6 kg
3.6 lb
Package Level 1 EAN:
6417019231761

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe):
Fully Enclosed 200 A
Degree of Protection:
Front IP00
Distance Between Phases:
Standard
Handle Color:
Black
Handle Type:
Handle and shaft included
Mechanical Durability:
20000
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Top In - Bottom Out
Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc):
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 60 kW
(400 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
(220 ... 240 V) 60 kW
(400 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kA
Special Functions:
No
Standards:
IEC 60947-3
Switches Operating Mechanism:
Mechanism Between the Poles
12 (Between the Poles)
Mechanism Between the Poles
12 (Between the Poles)
Terminal Type:
Lug terminals
Terminal Width:
20 mm
Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Technical UL/CSA

Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Certificates and Declarations

ATEX Certificate:
BV Certificate:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122221
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3661314
E-Number (Norway):
4337854
E-Number (Sweden):
3171158
