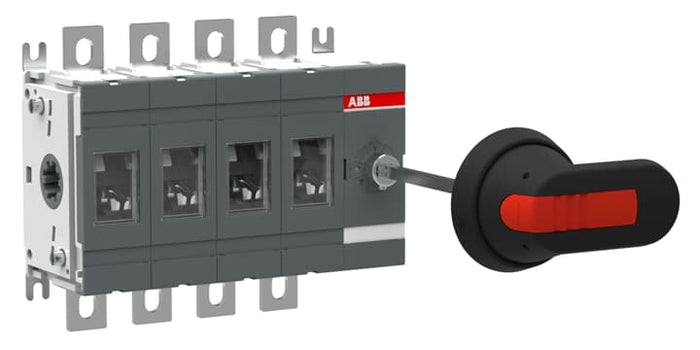

1SCA022720R0400 ABB - OT200E40P

1SCA022720R0400 ABB - OT200E40P

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
dfe6c6ca-d236-4ac7-b206-b8d64318beff Finland
Simplified SCIP:
000e97a8-da03-4487-9c4b-4ee71e3c8c59 Germany
28e2aac3-9f60-4370-bdb4-59ab8dd60773 Norway
9685a084-4d55-4fbd-b106-93f13b57b442 Portugal
b2b98256-7a63-4ae8-9fef-7dcbbfbe4a37 France
d6426aef-6b11-47d8-bc72-dc5af8bce87b Sweden
49e4ad3c-79a2-4454-b646-5dc455bd2d98 Germany
39675fae-9242-4c1a-8b9f-63761716a2b0 Poland
e1bd1102-2b30-450f-b7aa-c8f7abfcd345 Poland
68fa6431-fd90-4329-94b6-0da7bc7989f1 Germany
34eb2977-ed0b-41a1-b0f5-f91e7ab74666 Poland
754345b0-cb0d-4cb5-b4b5-e889a9843ede Estonia
8de64cbb-42ed-45ff-89fe-fa9a288750a7 Bulgaria
b10527ed-3277-486c-be2c-995c3cabf2b9 Greece
f072484b-e0c2-4b07-a70d-b4d914e6fbb5 Belgium
36148d3d-6cfe-4e16-b1e1-837776a6716b Spain
366783c3-81fc-4949-8cb3-b86d7561bdcc Hungary
38f7959d-9f88-4f44-a233-823b85fa24de Croatia
d3b254fe-7e62-4ba8-8647-3ef5c608455d Denmark
8894c70b-694b-45c9-b46f-7b9ac10f8fc1 Czech Republic
49768658-5829-4f66-8075-08f97f9353e5 France
a7e880c5-959e-4215-8b7d-1e5ddc6184a5 Germany
9cac6fc1-4b52-4b31-b971-2c2fb0ce4dc2 Italy
653da6df-81c3-4386-b714-de86e347e3ca Belgium
ce1c5d5f-c008-4755-94dc-1b6287f0033a Netherlands
acc96dc4-399e-4742-88ad-193060298d11 Hungary
179ed73a-a15c-44d2-857b-ba23fe3e411e Germany
96594bbe-638f-4222-afd8-f70d56ff9312 Sweden
000e97a8-da03-4487-9c4b-4ee71e3c8c59 Germany
28e2aac3-9f60-4370-bdb4-59ab8dd60773 Norway
9685a084-4d55-4fbd-b106-93f13b57b442 Portugal
b2b98256-7a63-4ae8-9fef-7dcbbfbe4a37 France
d6426aef-6b11-47d8-bc72-dc5af8bce87b Sweden
49e4ad3c-79a2-4454-b646-5dc455bd2d98 Germany
39675fae-9242-4c1a-8b9f-63761716a2b0 Poland
e1bd1102-2b30-450f-b7aa-c8f7abfcd345 Poland
68fa6431-fd90-4329-94b6-0da7bc7989f1 Germany
34eb2977-ed0b-41a1-b0f5-f91e7ab74666 Poland
