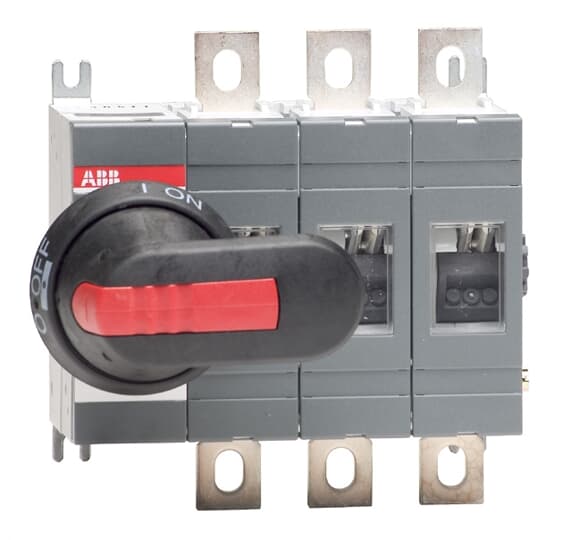

1SCA022710R0100 ABB - OT250E03P

1SCA022710R0100 ABB - OT250E03P

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
2dc31b5e-b12a-44c7-945f-bb8c32b0e344 Finland
Simplified SCIP:
24ab6880-b7bc-458f-afc6-7825287492f1 Germany
3d632b25-3fc0-4e42-a274-f94dcb4ac506 Sweden
f44fd479-cf67-4e65-841c-718b2c0cd701 Germany
13bd0d79-de0c-4189-9ba8-c4eb605cb3f6 France
e742fa28-8b19-4710-a04e-7a172a38cf80 Bulgaria
008d2a36-5600-4646-8ca0-41f77c465a12 Greece
2ea88547-7d90-417e-81c7-9fada5baec4d Poland
322f6b57-d406-4247-8e84-96707772811f Estonia
54b88a65-ecfa-4e55-a697-b2c3551f357f Portugal
bd5ba90c-8c96-4e8d-9875-c0b1bbf6f498 Germany
53b389ed-2060-4a59-b27d-cd43b41bf342 Belgium
ca6cec30-267e-47b9-a230-c2f423249c62 Norway
d1bbb897-2fab-4ea6-a145-9ad90202c7ae Poland
aa15d035-58b8-4f28-a481-42449c5436e3 Spain
f4eeebbe-28e2-4467-9e1e-75cb1b4c0493 Belgium
6e35e7e6-35cf-4cec-88fa-0793a89993a0 Sweden
5d207121-fe66-4e79-aff7-e9ef00e70403 Hungary
4fdcd79e-c665-460d-a099-ccbb85d3b611 Czech Republic
bb47a93c-a0c0-4c17-aedd-40d91caec97b Denmark
31ce7e83-3a70-40b8-8904-c2600ab5716a Croatia
6de808f2-c316-4a56-a626-474bd5daf2d0 Poland
2a7e277e-3694-4f79-be67-79af8f0fd682 Italy
612672b1-d51e-43f2-a125-da048f8a8a6e Germany
47feecf5-108a-40e1-8226-4940b2bb4bb7 Germany
a415e1f3-f4f7-4ac0-b2e4-0faeb07eb621 Hungary
767db18a-542e-46c5-a31a-abc382909e98 Netherlands
f2abb2e7-8657-4e60-b339-808f4ca2851d France
24ab6880-b7bc-458f-afc6-7825287492f1 Germany
3d632b25-3fc0-4e42-a274-f94dcb4ac506 Sweden
f44fd479-cf67-4e65-841c-718b2c0cd701 Germany
13bd0d79-de0c-4189-9ba8-c4eb605cb3f6 France
e742fa28-8b19-4710-a04e-7a172a38cf80 Bulgaria
008d2a36-5600-4646-8ca0-41f77c465a12 Greece
2ea88547-7d90-417e-81c7-9fada5baec4d Poland
322f6b57-d406-4247-8e84-96707772811f Estonia
54b88a65-ecfa-4e55-a697-b2c3551f357f Portugal
bd5ba90c-8c96-4e8d-9875-c0b1bbf6f498 Germany

Environmental

Degree of Protection:
Front IP00
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
145.5 mm
Product Net Height:
150 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.5 kg
3.3 lb
1.5 kg
3.3 lb
Package Level 1 EAN:
6417019225944

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 250 A
Conventional Thermal Current (Ithe):
Fully Enclosed 250 A
Degree of Protection:
Front IP00
Distance Between Phases:
Standard
Handle Color:
Black
Handle Type:
Handle and shaft included
Mechanical Durability:
20000
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Top In - Bottom Out
Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc):
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kA
Special Functions:
No
Standards:
IEC 60947-3
Switches Operating Mechanism:
Mechanism at the End of the Switch
03 (Left Side)
Mechanism at the End of the Switch
03 (Left Side)
Terminal Type:
Lug terminals
Terminal Width:
20 mm
Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Technical UL/CSA

Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Certificates and Declarations

ATEX Certificate:
BV Certificate:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122233
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3661350
E-Number (Norway):
4337856
E-Number (Sweden):
3171162
Est. delivery between and
