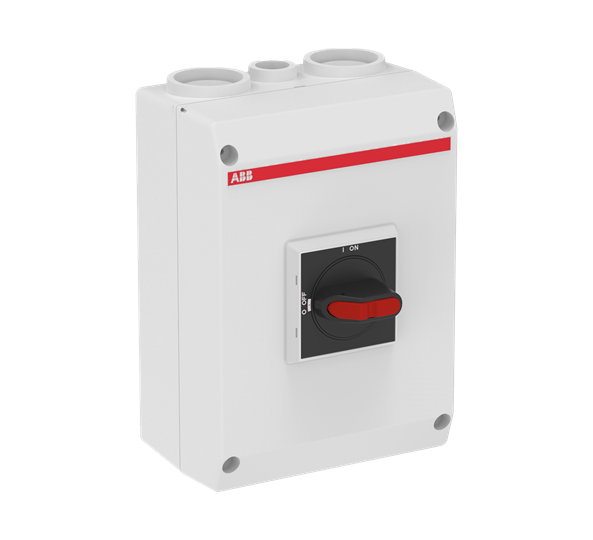

1SCA022613R2510 ABB - OTE25T4M

1SCA022613R2510 ABB - OTE25T4M

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
a39611ae-0a09-42d2-a5a0-e05c65284b74 Finland
Simplified SCIP:
b06f5d21-89be-4ff7-a28b-6a2d4c6869d7 Germany
6167d27b-042b-458f-936f-40737859a43f Germany
a1e97fd3-5adb-4ec0-9261-c1f7e42728c1 Denmark
2b1281aa-b2e0-4476-b75e-b2e1a20c9c42 Belgium
5c2bcc32-496e-4cbd-8984-40187f5dc4f2 Germany
3946b52c-3ce3-48f7-9605-3d3d8a3393ca Croatia
63a80c7e-5ff7-4370-9302-b99728a2b722 Czech Republic
04121938-04af-4ac7-a903-fcfe6c8398dd Germany
4e4e536b-03cf-471a-8e94-f7cfe1b155fb Hungary
25dfb1d8-fb94-472d-a7d4-9d776c45a603 Poland
04e15a60-2061-4392-933b-8a12b20c3295 Sweden
30b3293b-35c6-4225-9013-0df4f436e6c7 Germany
337d1acd-1214-456f-a148-1c5642a6fda0 France
571415bf-abd8-4c66-a149-b64b55b61653 Belgium
9febcebd-436c-4029-b87f-9e0a6ffabb91 Estonia
e408b4d9-c57b-4537-8bfb-ef08f193dda4 Italy
b54e5c81-1aa2-408b-b980-7b5cee469714 Netherlands
b0618309-a7f3-4496-8dfb-8520e61bcf50 Poland
c724ae18-fa9c-434f-b466-5bf9d277e63b Sweden
1dc0c257-ec38-4922-aaad-7ec3bc3401a9 France
379fab4e-878f-47f8-b8f3-d1f71573b824 Bulgaria
e2b8dede-6ad9-4e21-9406-ac1cbd8d6542 Greece
31ba8b6e-39f3-4c2c-a96a-7ba1fb04349f Portugal
b45dc5fc-a566-40e5-bff1-01fd54b0d7b5 Poland
fae40072-a5af-4902-ac5d-9050f78c3ff5 Hungary
ccac968f-e295-4955-879a-5344dae11981 Spain
2117ee07-d102-44f5-9d07-e423d0220632 Norway
b06f5d21-89be-4ff7-a28b-6a2d4c6869d7 Germany
6167d27b-042b-458f-936f-40737859a43f Germany
a1e97fd3-5adb-4ec0-9261-c1f7e42728c1 Denmark
2b1281aa-b2e0-4476-b75e-b2e1a20c9c42 Belgium
5c2bcc32-496e-4cbd-8984-40187f5dc4f2 Germany
3946b52c-3ce3-48f7-9605-3d3d8a3393ca Croatia
63a80c7e-5ff7-4370-9302-b99728a2b722 Czech Republic
04121938-04af-4ac7-a903-fcfe6c8398dd Germany
4e4e536b-03cf-471a-8e94-f7cfe1b155fb Hungary
25dfb1d8-fb94-472d-a7d4-9d776c45a603 Poland

Environmental

Degree of Protection:
acc. to IEC 60529 IP65
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85363030
Last Ordering Date:
2026-08-31 All Countries
Replacement Product ID (NEW):
OTE25GT4M
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
145 mm
Product Net Height:
200 mm
Product Net Depth / Length:
90 mm
Product Net Weight:
0.86 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
162 mm
Package Level 1 Depth / Length:
222 mm
Package Level 1 Height:
148 mm
Package Level 1 Gross Weight:
0.96 kg
Package Level 1 EAN:
6417019199696

Technical

Cable Cross-Section:
1.5 ... 35 mm²
Cable Entry Position:
Top and/or Bottom
Cable Outlets Per Side:
2xM32+M16 / 2xM32+M16
Connecting Capacity Main Circuit:
Screw Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Screw Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Conventional Thermal Current (Ithe):
Fully Enclosed 63 A
Degree of Protection:
acc. to IEC 60529 IP65
Enclosure Material:
Plastic
Handle Color:
Black
Handle Type:
Selector handle
Impact Resistance Rating:
Housing IK08
Maximum Mounted Auxiliary Contacts:
2 NO, 2 NC
Mounted Auxiliary Contacts:
1 NO, 0 NC
Neutral Type:
Fixed and Switchable Neutral
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Number of Poles:
4P
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Position of Neutral Terminals:
Top In - Bottom Out
Position of PE Terminals:
Top In - Bottom Out
Power Loss:
at Rated Operating Conditions per Pole 2.8 W
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 45 A
(500 V) 45 A
(690 V) 45 A
(380 ... 415 V) 45 A
(500 V) 45 A
(690 V) 45 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 30 A
(500 V) 30 A
(690 V) 20 A
(380 ... 415 V) 30 A
(500 V) 30 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 15 kW
(500 V) 15 kW
(690 V) 15 kW
(380 ... 415 V) 15 kW
(500 V) 15 kW
(690 V) 15 kW
Rated Operational Voltage:
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm):
(690 V AC) 1.4 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 1 kA
Recommended Screw Driver:
Main Circuit Pozidriv 2
Special Functions:
EMC
Standards:
IEC 60947-1, -3
Tightening Torque:
Main Circuit 2 N·m
Wire Stripping Length:
13 mm

Technical UL/CSA

Wire Stripping Length:
13 mm
Recommended Screw Driver:
Main Circuit Pozidriv 2
Tightening Torque:
Main Circuit 2 N·m

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122205
IDEA Granular Category Code (IGCC):
5166 >> Safety switch
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway):
1429421
Price on request
Ask for quote

Notify Me When Available
