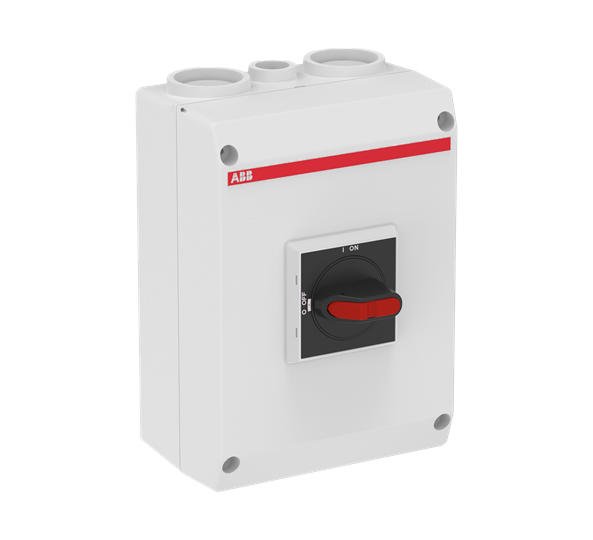

1SCA022383R3450 ABB - OTP63B3M

1SCA022383R3450 ABB - OTP63B3M

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
b7df2276-e3e6-4f29-b5fa-bd3411e9cba1 Finland
Simplified SCIP:
d8c3c489-1e09-4afb-804b-b3afeb08df92 Germany
f3dfe6dc-b79f-4b79-bb51-6fe509094d96 Bulgaria
b87f0489-4f28-447a-b834-53b74834cb74 Portugal
c9a9b9ac-9868-447a-b1eb-13d527e13ea3 Sweden
30728015-7ec3-4736-b223-0cad62d77016 Sweden
1b7b3efa-2ade-4f3f-b26a-5168213d8c3d France
1b590f47-a3a1-460d-9d1c-097728589624 Germany
b3c48a65-a256-400e-800f-8fa205424a41 Poland
f1252dc1-b1db-4c95-8472-13fa646fe74c Poland
88d8fb3e-1a43-4866-bfc8-8ef44c407ca8 Belgium
73816d36-1fcf-4cc1-938e-cb0e107614b3 Italy
886a14b9-9079-4631-aa59-6beb439c54ad Greece
ce73a217-0d05-420c-9590-cabd98248db3 France
21e0d7b6-1ae7-4ec1-b343-273e0559cdcf Germany
c3c44a2e-e434-44f1-b85b-641097cee344 Netherlands
9f71a719-200d-4d79-92a5-4796d7d87185 Spain
bfc5668b-ba18-4d61-90c4-8eb0bce24480 Hungary
b1dca718-ae91-4366-b42b-c58631c74d73 Poland
c34c9832-56e2-4656-8c15-35f7ee4caa7c Norway
cacf0d98-affa-4f75-a2a0-d1f435ebc5aa Estonia
0ebaf44e-4270-4d5a-8e05-751cc505d0a5 Germany
d7ddf7c8-2b14-4e46-b335-028ac16f0c20 Denmark
a7ccba13-6f77-49db-9267-069d4d432f5f Czech Republic
fc358543-c27e-4758-b0b3-5d36d6359afc Croatia
b8095fca-3a8d-47aa-9298-7764cc0ff9c4 Germany
ca94317e-5a80-45ab-ab08-bc4fbe858e09 Belgium
cec5b8b0-bbf7-4247-85a6-a1aedeadad90 Hungary
d8c3c489-1e09-4afb-804b-b3afeb08df92 Germany
f3dfe6dc-b79f-4b79-bb51-6fe509094d96 Bulgaria
b87f0489-4f28-447a-b834-53b74834cb74 Portugal
c9a9b9ac-9868-447a-b1eb-13d527e13ea3 Sweden
30728015-7ec3-4736-b223-0cad62d77016 Sweden
1b7b3efa-2ade-4f3f-b26a-5168213d8c3d France
1b590f47-a3a1-460d-9d1c-097728589624 Germany
b3c48a65-a256-400e-800f-8fa205424a41 Poland
f1252dc1-b1db-4c95-8472-13fa646fe74c Poland
88d8fb3e-1a43-4866-bfc8-8ef44c407ca8 Belgium

Popular Downloads

Environmental

Degree of Protection:
acc. to IEC 60529 IP65
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85363030
Last Ordering Date:
2026-08-31 All Countries
Replacement Product ID (NEW):
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
145 mm
Product Net Height:
200 mm
Product Net Depth / Length:
90 mm
Product Net Weight:
0.9 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
162 mm
Package Level 1 Depth / Length:
222 mm
Package Level 1 Height:
148 mm
Package Level 1 Gross Weight:
1 kg
Package Level 1 EAN:
6417019124971

Technical

Cable Cross-Section:
1.5 ... 35 mm²
Cable Entry Position:
Top and/or Bottom
Cable Outlets Per Side:
2xM32+M16 / 2xM32+M16
Connecting Capacity Main Circuit:
Screw Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Screw Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Conventional Thermal Current (Ithe):
Fully Enclosed 80 A
Degree of Protection:
acc. to IEC 60529 IP65
Enclosure Material:
Plastic
Handle Color:
Black
Handle Type:
Selector handle
Impact Resistance Rating:
Housing IK08
Maximum Mounted Auxiliary Contacts:
2 NO, 2 NC
Mounted Auxiliary Contacts:
0 NO, 0 NC
Neutral Type:
Fixed Neutral
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Number of Poles:
3P
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Position of Neutral Terminals:
Top In - Bottom Out
Position of PE Terminals:
Top In - Bottom Out
Power Loss:
at Rated Operating Conditions per Pole 4.5 W
Rated Impulse Withstand Voltage (Uimp):
1.5 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie):
(500 V) 80 A
(380 ... 415 V) 80 A
(690 V) 80 A
(500 V) 80 A
(380 ... 415 V) 80 A
(690 V) 80 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 80 A
(690 V) 80 A
(380 ... 415 V) 80 A
(690 V) 80 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 75 A
(500 V) 58 A
(690 V) 20 A
(380 ... 415 V) 75 A
(500 V) 58 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 18.5 kW
(380 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 18.5 kW
Rated Operational Voltage:
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm):
(690 V AC) 2.1 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 1.5 kA
Recommended Screw Driver:
Main Circuit Pozidriv 2
Standards:
IEC 60947-1, -3
Tightening Torque:
Main Circuit 2 N·m
Wire Stripping Length:
13 mm

Technical UL/CSA

Wire Stripping Length:
13 mm
Recommended Screw Driver:
Main Circuit Pozidriv 2
Tightening Torque:
Main Circuit 2 N·m

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122205
IDEA Granular Category Code (IGCC):
5166 >> Safety switch
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3640865
Price on request
Ask for quote

Notify Me When Available
