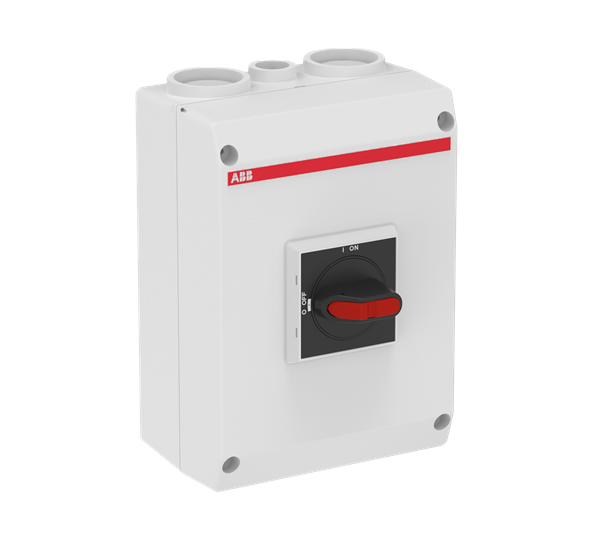

1SCA022383R3020 ABB - OTP45B3M

1SCA022383R3020 ABB - OTP45B3M

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
355719d0-b307-401d-bd5e-abce07c3d87e Finland
Simplified SCIP:
1aeaa79d-caba-427c-9418-020b0cbee3b9 Germany
42efc261-b49f-4866-80ae-047f9dd22dc2 Germany
c4bf3eb4-bdfa-42f1-8632-7b25f2e0fd10 Belgium
5748b5ac-4ee0-412c-abd7-5218255ea58d Portugal
d8a64158-0969-4c23-8ca4-4ca51e466708 Bulgaria
5b1f466b-4b6e-4410-81e0-1b04cef64860 Sweden
badb2ef8-a16f-41cf-a27f-58a635ed4a0e Czech Republic
29f5adde-84a0-4ea9-814f-7f197c0a4c01 Belgium
0c9d3490-65bb-48ec-8b4b-ee34a0616d73 Sweden
ef21b822-4781-4f88-a3b7-e4807fbdbb12 France
ecdd66a2-fe43-4c98-af22-efef74be55df Netherlands
6e9e1fb3-1f9b-4ca0-a4fb-bdfed31ab9ec Hungary
cf68c1a3-d151-4ba8-b49f-985b401a7db2 Poland
4b5f15b3-7a72-4ed9-a915-f8cfa8908338 Spain
5104b714-2243-493c-8be6-c4a2b55276fc Greece
03c77d16-5f6f-410d-be1d-083f5f3f4db7 Italy
9eba3ec5-458f-40b9-828c-a57a0efcb31a Poland
3bce4f53-0659-461f-adea-9e5cc08e6e55 Norway
085cfaca-414b-4430-9988-961fc039d369 Poland
859ba1e0-7a9a-4ac7-bc64-ccb16df5a42d Hungary
e7dfaa6a-ec3a-4a0e-8472-0e2b64972771 Estonia
9cd4dea8-1871-4e25-a0c4-5054676a3fce Germany
b49b3bd7-63f0-4a8e-b0f3-923ade68401d Germany
f4d98d72-1af9-4267-8238-b59b02bbd443 Croatia
bbdb7891-7d26-4162-be17-148e41bf16b6 Denmark
4bdebb89-cab8-4e4e-8102-fd99555ff804 France
b9c0f4e7-2b7c-4a9e-82c8-c98ebca86eca Germany
1aeaa79d-caba-427c-9418-020b0cbee3b9 Germany
42efc261-b49f-4866-80ae-047f9dd22dc2 Germany
c4bf3eb4-bdfa-42f1-8632-7b25f2e0fd10 Belgium
5748b5ac-4ee0-412c-abd7-5218255ea58d Portugal
d8a64158-0969-4c23-8ca4-4ca51e466708 Bulgaria
5b1f466b-4b6e-4410-81e0-1b04cef64860 Sweden
badb2ef8-a16f-41cf-a27f-58a635ed4a0e Czech Republic
29f5adde-84a0-4ea9-814f-7f197c0a4c01 Belgium
0c9d3490-65bb-48ec-8b4b-ee34a0616d73 Sweden
ef21b822-4781-4f88-a3b7-e4807fbdbb12 France

Popular Downloads

Environmental

Degree of Protection:
acc. to IEC 60529 IP65
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85363030
Last Ordering Date:
2026-08-31 All Countries
Replacement Product ID (NEW):
OTP40GB3M
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
145 mm
Product Net Height:
200 mm
Product Net Depth / Length:
90 mm
Product Net Weight:
0.9 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
162 mm
Package Level 1 Depth / Length:
222 mm
Package Level 1 Height:
148 mm
Package Level 1 Gross Weight:
1 kg
Package Level 1 EAN:
6417019124933

Technical

Cable Cross-Section:
1.5 ... 35 mm²
Cable Entry Position:
Top and/or Bottom
Cable Outlets Per Side:
2xM32+M16 / 2xM32+M16
Connecting Capacity Main Circuit:
Screw Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Screw Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Conventional Thermal Current (Ithe):
Fully Enclosed 63 A
Degree of Protection:
acc. to IEC 60529 IP65
Enclosure Material:
Plastic
Handle Color:
Black
Handle Type:
Selector handle
Impact Resistance Rating:
Housing IK08
Maximum Mounted Auxiliary Contacts:
2 NO, 2 NC
Mounted Auxiliary Contacts:
0 NO, 0 NC
Neutral Type:
Fixed Neutral
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Number of Poles:
3P
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Position of Neutral Terminals:
Top In - Bottom Out
Position of PE Terminals:
Top In - Bottom Out
Power Loss:
at Rated Operating Conditions per Pole 1.5 W
Rated Impulse Withstand Voltage (Uimp):
1 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 63 A
(690 V) 63 A
(380 ... 415 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 45 A
(500 V) 45 A
(690 V) 20 A
(380 ... 415 V) 45 A
(500 V) 45 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 22 kW
(500 V) 22 kW
(690 V) 15 kW
(380 ... 415 V) 22 kW
(500 V) 22 kW
(690 V) 15 kW
Rated Operational Voltage:
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm):
(690 V AC) 1.4 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 1 kA
Recommended Screw Driver:
Main Circuit Pozidriv 2
Standards:
IEC 60947-1, -3
Tightening Torque:
Main Circuit 2 N·m
Wire Stripping Length:
13 mm

Technical UL/CSA

Wire Stripping Length:
13 mm
Recommended Screw Driver:
Main Circuit Pozidriv 2
Tightening Torque:
Main Circuit 2 N·m

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122205
IDEA Granular Category Code (IGCC):
5166 >> Safety switch
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3640862
Price on request
Ask for quote

Notify Me When Available
