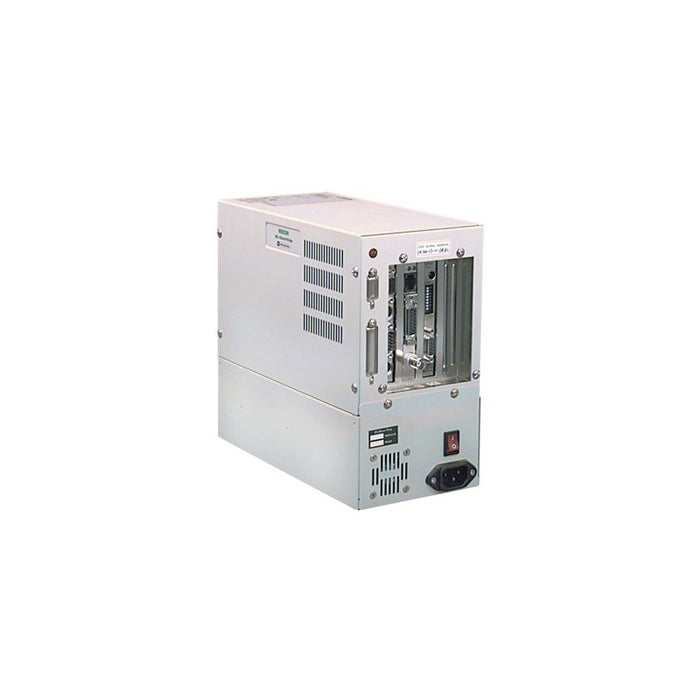

174CEV20040 Schneider

Main

Characteristic Value(s)
Product or Component Type Ethernet/Modbus Plus gateway/router
Level or class Class B10
[Us] rated supply voltage 110/220 V AC
Electrical connection 1 cable - twisted shielded pairs cable (single or double) <328.08 ft (100 m) ETHERNET

Complementary

Characteristic Value(s)
Concept Transparent Ready
Web services Diagnostic via predefined web pages
Predefined web pages configuration
Read/write
Ethernet service Modbus TCP messaging
SNMP agent
Communication gateway Ethernet/Modbus Plus
Communication port protocol Ethernet TCP/IP 10BASE-T/100BASE-TX twisted shielded pairs cable 10/100 Mbit/s
Modbus Plus HDLC synchronous RS485 twisted shielded pairs cable (single or double) 1 Mbit/s
[Us] rated supply voltage 110 V AC
220 V AC
Supply voltage limits 93.5…242 V AC
Supply frequency 47...63 Hz
Control Type Local/remote control
Local signalling for RUN 1 LED
Marking CE
Current consumption 1 A
Width 4.8 in (122 mm)
Height 9.02 in (229 mm)
Depth 9.8 in (248 mm)
Product Weight 9.39 lb(US) (4.26 kg)
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
Sale price$2,324.98
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
$0.00
$0.00
$2,324.98
