HMIS - Industrial PCs

363 products

Showing 1 - 24 of 363 products

Showing 1 - 24 of 363 products
View

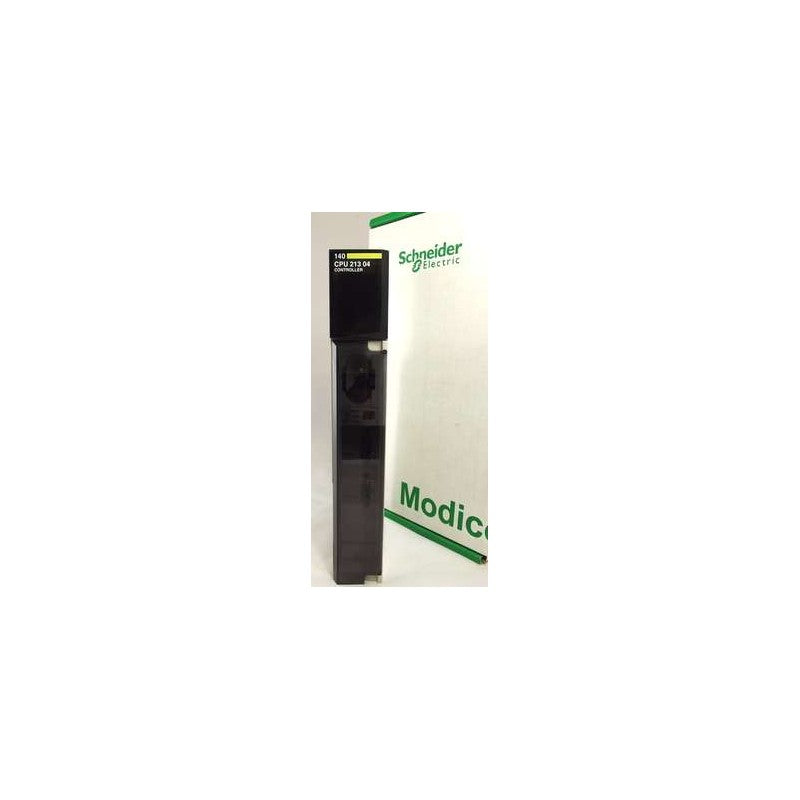

140CPU21304 Schneider
Schneider 140CPU21304 Schneider
$756.32
Only 6 units left

Modicon Quantum Processor 768K RAM MATH MB+
AS-P190-212 Schneider
Schneider AS-P190-212 Schneider
$2,209.00
Only 5 units left

P190 PROGRAMMER ASSY
AS-P230-000 Schneider
Schneider AS-P230-000 Schneider
$0.00
Sold Out

MODICON ASSEMBLY P230 PROGRAMMER ASP230000
AS-P230-080 Schneider
Schneider AS-P230-080 Schneider
$0.00
Sold Out

MODICON PROGRAMMER TERMINAL WITH SA85
AS-P964-000 Schneider
Schneider AS-P964-000 Schneider
$1,196.15
Only 1 unit left

MODICON GOULD DATA ACCESS PANEL P964
HMIBMIEA5DD1001 Schneider Electric
Schneider HMIBMIEA5DD1001 Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC basic Optimized
Product or Component Type Modular box PC
Range Compatibility IDisplay
Modular Display HMIDM
Accessory / separate part destination PC panel HMIDM modular display
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
Number of slots available for expansion 1.0 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
Cyber secured boot Secure password boot UEFI
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 9.6…28.8 V
Control type ON/OFF button
Main type Basic Optimised
Number of slots 1 slot(s) for mini PCI Express full-size with optional interface plate,
Type of cooling Fanless
Inrush current 2.03 A
Width 7.4 in (187 mm)
Height 5.9 in (150 mm)
Product Weight 2.6 lb(US) (1.2 kg)
HMIBMIEA5DD100A Schneider Electric
Schneider HMIBMIEA5DD100A Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC basic Optimized
Product or Component Type Modular box PC
Range Compatibility IDisplay
Modular Display HMIDM
Accessory / separate part destination PC panel HMIDM modular display
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
Number of slots available for expansion 1.0 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
Cyber secured boot Secure password boot UEFI
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 9.6…28.8 V
Control type ON/OFF button
Impregnation material Conformal coated
Main type Basic Optimised
Number of slots 1 slot(s) for mini PCI Express full-size with optional interface plate,
Type of cooling Fanless
Inrush current 2.03 A
Width 7.4 in (187 mm)
Height 5.9 in (150 mm)
Product Weight 2.6 lb(US) (1.2 kg)
HMIBMIEA5DD1101 Schneider Electric
Schneider HMIBMIEA5DD1101 Schneider Electric
$2,878.54
Only 3 units left

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC basic Optimized
Product or Component Type Modular box PC
Range Compatibility IDisplay
Modular Display HMIDM
Accessory / separate part destination PC panel HMIDM modular display
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
Number of slots available for expansion 1.0 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
Cyber secured boot Secure password boot UEFI
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 9.6…28.8 V
Control type ON/OFF button
Main type Basic Optimised
Number of slots 1 slot(s) for mini PCI Express full-size with optional interface plate,
Type of cooling Fanless
Inrush current 2.03 A
Width 7.4 in (187 mm)
Height 5.9 in (150 mm)
Product Weight 2.6 lb(US) (1.2 kg)
HMIBMIEA5DD110L Schneider Electric
Schneider HMIBMIEA5DD110L Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC basic Optimized
Product or Component Type Modular box PC
Range Compatibility IDisplay
Modular Display HMIDM
Accessory / separate part destination PC panel HMIDM modular display
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
Number of slots available for expansion 1.0 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
Cyber secured boot Secure password boot UEFI
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 9.6…28.8 V
Control type ON/OFF button
Main type Basic Optimised
Number of slots 1 slot(s) for mini PCI Express full-size with optional interface plate,
Type of cooling Fanless
Inrush current 2.03 A
Width 7.4 in (187 mm)
Height 5.9 in (150 mm)
Product Weight 2.6 lb(US) (1.2 kg)
HMIBMIEA5DD1E01 Schneider Electric
Schneider HMIBMIEA5DD1E01 Schneider Electric
$2,304.72
Only 1 unit left

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC basic Optimized
Product or Component Type Modular box PC
Range Compatibility IDisplay
Modular Display HMIDM
Accessory / separate part destination PC panel HMIDM modular display
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
Number of slots available for expansion 1.0 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
Cyber secured boot Secure password boot UEFI
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 9.6…28.8 V
Control type ON/OFF button
Main type Basic Optimised
Number of slots 1 slot(s) for mini PCI Express full-size with optional interface plate,
Type of cooling Fanless
Inrush current 2.03 A
Width 7.4 in (187 mm)
Height 5.9 in (150 mm)
Product Weight 2.6 lb(US) (1.2 kg)
HMIBMOMA5DD1101 Schneider Electric
Schneider HMIBMOMA5DD1101 Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Optimized
Product or Component Type Modular box PC
Range Compatibility IDisplay
Modular Display HMIDM
Accessory / separate part destination PC panel HMIDM modular display
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
Free slots 1 M.2 SSD
Number of slots available for expansion 1.0 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
Cyber secured boot Secure password boot UEFI
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 9.6…28.8 V
Control type ON/OFF button
Main type Optimised
Number of slots 1 slot(s) for mini PCI Express full-size without optional interface plate,
Type of cooling Fanless
Inrush current 2.03 A
Width 7.4 in (187 mm)
Height 5.9 in (150 mm)
Product Weight 2.76 lb(US) (1.25 kg)
HMIBMOMA5DD1E01 Schneider Electric
Schneider HMIBMOMA5DD1E01 Schneider Electric
$1,566.22
Only 1 unit left

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Optimized
Product or Component Type Modular box PC
Range Compatibility IDisplay
Modular Display HMIDM
Accessory / separate part destination PC panel HMIDM modular display
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
Free slots 1 M.2 SSD
Number of slots available for expansion 1.0 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
Cyber secured boot Secure password boot UEFI
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 9.6…28.8 V
Control type ON/OFF button
Main type Optimised
Number of slots 1 slot(s) for mini PCI Express full-size without optional interface plate,
Type of cooling Fanless
Inrush current 2.03 A
Width 7.4 in (187 mm)
Height 5.9 in (150 mm)
Product Weight 2.76 lb(US) (1.25 kg)
HMIBMOMA5DDF10L Schneider Electric
Schneider HMIBMOMA5DDF10L Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Optimized Expandable
Product or Component Type Modular box PC
Range Compatibility IDisplay
Modular Display HMIDM
Accessory / separate part destination PC panel HMIDM modular display
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
Free slots 1 M.2 SSD
1.0 Internal SATA HDD/SSD with adapter HMIYBADHDDBMO1 to mount
Number of slots available for expansion 1.0 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
Cyber secured boot Secure password boot UEFI
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 9.6…28.8 V
Control type ON/OFF button
Impregnation material Conformal coated
Main type Optimised
Number of slots 1 slot(s) for mini PCI Express full-size without optional interface plate,
Type of cooling Fanless
Inrush current 2.03 A
Width 7.4 in (187 mm)
Height 5.9 in (150 mm)
Product Weight 2.9 lb(US) (1.3 kg)
HMIBMPHI74D2801 Schneider Electric
Schneider HMIBMPHI74D2801 Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Performance
Product or Component Type Modular box PC
Range Compatibility Modular Display HMIDM
IDisplay
Accessory / separate part destination PC panel HMIDM modular display
Chipset type Intel QM87
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Wall mounting
Flat mounting
Memory description 8 GB RAM DDR3 internal not expandable)
512 KB MRAM internal
Free slots 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology
1 CFast
1 mSATA
Number of slots available for expansion 2 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 18…36 V
Control type ON/OFF button
Main type Performance
Number of slots 2 slot(s) for mini PCI Express full-size
Type of cooling Fanless
Fan required to mount PCI/PCIe cards above 3 W
Inrush current 8.9 A
Width 10.0000000000 in (254 mm)
Height 8.1 in (207 mm)
Product Weight 6.8 lb(US) (3.1 kg)
HMIBMPHI74D4801 Schneider
Schneider HMIBMPHI74D4801 Schneider
$0.00
Sold Out

Modular Box PC HMIBM Performance HDD DC Win 8.1 4 slots
HMIBMPSI74D2801 Schneider Electric
Schneider HMIBMPSI74D2801 Schneider Electric
$6,912.18
Only 3 units left

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Performance
Product or Component Type Modular box PC
Range Compatibility Modular Display HMIDM
IDisplay
Accessory / separate part destination PC panel HMIDM modular display
Chipset type Intel QM87
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Wall mounting
Flat mounting
Memory description 8 GB RAM DDR3 internal not expandable)
512 KB MRAM internal
Free slots 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology
1 CFast
1 mSATA
Number of slots available for expansion 2 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 18…36 V
Control type ON/OFF button
Main type Performance
Number of slots 2 slot(s) for mini PCI Express full-size
Type of cooling Fanless
Fan required to mount PCI/PCIe cards above 3 W
Inrush current 8.9 A
Width 10.0000000000 in (254 mm)
Height 8.1 in (207 mm)
Product Weight 6.8 lb(US) (3.1 kg)
HMIBMPSI74D4801 Schneider Electric
Schneider HMIBMPSI74D4801 Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Performance
Product or Component Type Modular box PC
Range Compatibility Modular Display HMIDM
IDisplay
Accessory / separate part destination PC panel HMIDM modular display
Chipset type Intel QM87
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Flat mounting
Wall mounting
Book mounting
Memory description 8 GB RAM DDR3 internal not expandable)
512 KB MRAM internal
Free slots 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology
1 CFast
1 mSATA
Number of slots available for expansion 2 mini PCIe
1 PCI
1 PCI express 4x
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 18…36 V
Control type ON/OFF button
Main type Performance
Number of slots 1 slot(s) for PCI
1 slot(s) for PCI express 4x
2 slot(s) for mini PCI Express full-size
Type of cooling Fanless
Fan required to mount PCI/PCIe cards above 3 W
Inrush current 8.9 A
Width 10.0000000000 in (254 mm)
Height 8.1 in (207 mm)
Product Weight 8.6 lb(US) (3.9 kg)
HMIBMUCI29D2W01 Schneider Electric
Schneider HMIBMUCI29D2W01 Schneider Electric
$3,738.74
Only 1 unit left

Modular Box PC HMIBM Universal CFast DC WES 2 slots
HMIBMUCI29D4W01 Schneider Electric
Schneider HMIBMUCI29D4W01 Schneider Electric
$2,204.81
Only 3 units left

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Universal
Product or Component Type Modular box PC
Range Compatibility Modular Display HMIDM
IDisplay
Accessory / separate part destination PC panel HMIDM modular display
Chipset type Intel QM87
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Wall mounting
Book mounting
Flat mounting
Memory description 4 GB RAM DDR3 internal not expandable)
512 KB MRAM internal
Free slots 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology
1 CFast
1 mSATA
Number of slots available for expansion 2 mini PCIe
1 PCI
1 PCI express 4x
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 18…36 V
Control type ON/OFF button
Main type Universal
Number of slots 1 slot(s) for PCI
2 slot(s) for mini PCI Express full-size
1 slot(s) for PCI express 1x
Type of cooling Fanless
Fan required to mount PCI/PCIe cards above 3 W
Inrush current 8.9 A
Width 10.0000000000 in (254 mm)
Height 8.1 in (207 mm)
Product Weight 8.6 lb(US) (3.9 kg)
HMIBMUHI29D2801 Schneider Electric
Schneider HMIBMUHI29D2801 Schneider Electric
$2,761.65
Only 2 units left

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Universal
Product or Component Type Modular box PC
Range Compatibility Modular Display HMIDM
IDisplay
Accessory / separate part destination PC panel HMIDM modular display
Chipset type Intel QM87
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
512 KB MRAM internal
Free slots 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology
1 CFast
1 mSATA
Number of slots available for expansion 2 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 18…36 V
Control type ON/OFF button
Main type Universal
Number of slots 2 slot(s) for mini PCI Express full-size
Type of cooling Fanless
Fan required to mount PCI/PCIe cards above 3 W
Inrush current 8.9 A
Width 10.0000000000 in (254 mm)
Height 8.1 in (207 mm)
Product Weight 6.8 lb(US) (3.1 kg)
HMIBMUHI29D4801 Schneider Electric
Schneider HMIBMUHI29D4801 Schneider Electric
$0.00
Sold Out

Modular Box PC HMIBM Universal HDD DC Win 8.1 4 slots
HMIBMUSI29D2801 Schneider Electric
Schneider HMIBMUSI29D2801 Schneider Electric
$1,163.74
Only 1 unit left

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Universal
Product or Component Type Modular box PC
Range Compatibility Modular Display HMIDM
IDisplay
Accessory / separate part destination PC panel HMIDM modular display
Chipset type Intel QM87
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Flat mounting
Wall mounting
Book mounting
Memory description 4 GB RAM DDR3 internal not expandable)
512 KB MRAM internal
Free slots 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology
1 CFast
1 mSATA
Number of slots available for expansion 2 mini PCIe
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 18…36 V
Control type ON/OFF button
Main type Universal
Number of slots 2 slot(s) for mini PCI Express full-size
Type of cooling Fanless
Fan required to mount PCI/PCIe cards above 3 W
Inrush current 8.9 A
Width 10.0000000000 in (254 mm)
Height 8.1 in (207 mm)
Product Weight 6.8 lb(US) (3.1 kg)
HMIBMUSI29D4801 Schneider Electric
Schneider HMIBMUSI29D4801 Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name Modular BOX PC Universal
Product or Component Type Modular box PC
Range Compatibility Modular Display HMIDM
IDisplay
Accessory / separate part destination PC panel HMIDM modular display
Chipset type Intel QM87
Software package Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

Complementary

Characteristic Value(s)
Mounting Location Book mounting
Flat mounting
Wall mounting
Memory description 4 GB RAM DDR3 internal not expandable)
512 KB MRAM internal
Free slots 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology
1 CFast
1 mSATA
Number of slots available for expansion 2 mini PCIe
1 PCI
1 PCI express 4x
Display resolution 3200 x 2000 pixels at 60 Hz
Watchdog timer 1…255 ms
Electrical connection Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Connector, connector type: SMA, 3 ways - location: top
[Us] rated supply voltage 24 V DC power supply
100...240 V AC power supply
Supply voltage limits 18…36 V
Control type ON/OFF button
Main type Universal
Number of slots 1 slot(s) for PCI
1 slot(s) for PCI express 4x
2 slot(s) for mini PCI Express full-size
Type of cooling Fanless
Fan required to mount PCI/PCIe cards above 3 W
Inrush current 8.9 A
Width 10.0000000000 in (254 mm)
Height 8.1 in (207 mm)
Product Weight 8.6 lb(US) (3.9 kg)
HMIBPFDD2701 Schneider
Schneider HMIBPFDD2701 Schneider
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type Operator dialogue terminal
Device short name BOX PC Performance
Range Compatibility Harmony iDisplay
Compatibility code BOX PC Performance
Processor name Core 2 Duo P8400 2.26 GHz cache 3 MB
Chipset type Intel GM45 1066 MHz
Video controller type Mobile Intel Graphics Media Accelerator (GMA) 4500MHD, 224 Mb
Operating system Windows 10 IoT Enterprise 64 bit switched from Windows 8.1 in Q1 2018)multi-language
Software package Vijeo Designer run time demo

Complementary

Characteristic Value(s)
Data storage equipment 60 GB Flash disk SSD MLC 2000000 h
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
Memory description 4 GB RAM DDR3 internal not expandable)
SDRAM saved memory
Number of slots 1 slot(s) for PCI
1 slot(s) for PCI express 4x
Type of cooling Fan
Integrated connection type Ethernet TCP/IP 2 RJ45
DVI-I video port DVI-I
COM1 serial link male SUB-D 9 RS232C 115 kbauds
COM2 serial link male SUB-D 9 RS232C 115 kbauds
DVI-I video port (optional) DVI-I
COM3 serial link (optional) male SUB-D 10 RS232/422/485 115 kbauds
USB 2.0 port USB type A 480 Mbit/s front panel
USB 2.0 port 4 USB type A 480 Mbit/s top panel
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Line Rated Current 6 A
Inrush current 7 A
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Main type Performance
Height 10.6 in (270 mm)
Width 10.2 in (260 mm)
Product Weight 6.2 lb(US) (2.8 kg)

Recently viewed
