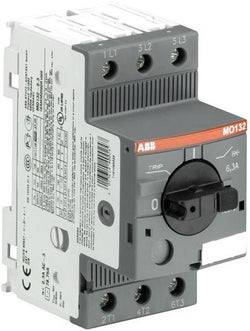

1SAM360000R1005 ABB - MO132-1.0
ABB 1SAM360000R1005 ABB - MO132-1.0
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362010

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals (Part 2):

Dimensions

Product Net Width:
45 mm
Product Net Height:
90 mm
Product Net Depth / Length:
86.75 mm
Product Net Weight:
0.215 kg

Technical

Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
(230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
(230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
Rated Instantaneous Short-Circuit Current Setting (Ii):
12.5 A
Setting Range:
None
Rated Operational Power AC-3 (Pe):
(400 V) Three Phase 0.25 kW
Rated Operational Power AC-3e (Pe):
(400 V) Three Phase 0.25 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Operational Current (Ie):
1 A
Rated Operational Current AC-3 (Ie):
1 A
Rated Operational Current AC-3e (Ie):
1 A
Rated Frequency (f):
Main Circuit 50 Hz
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit 60 Hz
Operating Frequency (fsw):
0 ... 400 Hz
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
690 V
Power Loss:
at Rated Operating Conditions per Pole 1.7 W
Number of Poles:
3P
Conventional Free-air Thermal Current (Ith):
Main Circuit 1 A
Degree of Protection:
Housing IP20
Main Circuit Terminals IP10
Housing IP20
Main Circuit Terminals IP10
Pollution Degree:
3
Electrical Durability:
50000 cycle
Mechanical Durability:
Nr. Operations 100000 cycle
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Tightening Torque:
Main Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:
Main Circuit 9 mm
Recommended Screw Driver:
Pozidriv 2
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Minimum Mounting Distance:
Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
Electrical Conductive Board, Vertical 75 mm
Other Device Same Type, Horizontal 0 mm
Other Device Same Type, Vertical 150 mm
Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
Electrical Conductive Board, Vertical 75 mm
Other Device Same Type, Horizontal 0 mm
Other Device Same Type, Vertical 150 mm
Actuator Type:
Rotary Handle
Contact Position Indication:
ON / OFF / TRIP
Standards:
IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2L
IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2L
Remarks:
For overload protection of the motors, an appropriate thermal or electronic overload relays must be used

Technical UL/CSA

Short-Circuit Current Rating (SCCR):
Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Horsepower Rating UL/CSA:
(550 ... 600 V AC) Three Phase 0.5 Hp
Full Load Amps Motor Use:
(200 V AC) Three Phase 1 A
(208 V AC) Three Phase 1 A
(220 ... 240 V AC) Three Phase 1 A
(440 ... 480 V AC) Three Phase 1 A
(550 ... 600 V AC) Three Phase 1 A
(200 V AC) Three Phase 1 A
(208 V AC) Three Phase 1 A
(220 ... 240 V AC) Three Phase 1 A
(440 ... 480 V AC) Three Phase 1 A
(550 ... 600 V AC) Three Phase 1 A
Locked Rotor Amps:
(200 V AC) Three Phase 6 A
(208 V AC) Three Phase 6 A
(220 ... 240 V AC) Three Phase 6 A
(440 ... 480 V AC) Three Phase 6 A
(550 ... 600 V AC) Three Phase 6 A
(200 V AC) Three Phase 6 A
(208 V AC) Three Phase 6 A
(220 ... 240 V AC) Three Phase 6 A
(440 ... 480 V AC) Three Phase 6 A
(550 ... 600 V AC) Three Phase 6 A
General Use Rating UL/CSA:
(600 V AC) 1 A
Connecting Capacity Main Circuit UL/CSA:
Flexible 1/2x 16-12 AWG
Stranded 1/2x 16-12 AWG
Flexible 1/2x 16-12 AWG
Stranded 1/2x 16-12 AWG
Tightening Torque UL/CSA:
Main Circuit 10 in·lb

Environmental

Ambient Air Temperature:
Around the Enclosure 0 ... +40 °C
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Around the Enclosure 0 ... +40 °C
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Ambient Air Temperature Compensation:
No
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Certificates and Declarations

LR Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
92 mm
Package Level 1 Depth / Length:
95 mm
Package Level 1 Height:
50 mm
Package Level 1 Gross Weight:
0.23 kg
Package Level 1 EAN:
4013614400209
Package Level 2 Units:
carton 40 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
9.586 kg
Package Level 2 EAN:
4013614443657

External Classifications and Standards

Object Classification Code:
F
ETIM 9:
EC000074 - Motor protection circuit-breaker
ETIM 10:
EC000074 - Motor protection circuit-breaker
eClass:
V11.0 : 27370401
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4731 >> Manual Starters
E-Number (Finland):
3705883
E-Number (Norway):
4364089
E-Number (Sweden):
3110033
1SAM550000R1007 ABB - MS495-63
ABB 1SAM550000R1007 ABB - MS495-63
$772.64
Only 5 units left

MANUAL MOTOR STARTER, SHORT CIRCUIT BREAKING CAPACITY - 230-400 V AC, 450 V DC / 690 V AC, 50/60 HZ, 45-63 AMP, 3 PHASE, 30 KW, 3 POLES
1SAT125000R1011 ABB HF2.4-ROL-24VDC
ABB 1SAT125000R1011 ABB HF2.4-ROL-24VDC
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371098
Product Main Type:
HF
Product Name:
Electronic Starter

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
99 mm
Product Net Depth / Length:
114.5 mm
Product Net Weight:
0.219 kg

Technical

Standards:
IEC/EN 60947-1
IEC/EN 60947-4-2
UL 60947-1
UL 60947-4-2
IEC/EN 60947-1
IEC/EN 60947-4-2
UL 60947-1
UL 60947-4-2
Function:
Reversed-on-line starter with overload protection
Utilization:
Motor Protection
Rated Operational Voltage:
Main Circuit 500 V AC
Operational Voltage:
Maximum 550 V AC
Minimum 42 V AC
Maximum 550 V AC
Minimum 42 V AC
Rated Frequency (f):
Main Circuit 50 Hz
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Control Supply Voltage (Us):
24 V DC
Rated Input Voltage (UIN):
Switching Threshold at Signal <0> -3 ... 9.6 V
Switching Threshold at Signal <1> 19.2 ... 30 V
Switching Threshold at Signal <0> -3 ... 9.6 V
Switching Threshold at Signal <1> 19.2 ... 30 V
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
500 V
Rated Operational Current AC-51 (Ie):
2.4 A
Rated Operational Current AC-53a (Ie):
2.4 A
Rated Control Supply Current (Is):
0.04 A
Rated Uninterrupted Current (Iu):
2.4 A
Input Current:
0.003 A
Switching Frequency:
≤ 2 Hz
120 starts/min
7200 starts/h
≤ 2 Hz
120 starts/min
7200 starts/h
Rated Operational Power AC-53a (Pe):
0.75 kW
Overvoltage Category:
III
Overload Protection:
Electronic overload protection
Setting Range:
0.18 ... 2.4 A
Trip Class:
class 10A
Number of Poles:
3P
Power Loss:
Maximum 3.3 W
Minimum 1.1 W
Maximum 3.3 W
Minimum 1.1 W
Number of Protected Poles:
3
Mechanical Durability:
Nr. Operations 10000 cycle
Electrical Durability:
30000000 cycle
Delay Time (τ):
Off, Maximum, Switched Off via Supply Voltage 500 ms
Off, Typical, Switched Off via Control Input Voltage 30 ms
Off, Typical, Switched Off via Supply Voltage 25 ms
Off, Maximum, Switched Off with Pushbutton 3 second [unit of time]
Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time]
Off, Maximum, Switched Off via Supply Voltage 500 ms
Off, Typical, Switched Off via Control Input Voltage 30 ms
Off, Typical, Switched Off via Supply Voltage 25 ms
Off, Maximum, Switched Off with Pushbutton 3 second [unit of time]
Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time]
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
1
Connecting Capacity Control Circuit:
Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1x 0.5 ... 4 mm²
Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1x 0.5 ... 4 mm²
Connecting Capacity Main Circuit:
Flexible with Ferrule 1x 2 ... 2.5 mm²
Flexible 1x 2 ... 2.5 mm²
Rigid 1x 2 ... 2.5 mm²
Flexible with Ferrule 1x 2 ... 2.5 mm²
Flexible 1x 2 ... 2.5 mm²
Rigid 1x 2 ... 2.5 mm²
Recommended Screw Driver:
Control Circuit M3
Main Circuit M3
Control Circuit M3
Main Circuit M3
Terminal Type:
Screw Terminals
Tightening Torque:
Control Circuit 0.5 ... 0.6 N·m
Main Circuit 0.5 ... 0.6 N·m
Control Circuit 0.5 ... 0.6 N·m
Main Circuit 0.5 ... 0.6 N·m
Wire Stripping Length:
Control Circuit 8 mm
Main Circuit 8 mm
Control Circuit 8 mm
Main Circuit 8 mm
Response Time:
Phase Asymmetry 33% 120 second [unit of time]
Phase Asymmetry 67% 1.8 second [unit of time]
Phase Failure 1.8 second [unit of time]
Phase Asymmetry 33% 120 second [unit of time]
Phase Asymmetry 67% 1.8 second [unit of time]
Phase Failure 1.8 second [unit of time]
Pollution Degree:
2
Phase Loss Sensitive:
Yes
Degree of Protection:
Housing IP20
Main Circuit Terminals IP20
Housing IP20
Main Circuit Terminals IP20
Short-Circuit Current Rating (SCCR):
(500 V AC, 30 A Class J or CC) 100 kA

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 500 V AC
Horsepower Rating UL/CSA:
Nominal Switching Performance Full Load (power factor = 0.4) 1.2 Hp
Nominal Switching Performance Full Load (power factor = 0.8) 2.2 Hp
Nominal Switching Performance Full Load (power factor = 0.4) 1.2 Hp
Nominal Switching Performance Full Load (power factor = 0.8) 2.2 Hp
Full Load Amps Motor Use:
2.4 A
Connecting Capacity Main Circuit UL/CSA:
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 1x 24 ... 14 AWG
Solid 1x 24 ... 14 AWG
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 1x 24 ... 14 AWG
Solid 1x 24 ... 14 AWG
Connecting Capacity Control Circuit UL/CSA:
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 16-8 AWG
Solid 1x 24 ... 14 AWG
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 16-8 AWG
Solid 1x 24 ... 14 AWG
Tightening Torque UL/CSA:
Control Circuit 5 ... 7 in·lb
Main Circuit 5 ... 7 in·lb
Control Circuit 5 ... 7 in·lb
Main Circuit 5 ... 7 in·lb

Safety Information

Mean Time to Failure (MTTF):
39.6 year

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Operation Compensated -40 ... + 80 °C
Operation -25 ... +70 °C
Operation Compensated -40 ... + 80 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
150 mm
Package Level 1 Depth / Length:
115 mm
Package Level 1 Height:
34 mm
Package Level 1 Gross Weight:
0.319 kg
Package Level 1 EAN:
4013614515552

External Classifications and Standards

Object Classification Code:
B
ETIM 9:
EC001037 - Motor starter/motor starter combination
ETIM 10:
EC001037 - Motor starter/motor starter combination
eClass:
V11.0 : 27370905
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4727 >> Motor starter controls
E-Number (Finland):
3707548
E-Number (Norway):
4102014
E-Number (Sweden):
3210496
1SAX531001R1101 ABB - EF205-210
ABB 1SAX531001R1101 ABB - EF205-210
$1,380.26
Only 5 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals (Part 2):

Dimensions

Product Net Width:
105 mm
Product Net Height:
171 mm
Product Net Depth / Length:
122.8 mm
Product Net Weight:
1.256 kg

Technical

Setting Range:
63 ... 210 A
Rated Operational Voltage:
Auxiliary Circuit 600 V AC/DC
Main Circuit 1000 V AC
Auxiliary Circuit 600 V AC/DC
Main Circuit 1000 V AC
Rated Operational Current (Ie):
210 A
Rated Frequency (f):
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Main Circuit 8 kV
Auxiliary Circuit 6 kV
Main Circuit 8 kV
Rated Insulation Voltage (Ui):
1000 V
Number of Poles:
3P
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Number of Protected Poles:
3
Conventional Free-air Thermal Current (Ith):
Auxiliary Circuit NC 5 A
Auxiliary Circuit NO 5 A
Auxiliary Circuit NC 5 A
Auxiliary Circuit NO 5 A
Rated Operational Current AC-15 (Ie):
(240 V) NC 3 A
(240 V) NO 3 A
(400 V) NC 1.1 A
(400 V) NO 1.1 A
(500 V) NC 0.75 A
(500 V) NO 0.75 A
(240 V) NC 3 A
(240 V) NO 3 A
(400 V) NC 1.1 A
(400 V) NO 1.1 A
(500 V) NC 0.75 A
(500 V) NO 0.75 A
Rated Operational Current DC-13 (Ie):
(125 V) NC 0.55 A
(125 V) NO 0.5 A
(24 V) NC 1.5 A
(24 V) NO 1.5 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
(125 V) NC 0.55 A
(125 V) NO 0.5 A
(24 V) NC 1.5 A
(24 V) NO 1.5 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
Degree of Protection:
Housing IP20
Main Circuit Terminals IP00
Housing IP20
Main Circuit Terminals IP00
Pollution Degree:
3
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Main Circuit:
Hole Diameter > 8 mm²
Rigid or Flexible with Cable Lug 1x 16 ... 185 mm²
Rigid or Flexible with Cable Lug 2x 16 ... 120 mm²
Hole Diameter > 8 mm²
Rigid or Flexible with Cable Lug 1x 16 ... 185 mm²
Rigid or Flexible with Cable Lug 2x 16 ... 120 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Main Circuit 18 N·m
Auxiliary Circuit 0.8 ... 1.2 N·m
Main Circuit 18 N·m
Wire Stripping Length:
Auxiliary Circuit 9 mm
Recommended Screw Driver:
Auxiliary Circuit Pozidriv 2
Mounting Position:
1 ... 6
Power Loss:
at Rated Operating Conditions per Pole 0.107 ... 1.191 W
Suitable For:
A145
A185
AF145
AF185
AF190
AF205
A145
A185
AF145
AF185
AF190
AF205
Standards:
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Contact Rating UL/CSA:
(NC:) B600
(NC:) Q600
(NO:) B600
(NO:) Q600
(NC:) B600
(NC:) Q600
(NO:) B600
(NO:) Q600
Connecting Capacity Main Circuit UL/CSA:
Stranded 1/2x 6-0000 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 18-10 AWG
Stranded 1/2x 18-10 AWG
Flexible 1/2x 18-10 AWG
Stranded 1/2x 18-10 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 ... 11 in·lb
Main Circuit 160 in·lb
Auxiliary Circuit 7 ... 11 in·lb
Main Circuit 160 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Operation Compensated -25 ... +70 °C
Storage -50 ... +85 °C
Operation -25 ... +70 °C
Operation Compensated -25 ... +70 °C
Storage -50 ... +85 °C
Ambient Air Temperature Compensation:
Yes
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Material Compliance

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Certificates and Declarations

ATEX Certificate:
CCS Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
195 mm
Package Level 1 Height:
199 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
1.624 kg
Package Level 1 EAN:
4013614442223

External Classifications and Standards

Object Classification Code:
F
ETIM 9:
EC001080 - Electronic overload relay
ETIM 10:
EC001080 - Electronic overload relay
eClass:
V11.0 : 27371502
UNSPSC:
39122330
IDEA Granular Category Code (IGCC):
5365 >> Electronic overload relay
E-Number (Finland):
3705899
E-Number (Norway):
4116703
E-Number (Sweden):
3210248
1SAZ211201R1038 ABB - TA25DU-6.5
ABB 1SAZ211201R1038 ABB - TA25DU-6.5
$0.00
Sold Out

TA25DU-6.5 Thermal Overload Relay, The TA25DU-6.5 thermal overload relay is an economic electromechanical protection device for the main circuit.
1SDA014041R1 ABB - TERMINAL COVERS HIGH 4P S6-T6
ABB 1SDA014041R1 ABB - TERMINAL COVERS HIGH 4P S6-T6
$0.00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT6HTC-4
EAN:
8015644140410
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.69 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
150 mm
Package Level 1 Height:
162 mm
Package Level 1 Depth / Length:
300 mm
Package Level 1 Gross Weight:
0.69 kg
Package Level 1 EAN:
8015644140410

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
S6, T6
Suitable for Product Class:
SACE Tmax T
SACE Isomax
SACE Tmax T
SACE Isomax

Technical

Configuration Type:
Loose or configurable
Device:
S6 - 4 pole
Number of Poles:
4P
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002268 - Cover cap for rail terminal bar
ETIM 10:
EC002268 - Cover cap for rail terminal bar
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
Object Classification Code:
Q
UNSPSC:
39122221
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27400635
1SDA038292R0001 ABB
ABB 1SDA038292R0001 ABB
$0.00
Sold Out

Additional Information

ABB Type Designation:
-
Country or Territory of Origin:
Italy
Customs Tariff Number:
85389099
Frame Size:
Undefined
Gross Weight:
0 kg
Invoice Description:
TRIP COIL 220VAC/DC
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Package Level 1 Gross Weight:
0 kg
Package Level 1 Units:
1 piece
Part Type:
New
Product Name:
-
Product Net Depth / Length:
320 mm
Product Net Height:
48 mm
Product Net Weight:
0.9 kg
Product Net Width:
165 mm
Product Type:
Undefined
Quote Only:
No
Replacement Product ID (NEW):
Selling Unit of Measure:
piece
Stocked At (Warehouses):
Baden, Switzerland
WEEE Category:
Product Not in WEEE Scope
1SAZ211201R1045 ABB - TA25DU-14
ABB 1SAZ211201R1045 ABB - TA25DU-14
$0.00
Sold Out

TA25DU-14 Thermal Overload Relay
1SDA038306R1 ABB
ABB 1SDA038306R1 ABB
$603.11
Only 3 units left

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Ordering

E-Number (Norway):
4376630
EAN:
8015644383060
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Gross Weight:
0.705 kg
Package Level 1 EAN:
8015644383060

Additional Information

Product Main Type:
Accessories for Emax
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
E1, E2, E3, E4, E6, T8
Suitable for Product Class:
SACE Emax, SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Current Type:
DC
Rated Voltage (Ur):
24 V DC
Standards:
IEC

External Classifications and Standards

Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
1SDA069822R1 ABB
ABB 1SDA069822R1 ABB
$0.00
Sold Out

T3D/PV 200 4p F FC Cu 1100V DC
1SDA071268R1 ABB - E6.2H 5000 Ekip Hi-Touch LSI 3p F HR
ABB 1SDA071268R1 ABB - E6.2H 5000 Ekip Hi-Touch LSI 3p F HR
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 77 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
Z6HXESBJ200A000000XX
EAN:
8015644751180
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
762 mm
Product Net Height:
371 mm
Product Net Depth / Length:
270 mm
Product Net Weight:
109 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
610 mm
Package Level 1 Depth / Length:
1000 mm
Package Level 1 Gross Weight:
118 kg
Package Level 1 EAN:
8015644751180

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 3000 cycle
Ue = 500 ... 690 V 2000 cycle
10 cycles per hour
Ue =< 440 V 3000 cycle
Ue = 500 ... 690 V 2000 cycle
10 cycles per hour
Mechanical Durability:
12000 cycle
60 cycles per hour
12000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
483 W
Rated Current (In):
5000 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 100 kA
for 3 s 100 kA
for 1 s 100 kA
for 3 s 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(525 V AC) 100 kA
(690 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(525 V AC) 100 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu):
5000 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M12
Release:
Ekip Hi-Touch LSI
Release Type:
EL
Short-Circuit Performance Level:
H
Standards:
IEC
Sub-type:
E6.2
Suitable for IT Networks:
Yes, 690V
Terminal Connection Type:
Rear flat Horizontal
Terminal Type:
Bolt
Tightening Torque:
70 N·m

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA073690R1 ABB - YC E1.2..E6.2-XT7M 380-400 VAC
ABB 1SDA073690R1 ABB - YC E1.2..E6.2-XT7M 380-400 VAC
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZEACK
EAN:
8015644776237
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
105 mm
Product Net Height:
55 mm
Product Net Depth / Length:
135 mm
Product Net Weight:
0.12 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
105 mm
Package Level 1 Height:
55 mm
Package Level 1 Depth / Length:
135 mm
Package Level 1 Gross Weight:
0.15 kg
Package Level 1 EAN:
8015644776237

Additional Information

Product Main Type:
Accessories for Emax 2, Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT7-XT7M, E1.2, E2.2, E4.2, E6.2
Suitable for Product Class:
SACE Tmax XT, SACE Emax 2

Technical

Configuration Type:
Loose or configurable
Current Type:
AC
Order Multiple:
1 piece
Rated Voltage (Ur):
380...400 V
Standards:
IEC

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421
1SDA038343R1 ABB - E1/6-T8
ABB 1SDA038343R1 ABB - E1/6-T8
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

E-Number (Norway):
4376568
EAN:
8015644383435
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
150 mm
Product Net Height:
10 mm
Product Net Depth / Length:
190 mm
Product Net Weight:
0.034 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Gross Weight:
0.034 kg
Package Level 1 EAN:
8015644383435

Additional Information

Product Main Type:
Accessories for Emax Old
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
E1, E2, E3, E4, E6, T8
Suitable for Product Class:
SACE Emax, SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Standards:
IEC

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
Instructions and Manuals:

External Classifications and Standards

Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
1SDA051445R1 ABB - KIT FC CuAl 35...95mm2 T1 8pcs
ABB 1SDA051445R1 ABB - KIT FC CuAl 35...95mm2 T1 8pcs
$0.00
Sold Out

Material Compliance

RoHS Information:

Environmental

Environmental Information:

Ordering

EAN:
8015644518653
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.6 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
145 mm
Package Level 1 Height:
100 mm
Package Level 1 Depth / Length:
105 mm
Package Level 1 Gross Weight:
0.73 kg
Package Level 1 EAN:
8015644518653

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
ACC
Suitable For:
T1
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Device:
T1
Number of Poles:
4P
Standards:
IEC

Certificates and Declarations

Data Sheet, Technical Information:
Instructions and Manuals:

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
1SDA050924R1 ABB - T1N 160 TMD160-1600 3p F FC Cu
ABB 1SDA050924R1 ABB - T1N 160 TMD160-1600 3p F FC Cu
$1,087.50
Only 4 units left

Material Compliance

RoHS Information:

Environmental

Environmental Information:

Ordering

EAN:
8015644513368
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
76 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.11 kg
Package Level 1 EAN:
8015644513368

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
CB
Suitable For:
T1
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
8000 cycle
120 cycles per hour
8000 cycle
120 cycles per hour
Mechanical Durability:
25000 cycle
240 cycles per hour
25000 cycle
240 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 15 W
Rated Current (In):
160 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 37,5 kA
(230 V AC) 37,5 kA
(380 V AC) 27 kA
(400 V AC) 27 kA
(415 V AC) 27 kA
(440 V AC) 11 kA
(500 V AC) 7,5 kA
(690 V AC) 3 kA
(220 V AC) 37,5 kA
(230 V AC) 37,5 kA
(380 V AC) 27 kA
(400 V AC) 27 kA
(415 V AC) 27 kA
(440 V AC) 11 kA
(500 V AC) 7,5 kA
(690 V AC) 3 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 5 kA
(230 V AC) 5 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 22 kA
(500 V AC) 15 kA
(690 V AC) 6 kA
(250 V DC) 2 Poles in Series 36 kA
(250 V DC) 3 Poles in Series 40 kA
(500 V DC) 3 Poles in Series 36 kA
(220 V AC) 5 kA
(230 V AC) 5 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 22 kA
(500 V AC) 15 kA
(690 V AC) 6 kA
(250 V DC) 2 Poles in Series 36 kA
(250 V DC) 3 Poles in Series 40 kA
Rated Uninterrupted Current (Iu):
160 A
Release:
TMD
Release Type:
TM
Short-Circuit Performance Level:
N
Standards:
IEC 60947
Sub-type:
T1
Terminal Connection Type:
Fixed Circuit-Breakers
Front for Copper Cables
Fixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest):
3000 V
Test Voltage at Industrial Frequency for 1 Minute:
3000 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
GL Certificate:
Data Sheet, Technical Information (Part 2):
Instructions and Manuals:
Instructions and Manuals (Part 2):
Instructions and Manuals (Part 3):

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39121100
1SAZ321201R1001 ABB - TA75DU-25
ABB 1SAZ321201R1001 ABB - TA75DU-25
$0.00
Sold Out

TA75DU-25 Thermal Overload Relay 18 ... 25 A. The TA75DU-25 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A.
1SDA073791R1 ABB - KLC-D Key lock open E2.2...E6.2
ABB 1SDA073791R1 ABB - KLC-D Key lock open E2.2...E6.2
$0.00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZEBKLCD
EAN:
8015644777241
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.2 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
145 mm
Package Level 1 Height:
30 mm
Package Level 1 Depth / Length:
200 mm
Package Level 1 Gross Weight:
0.3 kg
Package Level 1 EAN:
8015644777241

Additional Information

Product Main Type:
Accessories for Emax 2
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
E2.2, E4.2, E6.2
Suitable for Product Class:
SACE Emax 2

Technical

Configuration Type:
Loose or configurable
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10:
EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
Object Classification Code:
Q
UNSPSC:
39122221
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371392
1SDA073746R1 ABB YR 220 VAC/DC E1.2-XT7M
ABB 1SDA073746R1 ABB YR 220 VAC/DC E1.2-XT7M
$0.00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZE1YRC
EAN:
8015644776794
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
200 mm
Product Net Height:
40 mm
Product Net Depth / Length:
190 mm
Product Net Weight:
0.2 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
200 mm
Package Level 1 Height:
40 mm
Package Level 1 Depth / Length:
190 mm
Package Level 1 Gross Weight:
0.3 kg
Package Level 1 EAN:
8015644776794

Additional Information

Product Main Type:
Accessories for Emax 2, Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT7-XT7M, E1.2
Suitable for Product Class:
SACE Tmax XT, SACE Emax 2

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Order Multiple:
1 piece
Rated Voltage (Ur):
250 V
Standards:
IEC/UL

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC001025 - Trip indicator
ETIM 10:
EC001025 - Trip indicator
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
Object Classification Code:
Q
UNSPSC:
39122221
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370420
1SDA051941R1 ABB - KIT FC CuAl 150...240mm2 T3 4pcs
ABB 1SDA051941R1 ABB - KIT FC CuAl 150...240mm2 T3 4pcs
$0.00
Sold Out

Material Compliance

RoHS Information:

Environmental

Environmental Information:

Ordering

E-Number (Norway):
4377407
EAN:
8015644524128
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.67 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Gross Weight:
0.73 kg
Package Level 1 EAN:
8015644524128

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
ACC
Suitable For:
T3
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Device:
T3
Number of Poles:
4P
Standards:
IEC

Certificates and Declarations

Data Sheet, Technical Information:
Instructions and Manuals:

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
1SDA073776R1 ABB - S51 250V E1.2-XT7-XT7M
ABB 1SDA073776R1 ABB - S51 250V E1.2-XT7-XT7M
$0.00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZE1BA
EAN:
8015644777098
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
190 mm
Product Net Height:
30 mm
Product Net Depth / Length:
135 mm
Product Net Weight:
0.2 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
190 mm
Package Level 1 Height:
30 mm
Package Level 1 Depth / Length:
135 mm
Package Level 1 Gross Weight:
0.2 kg
Package Level 1 EAN:
8015644777098

Additional Information

Product Main Type:
Accessories for Emax 2, Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT7-XT7M, E1.2
Suitable for Product Class:
SACE Tmax XT, SACE Emax 2

Technical

Configuration Type:
Loose or configurable
Order Multiple:
1 piece
Rated Voltage (Ur):
250 V
Standards:
IEC/UL

External Classifications and Standards

ETIM 9:
EC001025 - Trip indicator
ETIM 10:
EC001025 - Trip indicator
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
Object Classification Code:
Q
UNSPSC:
39122221
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370420
1SDA080116R1 ABB - XT4N 250 TMF 250-2500 3p F F UL/CSA
ABB 1SDA080116R1 ABB - XT4N 250 TMF 250-2500 3p F F UL/CSA
$1,248.45
Only 4 units left

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 56.30 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT4NU3250AFF000XXX
EAN:
8015644866457
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
105 mm
Product Net Height:
160 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
2.5 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
145 mm
Package Level 1 Height:
210 mm
Package Level 1 Depth / Length:
168 mm
Package Level 1 Gross Weight:
2.5 kg
Package Level 1 EAN:
8015644866457

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable for Product Class:
SACE Tmax XT
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 85..200 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
3P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 16.4 W
Rated Current (In):
250 A
Rated Instantaneous Short-Circuit Current Setting (Ii):
2500 A
Rated Operational Voltage:
600 V AC
600 V DC
600 V AC
600 V DC
Rated Uninterrupted Current (Iu):
250 A
Rated Voltage (Ur):
600 V
Recommended Screw Driver:
Main Circuit M8
Release:
TMF
Release Type:
TM
Setting Range:
250 A
Short-Circuit Performance Level:
N
Standards:
UL489
Sub-type:
XT4
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
8 N·m

Technical UL/CSA

Interrupting Rating acc. to UL489:
(240 V AC) 65 kA
(480 V AC) 25 kA
(600 V AC) 18 kA
(250 V DC) 2 Poles in Series 35 kA
(600 V DC) 3 Poles in Series 35 kA
(240 V AC) 65 kA
(480 V AC) 25 kA
(600 V AC) 18 kA
(250 V DC) 2 Poles in Series 35 kA
(600 V DC) 3 Poles in Series 35 kA

Certificates and Declarations

ATEX Certificate:
CSA Certificate (Intrinsic Safe):
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4927 >> Molded case circuit breakers
Object Classification Code:
Q
UNSPSC:
39121616
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA074744R1 ABB - XT2N 125 TMA 100-500..1000 3p F F UL/CSA
ABB 1SDA074744R1 ABB - XT2N 125 TMA 100-500..1000 3p F F UL/CSA
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.70 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT2NU3100BFF000XXX
EAN:
8015644787219
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
90 mm
Product Net Height:
130 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.1 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
131 mm
Package Level 1 Height:
212 mm
Package Level 1 Depth / Length:
147 mm
Package Level 1 Gross Weight:
1.2 kg
Package Level 1 EAN:
8015644787219

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable for Product Class:
SACE Tmax XT
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 32.5..100 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
3P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 8.1 W
Rated Current (In):
100 A
Rated Instantaneous Short-Circuit Current Setting (Ii):
500…1000 A
Rated Operational Voltage:
600 V AC
500 V DC
600 V AC
500 V DC
Rated Uninterrupted Current (Iu):
125 A
Rated Voltage (Ur):
600 V
Recommended Screw Driver:
Main Circuit M6
Release:
TMA
Release Type:
TM
Setting Range:
70...100 A
Short-Circuit Performance Level:
N
Standards:
UL489
Sub-type:
XT2
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

Technical UL/CSA

Interrupting Rating acc. to UL489:
(240 V AC) 65 kA
(480 V AC) 25 kA
(600 V AC) 18 kA
(250 V DC) 2 Poles in Series 35 kA
(500 V DC) 3 Poles in Series 35 kA
(240 V AC) 65 kA
(480 V AC) 25 kA
(600 V AC) 18 kA
(250 V DC) 2 Poles in Series 35 kA
(500 V DC) 3 Poles in Series 35 kA

Certificates and Declarations

ATEX Certificate:
CSA Certificate (Intrinsic Safe):
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4927 >> Molded case circuit breakers
Object Classification Code:
Q
UNSPSC:
39121616
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409

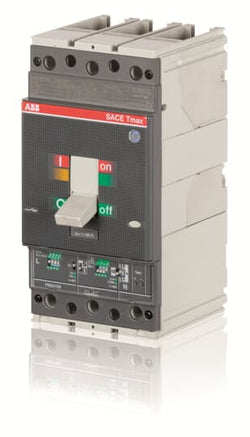

1SDA053999R1 ABB - T4N 250 PR221DS-LS/I IN=250 3P F F
ABB 1SDA053999R1 ABB - T4N 250 PR221DS-LS/I IN=250 3P F F
$0.00
Sold Out

CIRCUIT BREAKER TMAX T4N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 250
1SDA073950R1 ABB - Kit HR/VR E1.2-XT7-XT7M W FP 4pcs
ABB 1SDA073950R1 ABB - Kit HR/VR E1.2-XT7-XT7M W FP 4pcs
$0.00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZE1HRVRWE-4
EAN:
8015644778835
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
160 mm
Package Level 1 Height:
63 mm
Package Level 1 Depth / Length:
268 mm
Package Level 1 Gross Weight:
1.19 kg
Package Level 1 EAN:
8015644778835

Additional Information

Product Main Type:
Accessories for Emax 2, Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT7-XT7M, E1.2
Suitable for Product Class:
SACE Tmax XT, SACE Emax 2

Technical

Configuration Type:
Loose or configurable
Number of Poles:
4P
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002019 - Connection vane/phase spreader
ETIM 10:
EC002019 - Connection vane/phase spreader
IDEA Granular Category Code (IGCC):
4604 >> Busbar terminal
Object Classification Code:
Q
UNSPSC:
39121432
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371305

Recently viewed
