Drives - Motors - Circuits Protection

1561 products

Showing 193 - 216 of 1561 products

Showing 193 - 216 of 1561 products
View
E2N1600PR121/P-LIIn=1600A3pWMP ABB - 1SDA055904R1
ABB E2N1600PR121/P-LIIn=1600A3pWMP ABB - 1SDA055904R1
$0.00
Sold Out

E2N 1600 PR121/P-LI In=1600A 3p W MP
E2N2000PR122/P-LIIn=2000A4pFHR ABB - 1SDA055931R1
ABB E2N2000PR122/P-LIIn=2000A4pFHR ABB - 1SDA055931R1
$0.00
Sold Out

E2N 2000 PR122/P-LI In=2000A 4p F HR
E2N2000PR122/P-LSIIn=2000A3pFHR ABB - 1SDA055924R1
ABB E2N2000PR122/P-LSIIn=2000A3pFHR ABB - 1SDA055924R1
$0.00
Sold Out

E2N 2000 PR122/P-LSI IN=2000A 3P F HR
E2N2000PR122/P-LIIn=2000A3pWMP ABB - 1SDA055939R1
ABB E2N2000PR122/P-LIIn=2000A3pWMP ABB - 1SDA055939R1
$0.00
Sold Out

E2N 2000 PR122/P-LI In=2000A 3p W MP
E2S1250PR121/P-LSIIn=1250A4pFHR ABB - 1SDA055961R1
ABB E2S1250PR121/P-LSIIn=1250A4pFHR ABB - 1SDA055961R1
$0.00
Sold Out

E2S 1250 PR121/P-LSI IN=1250A 4P F HR
1SDA055962R1 ABB - E2S1250PR121/P-LSIGIn=1250A4pFHR
ABB 1SDA055962R1 ABB - E2S1250PR121/P-LSIGIn=1250A4pFHR
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:
8015644573027
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
386 mm
Product Net Height:
418 mm
Product Net Depth / Length:
302 mm
Product Net Weight:
56 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
615 mm
Package Level 1 Gross Weight:
68 kg
Package Level 1 EAN:
8015644573027

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Ue =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
4P
Power Loss:
70 W
Rated Current (In):
1250 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
1250 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 65 kA
for 3 s 50 kA
for 1 s 65 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu):
1250 A
Rated Voltage (Ur):
690 V
Release:
PR121/P-LSIG
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
E2
Terminal Connection Type:
Fixed Circuit-Breakers
Rear flat Horizontal
Fixed Circuit-Breakers
Rear flat Horizontal

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E2N2000PR122/P-LIIn=2000A4pWMP ABB - 1SDA055947R1
ABB E2N2000PR122/P-LIIn=2000A4pWMP ABB - 1SDA055947R1
$0.00
Sold Out

E2N 2000 PR122/P-LI IN=2000A 4P W MP
E2N1600PR121/P-LSIIn=1600A4pFHR ABB - 1SDA055897R1
ABB E2N1600PR121/P-LSIIn=1600A4pFHR ABB - 1SDA055897R1
$0.00
Sold Out

E2N 1600 PR121/P-LSI IN=1600A 4P F HR
E2N1600PR122/P-LIIn=1600A4pFHR ABB - 1SDA055899R1
ABB E2N1600PR122/P-LIIn=1600A4pFHR ABB - 1SDA055899R1
$0.00
Sold Out

E2N 1600 PR122/P-LI In=1600A 4p F HR
E2N1600PR122/P-LSIIn=1600A3pWMP ABB - 1SDA055908R1
ABB E2N1600PR122/P-LSIIn=1600A3pWMP ABB - 1SDA055908R1
$0.00
Sold Out

E2N 1600 PR122/P-LSI In=1600A 3p W MP

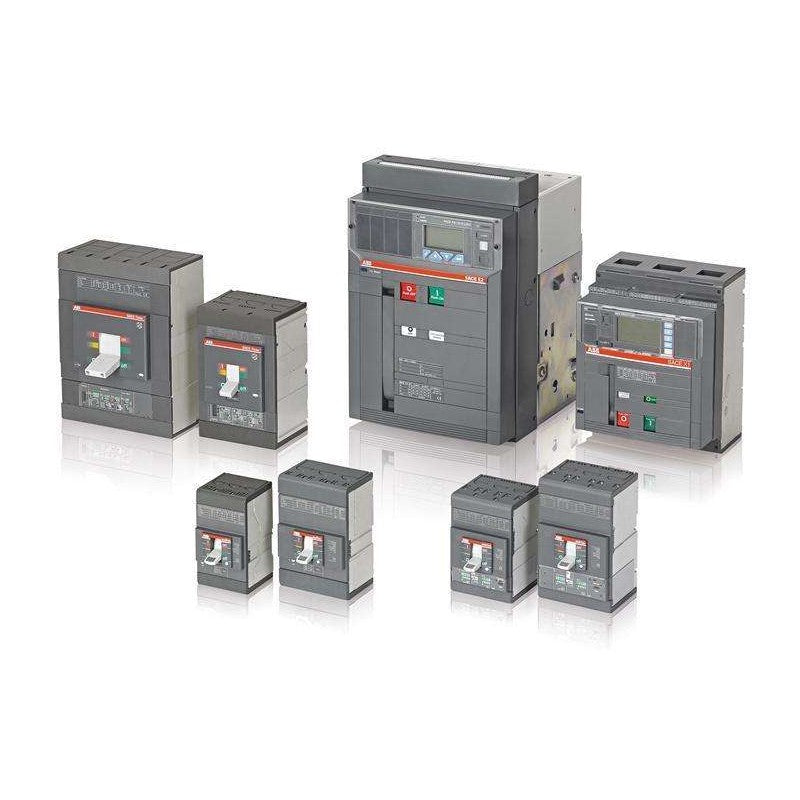

E2N2000PR121/P-LIIn=2000A4pFHR ABB - 1SDA055928R1
ABB E2N2000PR121/P-LIIn=2000A4pFHR ABB - 1SDA055928R1
$0.00
Sold Out

E2N 2000 PR121/P-LI In=2000A 4p F HR
E2S1250PR121/P-LSIIn=1250A3pWMP ABB - 1SDA055969R1
ABB E2S1250PR121/P-LSIIn=1250A3pWMP ABB - 1SDA055969R1
$0.00
Sold Out

E2S 1250 PR121/P-LSI In=1250A 3p W MP
E2N1600PR121/P-LIIn=1600A4pFHR ABB - 1SDA055896R1
ABB E2N1600PR121/P-LIIn=1600A4pFHR ABB - 1SDA055896R1
$0.00
Sold Out

E2N 1600 PR121/P-LI In=1600A 4p F HR
E2S1250PR122/P-LIIn=1250A4pFHR ABB - 1SDA055963R1
ABB E2S1250PR122/P-LIIn=1250A4pFHR ABB - 1SDA055963R1
$0.00
Sold Out

E2S 1250 PR122/P-LI In=1250A 4p F HR
E2S1250PR122/P-LIIn=1250A3pWMP ABB - 1SDA055971R1
ABB E2S1250PR122/P-LIIn=1250A3pWMP ABB - 1SDA055971R1
$0.00
Sold Out

E2S 1250 PR122/P-LI In=1250A 3p W MP
1SDA056001R1 ABB - E2S1600PR121/P-LSIIn=1600A3pWMP
ABB 1SDA056001R1 ABB - E2S1600PR121/P-LSIIn=1600A3pWMP
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:
8015644573416
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
324 mm
Product Net Height:
461 mm
Product Net Depth / Length:
396.5 mm
Product Net Weight:
49 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
515 mm
Package Level 1 Gross Weight:
59 kg
Package Level 1 EAN:
8015644573416

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 12000 cycle
Ue = 500 ... 690 V 10000 cycle
30 cycles per hour
Ue =< 440 V 12000 cycle
Ue = 500 ... 690 V 10000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
215 W
Rated Current (In):
1600 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
1600 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 65 kA
for 3 s 50 kA
for 1 s 65 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu):
1600 A
Rated Voltage (Ur):
690 V
Release:
PR121/P-LSI
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
E2
Terminal Connection Type:
Withdrawable Circuit-Breakers

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E2S1600PR121/P-LSIGIn=1600A3pFHR ABB - 1SDA055986R1
ABB E2S1600PR121/P-LSIGIn=1600A3pFHR ABB - 1SDA055986R1
$0.00
Sold Out

E2S 1600 PR121/P-LSIG In=1600A 3p F HR
1SDA056027R1 ABB - E2S2000PR122/P-LIIn=2000A4pFHR
ABB 1SDA056027R1 ABB - E2S2000PR122/P-LIIn=2000A4pFHR
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:
8015644573676
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
386 mm
Product Net Height:
418 mm
Product Net Depth / Length:
302 mm
Product Net Weight:
56 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
615 mm
Package Level 1 Gross Weight:
68 kg
Package Level 1 EAN:
8015644573676

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
4P
Power Loss:
180 W
Rated Current (In):
2000 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
2000 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 65 kA
for 3 s 50 kA
for 1 s 65 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu):
2000 A
Rated Voltage (Ur):
690 V
Release:
PR122/P-LI
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
E2
Terminal Connection Type:
Fixed Circuit-Breakers
Rear flat Horizontal
Fixed Circuit-Breakers
Rear flat Horizontal

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E2S1600PR121/P-LSIGIn=1600A4pWMP ABB - 1SDA056010R1
ABB E2S1600PR121/P-LSIGIn=1600A4pWMP ABB - 1SDA056010R1
$0.00
Sold Out

E2S 1600 PR121/P-LSIG In=1600A 4p W MP
E2N1600PR122/P-LSIIn=1600A4pWMP ABB - 1SDA055916R1
ABB E2N1600PR122/P-LSIIn=1600A4pWMP ABB - 1SDA055916R1
$0.00
Sold Out

E2N 1600 PR122/P-LSI In=1600A 4p W MP
E2N2000PR121/P-LSIGIn=2000A4pFHR ABB - 1SDA055930R1
ABB E2N2000PR121/P-LSIGIn=2000A4pFHR ABB - 1SDA055930R1
$0.00
Sold Out

E2N 2000 PR121/P-LSIG In=2000A 4p F HR
1SDA055938R1 ABB
ABB 1SDA055938R1 ABB
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
SCIP:
d78c11ef-6eac-4238-a5fc-8f3eba941929 Italy
Simplified SCIP:
94664815-bdd5-4852-9b38-c0bb0fb53e5b Norway
9e000969-cf48-42e8-b30d-2fb13fc1fe2d Bulgaria
c1f629f8-ab67-4d29-bf8f-a6bbc6a92719 Poland
900c21d5-4f79-43a2-be02-0c48b5612af5 Germany
83df9fc4-3651-4a89-a492-ff23bccc5ec3 Belgium
db77cbb5-8210-4760-9675-d3bd106710ed Sweden
c21700e3-63ca-4b64-ab0a-cffe46f6c2e8 Germany
d6968692-a1e5-4735-aee0-e7b2945e9fc0 Estonia
ae9519a1-a184-4f1f-9d26-5a1e730df423 Portugal
4c4b46dd-de89-43b7-b99f-9a4cceed18b5 Greece
3d540ed7-2124-4cf8-b18e-aba44bd76567 France
8702b10b-c562-4d65-95e3-eceddb4ee820 Sweden
ca538a24-0e0e-4e58-8ad4-c67cc7bcae54 France
e30bf8f3-6832-412c-ae5d-19743c33da3d Spain
02eed330-6c98-4cd7-86f2-da00a9d006e0 Germany
3ea6c198-206c-40b6-904d-346379d0ed3b Hungary
8bc37e77-ff5c-46db-b44f-b95751640732 Hungary
86cbc0fb-153e-4f2b-b171-2c5eb8c89c9a Czech Republic
af42bde2-cd9c-44fa-bb4f-f4a017a4e782 Belgium
be01159e-e153-4df4-b272-1786772a830d Croatia
ea1ee2e9-288f-49e4-ab3a-ad190953dd40 Germany
e54032b9-1ef6-4c21-95e5-af3b0207cf91 Germany
7c38c255-d8c2-49da-8b3f-a8c5377bc12b Denmark
7ac093b4-8d30-446d-8ca5-9f6f39dc481a Poland
20e58edf-58a0-4ffa-b7a4-d77bba0fee82 Netherlands
8169589c-67a8-4053-8b2c-18701365794d Poland
9ca4923f-c91b-4f96-92f8-1e933233517d Finland
94664815-bdd5-4852-9b38-c0bb0fb53e5b Norway
9e000969-cf48-42e8-b30d-2fb13fc1fe2d Bulgaria
c1f629f8-ab67-4d29-bf8f-a6bbc6a92719 Poland
900c21d5-4f79-43a2-be02-0c48b5612af5 Germany
83df9fc4-3651-4a89-a492-ff23bccc5ec3 Belgium
db77cbb5-8210-4760-9675-d3bd106710ed Sweden
c21700e3-63ca-4b64-ab0a-cffe46f6c2e8 Germany
d6968692-a1e5-4735-aee0-e7b2945e9fc0 Estonia
ae9519a1-a184-4f1f-9d26-5a1e730df423 Portugal
4c4b46dd-de89-43b7-b99f-9a4cceed18b5 Greece

Environmental

Environmental Information:

Ordering

EAN:
8015644572785
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
324 mm
Product Net Height:
461 mm
Product Net Depth / Length:
396.5 mm
Product Net Weight:
49 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
515 mm
Package Level 1 Gross Weight:
59 kg
Package Level 1 EAN:
8015644572785

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
330 W
Rated Current (In):
2000 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
2000 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 55 kA
for 3 s 42 kA
for 1 s 55 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Uninterrupted Current (Iu):
2000 A
Rated Voltage (Ur):
690 V
Release:
PR121/P-LSIG
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E2
Terminal Connection Type:
Withdrawable Circuit-Breakers

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

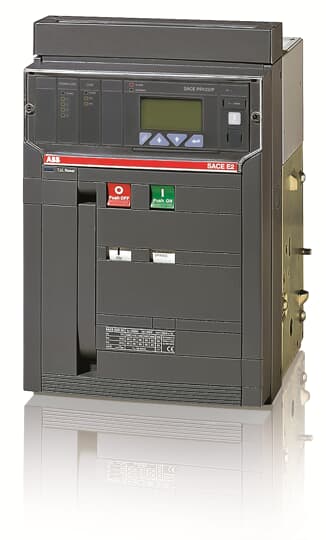

1SDA055955R1 ABB - E2S1250PR122/P-LIIn=1250A3pFHR
ABB 1SDA055955R1 ABB - E2S1250PR122/P-LIIn=1250A3pFHR
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:
8015644572952
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
296 mm
Product Net Height:
418 mm
Product Net Depth / Length:
302 mm
Product Net Weight:
45 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
515 mm
Package Level 1 Gross Weight:
55 kg
Package Level 1 EAN:
8015644572952

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Ue =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
70 W
Rated Current (In):
1250 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
1250 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 65 kA
for 3 s 50 kA
for 1 s 65 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu):
1250 A
Rated Voltage (Ur):
690 V
Release:
PR122/P-LI
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
E2
Terminal Connection Type:
Fixed Circuit-Breakers
Rear flat Horizontal
Fixed Circuit-Breakers
Rear flat Horizontal

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E2S1250PR121/P-LSIIn=1250A4pWMP ABB - 1SDA055977R1
ABB E2S1250PR121/P-LSIIn=1250A4pWMP ABB - 1SDA055977R1
$0.00
Sold Out

E2S 1250 PR121/P-LSI In=1250A 4p W MP

Recently viewed
