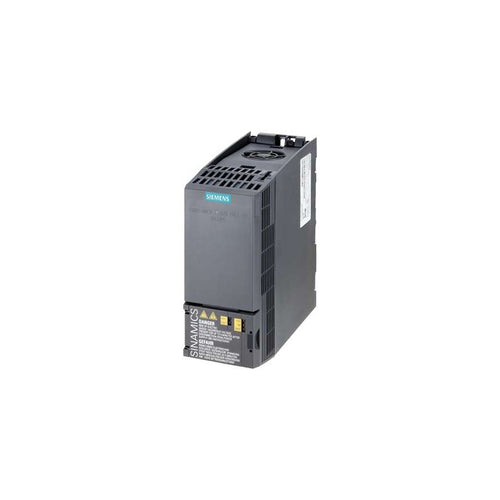

Sinamics G120C RATED POWER 0,55KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ Integrated FILTER Class A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V

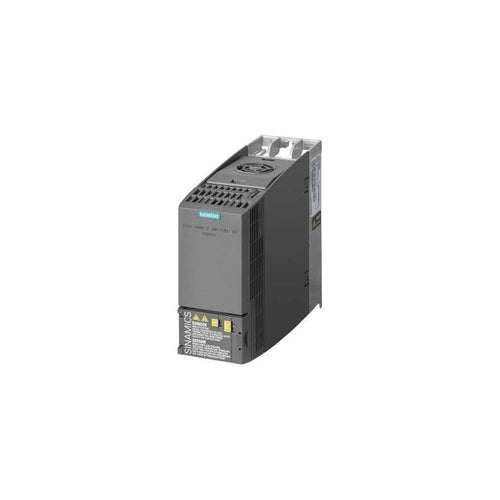

Sinamics G120C RATED POWER 0,55KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V

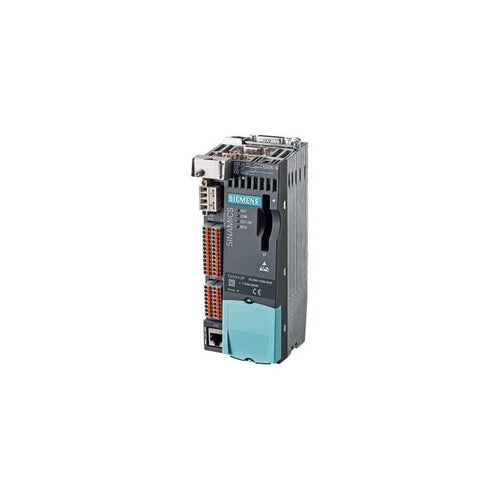

Sinamics S120 Control Unit CU310-2 PN with PROFINET Interface WITHOUT COMPACTFLASH CARD

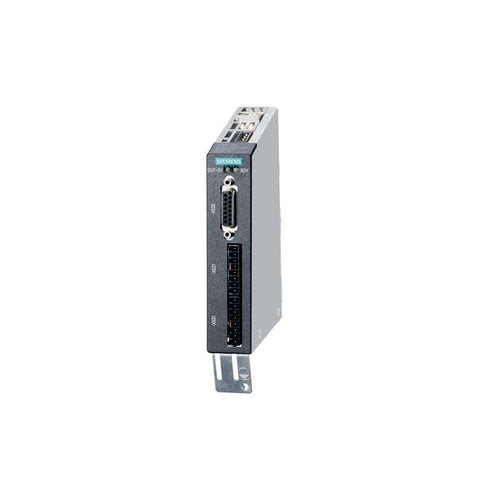

Sinamics S120 SENSOR Module SMC20 BOARD FOR EVALUATION OF INCREMENTAL ENCODER: SIN/COS 1VPP ABSOLUTE ENCODER: ENDAT WITHOUT DRIVE-CLIQ CABLE 30 MM WIDTH

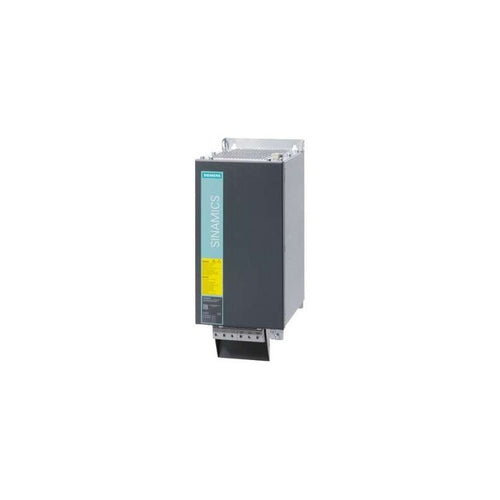

SINAMICS S120 ACTIVE INTERFACE MODULE FOR 55KW ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ

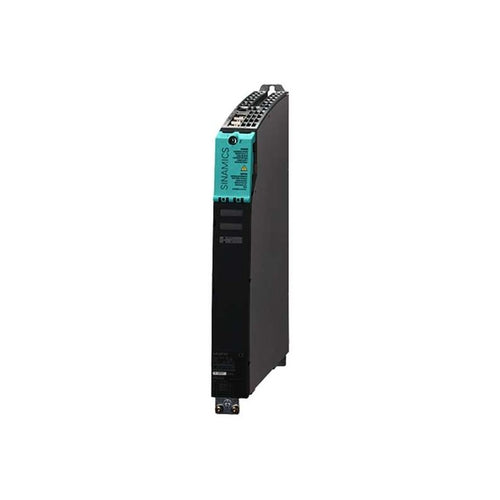

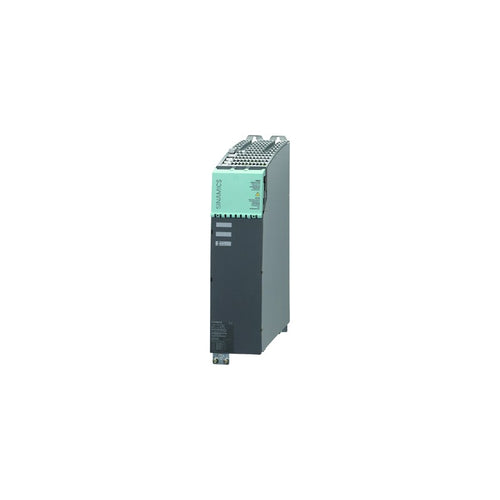

SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 18A FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

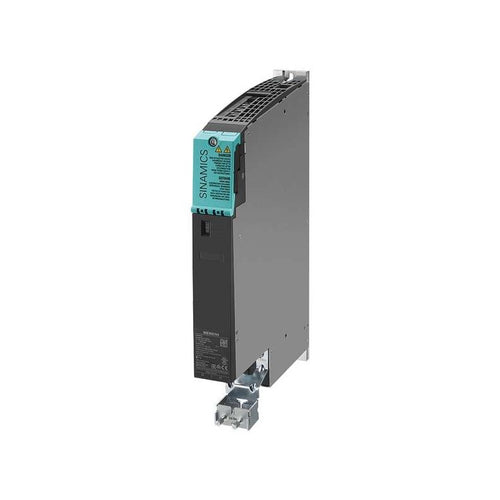

SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A/5A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE
Sinamics G120C RATED POWER 0,75KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V
Sinamics G120C RATED POWER 1,1KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ Integrated FILTER Class A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V
Sinamics G120C RATED POWER 2,2KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ Integrated FILTER Class A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V
Sinamics POWER Module PM240-2 WITHOUT FILTER with BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 11KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 15KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 355 X 140 X 165 (HXWXD), FSC Protection IP20 WITHOUT Control Unit and Panel APPROVED FOR CU FIRMWARE- Version V4.6
SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X225,4(HXWXD) EXTERNAL 24V

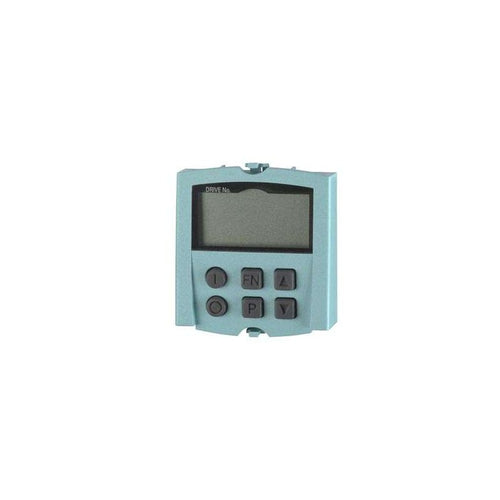

Sinamics S120 Basic OPERATOR Panel BOP20 FOR ELECTRONIC CONTROLS TWO-LINE Display, 6 KEYS FOR PARAMETER SETTING and DIAGNOSTIC INFORMATION SUITED FOR Control UNITS CU305, CU310, CU320
Sinamics SENSOR Module SMC30 FOR INCREMENTAL ENCODER: TTL/HTL OR KOMBI Encoder SSI with INCREMENTAL TRACES OR KOMBI Encoder SSI WITHOUT INCREMENTAL SIGNALS / WITHOUT DRIVE-CLIQ CABLE 30 MM WIDTH
Sinamics LINE REACTOR 380-480V 3AC 47-63HZ I_LN = 47,0A STANDALONE

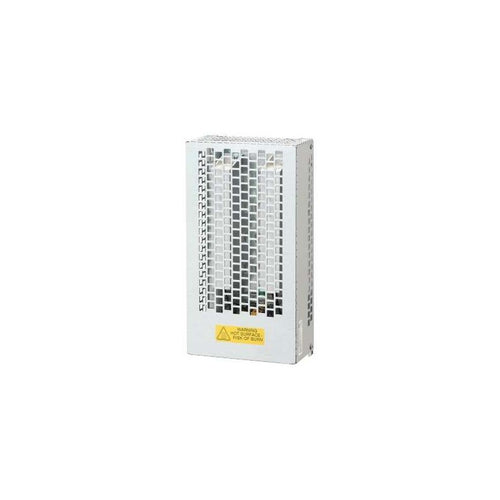

Sinamics BRAKING RESISTOR R=75Ohm P_rated=375W P_max=7500W/12s/5% duty STANDALONE
Sinamics G120C RATED POWER 11,0KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ Integrated FILTER Class A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295x 140x 225,4 (HXWXD) EXTERNAL 24V
Sinamics G120C RATED POWER 0,75KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ Integrated FILTER Class A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V
Sinamics G120C RATED POWER 18,5KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ Integrated FILTER Class A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295x 140x 225,4 (HXWXD) EXTERNAL 24V
SINAMICS G120C RATED POWER 37.0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO, 1AI, 1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSD 472x 200x 237(HXWXD) EXTERNAL 24V
SINAMICS Power Module PM240-2 unfiltered with integrated braking chopper 200-240 V 1/3AC+10/-10% 47-63Hz Power high overload: 0.37kW at 200% 3s, 150% 57s, 100% 240 s; Ambient temperature -10 to +50 °C, power low overload: 0.55kW at 150% 3s, 110% 57s, 100% 240S Ambient temperature -10 to +40 °C 196x 73x 165 (HxWxD), FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6
Sinamics G120C RATED POWER 1,1KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V
SINAMICS Power Module PM240-2 with integrated Class A filter with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 0.55kW at 200% 3s, 150% 57s, 100% 240 s; Ambient temperature -10 to +50 °C; power low overload: 0.75kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 °C 196x 73x 165 (HxWxD), FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6
