integrated drive ILA with servo motor - 24..48 V - EtherNet/IP - indus connector
Motor unit MU300
E1 W FP 3p HR-HR new
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Lexium integrated drive |
| Product or Component Type | Motion integrated drive |
| Device short name | ILA |
| Motor Type | AC Synchronous Servo Motor |
| Number of motor poles | 6 |
| Phase | Single phase |
| [Us] rated supply voltage | 24 V 48 V |
| Network type | DC |
| Communication interface | Ethernet/IP, Integrated |
| Length | 7.5 in (190.8 mm) |
| Winding type | Medium speed of rotation and medium torque |
| Electrical Connection | Printed circuit board connector |
| Holding brake | With |
| Gear box type | Without |
| Nominal speed | 3200 rpm 24 V 5100 rpm 48 V |
| Nominal torque | 3.89 lbf.in (0.44 N.m) |
| Holding torque | 10.6 lbf.in (1.2 N.m) holding brake |
Complementary
| Characteristic | Value(s) |
|---|---|
| Transmission Rate | 125, 250, 500 kbauds |
| Mounting Support | Flange |
| Motor flange size | 2.2 in (57 mm) |
| Number of motor stacks | 1 |
| Centring collar diameter | 2.0 in (50 mm) |
| centring collar depth | 0.06 in (1.6 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.2 mm) |
| Circle diameter of the mounting holes | 2.6 in (66.6 mm) |
| Feedback type | Single turn encoder |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.4 in (9 mm) |
| Shaft length | 0.8 in (20 mm) |
| Supply voltage limits | 18â¦55.2 V |
| Current consumption | 5000 mA maximum continuous 7000 mA peak |
| Associated fuse rating | 16 A |
| Commissioning interface | RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds) |
| Input/output type | 4 signals (each be used as input or output) |
| Voltage state 0 guaranteed | -3...4.5 V |
| Voltage state 1 guaranteed | 15...30 V |
| Discrete input current | 10 mA at 24 V safety input 2 mA at 24 V 24 V signal interface |
| Discrete output voltage | 23...25 V |
| Maximum switching current | 100 mA per output 200 mA total |
| Protection Type | Safe torque off Overload of output voltage Short circuit of the output voltage |
| Peak stall torque | 5.49 lbf.in (0.62 N.m) |
| Continuous stall torque | 3.89 lbf.in (0.44 N.m) |
| Speed feedback resolution | 16384 points/turn |
| Accuracy error | +/- 0.05 ° |
| Rotor inertia | 0.165 kg.cm² |
| Maximum radial force Fr | 89 N |
| Maximum axial force Fa | 104 N force pressure) 104 N tensile force) |
| Service life in hours | 20000 h bearing |
| Brake pull-in power | 10 W |
| Brake release time | 14 ms |
| Brake application time | 13 ms |
| Marking | CE |
| type of cooling | Natural convection |
| Product Weight | 3.09 lb(US) (1.4 kg) |
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Lexium integrated drive |
| Product or Component Type | Motion integrated drive |
| Device short name | ILS |
| Motor Type | 3-phase stepper motor |
| Number of motor poles | 6 |
| Phase | Single phase |
| [Us] rated supply voltage | 36 V 24 V |
| Network type | DC |
| Communication interface | CANopen DS301, Integrated |
| Length | 6.7 in (170.6 mm) |
| Winding type | Medium speed of rotation and medium torque |
| Electrical Connection | Industrial connector |
| Holding brake | Without |
| Gear box type | Without |
| Nominal speed | 100 rpm 24 V 200 rpm 36 V |
| Nominal torque | 35.4 lbf.in (4 N.m) |
| Holding torque | 35.4 lbf.in (4 N.m) |
Complementary
| Characteristic | Value(s) |
|---|---|
| Transmission Rate | 50, 100, 125, 250, 500, 800 and 1000 kbauds |
| Mounting Support | Flange 85 mm |
| Motor flange size | 3.3 in (85 mm) |
| Number of motor stacks | 2 |
| Centring collar diameter | 2.4 in (60 mm) |
| centring collar depth | 0.08 in (2 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.3 in (6.5 mm) |
| Circle diameter of the mounting holes | 3.9 in (99 mm) |
| Feedback type | Index pulse |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.5 in (12 mm) |
| Shaft length | 1.2 in (30 mm) |
| Supply voltage limits | 18â¦40 V |
| Current consumption | 5000 mA maximum |
| Associated fuse rating | 10 A |
| Input/output type | 4 signals (each be used as input or output) |
| Voltage state 0 guaranteed | -3...4.5 V |
| Voltage state 1 guaranteed | 15...30 V |
| Discrete input current | 10 mA at 24 V on/STO_A safety input 3 mA at 24 V on/STO_B safety input 2 mA at 24 V 24 V signal interface |
| Discrete output voltage | 23...25 V |
| Maximum switching current | 100 mA per output 200 mA total |
| Protection Type | Safe torque off Short circuit of the output voltage Overload of output voltage |
| Peak stall torque | 35.4 lbf.in (4 N.m) |
| Continuous stall torque | 35.4 lbf.in (4 N.m) |
| Speed feedback resolution | 20000 points/turn |
| Accuracy error | +/- 6 arc min |
| Rotor inertia | 2.2 kg.cm² |
| Maximum mechanical speed | 1500 rpm |
| Maximum radial force Fr | 100 N |
| Maximum axial force Fa | 170 N tensile force) 30 N force pressure) |
| Service life in hours | 20000 h bearing |
| Marking | CE |
| type of cooling | Natural convection |
| Product Weight | 7.9 lb(US) (3.6 kg) |
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
Remote I-O Processor Module
Specifications
Model |
OP-87305 |
|||
Type |
Sensor head connection connector |
|||
Applicable product |
LV-N, LV-S, FD-S, FD-M Series sensor head, FD-U, GV |
|||
Number included |
2 pcs. |
|||
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
The SGMGH30DCA6F servo motor, part of the Sigma-II series, is engineered for high-speed feed operations with a robust power output of 2.9/3.0 kW at 400 VAC. This motor is equipped with a 17-bit incremental encoder, providing exceptional precision in motion control. Designed with a standard straight shaft end featuring key and tapped configurations, as well as a protective dust seal, this unit ensures enhanced performance and longevity in various industrial applications.
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.

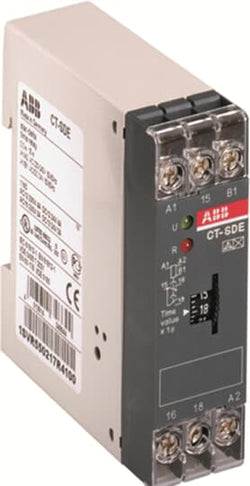

CT-SDE Time relay, star-delta 1c/o, 0.3-30s, 24VAC/DC 220-240VAC
