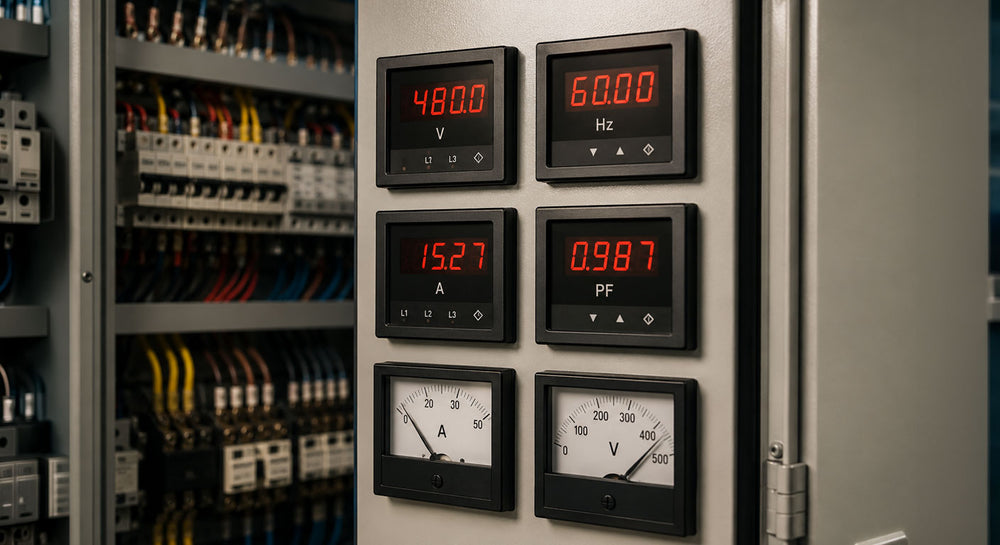

Digital panel meter

Table of Contents

    Nobody watches a panel meter until the number on it stops making sense. A voltage reading that freezes, a current display that goes blank, or a process value that no longer matches what the rest of the system is doing can mean an operator is now running a process without the one instrument telling them whether it’s within range. Panel meters rarely fail dramatically, but losing that visibility can let a bigger problem go unnoticed until it’s no longer minor.

    A panel meter displays a real-time measurement, such as voltage, current, frequency, or a scaled process value, on a dedicated readout mounted directly in a control panel or switchgear door. This guide covers what to know when selecting a digital panel meter for an existing installation, including how condition grades work and what to check before ordering a replacement.

    What Should You Check Before Ordering a Replacement Panel Meter?

    A replacement panel meter must match the original unit’s input signal type, display range, and panel cutout size to be installed without modifying the enclosure or rewiring the circuit. A mismatch on any of these points usually means either an inaccurate reading or a meter that will not physically fit.

    A few specifics are worth confirming against the meter being replaced before an order goes in.

    • The input type matches, since panel meters are built for a specific signal, such as AC voltage, AC or DC current, or a 4 to 20 mA process signal, and these are not interchangeable without reconfiguration.

    • The display range and scaling match the process being monitored, since a meter scaled for the wrong range will show inaccurate readings even if it is otherwise functioning.

    • The panel cutout size fits the existing enclosure opening because panel meters are built to standard DIN cutout dimensions, which vary by model.

    • Any output or communication features, such as relay outputs or Modbus, are confirmed if the meter feeds data to another system.

    Checking the nameplate on the existing meter, rather than relying on panel documentation alone, is the most reliable way to confirm these details on an older installation.

    Sealed Surplus, Never Used Surplus, or Used/Refurbished: What Fits a Panel Meter Replacement?

    Panel meters are supplied in three condition grades. Sealed Surplus units come in the original, sealed box, though boxes may show shelf wear, and manufacturing dates vary. Never Used Surplus units have not been used or refurbished and may or may not include original packaging. Used/Refurbished units have been inspected, tested, and restored to working condition, covering both previously used and refurbished meter hardware.

    Which grade makes sense comes down to packaging preference and budget rather than what the meter is monitoring. A meter for a non-critical utility circuit is a reasonable place to save on cost with Never Used Surplus or Used/Refurbished stock. A panel that needs to look factory-new, such as for a customer-facing installation, is a better fit for Sealed Surplus. The grade only describes the unit's packaging and use history, not functional reliability.

    All Sealed Surplus, Never Used Surplus, and Used/Refurbished panel meters purchased from PLC Direct carry a standard 1-year PLC Direct warranty. This warranty is issued by PLC Direct, an independent supplier, and is not an OEM or manufacturer warranty.

    Which Brands Does PLC Direct Carry for Panel Meters?

    As an independent supplier, PLC Direct stocks digital panel meters from Red Lion, Siemens, and Yokogawa, subject to availability. Facilities standardized on a particular meter brand or matching an existing panel exactly can generally find a comparable option within this range, rather than substituting a different manufacturer’s hardware into the panel.

    PLC Direct supplies panel meters and other process instrumentation for replacement and maintenance purposes and does not provide system design, programming, or integration services.

    When the Number on the Panel Stops Adding Up

    A panel meter is a small instrument with an outsized role, and a display that’s gone dark or inaccurate deserves attention before whatever it’s monitoring drifts further off track. Contact PLC Direct to check current availability on digital panel meters and get a quote for your application.

    PLC Direct

    With over 10 years in industrial automation hardware, the PLC Direct Team covers control systems, drives, HMIs, sensors, safety systems, and process instrumentation across a wide range of manufacturer lines. We support customers with parts lifecycle, hardware compatibility, procurement decisions, and maintenance challenges that arise in industrial automation environments.

    Frequently Asked Questions

    In many cases, yes, since digital and analog panel meters are often built to the same standard DIN cutout sizes, but the input wiring and any mounting depth differences should be checked against the specific models involved. Operators used to reading a needle position may also need a short adjustment period to reading a numeric display instead.
    A programmable panel meter allows the display scaling, decimal point position, and sometimes alarm setpoints to be configured via front-panel buttons or a connected interface, rather than being fixed at the factory to a specific range. This makes a single model usable across multiple applications, rather than requiring a different meter for each signal range.
    Accuracy varies by model and manufacturer, but many digital panel meters are specified with an accuracy of 0.1 to 0.5 percent of full scale under normal operating conditions. The datasheet for the specific model is the definitive source, since accuracy specifications differ meaningfully between a basic display meter and a precision measurement instrument.
    Some panel meters support multiple inputs or can cycle through several measured values on a single display, but a standard single-input meter is dedicated to one signal at a time. Facilities that need to monitor several points at once more commonly use separate meters for each point or a multi-channel unit built specifically for that purpose.
    Many panel meters used for critical process monitoring are calibrated on a periodic schedule to confirm the displayed value still matches the actual signal, similar to other precision instrumentation. The right interval depends on the application and the facility’s own quality or maintenance program, rather than a single fixed rule across all installations.
