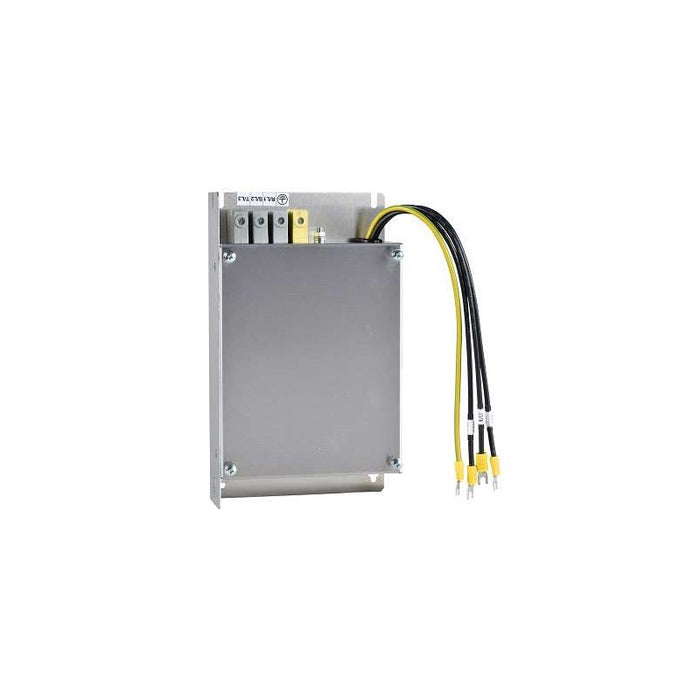

VW3A31408 Schneider

Main

Characteristic Value(s)
Range of Product Altivar
Product or Component Type EMC input filter
Range Compatibility Altivar 312
Altivar Machine ATV320
Altivar 212
Product compatibility ATV212HD11M3X
ATV212HD15M3X
ATV212HD18M3X
ATV312HD11M3
ATV312HD15M3
Variable speed drive ATV320...C11 kW, 200...240 V three phase
Variable speed drive ATV320...C15 kW, 200...240 V three phase
Product Specific Application Radio interference input filter
Line Rated Current 83 A
Thermal losses 16 W ATV21HD15M3X
23.1 W ATV21HD18M3X
35.2 W ATV31HD11M3X
9.1 W ATV21HD11M3X
Phase Three phase

Complementary

Characteristic Value(s)
Electrical connection Terminal 25 mm² AWG 2
Tightening torque 39.8 lbf.in (4.5 N.m)
maximum earth leakage current 14.5 mA 480 V 60 Hz
power supply voltage 200…240 V
Tolerance 10 %
Product Weight 11.7 lb(US) (5.3 kg)
