Main
| Characteristic | Value(s) |
|---|---|
| Device short name | BSH |

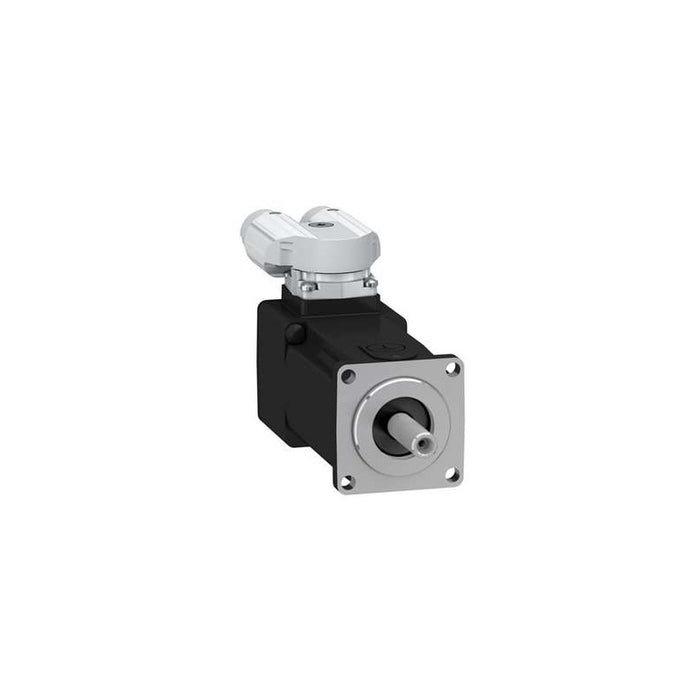

| Product or Component Type | Servo motor |
| Maximum mechanical speed | 10000 rpm |
| Continuous stall torque | 3.36 lbf.in (0.38 N.m) LXM32.U60N4 1.5 A, 480 V, three phase 3.36 lbf.in (0.38 N.m) LXM32.U60N4 1.5 A, 400 V, three phase 3.36 lbf.in (0.38 N.m) LXM32.U45M2 1.5 A, 230 V, single phase |
| Peak stall torque | 12.13 lbf.in (1.37 N.m) LXM32.U60N4 1.5 A, 480 V, three phase 12.13 lbf.in (1.37 N.m) LXM32.U60N4 1.5 A, 400 V, three phase 12.13 lbf.in (1.37 N.m) LXM32.U45M2 1.5 A, 230 V, single phase |
| Nominal output power | 275 W LXM32.U60N4 1.5 A, 480 V, three phase 289 W LXM32.U60N4 1.5 A, 400 V, three phase 152 W LXM32.U45M2 1.5 A, 230 V, single phase |
| Nominal torque | 2.584 lbf.in (0.292 N.m) LXM32.U60N4 1.5 A, 480 V, three phase 2.717 lbf.in (0.307 N.m) LXM32.U60N4 1.5 A, 400 V, three phase 3.222 lbf.in (0.364 N.m) LXM32.U45M2 1.5 A, 230 V, single phase |
| Nominal speed | 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase |
| Shaft end | Smooth shaft |
| IP Degree of Protection | IP50 standard |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | Without |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Lexium 32 |
| supply voltage max | 400 V |
| Phase | Three phase |
| Continuous stall current | 1.5 A |
| maximum continuous power | 398 W |
| Maximum current Irms | 6 A LXM32.U60N4 480 V 6 A LXM32.U60N4 400 V 6 A LXM32.U45M2 230 V |
| Maximum permanent current | 1.5 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.3 in (8 mm) |
| Shaft length | 1.0 in (25 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 1.6 in (40 mm) |
| Number of motor stacks | 2 |
| Torque constant | 0.26 N.m/A 248 °F (120 °C) |
| Back emf constant | 18 V/krpm 68 °F (20 °C) |
| Number of motor poles | 5.0 |
| Rotor inertia | 0.0419 kg.cm² |
| Stator resistance | 11.6 Ohm 68 °F (20 °C) |
| Stator inductance | 6.4 mH 68 °F (20 °C) |
| Stator electrical time constant | 1.1 ms 68 °F (20 °C) |
| Maximum axial force Fa | 0.2 x Fr |
| type of cooling | Natural convection |
| Length | 3.7 in (93.4 mm) |
| Centring collar diameter | 1.2 in (30 mm) |
| centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (4.5 mm) |
| Circle diameter of the mounting holes | 1.8 in (46 mm) |
| Product Weight | 1.3 lb(US) (0.6 kg) |
| Sizing reference | BSH0402P |
| Network number of phases | 3 |
| Accuracy error [angular] | 0.08 ° |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
