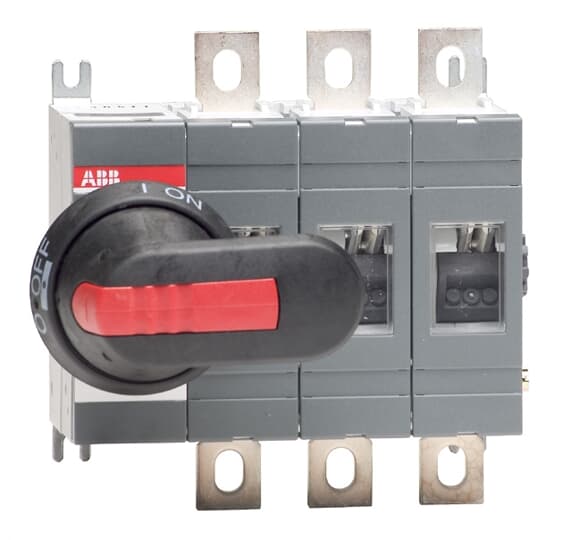

1SCA022712R0800 ABB - OT200E03P

1SCA022712R0800 ABB - OT200E03P

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
e76f6a16-d3db-4570-b154-2da087b79f14 Finland
Simplified SCIP:
21647494-bad3-44fc-b28f-28a02a60ef4c Germany
94aeb75b-4caa-4f34-8224-4d6a48b1226f Germany
97494682-ae73-4bb9-b7ae-2e0990779580 Bulgaria
4c3d3f64-8002-4976-a6de-4550bd2c2564 Greece
6b742a29-c37c-496a-930e-317c82a5c5d8 Portugal
c10f5ab2-c439-4669-8dab-744cb3a23205 Germany
f57caf15-67a4-4cc2-8c5d-7967ecb0177a France
c3f15763-5f9a-464d-9694-91fa9be87427 Poland
e0bc9149-62f4-4022-be24-a9e86b72022a Czech Republic
56977ec8-982b-4f66-a84b-7de170b6a034 Germany
056d4b8f-e30c-4b9d-8534-280d62839f15 Germany
02f076c8-db55-493b-9184-e154ddffdfdb Croatia
0f723643-fc51-421e-a175-f92295bb823d Estonia
f8d3b8dd-7eae-4abf-a8d0-3b430aecd50d Italy
89e7cc8b-1209-4fa6-8dbe-3b527e58b909 Belgium
93905029-08c6-4b24-937d-246faec429fd Poland
571453b7-c23a-41d8-94be-77ec02f481ec France
a5f8d387-06ad-490c-9dbc-114f2de16586 Sweden
b7c5adba-0f0c-48c1-9b48-c06d54558de4 Hungary
833d5ec1-a03f-4ce2-bcee-ff2dc6af1afe Netherlands
64aad036-2b38-4bcc-9e0b-4060eb198609 Hungary
8e699c60-4e74-49ce-be85-337ebedd8b5a Denmark
fef3dd11-c86a-4473-aac9-51d7bd1d63e1 Poland
cf1bfaa8-c414-4242-b16e-c7483123eb29 Sweden
640a2dcb-b8c8-470f-97a4-a5a39fa70542 Spain
46a1e8ad-e298-4ae5-beb5-f6626dc83b6a Belgium
b2517ca7-cc75-4371-a0c8-623835199d68 Norway
21647494-bad3-44fc-b28f-28a02a60ef4c Germany
94aeb75b-4caa-4f34-8224-4d6a48b1226f Germany
97494682-ae73-4bb9-b7ae-2e0990779580 Bulgaria
4c3d3f64-8002-4976-a6de-4550bd2c2564 Greece
6b742a29-c37c-496a-930e-317c82a5c5d8 Portugal
c10f5ab2-c439-4669-8dab-744cb3a23205 Germany
f57caf15-67a4-4cc2-8c5d-7967ecb0177a France
c3f15763-5f9a-464d-9694-91fa9be87427 Poland
e0bc9149-62f4-4022-be24-a9e86b72022a Czech Republic
56977ec8-982b-4f66-a84b-7de170b6a034 Germany

Environmental

Degree of Protection:
Front IP00
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
145.5 mm
Product Net Height:
150 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.5 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.6 kg
3.6 lb
1.6 kg
3.6 lb
Package Level 1 EAN:
6417019227740

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe):
Fully Enclosed 200 A
Degree of Protection:
Front IP00
Distance Between Phases:
Standard
Handle Color:
Black
Handle Type:
Handle and shaft included
Mechanical Durability:
20000
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Top In - Bottom Out
Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc):
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 60 kW
(400 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
(220 ... 240 V) 60 kW
(400 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kA
Special Functions:
No
Standards:
IEC 60947-3
Switches Operating Mechanism:
Mechanism at the End of the Switch
03 (Left Side)
Mechanism at the End of the Switch
03 (Left Side)
Terminal Type:
Lug terminals
Terminal Width:
20 mm
Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Technical UL/CSA

Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Certificates and Declarations

ATEX Certificate:
BV Certificate:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122221
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3661302
E-Number (Norway):
4337850
E-Number (Sweden):
3171156
