Showing 1249 - 1272 of 16438 products

Showing 1249 - 1272 of 16438 products
View

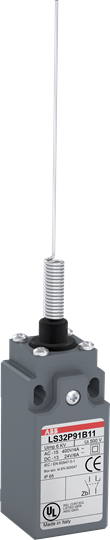

1SBV010391R1211 ABB - LS32P91B11
ABB 1SBV010391R1211 ABB - LS32P91B11
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:

Dimensions

Product Net Width:
30 mm
Product Net Height:
188 mm
Product Net Depth / Length:
30 mm
Product Net Weight:
0.068 kg

Technical

Action Type of the Contact Element (acc. to IEC 60947-5-1):
Snap Action Simultaneous
Actuator Type:
multidirectional stainless steel spring with rigid end
B10d Value:
Operations 30 Millions
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection:
acc. to IEC 60529 IP65
Housing Material:
Plastic
Maximum Electrical Switching Frequency:
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts:
1 NO, 1 NC
Mechanical Durability:
>5 million
Mounting Type:
30 mm (EN 50047)
Number and Type of Bottom Cable Glands:
1 x M16x1.5 - Bottom
Pilot Duty UL/CSA:
A600
Q600
A600
Q600
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Operational Current AC-15 (Ie):
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie):
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
Short-Circuit Protective Devices:
gG Type Fuses 10 A

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -30 ... +80 °C
Operation -25 ... +70 °C
Storage -30 ... +80 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
35 mm
Package Level 1 Depth / Length:
32 mm
Package Level 1 Height:
202 mm
Package Level 1 Gross Weight:
0.086 kg
Package Level 1 EAN:
3471522003492

External Classifications and Standards

Object Classification Code:
B
ETIM 6:
EC000030 - End switch
ETIM 7:
EC000030 - End switch
ETIM 8:
EC000030 - End switch
eClass:
V11.0 : 27272601
UNSPSC:
39121500

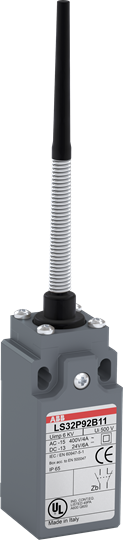

1SBV010392R1211 ABB - LS32P92B11
ABB 1SBV010392R1211 ABB - LS32P92B11
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:

Dimensions

Product Net Width:
30 mm
Product Net Height:
168 mm
Product Net Depth / Length:
30 mm
Product Net Weight:
0.071 kg

Technical

Action Type of the Contact Element (acc. to IEC 60947-5-1):
Snap Action Simultaneous
Actuator Type:
multidirectional stainless steel spring with insulated tip
B10d Value:
Operations 30 Millions
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection:
acc. to IEC 60529 IP65
Housing Material:
Plastic
Maximum Electrical Switching Frequency:
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts:
1 NO, 1 NC
Mechanical Durability:
>5 million
Mounting Type:
30 mm (EN 50047)
Number and Type of Bottom Cable Glands:
1 x M16x1.5 - Bottom
Pilot Duty UL/CSA:
A600
Q600
A600
Q600
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Operational Current AC-15 (Ie):
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie):
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
Short-Circuit Protective Devices:
gG Type Fuses 10 A

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -30 ... +80 °C
Operation -25 ... +70 °C
Storage -30 ... +80 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
35 mm
Package Level 1 Depth / Length:
32 mm
Package Level 1 Height:
202 mm
Package Level 1 Gross Weight:
0.086 kg
Package Level 1 EAN:
3471522003539

External Classifications and Standards

Object Classification Code:
B
ETIM 6:
EC000030 - End switch
ETIM 7:
EC000030 - End switch
ETIM 8:
EC000030 - End switch
eClass:
V11.0 : 27272601
UNSPSC:
39121500
1SBV010551R1211 ABB - LS40P51B11
ABB 1SBV010551R1211 ABB - LS40P51B11
$0.00
Sold Out

LS40P51B11 Limit Switch. LS40P51B11 is a 40 mm wide, standard reinforced Limit Switch made of fiber-glass reinforced UL-V0 material, with 4 mounting holes at the top and bottom, 1 Pg13.5 cable entry on the bottom, adjustable plastic roller lever (diameter 22 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts

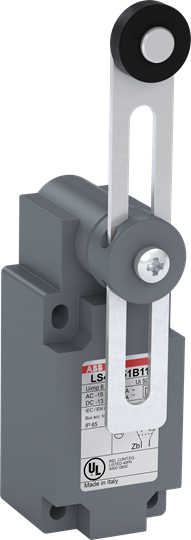

1SBV010751R1211 ABB - LS43P51B11
ABB 1SBV010751R1211 ABB - LS43P51B11
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:

Dimensions

Product Net Width:
41 mm
Product Net Height:
135 mm
Product Net Depth / Length:
62 mm
Product Net Weight:
0.164 kg

Technical

Action Type of the Contact Element (acc. to IEC 60947-5-1):
Snap Action Simultaneous
Actuator Type:
adjustable plastic roller lever (Ø22 mm)
B10d Value:
Operations 50 Millions
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection:
acc. to IEC 60529 IP65
Housing Material:
Plastic
Maximum Electrical Switching Frequency:
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts:
1 NO, 1 NC
Mechanical Durability:
10 million
Mounting Type:
40 mm (EN 50041)
Number and Type of Bottom Cable Glands:
1 x M20x1.5 - Bottom
Pilot Duty UL/CSA:
A600
Q600
A600
Q600
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Operational Current AC-15 (Ie):
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie):
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
Short-Circuit Protective Devices:
gG Type Fuses 10 A

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -30 ... +80 °C
Operation -25 ... +70 °C
Storage -30 ... +80 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
45 mm
Package Level 1 Depth / Length:
70 mm
Package Level 1 Height:
140 mm
Package Level 1 Gross Weight:
0.185 kg
Package Level 1 EAN:
3471522003232

External Classifications and Standards

Object Classification Code:
B
ETIM 6:
EC000030 - End switch
ETIM 7:
EC000030 - End switch
ETIM 8:
EC000030 - End switch
eClass:
V11.0 : 27272601
UNSPSC:
39121500
1SBV010793R1211 ABB - LS43P93B11
ABB 1SBV010793R1211 ABB - LS43P93B11
$0.00
Sold Out

LS43P93B11 Limit Switch
1SBV011013R1211 ABB - LS72P13B11
ABB 1SBV011013R1211 ABB - LS72P13B11
$0.00
Sold Out

LS72P13B11 Limit Switch
1SBV011041R1211 ABB - LS72P41B11
ABB 1SBV011041R1211 ABB - LS72P41B11
$0.00
Sold Out

LS72P41B11 Limit Switch
1SBV011051R1211 ABB - LS72P51B11
ABB 1SBV011051R1211 ABB - LS72P51B11
$0.00
Sold Out

LS72P51B11 Limit Switch
1SBV011091R1211 ABB - LS72P91B11
ABB 1SBV011091R1211 ABB - LS72P91B11
$0.00
Sold Out

LS72P91B11 Limit Switch
1SBV011092R1211 ABB - LS72P92B11
ABB 1SBV011092R1211 ABB - LS72P92B11
$0.00
Sold Out

LS72P92B11 Limit Switch
1SBV011098R1211 ABB - LS72P98B11-A
ABB 1SBV011098R1211 ABB - LS72P98B11-A
$0.00
Sold Out

LS72P98B11-A Limit Switch

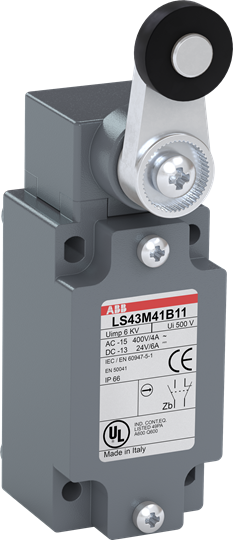

1SBV011641R1211 ABB - LS43M41B11
ABB 1SBV011641R1211 ABB - LS43M41B11
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:

Dimensions

Product Net Width:
40 mm
Product Net Height:
133 mm
Product Net Depth / Length:
60 mm
Product Net Weight:
0.279 kg

Technical

Action Type of the Contact Element (acc. to IEC 60947-5-1):
Snap Action Simultaneous
Actuator Type:
plastic roller lever (Ø22 mm)
B10d Value:
Operations 50 Millions
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection:
acc. to IEC 60529 IP66
Housing Material:
Metal
Maximum Electrical Switching Frequency:
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts:
1 NO, 1 NC
Mechanical Durability:
25 million
Mounting Type:
40 mm (EN 50041)
Number and Type of Bottom Cable Glands:
1 x M20x1.5 - Bottom
Pilot Duty UL/CSA:
A600
Q600
A600
Q600
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Operational Current AC-15 (Ie):
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie):
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
Short-Circuit Protective Devices:
gG Type Fuses 10 A

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -30 ... +80 °C
Operation -25 ... +70 °C
Storage -30 ... +80 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
45 mm
Package Level 1 Depth / Length:
70 mm
Package Level 1 Height:
140 mm
Package Level 1 Gross Weight:
0.3 kg
Package Level 1 EAN:
3471522002839

External Classifications and Standards

Object Classification Code:
B
ETIM 6:
EC000030 - End switch
ETIM 7:
EC000030 - End switch
ETIM 8:
EC000030 - End switch
eClass:
V11.0 : 27272601
UNSPSC:
39121500
1SBV012231R1211 ABB - LS33P31B11
ABB 1SBV012231R1211 ABB - LS33P31B11
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:

Dimensions

Product Net Width:
30 mm
Product Net Height:
92 mm
Product Net Depth / Length:
30 mm
Product Net Weight:
0.068 kg

Technical

Action Type of the Contact Element (acc. to IEC 60947-5-1):
Snap Action Simultaneous
Actuator Type:
plastic roller lever (Ø12,5 mm) on steel plunger for horizontal movement
B10d Value:
Operations 30 Millions
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection:
acc. to IEC 60529 IP65
Housing Material:
Plastic
Maximum Electrical Switching Frequency:
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts:
1 NO, 1 NC
Mechanical Durability:
15 million
Mounting Type:
30 mm (EN 50047)
Number and Type of Bottom Cable Glands:
1 x M20x1.5 - Bottom
Pilot Duty UL/CSA:
A600
Q600
A600
Q600
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Operational Current AC-15 (Ie):
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie):
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
Short-Circuit Protective Devices:
gG Type Fuses 10 A

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -30 ... +80 °C
Operation -25 ... +70 °C
Storage -30 ... +80 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
35 mm
Package Level 1 Depth / Length:
32 mm
Package Level 1 Height:
95 mm
Package Level 1 Gross Weight:
0.078 kg
Package Level 1 EAN:
3471522006950

External Classifications and Standards

Object Classification Code:
B
ETIM 6:
EC000030 - End switch
ETIM 7:
EC000030 - End switch
ETIM 8:
EC000030 - End switch
eClass:
V11.0 : 27272601
UNSPSC:
39121500

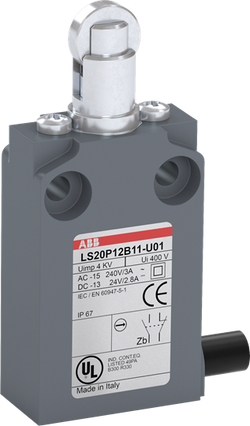

1SBV015912R3801 ABB - LS20P12B11-U01
ABB 1SBV015912R3801 ABB - LS20P12B11-U01
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:

Dimensions

Product Net Width:
30 mm
Product Net Height:
70 mm
Product Net Depth / Length:
16 mm
Product Net Weight:
0.127 kg

Technical

Action Type of the Contact Element (acc. to IEC 60947-5-1):
Snap Action Simultaneous
Actuator Type:
steel roller plunger
B10d Value:
Operations 20 Millions
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection:
acc. to IEC 60529 IP67
Housing Material:
Plastic
Maximum Electrical Switching Frequency:
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts:
1 NO, 1 NC
Mechanical Durability:
25 million
Mounting Type:
30 mm
Number and Type of Bottom Cable Glands:
Side (Prewired UL/IEC cable)
Rated Impulse Withstand Voltage (Uimp):
4 kV
Rated Operational Current AC-15 (Ie):
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V
Rated Operational Current DC-13 (Ie):
(24 V) 2.8 A
(125 V) 0.55 A
(250 V) 0.27 A
(24 V) 2.8 A
(125 V) 0.55 A
(250 V) 0.27 A

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +70 °C
Operation -25 ... +70 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
16 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
70 mm
Package Level 1 Gross Weight:
0.136 kg
Package Level 1 EAN:
3471522640437

External Classifications and Standards

Object Classification Code:
B
ETIM 6:
EC000030 - End switch
ETIM 7:
EC000030 - End switch
ETIM 8:
EC000030 - End switch
eClass:
V11.0 : 27272601
UNSPSC:
39122213
IDEA Granular Category Code (IGCC):
5202 >> Limit switch

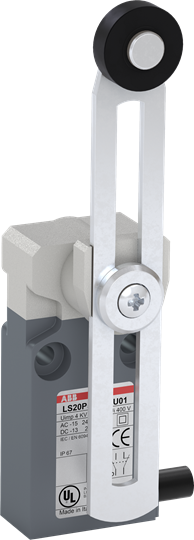

1SBV015951R3801 ABB - LS20P51B11-U01
ABB 1SBV015951R3801 ABB - LS20P51B11-U01
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:

Dimensions

Product Net Width:
30 mm
Product Net Height:
86 mm
Product Net Depth / Length:
39 mm
Product Net Weight:
0.179 kg

Technical

Action Type of the Contact Element (acc. to IEC 60947-5-1):
Snap Action Simultaneous
Actuator Type:
adjustable plastic roller lever (Ø18 mm)
B10d Value:
Operations 20 Millions
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection:
acc. to IEC 60529 IP67
Housing Material:
Plastic
Maximum Electrical Switching Frequency:
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts:
1 NO, 1 NC
Mechanical Durability:
0 cycle
Mounting Type:
30 mm
Number and Type of Bottom Cable Glands:
Side (Prewired UL/IEC cable)
Rated Impulse Withstand Voltage (Uimp):
4 kV
Rated Operational Current AC-15 (Ie):
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V
Rated Operational Current DC-13 (Ie):
(24 V) 2.8 A
(125 V) 0.55 A
(250 V) 0.27 A
(24 V) 2.8 A
(125 V) 0.55 A
(250 V) 0.27 A

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +70 °C
Operation -25 ... +70 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
39 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
86 mm
Package Level 1 Gross Weight:
0.188 kg
Package Level 1 EAN:
3471522640956

External Classifications and Standards

Object Classification Code:
B
ETIM 6:
EC000030 - End switch
ETIM 7:
EC000030 - End switch
ETIM 8:
EC000030 - End switch
eClass:
V11.0 : 27272601
UNSPSC:
39121500

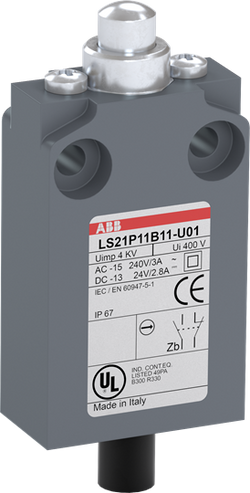

1SBV016011R3801 ABB - LS21P11B11-U01
ABB 1SBV016011R3801 ABB - LS21P11B11-U01
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:

Dimensions

Product Net Width:
30 mm
Product Net Height:
60 mm
Product Net Depth / Length:
16 mm
Product Net Weight:
0.124 kg

Technical

Action Type of the Contact Element (acc. to IEC 60947-5-1):
Snap Action Simultaneous
Actuator Type:
plain steel plunger
B10d Value:
Operations 20 Millions
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection:
acc. to IEC 60529 IP67
Housing Material:
Plastic
Maximum Electrical Switching Frequency:
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts:
1 NO, 1 NC
Mechanical Durability:
30 million
Mounting Type:
30 mm
Number and Type of Bottom Cable Glands:
Bottom (Prewired UL/IEC cable)
Rated Impulse Withstand Voltage (Uimp):
4 kV
Rated Operational Current AC-15 (Ie):
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V
Rated Operational Current DC-13 (Ie):
(24 V) 2.8 A
(125 V) 0.55 A
(250 V) 0.27 A
(24 V) 2.8 A
(125 V) 0.55 A
(250 V) 0.27 A

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +70 °C
Operation -25 ... +70 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
16 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
60 mm
Package Level 1 Gross Weight:
0.133 kg
Package Level 1 EAN:
3471522641236

External Classifications and Standards

Object Classification Code:
B
ETIM 6:
EC000030 - End switch
ETIM 7:
EC000030 - End switch
ETIM 8:
EC000030 - End switch
eClass:
V11.0 : 27272601
UNSPSC:
39122213
IDEA Granular Category Code (IGCC):
5202 >> Limit switch
1SBV020341R1202 ABB - LS32P41B02-R
ABB 1SBV020341R1202 ABB - LS32P41B02-R
$0.00
Sold Out

LS32P41B02-R Limit Switch
1SBV030380R1302 ABB - LS32P80L02-S
ABB 1SBV030380R1302 ABB - LS32P80L02-S
$0.00
Sold Out

LS32P80L02-S Limit Switch
1SBV030780R1412 ABB - LS43P80D12-S
ABB 1SBV030780R1412 ABB - LS43P80D12-S
$0.00
Sold Out

LS43P80D12-S Limit Switch

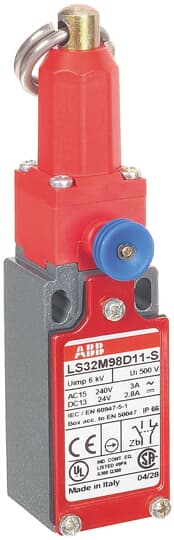

1SBV031998R1411 ABB - LS32M98D11-SCR
ABB 1SBV031998R1411 ABB - LS32M98D11-SCR
$0.00
Sold Out

LS32M98D11-SCR Limit Switch

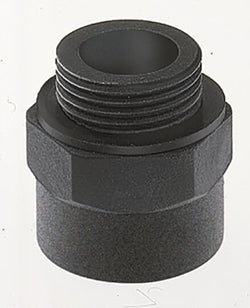

1SBV047800R5242 ABB - LSR5242
ABB 1SBV047800R5242 ABB - LSR5242
$0.00
Sold Out

LSR5242 Limit Switch Accessory
1SBV047800R5343 ABB - LSR5343
ABB 1SBV047800R5343 ABB - LSR5343
$0.00
Sold Out

LSR5343 Limit Switch Accessory
1SBV047800R5444 ABB - LSR5444
ABB 1SBV047800R5444 ABB - LSR5444
$0.00
Sold Out

LSR5444 Limit Switch Accessory
1SBV047800R5547 ABB - LSR5547
ABB 1SBV047800R5547 ABB - LSR5547
$0.00
Sold Out

LSR5547 Limit Switch Accessory

Recently viewed
