Dimensions

Product Net Width:

44.2 mm

Product Net Depth / Length:

9.5 mm

Product Net Height:

33.5 mm

Product Net Weight:

0.011 kg

Technical

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

1

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 10 A

Rated Operational Current AC-15 (I_e):

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

Rated Short-time Withstand Current Low Voltage (I_cw):

for 0.1 s 140 A

for 1 s 100 A

for 0.1 s 140 A

for 1 s 100 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

Maximum Electrical Switching Frequency:

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Wire Stripping Length:

Auxiliary Circuit 9 mm

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque:

Auxiliary Circuit 1 N·m

Terminal Type:

Screw Terminals

Suitable For:

AS09

AS12

AS16

ASL09

ASL12

ASL16

VAS09

VAS12

VAS16

VASL09

VASL12

VASL16

NS

NSL

AS09

AS12

AS16

ASL09

ASL12

ASL16

VAS09

VAS12

VAS16

VASL09

Product Name:

Auxiliary Contact Block

Technical UL/CSA

Tightening Torque UL/CSA:

Auxiliary Circuit 9 in·lb

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB Certficate for CA3-.. auxiliary contact block

CCC Certificate:

CCC Certficate for CA3-.. auxiliary contact block

CQC Certificate:

CQC Certificate, Auxiliary Contact, CA3, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Auxiliary Contact, CA3, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity CA3..(S) auxiliary contacts

Declaration of Conformity - UKCA:

UK Declaration of conformity for CA3 Auxiliary contacts

GOST Certificate:

GOST_POCCCNME77B07822.pdf

UL Certificate:

UL_220108-E312527A

UL Listing Card:

NOA_E312527.pdf

Container Information

Package Level 1 Units:

bag 10 piece

Package Level 1 Width:

180 mm

Package Level 1 Depth / Length:

10 mm

Package Level 1 Height:

160 mm

Package Level 1 Gross Weight:

0.11 kg

Package Level 1 EAN:

3471523095038

External Classifications and Standards

Object Classification Code:

K

ETIM 7:

EC000041 - Auxiliary contact block

ETIM 8:

EC000041 - Auxiliary contact block

ETIM 9:

EC000041 - Auxiliary contact block

eClass:

V11.0 : 27371302

UNSPSC:

39121522

IDEA Granular Category Code (IGCC):

4743 >> Auxiliary contact block

E-Number (Sweden):

3210518

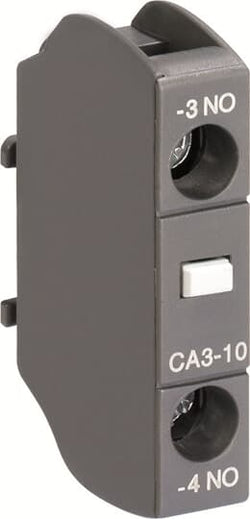

ABB 1SBN011010T1010 ABB - CA3-10

$0.00

Sold Out

Ordering

Minimum Order Quantity:

10 piece

Customs Tariff Number:

85389099

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction, AS(L)09...AS(L)16, NS(L)22E...NS(L)80E , CA3, VM3, BB3

CAD Dimensional Drawing:

Dimensions

Product Net Width:

44.2 mm

Product Net Depth / Length:

9.5 mm

Product Net Height:

33.5 mm

Product Net Weight:

0.011 kg

Technical

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

0

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 10 A

Rated Operational Current AC-15 (I_e):

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

Rated Short-time Withstand Current Low Voltage (I_cw):

for 0.1 s 140 A

for 1 s 100 A

for 0.1 s 140 A

for 1 s 100 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

Maximum Electrical Switching Frequency:

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Wire Stripping Length:

Auxiliary Circuit 9 mm

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque:

Auxiliary Circuit 1 N·m

Terminal Type:

Screw Terminals

Suitable For:

AS09

AS12

AS16

ASL09

ASL12

ASL16

VAS09

VAS12

VAS16

VASL09

VASL12

VASL16

NS

NSL

AS09

AS12

AS16

ASL09

ASL12

ASL16

VAS09

VAS12

VAS16

VASL09

Product Name:

Auxiliary Contact Block

Technical UL/CSA

Tightening Torque UL/CSA:

Auxiliary Circuit 9 in·lb

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB Certficate for CA3-.. auxiliary contact block

CCC Certificate:

CCC Certficate for CA3-.. auxiliary contact block

CQC Certificate:

CQC Certificate, Auxiliary Contact, CA3, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Auxiliary Contact, CA3, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity CA3..(S) auxiliary contacts

Declaration of Conformity - UKCA:

UK Declaration of conformity for CA3 Auxiliary contacts

GOST Certificate:

GOST_POCCCNME77B07822.pdf

UL Certificate:

UL_220108-E312527A

UL Listing Card:

NOA_E312527.pdf

Container Information

Package Level 1 Units:

bag 10 piece

Package Level 1 Width:

180 mm

Package Level 1 Depth / Length:

10 mm

Package Level 1 Height:

160 mm

Package Level 1 Gross Weight:

0.11 kg

Package Level 1 EAN:

3471523095007

External Classifications and Standards

Object Classification Code:

K

ETIM 7:

EC000041 - Auxiliary contact block

ETIM 8:

EC000041 - Auxiliary contact block

ETIM 9:

EC000041 - Auxiliary contact block

eClass:

V11.0 : 27371302

UNSPSC:

39121522

IDEA Granular Category Code (IGCC):

4743 >> Auxiliary contact block

E-Number (Sweden):

3210519

ABB 1SBN019010R1001 ABB

$91.46

Only 6 units left

Ordering

Minimum Order Quantity:

10 piece

Customs Tariff Number:

85030099

Popular Downloads

EPLAN Data:

9AAC167263_EPLAN

Data Sheet, Technical Information:

1SBC100187L0203

Instructions and Manuals:

1SBB910513D4501

CAD Dimensional Drawing:

Dimensions

Product Net Width:

10 mm

Product Net Depth / Length:

47 mm

Product Net Height:

36 mm

Product Net Weight:

0.014 kg

Technical

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

1

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-15 (I_e):

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.30 A / 66 W

(250 V) 0.30 A / 75 W

(400 V) 2.8 A / 134 W

(500 V) 1 A / 72 W

(24 V) 6 A / 144 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.30 A / 66 W

(250 V) 0.30 A / 75 W

(400 V) 2.8 A / 134 W

(500 V) 1 A / 72 W

Rated Short-time Withstand Current Low Voltage (I_cw):

for 0.1 s 140 A

for 1 s 100 A

for 0.1 s 140 A

for 1 s 100 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

Maximum Electrical Switching Frequency:

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Terminal Type:

Screw Terminals

Suitable For:

AX06

AX09

AX12

AX18

AX25

AX32

AX40

AX50

AX65

AX80

AX95

AX115

AX150

NX

AX06

AX09

AX12

AX18

AX25

AX32

AX40

AX50

AX65

AX80

Product Name:

Auxiliary Contact Block

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB_CN28662

CCC Certificate:

CCC_2013010304656838

CCS Certificate:

CCS_GZ13T00025

CQC Certificate:

CQC Certificate, Auxiliray Contact, CA5X, CAL5X, Made in China

cUL Certificate:

UL-CA-L252354-45-61406102-5

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Auxiliray Contact, CA5X, CAL5X, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity CA5X.., CAL5X.., auxiliary contacts

EAC Certificate:

EAC_RU C-DE ME77 B03562

UL Certificate:

UL-US-L252354-15-61406102-5

Container Information

Package Level 1 Units:

box 10 piece

Package Level 1 Width:

65 mm

Package Level 1 Depth / Length:

130 mm

Package Level 1 Height:

40 mm

Package Level 1 Gross Weight:

0.14 kg

Package Level 1 EAN:

3471522387912

External Classifications and Standards

Object Classification Code:

K

ETIM 7:

EC000041 - Auxiliary contact block

ETIM 8:

EC000041 - Auxiliary contact block

ETIM 9:

EC000041 - Auxiliary contact block

eClass:

V11.0 : 27371302

UNSPSC:

39121522

IDEA Granular Category Code (IGCC):

4743 >> Auxiliary contact block

E-Number (Finland):

3708078

ABB 1SBN019010R1010 ABB - CA5X-10

$91.46

Only 9 units left

Ordering

Minimum Order Quantity:

10 piece

Customs Tariff Number:

85030099

Popular Downloads

EPLAN Data:

9AAC167263_EPLAN

Data Sheet, Technical Information:

1SBC100187L0203

Instructions and Manuals:

1SBB910513D4501

CAD Dimensional Drawing:

Dimensions

Product Net Width:

10 mm

Product Net Depth / Length:

47 mm

Product Net Height:

36 mm

Product Net Weight:

0.014 kg

Technical

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

0

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-15 (I_e):

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.30 A / 66 W

(250 V) 0.30 A / 75 W

(400 V) 2.8 A / 134 W

(500 V) 1 A / 72 W

(24 V) 6 A / 144 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.30 A / 66 W

(250 V) 0.30 A / 75 W

(400 V) 2.8 A / 134 W

(500 V) 1 A / 72 W

Rated Short-time Withstand Current Low Voltage (I_cw):

for 0.1 s 140 A

for 1 s 100 A

for 0.1 s 140 A

for 1 s 100 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

Maximum Electrical Switching Frequency:

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Terminal Type:

Screw Terminals

Suitable For:

AX06

AX09

AX12

AX18

AX25

AX32

AX40

AX50

AX65

AX80

AX95

AX115

AX150

NX

AX06

AX09

AX12

AX18

AX25

AX32

AX40

AX50

AX65

AX80

Product Name:

Auxiliary Contact Block

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB_CN28662

CCC Certificate:

CCC_2013010304656838

CCS Certificate:

CCS_GZ13T00025

CQC Certificate:

CQC Certificate, Auxiliray Contact, CA5X, CAL5X, Made in China

cUL Certificate:

UL-CA-L252354-45-61406102-5

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Auxiliray Contact, CA5X, CAL5X, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity CA5X.., CAL5X.., auxiliary contacts

EAC Certificate:

EAC_RU C-DE ME77 B03562

UL Certificate:

UL-US-L252354-15-61406102-5

Container Information

Package Level 1 Units:

box 10 piece

Package Level 1 Width:

65 mm

Package Level 1 Depth / Length:

130 mm

Package Level 1 Height:

40 mm

Package Level 1 Gross Weight:

0.14 kg

Package Level 1 EAN:

3471522387905

External Classifications and Standards

Object Classification Code:

K

ETIM 7:

EC000041 - Auxiliary contact block

ETIM 8:

EC000041 - Auxiliary contact block

ETIM 9:

EC000041 - Auxiliary contact block

eClass:

V11.0 : 27371302

UNSPSC:

39121522

IDEA Granular Category Code (IGCC):

4743 >> Auxiliary contact block

E-Number (Finland):

3708079

ABB 1SBN020010R1002 ABB - TE5S-120

$0.00

Sold Out

TE5S-120 Electronic Timer

ABB 1SBN020010R1003 ABB - TE5S-240

$0.00

Sold Out

TE5S-240 Electronic Timer

ABB 1SBN020010R1004 ABB - TE5S-440

$0.00

Sold Out

TE5S-440 Electronic Timer

ABB 1SBN020112R1000 ABB - TEF4-ON

$148.34

In stock, 11 units

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85389091

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating instruction TEF4, TEF4S electronic timers for AF(C)09..(K) ... AF(C)96 contactors and NF(C)..(K) contactor relays

Instructions and Manuals (Part 2):

CAD Dimensional Drawing:

Dimensions

Product Net Width:

43 mm

Product Net Depth / Length:

67.7 mm

Product Net Height:

41.6 mm

Product Net Weight:

0.065 kg

Technical

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

1

Number of Poles:

2P

Standards:

IEC/EN 60947-5-1, UL 508, UL 60335-2-40 LZGH2 A2L, CSA C22-2 No. 14-18, CSA C22.2 No. 60335-2-40 LZGH2 A2L

Rated Operational Voltage:

Auxiliary Circuit 240 V AC

Auxiliary Circuit 24 V DC

Auxiliary Circuit 240 V AC

Auxiliary Circuit 24 V DC

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Auxiliary Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 5 A

Rated Operational Current AC-15 (I_e):

(24 / 127 V) 3 A

(220 / 240 V) 1.5 A

(24 / 127 V) 3 A

(220 / 240 V) 1.5 A

Rated Operational Current DC-13 (I_e):

(24 V) 1 A / 24 W

Rated Short-time Withstand Current Low Voltage (I_cw):

for 0.1 s 8 A

for 1 s 8 A

for 0.1 s 8 A

for 1 s 8 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 400 V

acc. to UL/CSA 300 V

acc. to IEC 60947-5-1 400 V

acc. to UL/CSA 300 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Maximum Electrical Switching Frequency:

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Power Loss:

at 3 A per Pole 0.1 W

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque:

Auxiliary Circuit 1.2 N·m

Terminal Type:

Screw Terminals

Timer Relay Type:

ON-Delay

Suitable For:

AF09

AF09Z

AF12

AF12Z

AF16

AF16Z

AF26

AF26Z

AF30

AF30Z

AF38

AF38Z

AF40

AF52

AF65

AF80

AF96

AFC09

AFC12

AFC16

AFC26

AFC30

AFC38

NF22E

NFZ22E

NF31E

NFZ31E

NF40E

NFZ40E

NFC22E

NFC31E

NFC40E

AF09

AF09Z

AF12

AF12Z

AF16

AF16Z

AF26

AF26Z

AF30

AF30Z

Product Name:

Electronic Timer

Technical UL/CSA

Tightening Torque UL/CSA:

Auxiliary Circuit 11 in·lb

Environmental

Ambient Air Temperature:

Close to Contactor for Storage -40 ... +80 °C

Operation -25 ... +70 °C

Close to Contactor for Storage -40 ... +80 °C

Operation -25 ... +70 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 2000 m

Resistance to Vibrations:

3g Closed Position & 2g Open Position 5 ... 300 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

97073e4f-8bb2-4aee-b212-91f7b6ef7384 China

Simplified SCIP:

55fde234-e5fd-4fb4-a21a-ef9638c95391 Portugal

366394a3-e986-4596-b935-68d7ff49e443 Estonia

076cfc3f-e8ea-4d16-99c3-c0bf6638a963 Poland

8bd0fc0b-516c-4dff-a1a0-af5b448d34cc Sweden

d2411e78-8664-4a7e-a6c4-5158470276de Bulgaria

2c8f5a6a-8a54-4194-837e-53c6d56c2970 Germany

537934c6-88db-4ec8-be26-d4c86ca36be2 France

e5bfb542-9cb2-4488-a8ec-aa75db2b0661 Sweden

7091ab00-8071-4b74-9681-3d32837ca129 Germany

85e6523c-2c2c-4ac0-931f-f5a6f1978bf4 France

f19b4a05-ccfa-49c6-b6f6-b7bbd7b6dd38 Spain

0c220aa3-af06-4246-b1d4-1863b7b9f033 Hungary

9f2bdf89-aab8-48c9-8fbe-d94c5803cace Belgium

8bed182e-6f48-4d86-a6ea-d158ca93029b Greece

bcd937f0-2283-4513-9602-5be0f1364a5f Hungary

11ee9f07-cc5a-4aa1-a394-c7bb8dee301f Netherlands

abd3576b-99eb-45d3-aaa5-6f7b6ac7b0cf Poland

f2fc2781-2f32-4e9f-ada8-4c182cc40b46 Czech Republic

e2cedb92-a5b7-40f1-9d04-c02f19a4fc9c Germany

fee9314d-7d8b-469a-8548-da3de3096ec7 Denmark

64b500cc-74fe-4fb2-8028-ce86ce961e87 Germany

bfff5e44-9b71-4899-9f6f-c8ba6fa56bbe Finland

09a118af-4833-4e39-8301-812fa3f87c63 Belgium

3392838b-e9c4-43dd-a82e-def606d4f065 Germany

3c6e0337-d0b1-4527-8f2c-31976f7043c3 Croatia

ecbf7f21-941e-4685-bdac-60e57647f8e7 Norway

cf60ec30-c7df-4476-ac99-0d88d11f7222 Poland

55fde234-e5fd-4fb4-a21a-ef9638c95391 Portugal

366394a3-e986-4596-b935-68d7ff49e443 Estonia

076cfc3f-e8ea-4d16-99c3-c0bf6638a963 Poland

8bd0fc0b-516c-4dff-a1a0-af5b448d34cc Sweden

d2411e78-8664-4a7e-a6c4-5158470276de Bulgaria

2c8f5a6a-8a54-4194-837e-53c6d56c2970 Germany

537934c6-88db-4ec8-be26-d4c86ca36be2 France

e5bfb542-9cb2-4488-a8ec-aa75db2b0661 Sweden

7091ab00-8071-4b74-9681-3d32837ca129 Germany

85e6523c-2c2c-4ac0-931f-f5a6f1978bf4 France

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

A2L Certificate – UL:

UL-US A2L LZGH2 Certificate of Compliance TEF4 electronic timers for AF(C)09...AF(C)96 contactors / NF(C) contactor relays - UL 60335-2-40 Household and Similar Electrical Appliances - Safety: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance TEF4 electronic timers for AF(C)09...AF(C)96 contactors / NF(C) contactor relays - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-US A2L LZGH2 Certificate of Compliance TEF4 electronic timers for AF(C)09...AF(C)96 contactors / NF(C) contactor relays - UL 60335-2-40 Household and Similar Electrical Appliances - Safety: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance TEF4 electronic timers for AF(C)09...AF(C)96 contactors / NF(C) contactor relays - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

ABS Certificate:

ABS Certificate, AF(S)09 to AF(S)96 contactors, NF contactor relays and CA4, CC4, CAL4, CAT4 auxiliary contact blocks, TEF4 electronic timers

CB Certificate:

CB Certificate electronic timers TEF4 for AF09...AF96 contactors and NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors, N and NL contactor relays

CCC Certificate:

CCC Certificate electronic timers TEF4 for AF09...AF96 contactors / NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors / Nand NL contactor relays

CQC Certificate:

CQC Certificate, Time Relay, TEF4-ON, TEF4-OFF, TEF4S-ON, TEF4S-OFF, TEF5-ON, TEF5-OFF, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Time Relay, TEF4-ON, TEF4-OFF, TEF4S-ON, TEF4S-OFF, TEF5-ON, TEF5-OFF, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity TEF4(S)-ON, TEF4(S)-OFF electronic timer

Declaration of Conformity - UKCA:

UK Declaration of Conformity TEF4(S)-ON, TEF4(S)-OFF electronic timer

UL Certificate:

UL Certificate of Compliance electronic timers TEF4 for AF09...AF96 contactors / NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors / N and NL contactor relays

UL Listing Card:

ABB 1SBN020114R1000 ABB - TEF4-OFF

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

82 mm

Package Level 1 Depth / Length:

56 mm

Package Level 1 Height:

51 mm

Package Level 1 Gross Weight:

0.065 kg

Package Level 1 EAN:

3471523130630

Package Level 2 Units:

box 80 piece

Package Level 2 Width:

254 mm

Package Level 2 Depth / Length:

319 mm

Package Level 2 Height:

200 mm

Package Level 2 Gross Weight:

5.2 kg

External Classifications and Standards

Object Classification Code:

K

ETIM 7:

EC002060 - Timer block

ETIM 8:

EC002060 - Timer block

ETIM 9:

EC002060 - Timer block

eClass:

V11.0 : 27371308

UNSPSC:

39121523

IDEA Granular Category Code (IGCC):

4746 >> Timer controls

E-Number (Finland):

3706012

E-Number (Sweden):

3210205

$148.34

Only 10 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85389091

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating instruction TEF4, TEF4S electronic timers for AF(C)09..(K) ... AF(C)96 contactors and NF(C)..(K) contactor relays

Instructions and Manuals (Part 2):

CAD Dimensional Drawing:

Dimensions

Product Net Width:

43 mm

Product Net Depth / Length:

67.7 mm

Product Net Height:

41.6 mm

Product Net Weight:

0.065 kg

Technical

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

1

Number of Poles:

2P

Standards:

IEC/EN 60947-5-1, UL 508, UL 60335-2-40 LZGH2 A2L, CSA C22-2 No. 14-18, CSA C22.2 No. 60335-2-40 LZGH2 A2L

Rated Operational Voltage:

Auxiliary Circuit 240 V AC

Auxiliary Circuit 24 V DC

Auxiliary Circuit 240 V AC

Auxiliary Circuit 24 V DC

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Auxiliary Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 5 A

Rated Operational Current AC-15 (I_e):

(24 / 127 V) 3 A

(220 / 240 V) 1.5 A

(24 / 127 V) 3 A

(220 / 240 V) 1.5 A

Rated Operational Current DC-13 (I_e):

(24 V) 1 A / 24 W

Rated Short-time Withstand Current Low Voltage (I_cw):

for 0.1 s 8 A

for 1 s 8 A

for 0.1 s 8 A

for 1 s 8 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 400 V

acc. to UL/CSA 300 V

acc. to IEC 60947-5-1 400 V

acc. to UL/CSA 300 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Maximum Electrical Switching Frequency:

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

1800 cycles per hour

Power Loss:

at 3 A per Pole 0.1 W

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque:

Auxiliary Circuit 1.2 N·m

Terminal Type:

Screw Terminals

Timer Relay Type:

OFF-Delay

Suitable For:

AF09

AF09Z

AF12

AF12Z

AF16

AF16Z

AF26

AF26Z

AF30

AF30Z

AF38

AF38Z

AF40

AF52

AF65

AF80

AF96

AFC09

AFC12

AFC16

AFC26

AFC30

AFC38

NF22E

NFZ22E

NF31E

NFZ31E

NF40E

NFZ40E

NFC22E

NFC31E

NFC40E

AF09

AF09Z

AF12

AF12Z

AF16

AF16Z

AF26

AF26Z

AF30

AF30Z

Product Name:

Electronic Timer

Technical UL/CSA

Tightening Torque UL/CSA:

Auxiliary Circuit 11 in·lb

Environmental

Ambient Air Temperature:

Close to Contactor for Storage -40 ... +80 °C

Operation -25 ... +70 °C

Close to Contactor for Storage -40 ... +80 °C

Operation -25 ... +70 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 2000 m

Resistance to Vibrations:

3g Closed Position & 2g Open Position 5 ... 300 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

b815070a-c1ae-446c-8830-f5e7343c90e3 China

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

A2L Certificate – UL:

UL-US A2L LZGH2 Certificate of Compliance TEF4 electronic timers for AF(C)09...AF(C)96 contactors / NF(C) contactor relays - UL 60335-2-40 Household and Similar Electrical Appliances - Safety: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance TEF4 electronic timers for AF(C)09...AF(C)96 contactors / NF(C) contactor relays - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-US A2L LZGH2 Certificate of Compliance TEF4 electronic timers for AF(C)09...AF(C)96 contactors / NF(C) contactor relays - UL 60335-2-40 Household and Similar Electrical Appliances - Safety: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance TEF4 electronic timers for AF(C)09...AF(C)96 contactors / NF(C) contactor relays - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

ABS Certificate:

ABS Certificate, AF(S)09 to AF(S)96 contactors, NF contactor relays and CA4, CC4, CAL4, CAT4 auxiliary contact blocks, TEF4 electronic timers

CB Certificate:

CB Certificate electronic timers TEF4 for AF09...AF96 contactors and NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors, N and NL contactor relays

CCC Certificate:

CCC Certificate electronic timers TEF4 for AF09...AF96 contactors / NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors / Nand NL contactor relays

CQC Certificate:

CQC Certificate, Time Relay, TEF4-ON, TEF4-OFF, TEF4S-ON, TEF4S-OFF, TEF5-ON, TEF5-OFF, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Time Relay, TEF4-ON, TEF4-OFF, TEF4S-ON, TEF4S-OFF, TEF5-ON, TEF5-OFF, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity TEF4(S)-ON, TEF4(S)-OFF electronic timer

Declaration of Conformity - UKCA:

UK Declaration of Conformity TEF4(S)-ON, TEF4(S)-OFF electronic timer

UL Certificate:

UL Certificate of Compliance electronic timers TEF4 for AF09...AF96 contactors / NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors / N and NL contactor relays

UL Listing Card:

ABB 1SBN020300R1000 ABB - TP40DA

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

82 mm

Package Level 1 Depth / Length:

56 mm

Package Level 1 Height:

51 mm

Package Level 1 Gross Weight:

0.065 kg

Package Level 1 EAN:

3471523130654

Package Level 2 Units:

box 80 piece

Package Level 2 Width:

254 mm

Package Level 2 Depth / Length:

319 mm

Package Level 2 Height:

200 mm

Package Level 2 Gross Weight:

5.2 kg

External Classifications and Standards

Object Classification Code:

K

ETIM 7:

EC002060 - Timer block

ETIM 8:

EC002060 - Timer block

ETIM 9:

EC002060 - Timer block

eClass:

V11.0 : 27371308

UNSPSC:

39121523

IDEA Granular Category Code (IGCC):

4746 >> Timer controls

E-Number (Finland):

3706000

E-Number (Sweden):

3210257

$509.24

Only 2 units left

TP Series Contactor Timer, Range 0.1 - 40s, NO/NC Contacts

ABB 1SBN020312R1000 ABB - TEF5-ON

$150.56

In stock, 12 units

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85389091

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Installation instruction TEF5 electronic timers for A9...75, AL9...40, AX06...AX80 contactors and N, NL, NX contactor relays

CAD Dimensional Drawing:

Dimensions

Product Net Width:

44 mm

Product Net Depth / Length:

62.5 mm

Product Net Height:

40.5 mm

Product Net Weight:

0.065 kg

Technical

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

1

Number of Poles:

2P

Standards:

IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18

Rated Operational Voltage:

Auxiliary Circuit 240 V AC

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 5 A

Rated Operational Current AC-15 (I_e):

(24 / 127 V) 3 A

(220 / 240 V) 1.5 A

(24 / 127 V) 3 A

(220 / 240 V) 1.5 A

Rated Operational Current DC-13 (I_e):

(24 V) 1 A / 24 W

Rated Short-time Withstand Current Low Voltage (I_cw):

for 0.1 s 8 A

for 1 s 8 A

for 0.1 s 8 A

for 1 s 8 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 400 V

acc. to UL/CSA 300 V

acc. to IEC 60947-5-1 400 V

acc. to UL/CSA 300 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Maximum Electrical Switching Frequency:

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Power Loss:

at 3 A per Pole 0.1 W

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque:

Auxiliary Circuit 1 N·m

Terminal Type:

Screw Terminals

Timer Relay Type:

ON-Delay

Suitable For:

GA75

GAE75

UA16

UA26

UA30

UA50

UA63

UA75

AX06

AX09

AX12

AX18

AX25

AX32

AX40

AX50

AX65

AX80

GA75

GAE75

UA16

UA26

UA30

UA50

UA63

UA75

AX06

AX09

Product Name:

Electronic Timer

Technical UL/CSA

Tightening Torque UL/CSA:

Auxiliary Circuit 9 in·lb

Environmental

Ambient Air Temperature:

Close to Contactor for Storage -40 ... +80 °C

Operation -25 ... +70 °C

Close to Contactor for Storage -40 ... +80 °C

Operation -25 ... +70 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

9e8b39de-3abc-4130-a15d-2cff7a91006d China

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB Certificate electronic timers TEF4 for AF09...AF96 contactors and NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors, N and NL contactor relays

CCC Certificate:

CCC Certificate electronic timers TEF4 for AF09...AF96 contactors / NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors / Nand NL contactor relays

CQC Certificate:

CQC Certificate, Time Relay, TEF4-ON, TEF4-OFF, TEF4S-ON, TEF4S-OFF, TEF5-ON, TEF5-OFF, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Time Relay, TEF4-ON, TEF4-OFF, TEF4S-ON, TEF4S-OFF, TEF5-ON, TEF5-OFF, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity TEF5-ON, TEF5-OFF frontal electronic timer

Declaration of Conformity - UKCA:

UK Declaration of Conformity TEF5-ON, TEF5-OFF frontal electronic timer

UL Certificate:

UL Certificate of Compliance electronic timers TEF4 for AF09...AF96 contactors / NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors / N and NL contactor relays

UL Listing Card:

ABB 1SBN020314R1000 ABB - TEF5-OFF

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

82 mm

Package Level 1 Depth / Length:

56 mm

Package Level 1 Height:

51 mm

Package Level 1 Gross Weight:

0.065 kg

Package Level 1 EAN:

3471522387103

External Classifications and Standards

Object Classification Code:

K

ETIM 7:

EC002498 - Accessories for low-voltage switch technology

ETIM 8:

EC002498 - Accessories/spare parts for low-voltage switch technology

ETIM 9:

EC002060 - Timer block

eClass:

V11.0 : 27371308

UNSPSC:

39121523

IDEA Granular Category Code (IGCC):

4746 >> Timer controls

E-Number (Finland):

2712547

$0.00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85389091

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Installation instruction TEF5 electronic timers for A9...75, AL9...40, AX06...AX80 contactors and N, NL, NX contactor relays

CAD Dimensional Drawing:

Dimensions

Product Net Width:

44 mm

Product Net Depth / Length:

62.5 mm

Product Net Height:

40.5 mm

Product Net Weight:

0.065 kg

Technical

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

1

Number of Poles:

2P

Standards:

IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18

Rated Operational Voltage:

Auxiliary Circuit 240 V AC

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 5 A

Rated Operational Current AC-15 (I_e):

(24 / 127 V) 3 A

(220 / 240 V) 1.5 A

(24 / 127 V) 3 A

(220 / 240 V) 1.5 A

Rated Operational Current DC-13 (I_e):

(24 V) 1 A / 24 W

Rated Short-time Withstand Current Low Voltage (I_cw):

for 0.1 s 8 A

for 1 s 8 A

for 0.1 s 8 A

for 1 s 8 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 400 V

acc. to UL/CSA 300 V

acc. to IEC 60947-5-1 400 V

acc. to UL/CSA 300 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Maximum Electrical Switching Frequency:

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-15) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

1800 cycles per hour

Power Loss:

at 3 A per Pole 0.1 W

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque:

Auxiliary Circuit 1 N·m

Terminal Type:

Screw Terminals

Timer Relay Type:

OFF-Delay

Suitable For:

GA75

GAE75

UA16

UA26

UA30

UA50

UA63

UA75

AX06

AX09

AX12

AX18

AX25

AX32

AX40

AX50

AX65

AX80

GA75

GAE75

UA16

UA26

UA30

UA50

UA63

UA75

AX06

AX09

Product Name:

Electronic Timer

Technical UL/CSA

Tightening Torque UL/CSA:

Auxiliary Circuit 9 in·lb

Environmental

Ambient Air Temperature:

Close to Contactor for Storage -40 ... +80 °C

Operation -25 ... +70 °C

Close to Contactor for Storage -40 ... +80 °C

Operation -25 ... +70 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

558c7d79-298b-4357-9b83-3f7a9b422347 China

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB Certificate electronic timers TEF4 for AF09...AF96 contactors and NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors, N and NL contactor relays

CCC Certificate:

CCC Certificate electronic timers TEF4 for AF09...AF96 contactors / NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors / Nand NL contactor relays

CQC Certificate:

CQC Certificate, Time Relay, TEF4-ON, TEF4-OFF, TEF4S-ON, TEF4S-OFF, TEF5-ON, TEF5-OFF, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Time Relay, TEF4-ON, TEF4-OFF, TEF4S-ON, TEF4S-OFF, TEF5-ON, TEF5-OFF, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity TEF5-ON, TEF5-OFF frontal electronic timer

Declaration of Conformity - UKCA:

UK Declaration of Conformity TEF5-ON, TEF5-OFF frontal electronic timer

UL Certificate:

UL Certificate of Compliance electronic timers TEF4 for AF09...AF96 contactors / NF contactor relays ; TEF5 for A9 ...75, AL9...40 contactors / N and NL contactor relays

UL Listing Card:

ABB 1SBN030100R1000 ABB - VM5-1

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

82 mm

Package Level 1 Depth / Length:

56 mm

Package Level 1 Height:

51 mm

Package Level 1 Gross Weight:

0.065 kg

Package Level 1 EAN:

3471522387110

External Classifications and Standards

Object Classification Code:

K

ETIM 7:

EC002498 - Accessories for low-voltage switch technology

ETIM 8:

EC002498 - Accessories/spare parts for low-voltage switch technology

ETIM 9:

EC002060 - Timer block

eClass:

V11.0 : 27371308

UNSPSC:

39121523

IDEA Granular Category Code (IGCC):

4746 >> Timer controls

E-Number (Finland):

2712546

$0.00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85389099

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction Mechanical-Electrical Interlock VE5-1, Mechanical Interlock VM5-1

CAD Dimensional Drawing:

Dimensions

Product Net Width:

15 mm

Product Net Depth / Length:

71 mm

Product Net Height:

70 mm

Product Net Weight:

0.066 kg

Technical

Standards:

IEC/EN 60947-4-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14

Suitable For:

A9

A12

A16

A26

A30

A40

AL9

AL9Z

AL12

AL12Z

AL16

AL16Z

AL26

AL30

AL40

TAL9

TAL12

TAL16

TAL26

TAL30

TAL40

AX06

AX09

AX12

AX18

AX25

AX32

AX40

A9

A12

A16

A26

A30

A40

AL9

AL9Z

AL12

AL12Z

Product Name:

Mechanical Interlock Unit

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

EU Declaration of Conformity Contactor accessories BA50, BEA.., BER.., BEM.., BEY.., BED.., BES.., BL5.., LD.., LY.., LP.., LH.., LF.., LG..., LK..., VM5-1

Declaration of Conformity - UKCA:

UK Declaration of Conformity Contactor accessories BA50, BEA.., BER.., BEM.., BEY.., BED.., BES.., BL5.., LD.., LY.., LP.., LH.., LF.., LG..., LK..., VM5-1

GOST Certificate:

GOST_POCCFRME77B07175

RINA Certificate:

UL Certificate of Compliance VE5-1, VM5-1 Mechanical/Electrical interlock units

UL Certificate:

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

100 mm

Package Level 1 Depth / Length:

105.5 mm

Package Level 1 Height:

26 mm

Package Level 1 Gross Weight:

0.066 kg

Package Level 1 EAN:

3471522121363

External Classifications and Standards

ETIM 7:

EC001044 - Mechanic interlock for switch

ETIM 8:

EC001044 - Mechanic interlock for switch

ETIM 9:

EC001044 - Mechanic interlock for switch

eClass:

V11.0 : 27371303

UNSPSC:

39122221

IDEA Granular Category Code (IGCC):

5219 >> Switch part or accessory

ABB 1SBN030110R1000 ABB - VE5-1

$0.00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85389099

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction Mechanical-Electrical Interlock VE5-1, Mechanical Interlock VM5-1

CAD Dimensional Drawing:

Dimensions

Product Net Width:

15 mm

Product Net Depth / Length:

70 mm

Product Net Height:

68 mm

Product Net Weight:

0.076 kg

Technical

Number of Auxiliary Contacts NC:

2

Number of Poles:

2P

Standards:

IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14

Rated Operational Voltage:

Auxiliary Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-15 (I_e):

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A

(48 V) 2.8 A

(72 V) 1 A

(125 V) 0.55 A

(250 V) 0.3 A

(24 V) 6 A

(48 V) 2.8 A

(72 V) 1 A

(125 V) 0.55 A

(250 V) 0.3 A

Short-Circuit Protective Devices:

Auxiliary Circuit - gG Type Fuses 10 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

Mechanical Durability:

5 million

Power Loss:

at Rated Operating Conditions per Pole 0.1 W

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Terminal Type:

Screw Terminals

Suitable For:

A9

A12

A16

A26

A30

A40

AL9

AL9Z

AL12

AL12Z

AL16

AL16Z

AL26

AL30

AL40

TAL9

TAL12

TAL16

TAL26

TAL30

TAL40

AX06

AX09

AX12

AX18

AX25

AX32

AX40

A9

A12

A16

A26

A30

A40

AL9

AL9Z

AL12

AL12Z

Product Name:

Mechanical and Electrical Interlock Unit

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB Certificate VE5-1, VE5-2 electrical-mechanical interlocks for A09...A75 range

CCC Certificate:

CCC Certificate for VE5-1, VE5-2 mechanical and electrical interlock units for A9 to 110 contactors

CQC Certificate:

CQC Certificate, Auxiliary contacts, VE5-1,VE5-2, Made in India

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Auxiliary contacts, VE5-1,VE5-2, Made in India

Declaration of Conformity - CE:

EU Declaration of Conformity VE5-1, VE5-2 mechanical-electrical interlock

Declaration of Conformity - UKCA:

UK Declaration of Conformity VE5-1, VE5-2 mechanical-electrical interlock

GOST Certificate:

GOST_POCCFRME77B07175

RINA Certificate:

UL Certificate of Compliance VE5-1, VM5-1 Mechanical/Electrical interlock units

UL Certificate:

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

100 mm

Package Level 1 Depth / Length:

105.5 mm

Package Level 1 Height:

26 mm

Package Level 1 Gross Weight:

0.076 kg

Package Level 1 EAN:

3471522121370

External Classifications and Standards

ETIM 7:

EC001044 - Mechanic interlock for switch

ETIM 8:

EC001044 - Mechanic interlock for switch

ETIM 9:

EC001044 - Mechanic interlock for switch

eClass:

V11.0 : 27371303

UNSPSC:

39122221

IDEA Granular Category Code (IGCC):

5219 >> Switch part or accessory

E-Number (Finland):

3709234

ABB 1SBN030111R1000 ABB

$100.50

Only 7 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85389099

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating instruction VEM4, VEM4K, VM4 mechanical / electrical interlocks for AF(S)09...AF(S)38 contactors

Instructions and Manuals (Part 2):

CAD Dimensional Drawing:

Dimensions

Product Net Width:

25 mm

Product Net Depth / Length:

31.6 mm

Product Net Height:

43 mm

Product Net Weight:

0.035 kg

Technical

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

2

Number of Poles:

2P

Standards:

IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 690 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Maximum Electrical Switching Frequency:

1200 cycles per hour

Mechanical Durability:

5 million

Maximum Mechanical Switching Frequency:

1800 cycles per hour

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Wire Stripping Length:

Auxiliary Circuit 10 mm

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque:

Auxiliary Circuit 1.2 N·m

Terminal Type:

Screw Terminals

Suitable For:

AF09

AF09Z

AF12

AF12Z

AF16

AF16Z

AF26

AF26Z

AF30

AF30Z

AF38

AF38Z

AFC09

AFC12

AFC16

AFC26

AFC30

AFC38

AF09B

AF09ZB

AF12B

AF12ZB

AF16B

AF16ZB

AF26B

AF26ZB

AF30B

AF30ZB

AF38B

AF38ZB

AF09

AF09Z

AF12

AF12Z

AF16

AF16Z

AF26

AF26Z

AF30

AF30Z

Product Name:

Mechanical and Electrical Interlock Set

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Auxiliary Circuit 500 V AC/DC

Tightening Torque UL/CSA:

Auxiliary Circuit 11 in·lb

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

ABS Certificate:

ABS Certificate, AF(S)09 to AF(S)96 contactors, NF contactor relays and CA4, CC4, CAL4, CAT4 auxiliary contact blocks, TEF4 electronic timers

CB Certificate:

CB Certificate CA4 4-pole and CAT4 auxiliary contact blocks for AF09...AF96 contactors and NF contactor relays

CCC Certificate:

CCC Certificate CA4 4-pole, CAT4-11, VE4 AF accessories with screw, Ring tongue, spring and push-in terminals

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Auxiliary contacts, CA4-***,CAT4-*** ,VE4, Made in Poland

Declaration of Conformity - CE:

EU Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contact blocks, VM4, VM96-4, VEM4(K) interlocks

Declaration of Conformity - UKCA:

UK Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contacts, VM4, VM96-4, VEM4(K) interlocks

GOST Certificate:

Rina Certificate for AF09...AF96 contactors, NF contactor relays and accessories, screw and spring terminals

RINA Certificate:

UL Certificate:

UL Certificate of Compliance VM4, VM96-4, VEM4, VEM4K, BB4 accessories for AF(S)09..(K)...AF(S)96 contactors

UL Listing Card:

ABB 1SBN030210R1000 ABB - VE5-2

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

35 mm

Package Level 1 Height:

46 mm

Package Level 1 Gross Weight:

0.035 kg

Package Level 1 EAN:

3471523130616

Package Level 2 Units:

box 132 piece

Package Level 2 Gross Weight:

4.62 kg

External Classifications and Standards

ETIM 7:

EC001044 - Mechanic interlock for switch

ETIM 8:

EC001044 - Mechanic interlock for switch

ETIM 9:

EC001044 - Mechanic interlock for switch

eClass:

V11.0 : 27371303

UNSPSC:

39122221

IDEA Granular Category Code (IGCC):

5219 >> Switch part or accessory

E-Number (Finland):

3706551

E-Number (Sweden):

3210004

$0.00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85389099

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating instructions Mechanical-electrical interlock, VE5-2

CAD Dimensional Drawing:

Dimensions

Product Net Width:

15 mm

Product Net Depth / Length:

89.65 mm

Product Net Height:

108 mm

Product Net Weight:

0.146 kg

Technical

Number of Auxiliary Contacts NC:

2

Number of Poles:

2P

Standards:

IEC/EN 60941-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14

Rated Operational Voltage:

Auxiliary Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-15 (I_e):

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A

(48 V) 2.8 A

(72 V) 1 A

(125 V) 0.55 A

(250 V) 0.3 A

(24 V) 6 A

(48 V) 2.8 A

(72 V) 1 A

(125 V) 0.55 A

(250 V) 0.3 A

Short-Circuit Protective Devices:

Auxiliary Circuit - gG Type Fuses 10 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

Mechanical Durability:

5 million

Power Loss:

at Rated Operating Conditions per Pole 0.1 W

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Terminal Type:

Screw Terminals

Suitable For:

AF45

AF50

AF63

AF75

AF95B

A30

A40

A45

A50

A63

A75

A95

A110

AE45

AE50

AE63

AE75

TAE45

TAE50

TAE75

GA75

GAE75

AX32

AX40

AX50

AX65

AX80

AX95

AX115

AX150

AF45

AF50

AF63

AF75

AF95B

A30

A40

A45

A50

A63

Product Name:

Mechanical and Electrical Interlock Unit

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB Certificate VE5-1, VE5-2 electrical-mechanical interlocks for A09...A75 range

CCC Certificate:

CCC Certificate for VE5-1, VE5-2 mechanical and electrical interlock units for A9 to 110 contactors

CQC Certificate:

CQC Certificate, Auxiliary contacts, VE5-1,VE5-2, Made in India

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Auxiliary contacts, VE5-1,VE5-2, Made in India

Declaration of Conformity - CE:

EU Declaration of Conformity VE5-1, VE5-2 mechanical-electrical interlock

Declaration of Conformity - UKCA:

UK Declaration of Conformity VE5-1, VE5-2 mechanical-electrical interlock

GOST Certificate:

GOST_POCCFRME77B07175

RINA Certificate:

UL Certificate of Compliance VE5-1, VM5-1 Mechanical/Electrical interlock units

UL Certificate:

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

146 mm

Package Level 1 Depth / Length:

153.5 mm

Package Level 1 Height:

26 mm

Package Level 1 Gross Weight:

0.146 kg

Package Level 1 EAN:

3471522121387

External Classifications and Standards

ETIM 7:

EC001044 - Mechanic interlock for switch

ETIM 8:

EC001044 - Mechanic interlock for switch

ETIM 9:

EC001044 - Mechanic interlock for switch

eClass:

V11.0 : 27371303

UNSPSC:

39122221

IDEA Granular Category Code (IGCC):

5219 >> Switch part or accessory

ABB 1SBN033405T1000 ABB

$96.83

In stock, 11 units

Ordering

Minimum Order Quantity:

10 piece

Customs Tariff Number:

85389099

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating instruction VM96-4 mechanical interlock for AF(S)40...AF96 contactors

Instructions and Manuals (Part 2):

CAD Dimensional Drawing:

Dimensions

Product Net Width:

20 mm

Product Net Depth / Length:

10 mm

Product Net Height:

19.8 mm

Product Net Weight:

0.006 kg

Technical

Standards:

IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1

Suitable For:

AF40

AF52

AF65

AF80

AF96

AFC40

AFC52

AFC65

AFC80

AFC96

AFS40

AFS52

AFS65

AFS80

AFS96

AF40B

AF52B

AF65B

AF80B

AF96B

AF40

AF52

AF65

AF80

AF96

AFC40

AFC52

AFC65

AFC80

AFC96

Product Name:

Mechanical Interlock Unit

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

ABS Certificate:

ABS Certificate, AF(S)09 to AF(S)96 contactors, NF contactor relays and CA4, CC4, CAL4, CAT4 auxiliary contact blocks, TEF4 electronic timers

Declaration of Conformity - CE:

EU Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contact blocks, VM4, VM96-4, VEM4(K) interlocks

Declaration of Conformity - UKCA:

UK Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contacts, VM4, VM96-4, VEM4(K) interlocks

RINA Certificate:

Rina Certificate for AF09...AF96 contactors, NF contactor relays and accessories, screw and spring terminals

UL Certificate:

UL Certificate of Compliance VM4, VM96-4, VEM4, VEM4K, BB4 accessories for AF(S)09..(K)...AF(S)96 contactors

Container Information

Package Level 1 Units:

bag 10 piece

Package Level 1 Width:

120 mm

Package Level 1 Depth / Length:

180 mm

Package Level 1 Height:

10 mm

Package Level 1 Gross Weight:

0.07 kg

Package Level 1 EAN:

3471523130937

External Classifications and Standards

ETIM 7:

EC001044 - Mechanic interlock for switch

ETIM 8:

EC001044 - Mechanic interlock for switch

ETIM 9:

EC001044 - Mechanic interlock for switch

eClass:

V11.0 : 27371303

UNSPSC:

39122221

IDEA Granular Category Code (IGCC):

5219 >> Switch part or accessory

E-Number (Finland):

3707149

E-Number (Sweden):

3210175

ABB 1SBN040100R1013 ABB - WA4-13

$0.00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85389099

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating instruction WA4 mechanical latch for AF09...AF96 contactors and NF contactor relays

Instructions and Manuals (Part 2):

CAD Dimensional Drawing:

Dimensions

Product Net Width:

19.8 mm

Product Net Depth / Length:

67.4 mm

Product Net Height:

41 mm

Product Net Weight:

0.065 kg

Technical

Standards:

IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1-14

Rated Frequency (f):

Control Circuit 50 / 60 Hz

Rated Insulation Voltage (U_i):

acc. to IEC 60947-5-1 690 V

Rated Control Circuit Voltage (U_c):

50 Hz 100 ... 250 V

60 Hz 100 ... 250 V

DC Operation 100 ... 250 V

50 Hz 100 ... 250 V

60 Hz 100 ... 250 V

DC Operation 100 ... 250 V

Coil Consumption:

Pull-in DC (Umin / Umax) 15 ... 100 W

Connecting Capacity Control Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 10 mm

Tightening Torque:

Control Circuit 1.2 N·m

Terminal Type:

Screw Terminals

Suitable For:

AF09

AF09Z

AF12

AF12Z

AF16

AF16Z

AF26

AF26Z

AF30

AF30Z

AF38

AF38Z

AF40

AF52

AF65

NF22E

NFZ22E

NF31E

NFZ31E

NF40E

NFZ40E

AF09

AF09Z

AF12

AF12Z

AF16

AF16Z

AF26

AF26Z

AF30

AF30Z

Product Name:

Mechanical Latching Unit

Technical UL/CSA

Tightening Torque UL/CSA:

Control Circuit 11 in·lb

Environmental

Maximum Operating Altitude Permissible:

Without Derating 3000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB Certificate WA4-.., WA4-96-..- mechanical latch unit for AF09...AF96 contactors and NF contactor relays

CCC Certificate:

CCC Certificate WA4, WA4-96 - mechanical latching unit for AF09...AF96 contactors and NF contactor relays

CQC Certificate:

CQC Certificate, Mechanical locking unit, WA4, WA4-96, Made in India

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Mechanical locking unit, WA4, WA4-96, Made in India

Declaration of Conformity - CE:

EU Declaration of Conformity WA4 mechanical latch

Declaration of Conformity - UKCA:

UK Declaration of Conformity WA4 mechanical latch

UL Certificate:

UL Certificate of Compliance WA4 mechanical latch for AF09...AF96 contactors / NF contactor relays

UL Listing Card:

ABB 1SBN050010R1000 ABB - RV5/50

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

72 mm

Package Level 1 Depth / Length:

25 mm

Package Level 1 Height:

44 mm

Package Level 1 Gross Weight:

0.08 kg

Package Level 1 EAN:

3471523131088

External Classifications and Standards

ETIM 7:

EC002498 - Accessories for low-voltage switch technology

ETIM 8:

EC002498 - Accessories/spare parts for low-voltage switch technology

ETIM 9:

EC002498 - Accessories/spare parts for low-voltage switch technology

UNSPSC:

39122221

IDEA Granular Category Code (IGCC):

5219 >> Switch part or accessory

E-Number (Finland):

3709747

$0.00

Sold Out

Ordering

Minimum Order Quantity:

2 piece

Customs Tariff Number:

85363030

Replacement Product ID (NEW):

1SBN050400R1000

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction, AS(L)09...AS(L)16, NS(L)22E...NS(L)80E , CA3, VM3, BB3

CAD Dimensional Drawing:

Dimensions

Product Net Width:

30.25 mm

Product Net Depth / Length:

32.4 mm

Product Net Height:

10.5 mm

Product Net Weight:

0.015 kg

Technical

Rated Frequency (f):

Control Circuit 50 / 60 Hz

Rated Control Circuit Voltage (U_c):

50 Hz / 60 Hz 24 ... 50 V DC

DC Operation 24 ... 50 V DC

50 Hz / 60 Hz 24 ... 50 V DC

DC Operation 24 ... 50 V DC

Suitable For:

AS09

AS12

AS16

ASL09

ASL12

ASL16

NS22E

NS31E

NS40E

NS44E

NS53E

NS62E

NS71E

NS80E

NSL22E

NSL31E

NSL40E

NSL44E

NSL53E

NSL62E

NSL71E

NSL80E

VAS09

VAS12

VAS16

VASL09

VASL12

VASL16

A9

A12

A16

A26

A30

A40

A45

A50

A63

A75

A95

A110

AL9

AL9Z

AL12

AL12Z

AL16

AL16Z

AL26

AL30

AL40

AE45

AE50

AE63

AE75

TAL9

TAL12

TAL16

TAL26

TAL30

TAL40

TAE45

TAE50

TAE75

GA75

GAE75

UA16

UA26

UA30

UA50

UA63

UA75

UA95

UA110

UA16RA

UA26RA

UA30RA

UA50RA

UA63RA

UA75RA

UA95RA

UA110RA

N22E

N31E

N40E

N44E

N53E

N62E

N71E

N80E

N33/11

N51/11

NL22E

NLZ22E

NL31E

NLZ31E

NL40E

NLZ40E

NL44E

NL53E

NL62E

NL71E

NL80E

NL33/11

NL51/11

TNL22E

TNL31E

TNL40E

TNL44E

TNL62E

TNL80E

AX06

AX09

AX12

AX18

AX25

AX32

AX40

AX50

AX65

AX80

AX95

AX115

AX150

AS09

AS12

AS16

ASL09

ASL12

ASL16

NS22E

NS31E

NS40E

NS44E

Product Name:

Surge Suppressor

Environmental

Ambient Air Temperature:

Operation -20 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

EU Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

Declaration of Conformity - UKCA:

UK Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

GOST Certificate:

RINA Certificate:

UL Certificate of Compliance RC5-1, RC5-2, RV5, RT5 Surge suppressors for NS(L), AS(L)09..16, (T)N(L), (T)A(E)9//75, (T)AL9..40 contactors

UL Certificate:

UL Listing Card:

ABB 1SBN050010R1002 ABB - RV5/250

Container Information

Package Level 1 Units:

blister 2 piece

Package Level 1 Width:

65 mm

Package Level 1 Depth / Length:

96 mm

Package Level 1 Height:

12 mm

Package Level 1 Gross Weight:

0.03 kg

Package Level 1 EAN:

3471522121325

External Classifications and Standards

ETIM 7:

EC002498 - Accessories for low-voltage switch technology

ETIM 8:

EC002498 - Accessories/spare parts for low-voltage switch technology

ETIM 9:

EC002498 - Accessories/spare parts for low-voltage switch technology

eClass:

V11.0 : 27371392

UNSPSC:

39121610

IDEA Granular Category Code (IGCC):

4906 >> Surge suppressers

E-Number (Finland):

3709201

$0.00

Sold Out

Ordering

Minimum Order Quantity:

2 piece

Customs Tariff Number:

85363030

Replacement Product ID (NEW):

1SBN050400R1002

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction, AS(L)09...AS(L)16, NS(L)22E...NS(L)80E , CA3, VM3, BB3

CAD Dimensional Drawing:

Dimensions

Product Net Width:

30.25 mm

Product Net Depth / Length:

32.4 mm

Product Net Height:

10.5 mm

Product Net Weight:

0.015 kg

Technical

Rated Frequency (f):

Control Circuit 50 / 60 Hz

Rated Control Circuit Voltage (U_c):

50 Hz / 60 Hz 110 ... 250 V AC

DC Operation 110 ... 250 V DC

50 Hz / 60 Hz 110 ... 250 V AC

DC Operation 110 ... 250 V DC

Suitable For:

AS09

AS12

AS16

ASL09

ASL12

ASL16

NS22E

NS31E

NS40E

NS44E

NS53E

NS62E

NS71E

NS80E

NSL22E

NSL31E

NSL40E

NSL44E

NSL53E

NSL62E

NSL71E

NSL80E

VAS09

VAS12

VAS16

VASL09

VASL12

VASL16

A9

A12

A16

A26

A30

A40

A45

A50

A63

A75

A95

A110

AL9

AL9Z

AL12

AL12Z

AL16

AL16Z

AL26

AL30

AL40

AE45

AE50

AE63

AE75

TAL9

TAL12

TAL16

TAL26

TAL30

TAL40

TAE45

TAE50

TAE75

GA75

GAE75

UA16

UA26

UA30

UA50

UA63

UA75

UA95

UA110

UA16RA

UA26RA

UA30RA

UA50RA

UA63RA

UA75RA

UA95RA

UA110RA

N22E

N31E

N40E

N44E

N53E

N62E

N71E

N80E

N33/11

N51/11

NL22E

NLZ22E

NL31E

NLZ31E

NL40E

NLZ40E

NL44E

NL53E

NL62E

NL71E

NL80E

NL33/11

NL51/11

TNL22E

TNL31E

TNL40E

TNL44E

TNL62E

TNL80E

AX06

AX09

AX12

AX18

AX25

AX32

AX40

AX50

AX65

AX80

AX95

AX115

AX150

AS09

AS12

AS16

ASL09

ASL12

ASL16

NS22E

NS31E

NS40E

NS44E

Product Name:

Surge Suppressor

Environmental

Ambient Air Temperature:

Operation -20 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

EU Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

Declaration of Conformity - UKCA:

UK Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

GOST Certificate:

RINA Certificate:

UL Certificate of Compliance RC5-1, RC5-2, RV5, RT5 Surge suppressors for NS(L), AS(L)09..16, (T)N(L), (T)A(E)9//75, (T)AL9..40 contactors

UL Certificate:

UL Listing Card:

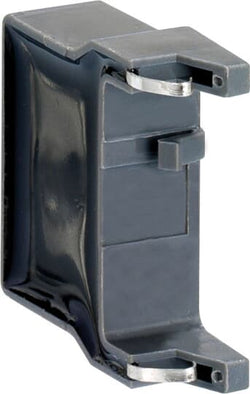

ABB 1SBN050020R1000 ABB - RT5/32

Container Information

Package Level 1 Units:

blister 2 piece

Package Level 1 Width:

65 mm

Package Level 1 Depth / Length:

96 mm

Package Level 1 Height:

12 mm

Package Level 1 Gross Weight:

0.03 kg

Package Level 1 EAN:

3471522121349

External Classifications and Standards

ETIM 7:

EC002498 - Accessories for low-voltage switch technology

ETIM 8:

EC002498 - Accessories/spare parts for low-voltage switch technology

ETIM 9:

EC002498 - Accessories/spare parts for low-voltage switch technology

eClass:

V11.0 : 27371392

UNSPSC:

39121610

IDEA Granular Category Code (IGCC):

4906 >> Surge suppressers

E-Number (Finland):

3709203

$0.00

Sold Out

Ordering

Minimum Order Quantity:

2 piece

Customs Tariff Number:

85363030

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction, AS(L)09...AS(L)16, NS(L)22E...NS(L)80E , CA3, VM3, BB3

CAD Dimensional Drawing:

Dimensions

Product Net Width:

30.25 mm

Product Net Depth / Length:

32.4 mm

Product Net Height:

10.5 mm

Product Net Weight:

0.015 kg

Technical

Rated Control Circuit Voltage (U_c):

DC Operation 12 ... 32 V DC

Suitable For:

ASL09

ASL12

ASL16

NSL22E

NSL31E

NSL40E

NSL44E

NSL53E

NSL62E

NSL71E

NSL80E

VASL09

VASL12

VASL16

AL9

AL9Z

AL12

AL12Z

AL16

AL16Z

AL26

AL30

AL40

AE45

AE50

AE63

AE75

TAL9

TAL12

TAL16

TAL26

TAL30

TAL40

TAE45

TAE50

TAE75

GAE75

NL22E

NLZ22E

NL31E

NLZ31E

NL40E

NLZ40E

NL44E

NL53E

NL62E

NL71E

NL80E

NL33/11

NL51/11

TNL22E

TNL31E

TNL40E

TNL44E

TNL62E

TNL80E

ASL09

ASL12

ASL16

NSL22E

NSL31E

NSL40E

NSL44E

NSL53E

NSL62E

NSL71E

Product Name:

Surge Suppressor

Environmental

Ambient Air Temperature:

Operation -20 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

EU Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

Declaration of Conformity - UKCA:

UK Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

GOST Certificate:

RINA Certificate:

UL Certificate of Compliance RC5-1, RC5-2, RV5, RT5 Surge suppressors for NS(L), AS(L)09..16, (T)N(L), (T)A(E)9//75, (T)AL9..40 contactors

UL Certificate:

UL Listing Card:

ABB 1SBN050100R1002 ABB - RC5-1/250

Container Information

Package Level 1 Units:

blister 2 piece

Package Level 1 Width:

65 mm

Package Level 1 Depth / Length:

96 mm

Package Level 1 Height:

12 mm

Package Level 1 Gross Weight:

0.03 kg

Package Level 1 EAN:

3471522121608

External Classifications and Standards

ETIM 7:

EC002498 - Accessories for low-voltage switch technology

ETIM 8:

EC002498 - Accessories/spare parts for low-voltage switch technology

ETIM 9:

EC002498 - Accessories/spare parts for low-voltage switch technology

eClass:

V11.0 : 27371392

UNSPSC:

39121610

IDEA Granular Category Code (IGCC):

4906 >> Surge suppressers

E-Number (Finland):

3709237

E-Number (Sweden):

3210520

$0.00

Sold Out

Ordering

Minimum Order Quantity:

2 piece

Customs Tariff Number:

85363030

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction, AS(L)09...AS(L)16, NS(L)22E...NS(L)80E , CA3, VM3, BB3

CAD Dimensional Drawing:

Dimensions

Product Net Width:

30.25 mm

Product Net Depth / Length:

32.4 mm

Product Net Height:

10.5 mm

Product Net Weight:

0.012 kg

Technical

Rated Frequency (f):

Control Circuit 50 / 60 Hz

Rated Control Circuit Voltage (U_c):

50 Hz / 60 Hz 110 ... 250 V AC

Suitable For:

AS09

AS12

AS16

NS22E

NS31E

NS40E

NS44E

NS53E

NS62E

NS71E

NS80E

VAS09

VAS12

VAS16

A9

A12

A16

A26

A30

A40

UA16

UA26

UA30

UA16RA

UA26RA

UA30RA

N22E

N31E

N40E

N44E

N53E

N62E

N71E

N80E

N33/11

N51/11

AX06

AX09

AX12

AX18

AX25

AX32

AX40

AS09

AS12

AS16

NS22E

NS31E

NS40E

NS44E

NS53E

NS62E

NS71E

Product Name:

Surge Suppressor

Environmental

Ambient Air Temperature:

Operation -20 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

EU Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

Declaration of Conformity - UKCA:

UK Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

GOST Certificate:

RINA Certificate:

UL Certificate of Compliance RC5-1, RC5-2, RV5, RT5 Surge suppressors for NS(L), AS(L)09..16, (T)N(L), (T)A(E)9//75, (T)AL9..40 contactors

UL Certificate:

UL Listing Card:

ABB 1SBN050200R1002 ABB - RC5-2/250

Container Information

Package Level 1 Units:

blister 2 piece

Package Level 1 Width:

65 mm

Package Level 1 Depth / Length:

96 mm

Package Level 1 Height:

12 mm

Package Level 1 Gross Weight:

0.024 kg

Package Level 1 EAN:

3471522121264

External Classifications and Standards

ETIM 7:

EC002498 - Accessories for low-voltage switch technology

ETIM 8:

EC002498 - Accessories/spare parts for low-voltage switch technology

ETIM 9:

EC002498 - Accessories/spare parts for low-voltage switch technology

eClass:

V11.0 : 27371392

UNSPSC:

39121610

IDEA Granular Category Code (IGCC):

4906 >> Surge suppressers

E-Number (Finland):

3709198

E-Number (Sweden):

3228859

$0.00

Sold Out

Ordering

Minimum Order Quantity:

2 piece

Customs Tariff Number:

85363030

Replacement Product ID (NEW):

1SBN050410R1002

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

CAD Dimensional Drawing:

Dimensions

Product Net Width:

30.25 mm

Product Net Depth / Length:

32.4 mm

Product Net Height:

10.5 mm

Product Net Weight:

0.015 kg

Technical

Rated Frequency (f):

Control Circuit 50 / 60 Hz

Rated Control Circuit Voltage (U_c):

50 Hz / 60 Hz 110 ... 250 V AC

Suitable For:

A45

A50

A63

A75

A95

A110

GA75

UA50

UA63

UA75

UA95

UA110

UA50RA

UA63RA

UA75RA

UA95RA

UA110RA

AX50

AX65

AX80

AX95

AX115

AX150

A45

A50

A63

A75

A95

A110

GA75

UA50

UA63

UA75

Product Name:

Surge Suppressor

Environmental

Ambient Air Temperature:

Operation -20 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

EU Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

Declaration of Conformity - UKCA:

UK Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

GOST Certificate:

RINA Certificate:

UL Certificate of Compliance RC5-1, RC5-2, RV5, RT5 Surge suppressors for NS(L), AS(L)09..16, (T)N(L), (T)A(E)9//75, (T)AL9..40 contactors

UL Certificate:

UL Listing Card:

ABB 1SBN050200R1003 ABB - RC5-2/440

Container Information

Package Level 1 Units:

blister 2 piece

Package Level 1 Width:

65 mm

Package Level 1 Depth / Length:

96 mm

Package Level 1 Height:

12 mm

Package Level 1 Gross Weight:

0.03 kg

Package Level 1 EAN:

3471522121301

External Classifications and Standards

ETIM 7:

EC002498 - Accessories for low-voltage switch technology

ETIM 8:

EC002498 - Accessories/spare parts for low-voltage switch technology

ETIM 9:

EC002498 - Accessories/spare parts for low-voltage switch technology

eClass:

V11.0 : 27371392

UNSPSC:

39121610

IDEA Granular Category Code (IGCC):

4906 >> Surge suppressers

E-Number (Finland):

3709199

$0.00

Sold Out

Ordering

Minimum Order Quantity:

2 piece

Customs Tariff Number:

85363030

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

CAD Dimensional Drawing:

Dimensions

Product Net Width:

30.25 mm

Product Net Depth / Length:

32.4 mm

Product Net Height:

10.5 mm

Product Net Weight:

0.015 kg

Technical

Rated Frequency (f):

Control Circuit 50 / 60 Hz

Rated Control Circuit Voltage (U_c):

50 Hz / 60 Hz 250 ... 440 V AC

Suitable For:

A45

A50

A63

A75

A95

A110

GA75

UA50

UA63

UA75

UA95

UA110

UA50RA

UA63RA

UA75RA

UA95RA

UA110RA

AX50

AX65

AX80

AX95

AX115

AX150

A45

A50

A63

A75

A95

A110

GA75

UA50

UA63

UA75

Product Name:

Surge Suppressor

Environmental

Ambient Air Temperature:

Operation -20 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:

EU Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

Declaration of Conformity - UKCA:

UK Declaration of Conformity RC5-1, RC5-2, RV5 and RT5 surge suppressors

GOST Certificate:

RINA Certificate:

UL Certificate of Compliance RC5-1, RC5-2, RV5, RT5 Surge suppressors for NS(L), AS(L)09..16, (T)N(L), (T)A(E)9//75, (T)AL9..40 contactors

UL Certificate:

UL Listing Card:
