ACS850-04-06A0-5 ABB
ABB ACS850-04-06A0-5 ABB
$0.00
Sold Out

ACS850-04-06A0-5 Cabinet Drive
ABB New Stock Image
ABB PSE60-600-70 ABB
$1,067.13
Only 10 units left
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
PM591-2ETH ABB
ABB PM591-2ETH ABB
$4,976.06
Only 4 units left

PM591-2ETH: AC500 Processor module. Memory 4MB. Interfaces: 2x Ethernet, RS232/485. Display.
3HAC025338-002 ABB
ABB 3HAC025338-002 ABB
$2,777.14
Only 7 units left

MAIN SERVO DRIVE UNIT, D6 2E 2C 2B
ABB Stock Image
ABB 3HAC022286-001 ABB
$1,160.33
Only 7 units left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
2CSS255101R0204 ABB SN201-C20
ABB 2CSS255101R0204 ABB SN201-C20
$97.62
In stock, 11 units

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 6 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Right
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
20 A
Rated Short-Circuit Capacity:
(230 V) 6 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
4.8 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
REACH Information:
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg
E-Number (Finland):
3217755
E-Number (Norway):
1630656

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
2CDS273001R0504 ABB - S203M-C50
ABB 2CDS273001R0504 ABB - S203M-C50
$117.02
Only 7 units left

ABB EcoSolutions

ABB EcoSolutions:
Yes
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 80.7 %
Extended Product Lifetime:
Product Durability
Offered with Takeback Services:
Take Back for Recycling
End Of Life Disassembling Instructions:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V AC) 25 kA
(400 V AC) 15 kA
(440 V AC) 15 kA
(230 V) 25 kA
(400 V) 15 kA
(230 V AC) 25 kA
(400 V AC) 15 kA
(440 V AC) 15 kA
(230 V) 25 kA
(400 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(133 V AC) 15 kA
(230 V AC) 7.5 kA
(133 V AC) 15 kA
(230 V AC) 7.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 AC cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
3
Number of Poles:
3P
Tightening Torque:
2.8 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking:
I / O
Actuator Material:
Insulation Group II, Black, Sealable
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
Yes
Connecting Capacity:
Busbar 10/10 mm²
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm²
Busbar 10/10 mm²
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm²
Installation Size:
acc. to DIN 43880 1
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Operational Voltage:
acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 440 V AC
acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 440 V AC
Operational Voltage:
Maximum (Incl. Tolerance) 440 V AC
Minimum 12 V AC
Minimum 12 V DC
Maximum (Incl. Tolerance) 440 V AC
Minimum 12 V AC
Minimum 12 V DC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Input Voltage Type:
AC/DC
Rated Current (In):
50 A
Rated Short-Circuit Capacity:
(AC) 10 kA
(230 V AC) 10 kA
(AC) 10 kA
(230 V AC) 10 kA
Rated Conditional Short-Circuit Current (Inc):
(230 V) 10 kA
(400 V) 20 kA
(230 V) 10 kA
(400 V) 20 kA
Frequency (f):
50 Hz
Rated Frequency (f):
50 / 60 Hz
Power Loss:
9.75 W
at Rated Operating Conditions per Pole 3.25 W
9.75 W
at Rated Operating Conditions per Pole 3.25 W
Overvoltage Category:
III

Design

Housing Material:
Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
125 V DC
480Y/277 V AC
125 V DC
480Y/277 V AC
Interrupting Rating acc. to UL1077:
(125 V DC) 10 kA
(277 V AC) 6 kA
(480Y / 277 V AC) 6 kA
(125 V DC) 10 kA
(277 V AC) 6 kA
(480Y / 277 V AC) 6 kA
Connecting Capacity UL/CSA:
Busbar 14-8 AWG
Conductor 14-4 AWG
Busbar 14-8 AWG
Conductor 14-4 AWG
Tightening Torque UL/CSA:
18 in·lb

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20161001
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
9008497a-14f6-4cfd-83c5-11cf3bc660d1 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
IP40
Enclosure with Cover IP40
IP20
IP40
Enclosure with Cover IP40
Pollution Degree:
3
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:
3.0
Product Net Width:
52.5 mm
Product Net Height:
88 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.375 kg
Pole Net Weight:
0.125 kg
Built-In Depth (t2):
69 mm

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
0.4 kg
E-Number (Finland):
3210818
E-Number (Norway):
1665561
E-Number (Sweden):
2101249

Certificates and Declarations

Declaration of Conformity - CE:
Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4897 >> Miniature circuit breakers
Object Classification Code:
F
Standards:
IEC/EN 60898-1
CSA 22.2 No. 235
IEC/EN 60947-2
UL 1077
IEC/EN 60898-1
CSA 22.2 No. 235
IEC/EN 60947-2
UL 1077
Certification Agency:
EN
IEC
EN
IEC
Standardization Body:
EN
IEC
EN
IEC

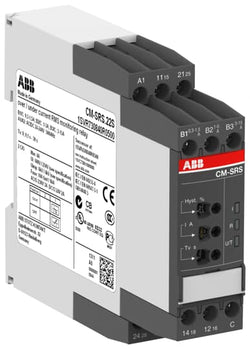

1SVR730840R0500 ABB - CM-SRS.22S - CMSRS22SA
ABB 1SVR730840R0500 ABB - CM-SRS.22S - CMSRS22SA
$415.71
Only 2 units left

Ordering

EAN:
4016779852258
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.144 kg

Technical

Function:
Over- or undercurrent monitoring
Measuring Range:
0.3 ... 1.5 A
1 ... 5 A
3 ... 15 A
0.3 ... 1.5 A
1 ... 5 A
3 ... 15 A
Time Range:
0 s or 0.1 ... 30 s tripping delay (ON)
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 6 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 6 kV
Supply Circuit / Output Circuit 4 kV
Measuring Circuit / Output Circuit 6 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 6 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 250 V
Supply Circuit / Measuring Circuit 600 V
Supply Circuit / Output Circuit 250 V
Measuring Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 250 V
Supply Circuit / Measuring Circuit 600 V
Supply Circuit / Output Circuit 250 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

ABB EcoSolutions

ABB EcoSolutions:
Yes

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.166 kg
Package Level 1 EAN:
4016779852258

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001440 - Current monitoring relay
ETIM 8:
EC001440 - Current monitoring relay
ETIM 9:
EC001440 - Current monitoring relay
eClass:
V11.0 : 27371802
UNSPSC:
39122332
E-Number (Finland):
2712315
E-Number (Norway):
4188064
E-Number (Sweden):
3860628
ACS310-03U-10A8-2 - ABB
ABB ACS310-03U-10A8-2 - ABB
$1,055.99
Only 1 unit left

Variable Frequency Drive, 208 – 240 VAC 3 Phase Input, 240 VAC 3 Phase Output, 9.8 Amps
ACS355-03U-17A6-2 - ABB
ABB ACS355-03U-17A6-2 - ABB
$4,553.14
Only 7 units left

Low Voltage AC Drive 17.6 A 5 Hp, ACS355 Series
1SCA105431R1001 ABB - OT80FT3
ABB 1SCA105431R1001 ABB - OT80FT3
$118.34
Only 8 units left

ABB EcoSolutions

Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Popular Downloads

Environmental

Degree of Protection:
Front IP20
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
65 mm
Product Net Height:
72 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.26 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
80 mm
Package Level 1 Depth / Length:
84 mm
Package Level 1 Height:
76 mm
Package Level 1 Gross Weight:
0.28 kg
Package Level 1 EAN:
6417019393667

Technical

Cable Cross-Section:
Cu 1.5 ... 35 mm²
Connecting Capacity Main Circuit:
Flexible with Ferrule 1x Cu 1.5…4 mm²
Solid 1x Cu 1.5…6 mm²
Flexible 1x Cu 1.5…35 mm²
Stranded 1x Cu 1.5…35 mm²
Flexible with Ferrule 1x Cu 1.5…4 mm²
Solid 1x Cu 1.5…6 mm²
Flexible 1x Cu 1.5…35 mm²
Stranded 1x Cu 1.5…35 mm²
Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 80 A
Conventional Thermal Current (Ithe):
Fully Enclosed 80 A
Degree of Protection:
Front IP20
Distance Between Phases:
Standard
Handle Type:
Handle and shaft not included
Mechanical Durability:
20000
Mounting Type:
Door mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Top In - Bottom Out
Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 4.5 W
Rated Conditional Short-Circuit Current (Inc):
(100 A fuse, ≤415 V) 50 kA
(100 A fuse, 500 V) 100 kA
(80 A fuse, 690 V) 50 kA
(100 A fuse, ≤415 V) 50 kA
(100 A fuse, 500 V) 100 kA
(80 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 80 A
(500 V) 80 A
(690 V) 80 A
(380 ... 415 V) 80 A
(500 V) 80 A
(690 V) 80 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 80 A
(500 V) 80 A
(690 V) 80 A
(380 ... 415 V) 80 A
(500 V) 80 A
(690 V) 80 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 75 A
(500 V) 58 A
(690 V) 20 A
(380 ... 415 V) 75 A
(500 V) 58 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 22 kW
(400 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 18.5 kW
(220 ... 240 V) 22 kW
(400 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 18.5 kW
Rated Operational Voltage:
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 2.1 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 1.5 kA
Recommended Screw Driver:
Main Circuit Pozidriv 2
Special Functions:
No
Standards:
IEC 60947-3 / UL 508 / CSA C22.2 No. 14
Switches Operating Mechanism:
Mechanism on Top of the Switch
Terminal Type:
Screw Terminals
Tightening Torque:
acc. IEC 60947-1 2 N·m
Wire Stripping Length:
Main Circuit 10-12 mm

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
600 V
Ampere Rating:
80 A
Horsepower Rating UL/CSA:
(110 ... 120 V AC) Single Phase 2 Hp
(240 V AC) Single Phase 10 Hp
(440 ... 480 V AC) Single Phase 20 Hp
(550 ... 600 V AC) Single Phase 20 Hp
(220 ... 240 V AC) Three Phase 20 Hp
(440 ... 480 V AC) Three Phase 40 Hp
(550 ... 600 V AC) Three Phase 40 Hp
(110 ... 120 V AC) Single Phase 2 Hp
(240 V AC) Single Phase 10 Hp
(440 ... 480 V AC) Single Phase 20 Hp
(550 ... 600 V AC) Single Phase 20 Hp
(220 ... 240 V AC) Three Phase 20 Hp
(440 ... 480 V AC) Three Phase 40 Hp
(550 ... 600 V AC) Three Phase 40 Hp
Wire Stripping Length:
Main Circuit 10-12 mm
Recommended Screw Driver:
Main Circuit Pozidriv 2
Tightening Torque:
acc. IEC 60947-1 2 N·m
Tightening Torque UL/CSA:
18 in·lb

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5290 >> Disconnect switch
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3601466
E-Number (Norway):
4363542
E-Number (Sweden):
3170948
ACS355-03E-15A6-4 ABB
ABB ACS355-03E-15A6-4 ABB
$1,025.00
In stock, 13 units

ACS355 7.5kW 400V 3ph AC Inverter Drive, STO, C3 EMC
2TLA010026R0200 ABB
ABB 2TLA010026R0200 ABB
$552.66
Only 5 units left

ABB Jokab Safety 2TLA010026R0200 RT6 Safety Relay, Single or Dual Channel, 24 V ac, 4 Safety
ABB New Stock Image
ABB FEN-31 ABB
$351.84
In stock, 16 units
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
Yaskawa New Stock Image
Yaskawa GA50U4009ABA Yaskawa
$1,547.16
Only 8 units left

The GA500 AC Drive, designated as GA50U4009ABA, is engineered for versatility and operational efficiency in industrial settings. Designed to operate at 480 VAC and capable of delivering a power output of 5 HP with current ratings of 8.8/7.2 amps, this standard drive facilitates seamless integration across various applications while omitting EMC features. Its robust construction and reliable performance render it a preferred option for users seeking effective drive solutions.
CIMR-AU4A0023AAA Yaskawa
Yaskawa CIMR-AU4A0023AAA Yaskawa
$847.71
Only 8 units left

A1000 series - AC Drive - 380Vac-480Vac - 23A/18A - 15HP - 3-phase input (3P)
Yaskawa Stock Image
Yaskawa CIMR-AU4A0058FAA Yaskawa
$3,291.56
Only 2 units left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
CIMR-AU4A0004FAA Yaskawa
Yaskawa CIMR-AU4A0004FAA Yaskawa
$509.79
In stock, 12 units

Yaskawa CIMR-AU4A0004FAA Variable Frequency Drive A1000 AC Drive 380-480 VAC Constant Torque with input options of either Three Phase: 2 Hp 4.1 Amp or (Single Phase: 3/4 Hp 1.6 Amp) Industrial VFD. Nema 1 Chasis 11.81" x 5.51" x 5.79" includes configurable LCD display and keypad with built in memory for backup. Includes 3 Analog inputs, 2 programmable Analog outputs, 8 programmable Digital inputs with 1 can be used as pulse input, 4 digital outputs. WE RECCOMEND Line and Load Reactors for all VFD's. Line (Input) Reactors reduce hamonics generated going back into the line and protect the VFD from input power disturbances that can trip and damage drives. *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
CIMR-JU4A0001BAA Yaskawa
Yaskawa CIMR-JU4A0001BAA Yaskawa
$270.32
Only 2 units left

J DRIVE, 480V 3-PH, 1.2/1.2A
Yaskawa New Stock Image
Yaskawa CIMR-VU2A0010FAA Yaskawa
$759.30
Only 9 units left
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
Yaskawa New Stock Image
Yaskawa EUX003500 Yaskawa
$0.00
Sold Out

The EUX003500 cooling fan, now discontinued, is engineered for compatibility with Magnetek drives, particularly the GPD505V-B675 model. With a voltage rating of 200 V and operating at 50/60 Hz, it delivers a power consumption of 56/90 W, providing reliable cooling and ventilation essential for maintaining system efficiency in HVAC applications. This unit is a critical component for achieving optimal performance in various drive systems.
Yaskawa New Stock Image
Yaskawa CDBR-4045B Yaskawa
$508.68
Only 6 units left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
CIMR-AU4A0208AAA Yaskawa
Yaskawa CIMR-AU4A0208AAA Yaskawa
$6,045.63
Only 7 units left

Yaskawa CIMR-AU4A0208AAA Variable Frequency Drive A1000 AC Drive 380-480 VAC Constant Torque with input options of either Three Phase: 150 Hp 208 Amp or (Single Phase: 50 Hp 65 Amp) Industrial VFD. Standard Chasis 27.76" x 17.72" x 12.99" (Nema 1 kit sold separately) includes configurable LCD display and keypad with built in memory for backup. Includes 3 Analog inputs, 2 programmable Analog outputs, 8 programmable Digital inputs with 1 can be used as pulse input, 4 digital outputs. WE RECCOMEND Line and Load Reactors for all VFD's. Line (Input) Reactors reduce hamonics generated going back into the line and protect the VFD from input power disturbances that can trip and damage drives.
CIPR-GA50C4023ABAA Yaskawa
Yaskawa CIPR-GA50C4023ABAA Yaskawa
$584.37
In stock, 22 units

Vdf GA500, IP20, 3x400V, ND 23.4A 11kW, HD 18A 7.5kW

Recently viewed
