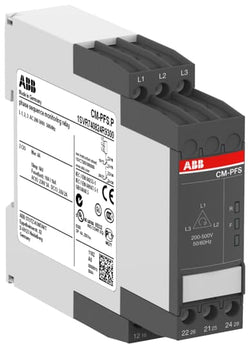

Variable Frequency Drives

EPLAN Data:

EPLAN EDZ CM-PFx

Dimensions

Product Net Width:

22.5 mm

Product Net Height:

85.6 mm

Product Net Depth / Length:

103.7 mm

Product Net Weight:

0.119 kg

Technical

Function:

Phase failure detection

Phase sequence monitoring

Phase failure detection

Phase sequence monitoring

Measuring Range:

(L-L) 200 ... 500 V AC

Time Range:

500 ms start-up delay

Rated Control Supply Voltage (U_s):

(L-L) 200 ... 500 V AC

Rated Frequency (f):

Supply Circuit 50/60 Hz

Output:

2 c/o (SPDT) contacts

Terminal Type:

Screwless Terminals

Rated Operational Current AC-12 (I_e):

(230 V) 4 A

Rated Operational Current AC-15 (I_e):

(230 V) 3 A

Rated Operational Current DC-12 (I_e):

(24 V) 4 A

Rated Operational Current DC-13 (I_e):

(24 V) 2 A

Minimum Switching Capacity:

24 V

10 mA

24 V

10 mA

Rated Impulse Withstand Voltage (U_imp):

Input Circuit 6 kV

Output Circuit 4 kV

Input Circuit 6 kV

Output Circuit 4 kV

Rated Insulation Voltage (U_i):

Input Circuit / Output Circuit 600 V

Output Circuit 1 / Output Circuit 2 300 V

Input Circuit / Output Circuit 600 V

Output Circuit 1 / Output Circuit 2 300 V

Degree of Protection:

Housing IP50

Terminals IP20

Housing IP50

Terminals IP20

Overvoltage Category:

III

Pollution Degree:

3

Short-Circuit Protective Devices:

Output Circuit NC - F Type Fuses 6 A

Output Circuit NO - F Type Fuses 10 A

Output Circuit NC - F Type Fuses 6 A

Output Circuit NO - F Type Fuses 10 A

Electrical Durability:

AC-12 100000 cycle

Mechanical Durability:

Nr. Operations 30000000 cycle

Connecting Capacity:

Flexible with Ferrule 2x 0.5 ... 1.5 mm²

Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²

Flexible 2x 0.5 ... 1.5 mm²

Rigid 2x 0.5 ... 1.5 mm²

Flexible with Ferrule 2x 0.5 ... 1.5 mm²

Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²

Flexible 2x 0.5 ... 1.5 mm²

Rigid 2x 0.5 ... 1.5 mm²

Wire Stripping Length:

8 mm

Mounting Position:

1 ... 6

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Standards:

CAN/CSA C22.2 No.14

IEC/EN 63000

IEC/EN 60255-27

IEC/EN 61000-6-2

IEC/EN 61000-6-3

UL 508

CAN/CSA C22.2 No.14

IEC/EN 63000

IEC/EN 60255-27

IEC/EN 61000-6-2

IEC/EN 61000-6-3

UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Output Circuit 300 V AC

Contact Rating UL/CSA:

B300

Connecting Capacity UL/CSA:

Flexible 2x 18-16 AWG

Rigid 2x 20-16 AWG

Flexible 2x 18-16 AWG

Rigid 2x 20-16 AWG

Pilot Duty UL/CSA:

B300

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +85 °C

Operation -25 ... +60 °C

Storage -40 ... +85 °C

Maximum Operating Altitude Permissible:

Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACh Info for Electronic Relays and Controls

REACH Declaration:

RoHS Information:

RoHS Declaration of conformity for Electronic Relays and Controls

SCIP:

b9a0bc30-ba41-4f9e-aea3-4fc6dbac9968 Germany

Simplified SCIP:

da9cf325-c68e-430b-971f-702e914052d4 Spain

5533b885-9023-4c2e-af82-d2819a841087 Belgium

565bc012-2539-4d90-a05a-7f345bf7ec6c Hungary

1a0e3f7f-d67c-4b57-ab9c-f5ace656a5c3 France

0d3e7ed3-f3f8-40a7-be6a-fde380fd51a9 Poland

aa5cae51-448f-49b5-959b-27d210656d30 Netherlands

318b7b46-8b52-46ed-a033-b3658b42d95b Hungary

bc2657ad-c984-4580-b135-97a2eb0da5f4 Greece

9080824f-cd90-4c55-89b5-d49f7aec08ae Portugal

cc572f68-4e2e-40e9-9b17-4197da140731 Sweden

06450af5-5632-4bff-a9f4-43d802d7e259 Poland

438539df-b487-460f-b796-9809b98da563 France

0aa3766b-a3ad-44e1-a793-6ee372ea7c05 Bulgaria

165c131e-53ce-48a3-be21-ab9eeb207fb4 Sweden

93175cb2-07a8-4e73-be8c-2eacb5cff009 Germany

7ecfd5e8-42b7-4963-b596-16713c36f6f1 Italy

35a34d13-13ac-4080-996d-9819118b0b0f Germany

fd6deb27-8d7e-4643-90bc-04dfbc2a7c13 Estonia

f845ddcf-94ef-4400-a5ae-ed0f5e5d8ad6 Germany

0141ff46-48da-4b76-ab8b-26e7443ae899 Croatia

656f5386-2881-4dd5-86c9-1880b1d8325d Czech Republic

af639068-d32b-4f43-b339-d373e41c6dfc Germany

6a15d8fb-e88f-4203-b507-5170345d06e9 Finland

c57f0cc1-2689-4e81-ac3b-56f6279f24b5 Belgium

5b12aa5e-189c-4eff-8a1e-a41131f8010b Denmark

c6935f35-77a0-4a97-b81c-ac2b2cc0954e Poland

d7c018e4-b109-4b31-89b6-b2cc4b09357d Norway

da9cf325-c68e-430b-971f-702e914052d4 Spain

5533b885-9023-4c2e-af82-d2819a841087 Belgium

565bc012-2539-4d90-a05a-7f345bf7ec6c Hungary

1a0e3f7f-d67c-4b57-ab9c-f5ace656a5c3 France

0d3e7ed3-f3f8-40a7-be6a-fde380fd51a9 Poland

aa5cae51-448f-49b5-959b-27d210656d30 Netherlands

318b7b46-8b52-46ed-a033-b3658b42d95b Hungary

bc2657ad-c984-4580-b135-97a2eb0da5f4 Greece

9080824f-cd90-4c55-89b5-d49f7aec08ae Portugal

cc572f68-4e2e-40e9-9b17-4197da140731 Sweden

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls

ABB EcoSolutions

Environmental Product Declaration - EPD:

Environmental Product Declaration (EPD) Monitoring relays CM-xxS and CM-xxN range

Certificates and Declarations

CB Certificate:

CB_DK-28908-UL

CCC Certificate:

CCC Certificate - Measuring and Monitoring Relays CM-PFS.x, CM-MSS.xxx, CM-MSS, CM-ENS, CM-ENS up/down

CQC Certificate:

CQC Certificate, Measuring and Monitoring Relays, CM-PFS.x, CM-PFS, CM-MSS.xyz, CM-ENS, CM-ENS up/down, Made in Germany

cULus Certificate:

cULus508_20120829-E140448

Declaration of Conformity - CCC:

CCC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-MPN.., Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays

Declaration of Conformity - UKCA:

UK Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays

DNV GL Certificate:

DNV GL Certificate - CM-MPx.xxx, CM-PAS.xxx, CM-PSS.xxx,CM-PVS.xxx, and CM-PFS.x Three-phase monitoring relays with screw or push-in terminals

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

97 mm

Package Level 1 Depth / Length:

30 mm

Package Level 1 Height:

109 mm

Package Level 1 Gross Weight:

0.144 kg

Package Level 1 EAN:

4016779876506

External Classifications and Standards

Object Classification Code:

B

ETIM 7:

EC001441 - Phase monitoring relay

ETIM 8:

EC001441 - Phase monitoring relay

ETIM 9:

EC001441 - Phase monitoring relay

eClass:

V11.0 : 27371803

UNSPSC:

39122332

E-Number (Finland):

2712285

E-Number (Norway):

4188095

E-Number (Sweden):

3860614

ABB ACS580-01-047A-2 ABB

$2,813.25

Only 1 unit left

three-phase 230V frequency inverter. PLd 11 kW, ILd 46,2 A, PHd 7,5 kW, IHd 30,8 A. Frame size R3

ABB OT600U03 ABB

$3,848.20

Only 6 units left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.

ABB FS450R17KE3 ABB

$527.52

Only 5 units left

Buy the ABB FS450R17KE3 - a genuine ABB industrial automation component engineered for reliable performance in demanding manufacturing and process control environments. The ABB FS450R17KE3 is a direct drop-in replacement for existing installations and ships ready for integration.

ABB 2CSR256140R1324 ABB - DS203NC C32 A30

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.26 %

Sustainable Material Content in Packaging (wt. %):

Recycled Paper -  00 %

Recycled Cardboard -  92 %

Recycled Paper -  00 %

Recycled Paper -  00 %

Recycled Cardboard -  92 %

Recycled Paper -  00 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

DS203NC RCBO 3P+N - EoL End of Life instruction

Environmental Product Declaration - EPD:

DS203NC RCBO 3P+N - Environmental Product Declaration EPD / PEP

Technical

Type of Residual Current:

Type A

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

10 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

6 kA

Power Supply Connection:

Arbitrary

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

4P

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Earthing Switch Type:

Undelayed

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid 25 ... 25 mm²

Flexible 25 ... 25 mm²

Busbar 10 mm²

Rigid 25 ... 25 mm²

Flexible 25 ... 25 mm²

Rated Cross-Section:

1 - Solid-Core 25 … 25 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 25 … 25 mm²

4 - Multi-Wired 1 … 25 mm²

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 415 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

32 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

6 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

15.1 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

DS203NC RCBO 3P+N - EU Declaration of Conformity

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20211115

REACH Declaration:

Reach Declaration - ABB S.p.A. Vittuone

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

Conflict Minerals Reporting Template

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Degree of Protection:

IP2X

Pollution Degree:

2

Environmental Information:

refer to RoHS information

Dimensions

Width in Number of Modular Spacings:

4

Product Net Width:

71 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

480 g

Built-In Depth (t₂):

69 mm

Dimension Diagram:

DS203NC - 2D Drawing

Engineering

EPLAN Data:

EPLAN EDZ DS203NC

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.530 kg

E-Number (Finland):

3211103

E-Number (Norway):

1683605

E-Number (Sweden):

2160035

Certificates and Declarations

CCC Certificate:

2021980307001650

Declaration of Conformity - CE:

DS203NC RCBO 3P+N - EU Declaration of Conformity

Installation

Instructions and Manuals:

DS203NC - Mounting and operating instructions

Popular Downloads

Data Sheet, Technical Information:

Minimum space, maximum protection. DS203NC: 3P+N RCBOs in 4 modules [EN] (PDF)

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

UNSPSC:

39121601

eClass:

V11.0 : 27142207

IDEA Granular Category Code (IGCC):

4875 >> Residual current circuit breaker (RCCB)

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-1

EN 61009-1

EN 61009-2-1

IEC 61009-1

IEC 61009-2-1

EN 61009-1

EN 61009-2-1

ABB 1SFL451001R8011 ABB - A110-30-11-80

$525.86

Only 1 unit left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Replacement Product ID (NEW):

1SFL427001R1311

Popular Downloads

Data Sheet, Technical Information:

1SBC100192C0206

Instructions and Manuals:

Contactors A95, A110, UA95, UA110, AF95, AF110, AE95, AE110, TAE95, TAE110

Dimension Diagram:

53540923-1

Dimensions

Product Net Width:

102 mm

Product Net Depth / Length:

123.5 mm

Product Net Height:

148 mm

Product Net Weight:

1.8 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

1

Number of Poles:

3P

Rated Operational Voltage:

Main Circuit 1000 V

Rated Frequency (f):

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 160 A

Rated Operational Current AC-1 (I_e):

(690 V) 40 °C 160 A

(690 V) 55 °C 145 A

(690 V) 70 °C 130 A

(690 V) 40 °C 160 A

(690 V) 55 °C 145 A

(690 V) 70 °C 130 A

Rated Operational Current AC-3 (I_e):

(415 V) 55 °C 110 A

(440 V) 55 °C 100 A

(500 V) 55 °C 100 A

(690 V) 55 °C 82 A

(1000 V) 55 °C 30 A

(380 / 400 V) 55 °C 110 A

(220 / 230 / 240 V) 55 °C 110

(415 V) 55 °C 110 A

(440 V) 55 °C 100 A

(500 V) 55 °C 100 A

(690 V) 55 °C 82 A

(1000 V) 55 °C 30 A

(380 / 400 V) 55 °C 110 A

(220 / 230 / 240 V) 55 °C 110

Rated Operational Current DC-1 (I_e):

(110 V) 2 Poles in Series, 40 °C 160 A

(220 V) 3 Poles in Series, 40 °C 160 A

(110 V) 2 Poles in Series, 40 °C 160 A

(220 V) 3 Poles in Series, 40 °C 160 A

Rated Operational Current DC-3 (I_e):

(110 V) 2 Poles in Series, 40 °C 160 A

(220 V) 3 Poles in Series, 40 °C 160 A

(110 V) 2 Poles in Series, 40 °C 160 A

(220 V) 3 Poles in Series, 40 °C 160 A

Rated Operational Current DC-5 (I_e):

(110 V) 2 Poles in Series, 40 °C 160 A

(220 V) 3 Poles in Series, 40 °C 160 A

(110 V) 2 Poles in Series, 40 °C 160 A

(220 V) 3 Poles in Series, 40 °C 160 A

Rated Operational Power AC-3 (P_e):

(415 V) 59 kW

(440 V) 59 kW

(500 V) 59 kW

(690 V) 75 kW

(1000 V) 40 kW

(380 / 400 V) 55 kW

(220 / 230 / 240 V) 30 kW

(415 V) 59 kW

(440 V) 59 kW

(500 V) 59 kW

(690 V) 75 kW

(1000 V) 40 kW

(380 / 400 V) 55 kW

(220 / 230 / 240 V) 30 kW

Rated Breaking Capacity AC-3:

8 x Ie AC-3

Rated Making Capacity AC-3:

10 x Ie AC-3

Short-Circuit Protective Devices:

gG Type Fuses 200 A

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 800 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 175 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 350 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1320 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 500 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 800 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 175 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 350 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1320 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 500 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V

acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V

acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U_imp):

Main Circuit 8 kV

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-2 / AC-4) 150 cycles per hour

(AC-3) 300 cycles per hour

(AC-1) 300 cycles per hour

(AC-2 / AC-4) 150 cycles per hour

(AC-3) 300 cycles per hour

Mechanical Durability:

10 million

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)

Rated Control Circuit Voltage (U_c):

50 Hz 220 ... 230 V

60 Hz 230 ... 240 V

50 Hz 220 ... 230 V

60 Hz 230 ... 240 V

Coil Consumption:

Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·A

Holding at Max. Rated Control Circuit Voltage 60 Hz 26 V·A

Pull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·A

Pull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A

Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·A

Holding at Max. Rated Control Circuit Voltage 60 Hz 26 V·A

Pull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·A

Pull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A

Power Loss:

at Rated Operating Conditions per Pole 3.6 W

Operate Time:

Between Coil De-energization and NC Contact Closing 7 ... 15 ms

Between Coil De-energization and NO Contact Opening 10 ... 18 ms

Between Coil Energization and NC Contact Opening 7 ... 22 ms

Between Coil Energization and NO Contact Closing 10 ... 25 ms

Between Coil De-energization and NC Contact Closing 7 ... 15 ms

Between Coil De-energization and NO Contact Opening 10 ... 18 ms

Between Coil Energization and NC Contact Opening 7 ... 22 ms

Between Coil Energization and NO Contact Closing 10 ... 25 ms

Connecting Capacity Main Circuit:

Bar 30 mm²

Flexible with Cable End 2 x 6 ... 35 mm²

Rigid 1 x 10 ... 95 mm²

Bar 30 mm²

Flexible with Cable End 2 x 6 ... 35 mm²

Rigid 1 x 10 ... 95 mm²

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible 1x0.75 ... 2.5 mm²

Solid 2 x 1 ... 4 mm²

Stranded 2 x 1 .... 4 mm²

Flexible with Ferrule 2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible 1x0.75 ... 2.5 mm²

Solid 2 x 1 ... 4 mm²

Stranded 2 x 1 .... 4 mm²

Connecting Capacity:

Bar 30 mm²

Flexible with Cable End 1 x 10 ... 70 mm²

Rigid 2 x 6 ... 65 mm²

Bar 30 mm²

Flexible with Cable End 1 x 10 ... 70 mm²

Rigid 2 x 6 ... 65 mm²

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10

Connecting Terminals (delivered in open position) Main Poles:

M8 hexagon socket screw with single connector

Tightening Torque:

Main Circuit 8 N·m

Terminal Type:

Cable Clamp

Product Name:

Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

General Use Rating UL/CSA:

(600 V AC) 140 A

Horsepower Rating UL/CSA:

(200 V AC) Three Phase 30 hp

(208 V AC) Three Phase 30 hp

(220 ... 240 V AC) Three Phase 40 hp

(440 ... 480 V AC) Three Phase 75 hp

(550 ... 600 V AC) Three Phase 100 hp

(200 V AC) Three Phase 30 hp

(208 V AC) Three Phase 30 hp

(220 ... 240 V AC) Three Phase 40 hp

(440 ... 480 V AC) Three Phase 75 hp

(550 ... 600 V AC) Three Phase 100 hp

Full Load Amps Motor Use:

(440 ... 480 V AC) Three Phase 96 A

(550 ... 600 V AC) Three Phase 99 A

(440 ... 480 V AC) Three Phase 96 A

(550 ... 600 V AC) Three Phase 99 A

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C

Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C

Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Maximum Operating Altitude Permissible:

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27:

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: A 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: A 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: B1 10 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C1 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C2 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B1 5 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B2 15 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C1 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C2 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: A 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: A 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: B1 10 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C1 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C2 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B1 5 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B2 15 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C1 20 g

Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C2 20 g

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

BV Certificate:

07172/D0 BV

CB Certificate:

SE-69487

CQC Certificate:

CQC Certificate, Contactor, A95, A110, Made in Sweden

CQC Certificate, Contactor, A95-30, A95-30-11, A110-30, A110-30-11, Made in China

CQC Certificate, Contactor, A95, A110, Made in Sweden

CQC Certificate, Contactor, A95-30, A95-30-11, A110-30, A110-30-11, Made in China

CSA Certificate:

314005

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Contactor, A95, A110, Made in Sweden

CCC Declaration of Conformity, Contactor, A95-30, A95-30-11, A110-30, A110-30-11, Made in China

CCC Declaration of Conformity, Contactor, A95, A110, Made in Sweden

CCC Declaration of Conformity, Contactor, A95-30, A95-30-11, A110-30, A110-30-11, Made in China

Declaration of Conformity - CE:

CE Declaration of Conformity - Contactor - A(F)95...A(F)300, AM110...AM300, UA95...UA110, (T)AE95....(T)AE110

Declaration of Conformity - UKCA:

UK Declaration of Conformity - Contactors >100A

DNV Certificate:

GL Certificate:

LOVAG Certificate:

LR Certificate:

RINA Certificate:

RMRS Certificate:

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

130 mm

Package Level 1 Depth / Length:

265 mm

Package Level 1 Height:

162 mm

Package Level 1 Gross Weight:

2 kg

Package Level 1 EAN:

7320500141595

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000066 - Power contactor, AC switching

ETIM 8:

EC000066 - Power contactor, AC switching

ETIM 9:

EC000066 - Power contactor, AC switching

eClass:

V11.0 : 27371003

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4755 >> Contactors

ABB 07MK92 ABB - GJR5253300R1161

$5,008.99

Only 2 units left

Two “C” programmable RS232 / RS422 or RS485 interfaces, 24 V d.c. power supply

ABB ACS580-01-106A-4 ABB

$3,013.00

In stock, 16 units

AC Inverter for 55kW 400V 3 Ph motor to 100A at high overload or 75kW to 138A when Fan/Pump rated. Operates in VxF, Sensorless Vector or Full Closed-loop Flux Vector (when an optional Encoder Feedback card is fitted).

ABB ACS355-03U-07A5-2 - ABB

$1,499.30

Only 3 units left

ACS355, 2HP, 3-Phase, 200-240V (Input), IP20 Enclosure, Variable Frequency Drives

ABB 2TLA020070R1800 ABB - Pluto S46 v2

$1,435.21

Only 1 unit left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

8536411090

Product Main Type:

Pluto

Product Name:

Programmable safety controller

Popular Downloads

Data Sheet, Technical Information:

Pluto flyer

Data Sheet, Technical Information (Part 2):

Pluto S46 - EPLAN macro

Instructions and Manuals:

2TLC172001M0210

Dimension Diagram:

ABB Safety Products catalog

CAD Dimensional Drawing:

Marketing Video:

ABB Safety Products - Your best partner for machine safety

ABB Safety Products - Your best partner for machine safety

Dimensions

Product Net Depth / Length:

120 mm

Product Net Height:

84 mm

Product Net Width:

90 mm

Product Net Weight:

0.65 kg

Safety Information

Performance Level (PL):

Up to e

Safety Integrity Level (SIL):

1

2

3

1

2

3

Technical

Diagnostic Coverage:

High

Number of Inputs:

Failsafe 40

Number of Outputs:

Failsafe (Transistor) 2

Failsafe (Relay) 4

Non-Failsafe 16

Failsafe (Transistor) 2

Failsafe (Relay) 4

Non-Failsafe 16

Protocol Type:

MODBUS ASCII, StatusBus

Rated Control Supply Voltage (U_s):

24 V DC

Supply Voltage:

24 V DC

Material Compliance

Conflict Minerals Reporting Template (CMRT):

Toxic Substances Control Act (TSCA) declaration for Safety Products

REACH Declaration:

REACh - Safety Products

RoHS Information:

RoHS - Safety Products

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

ATEX Certificate:

No

Declaration of Conformity - CE:

EC Declaration of conformity Pluto

Declaration of Conformity - UKCA:

UK DoC - Pluto

TÜV Certificate:

EC type-examination certificate - Pluto

UL Certificate:

VDE Certificate:

ABB 1SFA898105R7000 ABB - PSTX45-600-70

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

90 mm

Package Level 1 Depth / Length:

130 mm

Package Level 1 Height:

105 mm

Package Level 1 Gross Weight:

0.7 kg

Package Level 1 EAN:

7320500410622

External Classifications and Standards

eClass:

V11.0 : 27242207

ETIM 7:

EC000236 - PLC CPU-module

ETIM 8:

EC000236 - PLC CPU-module

ETIM 9:

EC000236 - PLC CPU-module

IDEA Granular Category Code (IGCC):

3561 >> Programmable Logic Controller Module

UNSPSC:

32151705

Object Classification Code:

K

E-Number (Finland):

2712159

E-Number (Sweden):

3860084

$1,109.03

Only 7 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Softstarter main catalog

Instructions and Manuals:

PSTX quick start guide

Instructions and Manuals (Part 2):

PSTX - Installation and commissioning manual

Instructions and Manuals (Part 3):

Softstarter Handbook

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX45

Wiring Diagram:

N/A

Dimensions

Product Net Width:

150 mm

Product Net Height:

314 mm

Product Net Depth / Length:

198 mm

Product Net Weight:

4.6 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 12.5 kW

(400 V) 22 kW

(500 V) 25 kW

(230 V) 12.5 kW

(400 V) 22 kW

(500 V) 25 kW

Rated Operational Current - In-Line Connection (Ie):

45 A

Rated Operational Power - Inside Delta Connection:

at 230 V 25 kW

at 400 V 37 kW

at 500 V 45 kW

at 230 V 25 kW

at 400 V 37 kW

at 500 V 45 kW

Rated Operational Current - Inside Delta Connection:

76 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Cable Clamp

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 8 N·m

Product Main Type:

PSTX45

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 10 Hp

(220 ... 240 V AC) Three Phase 15 Hp

(440 ... 480 V AC) Three Phase 30 Hp

(550 ... 600 V AC) Three Phase 40 Hp

(200 ... 208 V AC) Three Phase 10 Hp

(220 ... 240 V AC) Three Phase 15 Hp

(440 ... 480 V AC) Three Phase 30 Hp

(550 ... 600 V AC) Three Phase 40 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 70.8

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACh Declaration for all Softstarters

REACH Declaration:

RoHS Information:

RoHS II Declaration for all Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

e1fe3351-a6ac-4cbd-aebf-814f3a66a5bc China

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Softstarters

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CN: CQC2014010304744405 / SE: CQC2014010304724380

Declaration of Conformity - CCC:

CN: 2020980304001091 / SE: 2020980304001489

Declaration of Conformity - CE:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

DNV Certificate:

DNV Certificate, PSTX30...PSTX1250

Container Information

Package Level 1 Width:

200 mm

Package Level 1 Depth / Length:

282 mm

Package Level 1 Height:

388 mm

Package Level 1 Gross Weight:

5.6 kg

Package Level 1 EAN:

7320500501337

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

ABB 2TLA020070R1700 ABB - Pluto B46 v2

$1,497.49

In stock, 12 units

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

8536411090

Product Main Type:

Pluto

Product Name:

Programmable safety controller

Popular Downloads

Data Sheet, Technical Information:

Pluto flyer

Data Sheet, Technical Information (Part 2):

Pluto B46 - EPLAN macro

Instructions and Manuals:

2TLC172001M0210

Dimension Diagram:

ABB Safety Products catalog

CAD Dimensional Drawing:

Marketing Video:

ABB Safety Products - Your best partner for machine safety

ABB Safety Products - Your best partner for machine safety

Dimensions

Product Net Depth / Length:

120 mm

Product Net Height:

84 mm

Product Net Width:

90 mm

Product Net Weight:

0.65 kg

Safety Information

Performance Level (PL):

Up to e

Safety Integrity Level (SIL):

1

2

3

1

2

3

Technical

Diagnostic Coverage:

High

Number of Inputs:

Failsafe 40

Number of Outputs:

Failsafe (Transistor) 2

Failsafe (Relay) 4

Non-Failsafe 16

Failsafe (Transistor) 2

Failsafe (Relay) 4

Non-Failsafe 16

Protocol Type:

MODBUS ASCII, Pluto Safety Bus, StatusBus

Rated Control Supply Voltage (U_s):

24 V DC

Supply Voltage:

24 V DC

Material Compliance

Conflict Minerals Reporting Template (CMRT):

Toxic Substances Control Act (TSCA) declaration for Safety Products

REACH Declaration:

REACh - Safety Products

RoHS Information:

RoHS - Safety Products

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

ATEX Certificate:

No

Declaration of Conformity - CE:

EC Declaration of conformity Pluto

Declaration of Conformity - UKCA:

UK DoC - Pluto

TÜV Certificate:

EC type-examination certificate - Pluto

UL Certificate:

VDE Certificate:

ABB 1SCA105365R1001 ABB - OT63F4N2

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

90 mm

Package Level 1 Depth / Length:

130 mm

Package Level 1 Height:

105 mm

Package Level 1 Gross Weight:

0.7 kg

Package Level 1 EAN:

7320500410615

External Classifications and Standards

eClass:

V11.0 : 27242207

ETIM 7:

EC000236 - PLC CPU-module

ETIM 8:

EC000236 - PLC CPU-module

ETIM 9:

EC000236 - PLC CPU-module

IDEA Granular Category Code (IGCC):

3561 >> Programmable Logic Controller Module

UNSPSC:

32151705

Object Classification Code:

K

E-Number (Finland):

2712156

E-Number (Sweden):

3860083

$126.20

In stock, 11 units

ABB EcoSolutions

Environmental Information:

PEI OT63-80

Environmental Product Declaration - EPD:

PEP, EPD, OT63-80

Material Compliance

Conflict Minerals Reporting Template (CMRT):

Reach Declaration / AC Switches and Fusegear

REACH Declaration:

RoHS Information:

RoHs Declaration / AC Switches and Fusegear

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear

Popular Downloads

Data Sheet, Technical Information:

Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB

Instructions and Manuals:

Switch Disconnectors OT63-80F3-F4, OT63-80ML3-ML4

Mechanical Drawings:

OT63-80F4N2, dwg-file

OT63-80F4N2, dxf-file

OT63-80F4N2.igs

OT63-80F4N2, dwg-file

OT63-80F4N2, dxf-file

OT63-80F4N2.igs

Environmental Product Declaration - EPD:

PEP, EPD, OT63-80

Environmental

Degree of Protection:

Front IP20

Environmental Information:

PEI OT63-80

Pollution Degree:

3

Ordering

Minimum Order Quantity:

10 piece

Customs Tariff Number:

85365080

Country or Territory of Origin:

Finland

Dimensions

Product Net Width:

70 mm

Product Net Height:

91.5 mm

Product Net Depth / Length:

72.5 mm

Product Net Weight:

0.31 kg

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

84 mm

Package Level 1 Depth / Length:

103 mm

Package Level 1 Height:

82 mm

Package Level 1 Gross Weight:

0.34 kg

Package Level 1 EAN:

6417019393094

Technical

Cable Cross-Section:

Cu 1.5 ... 35 mm²

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x Cu 1.5…4 mm²

Solid 1x Cu 1.5…6 mm²

Flexible 1x Cu 1.5…35 mm²

Stranded 1x Cu 1.5…35 mm²

Flexible with Ferrule 1x Cu 1.5…4 mm²

Solid 1x Cu 1.5…6 mm²

Flexible 1x Cu 1.5…35 mm²

Stranded 1x Cu 1.5…35 mm²

Conventional Free-air Thermal Current (I_th):

Θ = 40 °C 63 A

Conventional Thermal Current (I_the):

Fully Enclosed 63 A

Degree of Protection:

Front IP20

Distance Between Phases:

Standard

Fourth Pole Position:

Right Side

Fourth Pole Type:

Switched - Simultaneous Function

Handle Type:

Knob

Handle and shaft not included

Knob

Handle and shaft not included

Mechanical Durability:

20000

Mounting Type:

Base mounting

Number of Poles:

4P

Operating Mode:

Front operated

Pollution Degree:

3

Position of Line Terminals:

Top In - Bottom Out

Bottom In - Top Out

Top In - Bottom Out

Bottom In - Top Out

Power Loss:

at Rated Operating Conditions per Pole 2.8 W

Rated Conditional Short-Circuit Current (I_nc):

(100 A fuse, ≤415 V) 50 kA

(100 A fuse, 500 V) 100 kA

(80 A fuse, 690 V) 50 kA

(100 A fuse, ≤415 V) 50 kA

(100 A fuse, 500 V) 100 kA

(80 A fuse, 690 V) 50 kA

Rated Impulse Withstand Voltage (U_imp):

8 kV

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 750 V

Rated Operational Current AC-21A (I_e):

(380 ... 415 V) 63 A

(500 V) 63 A

(690 V) 63 A

(380 ... 415 V) 63 A

(500 V) 63 A

(690 V) 63 A

Rated Operational Current AC-22A (I_e):

(380 ... 415 V) 63 A

(500 V) 63 A

(690 V) 63 A

(380 ... 415 V) 63 A

(500 V) 63 A

(690 V) 63 A

Rated Operational Current AC-23A (I_e):

(380 ... 415 V) 63 A

(500 V) 45 A

(690 V) 20 A

(380 ... 415 V) 63 A

(500 V) 45 A

(690 V) 20 A

Rated Operational Power AC-23A (P_e):

(220 ... 240 V) 11 kW

(400 ... 415 V) 22 kW

(500 V) 22 kW

(690 V) 15 kW

(220 ... 240 V) 11 kW

(400 ... 415 V) 22 kW

(500 V) 22 kW

(690 V) 15 kW

Rated Operational Voltage:

Main Circuit 750 V

Rated Short-Circuit Making Capacity (I_cm):

(690 V) 2.1 kA

Rated Short-time Withstand Current Low Voltage (I_cw):

for 1 s 1.5 kA

Recommended Screw Driver:

Main Circuit Pozidriv 2

Special Functions:

No

Standards:

IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Switches Operating Mechanism:

Mechanism on Top of the Switch

Terminal Type:

Screw Terminals

Tightening Torque:

acc. IEC 60947-1 2 N·m

Wire Stripping Length:

Main Circuit 10-12 mm

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

600 V

Ampere Rating:

60 A

Horsepower Rating UL/CSA:

(110 ... 120 V AC) Single Phase 2 Hp

(240 V AC) Single Phase 7.5 Hp

(440 ... 480 V AC) Single Phase 15 Hp

(550 ... 600 V AC) Single Phase 15 Hp

(220 ... 240 V AC) Three Phase 15 Hp

(440 ... 480 V AC) Three Phase 30 Hp

(550 ... 600 V AC) Three Phase 30 Hp

(110 ... 120 V AC) Single Phase 2 Hp

(240 V AC) Single Phase 7.5 Hp

(440 ... 480 V AC) Single Phase 15 Hp

(550 ... 600 V AC) Single Phase 15 Hp

(220 ... 240 V AC) Three Phase 15 Hp

(440 ... 480 V AC) Three Phase 30 Hp

(550 ... 600 V AC) Three Phase 30 Hp

Wire Stripping Length:

Main Circuit 10-12 mm

Recommended Screw Driver:

Main Circuit Pozidriv 2

Tightening Torque:

acc. IEC 60947-1 2 N·m

Tightening Torque UL/CSA:

18 in·lb

Certificates and Declarations

A2L Certificate – IEC:

A2L Refrigerant Declaration of Conformity / OT16-125

ATEX Certificate:

Declaration of Conformity / OT45ML_, OT63F_, OT63FT_, OT63ML_, OT80F_, OT80FT_

Declaration of Conformity - CE:

UL Certificate:

cULus certificate OT16-80

VDE Certificate:
