1 year warranty
Controllers CP1L-E Option Board 2 Analog In
Controllers BOARD COMMS CPU 2 PORT RS232C
I/O expansion unit, 12 x 24 VDC inputs, 8 x relay outputs 2 A
CP2E series compact PLC - Network type; 18 DI, 12DO; Relay output; Power supply 24 VDC; 10 kStep Program memory
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.

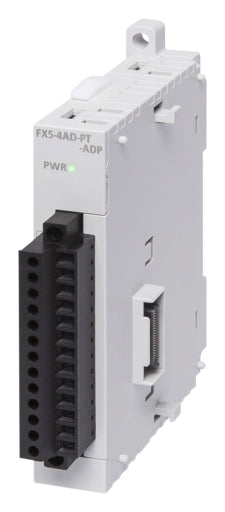

FX5;Analog Input Module for Temperature Sensors;Pt100;Ni100;4 channels
PLC, FX3U Communication adapter for MELSEC FX3U ADP special function modules
PLC, FX3U Analog input module; 16 bit; 4 analog inputs for current or voltage
Power Supply, 100-240 Vac Input, 50/60 Hz, 5 Vdc At 6 Amps Output
FX3U Logic Module - 64 Inputs, 64 Outputs, Relay, Computer, HMI Interface
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
IC693DSM314 GE FANUC MOTION CONTROL MODULE 1-4 AXIS
Single slot CPU module, 240K Bytes configurable user memory, 4K I/O, 8 Racks, Hardware FLOATING POINT MATH, two built-in Serial Ports .22msec/K
Programmable Logic Controller (PLC) DIN Rail 24VDC
OUTPUT MOD 4 ANALOG 100-240V/24V
Input, Output (I/O) Module DIN Rail 100 ~ 240VAC, 24VD
Intel x86 400 MHz compatible with integrated I/O processor Ethernet, POWERLINK with poll-response chaining and onboard USB 1 slot for modular interface expansion 30 digital inputs/outputs and 2 analog inputs integrated in the device 2 GB onboard flash drive 256 MB DDR3 SDRAM Fanless No battery Backed-up real-time clock The X20 Compact controller series is characterized by 3 integrated I/O modules. The device is equipped with 30 different digital inputs/outputs and 2 analog inputs. 1 analog input can be used for Pt1000 resistance temperature measurement. The X20CP1382 is equipped with an Intel x86 400 MHz compatible processor, 256 MB RAM and 2 GB built-in flash drive. The FRAM for storing remanent variables has 32 kB available. A fanless and battery-free design ensures maintenance-free operation. The controller is equipped with Ethernet, 2x USB and an RS232 interface. In addition, POWERLINK and CAN bus are available as integrated interfaces. For additional fieldbus connections, each controller can be expanded with an interface module from the X20 standard portfolio.
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
X20IF10611
INTERFACE MODULE
COMMUNICATION MODULE
1X PROFIBUS DP V0/V1 MASTER
MEMORY 8 MB SDRAM
9-PIN FEMALE DSUB CONNECTOR
Bus module for SafeIO modules
The internal I/O power supply is continuous.
Manual node number assignment
Independent from the electronics module
Manual and automatic addressing can be combined as desired.
The bus module is the base for all SafeIO modules. The internal I/O power supply is continuous. In addition, a unique address is defined with this bus module using a node number switch.
PLC modules are the expansion and signal processing hardware that extend a programmable logic controller's capabilities beyond the base CPU, covering digital and analog I/O, specialty functions, communication interfaces, and power supply modules installed in the controller rack or station. PLC Direct supplies PLC modules as an independent supplier, carrying surplus sealed, refurbished, and used hardware for maintenance and replacement across the major PLC platforms deployed in installed automation systems.
Where Are PLC Modules Used in Industrial Environments?
PLC modules are used wherever a base PLC controller requires additional I/O channels, signal types, or functional capabilities beyond what the CPU alone provides, from local rack expansion to distributed I/O stations across a facility. These components are present in virtually every modular PLC installation, handling field signal acquisition, output control, specialty measurement, and network communication alongside the controller CPU.
Facilities and operations that depend on PLC modules include:
-
Discrete manufacturing plants expanding PLC I/O capacity at machine control panels and distributed field cabinets across production lines.
-
Food and beverage processing facilities adding analog input and output modules for temperature, pressure, and flow measurement in batch and continuous process control.
-
Automotive assembly operations using specialty function modules for high-speed counter inputs, encoder feedback, and motion control coordination.
-
Water and wastewater treatment plants extending PLC I/O across pump station control panels and remote treatment process equipment.
-
Packaging and material handling operations where high channel-count digital I/O modules handle the sensor and actuator density of automated sorting and conveyor systems.
A failed or discontinued PLC module in a production system requires a like-for-like replacement to restore the channel capacity and signal type that the controller program depends on.
Which Brands of PLC Modules Does PLC Direct Stock?
PLC Direct stocks PLC modules across the major controller platforms deployed in installed automation systems worldwide.
-
Siemens SIMATIC S7-1200, S7-1500, and ET 200SP modules: Analog input modules across the SM1231 series, digital I/O modules for S7-1200 and S7-1500 racks, and ET 200SP distributed I/O modules including AI and DI/DQ types with PROFINET interface modules confirmed in stock.
-
Omron CJ Series I/O and special function modules: CJ1W digital input, digital output, and analog I/O modules alongside special function modules including high-speed counter units and expansion I/O control units for installed CJ Series PLC architectures.
-
Schneider Electric Modicon Quantum and M580 I/O modules: Discrete and analog expansion modules for the Modicon Quantum 140-series platform and Modicon M580 BMEP/BMEH series, covering the full range of field signal types used in installed Modicon process and machine control systems.
-
B&R X20 System I/O modules: Digital and analog I/O modules, power supply modules, and interface components within the X20 modular system, used in machine and line automation architectures with POWERLINK communication.
PLC Direct carries PLC modules as surplus sealed, refurbished, and used hardware, giving maintenance teams options across condition grades and budget requirements.
What Should You Know Before Ordering PLC Modules?
Hardware condition options: PLC Direct supplies PLC modules in surplus sealed, refurbished, and used condition. Surplus sealed units are factory-sealed stock that has not been previously installed; refurbished modules have been inspected and tested to confirm operational functionality; used hardware is sourced from decommissioned systems and suits facilities managing lifecycle replacements under budget constraints.
Compatibility and part identification: PLC modules are platform-specific and must be matched to the correct controller series, rack or backplane type, and in some cases, firmware version of the installed CPU. A Siemens S7-1200 signal module, for example, is not compatible with an S7-1500 rack, and ET 200SP peripheral modules require a matched interface module for the network protocol in use. Confirm the full module part number, controller series, and rack slot requirements from the installed system's documentation before ordering.
Warranty: All PLC module hardware purchased from PLC Direct carries a standard 1-year PLC Direct warranty covering defects and functionality, applicable to surplus sealed, refurbished, and used products.
PLC Direct supplies PLC module hardware for replacement and maintenance purposes and does not provide system design, programming, or integration services.
