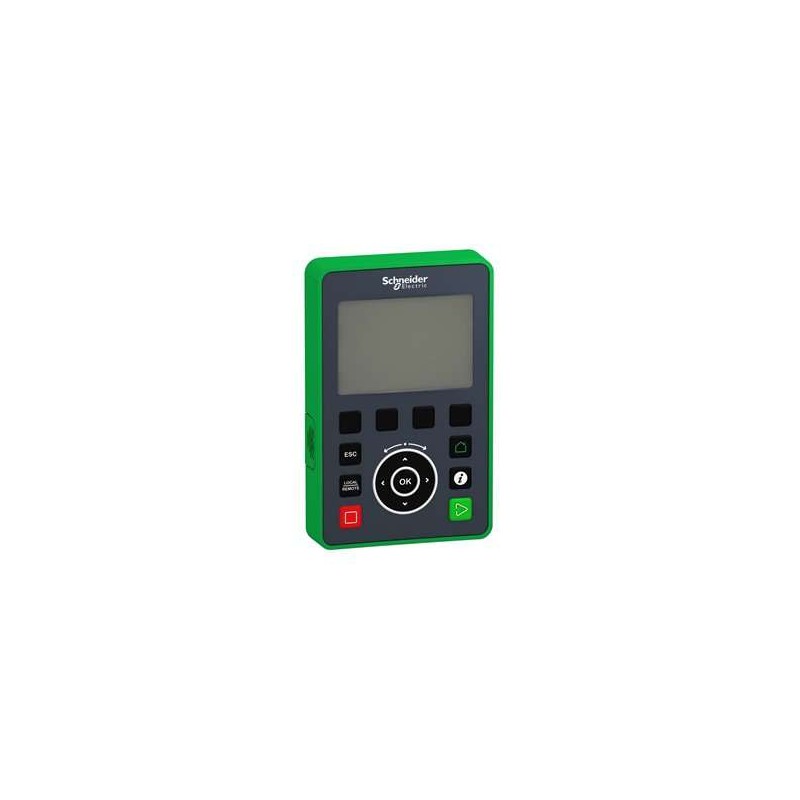

Graphic Display Terminal - 240 x 160 pixels - IP65
advanced touchscreen panel 640 x 480 pixels VGA- 10.4" TFT - 96 MB

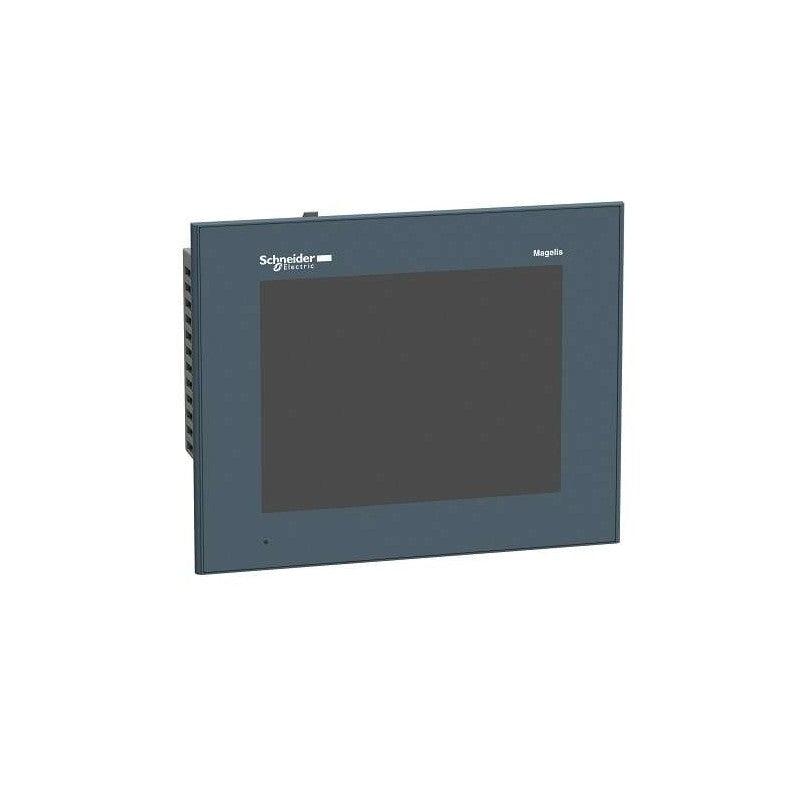

advanced touchscreen panel 640 x 480 pixels VGA- 7.5" - TFT - 96 MB
HMISTU855 Small 24 V DC Panel w 5.7 Color Touch Screen
Premium BOX for Universal Panel

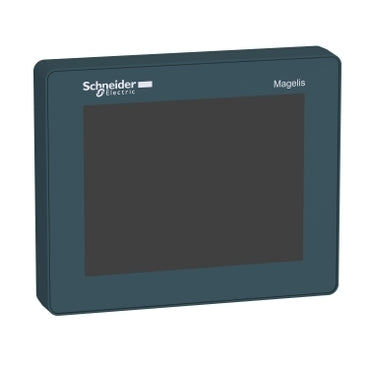

This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 3.5inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 97.6mm (width) x 80mm (depth) and weighs 0.53kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure⢠Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony SCU |
| Product or Component Type | Small touchscreen display HMI |
| Display size | 3.5 inch |
| Pixel resolution | 320 x 240 pixels QVGA |
Complementary
| Characteristic | Value(s) |
|---|---|
| Display type | Backlit LED colour TFT LCD |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours 65536 colours |
| Brightness | 16 levels via touch panel |
| View angle horiz x vert | 60° left 60° right 40° top 60° bottom |
| Character font | Korean Chinese (simplified Chinese) Japanese (ANK, Kanji) ASCII Taiwanese (traditional Chinese) |
| Width | 3.8 in (97.6 mm) |
| Depth | 3.1 in (80 mm) |
| Product Weight | 1.17 lb(US) (0.53 kg) |

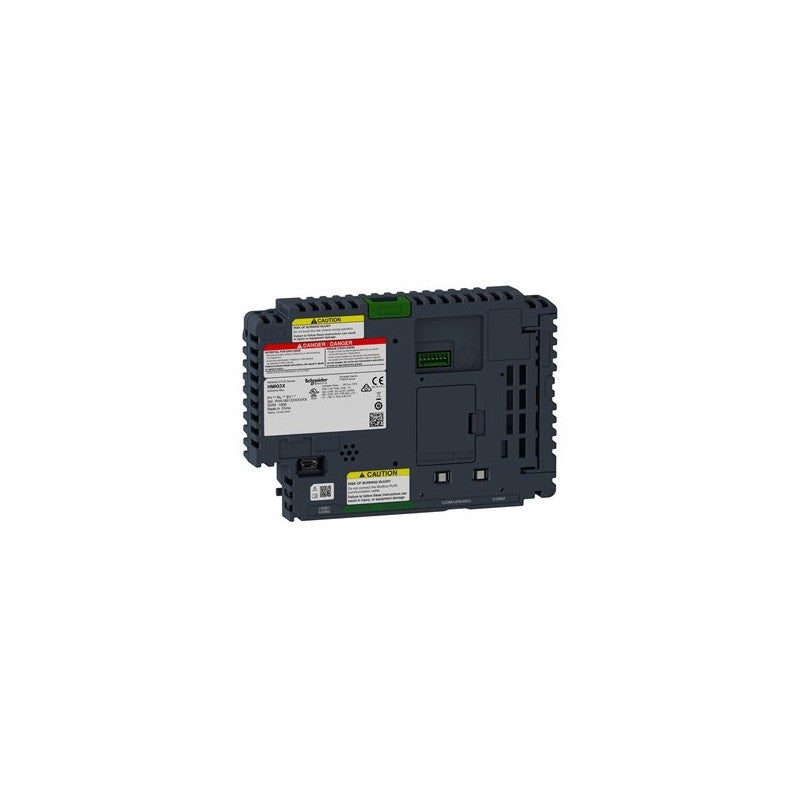

This rear panel is compatible with Harmony STU human machine interfaces (HMIs). It is made of PC/PBT and available in dark gray. Its dimensions are 118mm (width) x 40.1mm (depth). It is suitable for simple machines and infrastructure applications. This panel is compatible with HMISTU655, HMISTU655W, HMISTU855 and HMISTU855W. Harmony STO (fromerly known as Magelis STO) is powered by the EcoStruxure operator terminal expert and STU (fromerly known as Magelis STU) is powered by Vijeo Designer.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony STU |
| Product or Component Type | Rear panel |
Complementary
| Characteristic | Value(s) |
|---|---|
| Enclosure Material | PC/PBT |
| Height | 3.86 in (98.15 mm) |
| Width | 4.6 in (118 mm) |
| Depth | 1.6 in (40.1 mm) |
| Product Weight | 0.780 lb(US) (0.354 kg) |

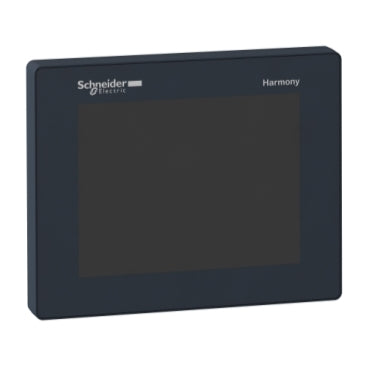

The HMI small touchscreen features 5.7inch backlight LED color TFT LCD display, supports 320 x 240 pixels QVGA resolution. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth). It weighs 0.405kg. It is suitable for use with small machines, HVAC, pumping and packaging applications. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony SCU |
| Product or Component Type | Small touchscreen display HMI |
| Display size | 5.7 inch |
| Pixel resolution | 320 x 240 pixels QVGA |
Complementary
| Characteristic | Value(s) |
|---|---|
| Display type | Backlit LED colour TFT LCD |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours 65536 colours |
| Brightness | 16 levels via touch panel |
| View angle horiz x vert | 60° left 60° right 40° top 60° bottom |
| Character font | Korean Chinese (simplified Chinese) ASCII Taiwanese (traditional Chinese) Japanese (ANK, Kanji) |
| Height | 5.08 in (129.15 mm) |
| Width | 6.4 in (163 mm) |
| Depth | 5.09 in (129.4 mm) |
| Product Weight | 0.893 lb(US) (0.405 kg) |

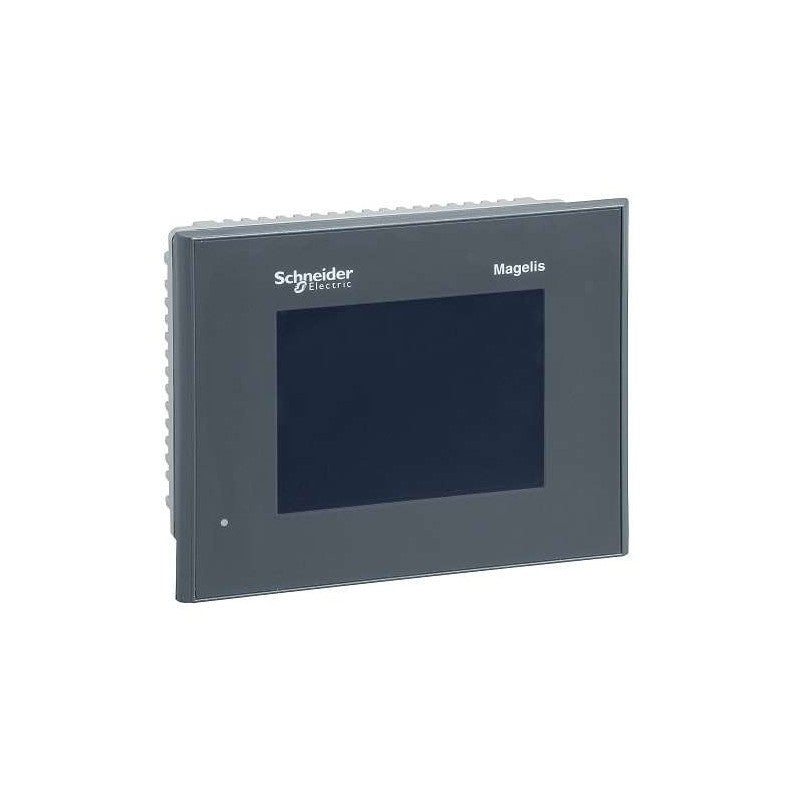

advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 96 MB
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony XBTGT |
| Product or Component Type | Advanced touchscreen panel |
| Display Type | Backlit colour TFT LCD |
| Display colour | 256 colours |
| Display Resolution | 320 x 240 pixels QVGA |
| Display size | 3.8 inch |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer |
| Operating System | Harmony |
| Processor name | CPU RISC |
| Processor frequency | 200 MHz |
| Memory description | 512 KB SRAM back up of data lithium battery 32 MB flash EPROM application memory |
| Integrated connection type | removable screw terminal block power supply RJ45 Ethernet TCP/IP RJ45 COM1 serial link RS232C/RS485 <= 115.2 kbits/s USB type A master port (V1.1) Modicon M340 terminal port communication |
| Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
| Cut-out dimensions | 118 (+ 1/- 0) x 92.5 (+ 1/- 0) mm |
Complementary
| Characteristic | Value(s) |
|---|---|
| Touch panel | Analogue |
| Backlight lifespan | 40000 hours |
| Brightness | 16 levels |
| Character font | Korean ASCII Chinese (simplified Chinese) Japanese (ANK, Kanji) Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2â¦28.8 V |
| Inrush current | 60 A |
| Power Consumption in W | 13 W |
| Local signalling | 1 LED (green) for normal operation |
| Number of pages | Limited by internal memory capacity |
| Downloadable protocols | Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE |
| Realtime clock | Built-in |
| Port Ethernet | 100BASE-TX |
| Product mounting | Flush mounting |
| Fixing Mode | By 4 screw clamps By 2 spring clips |
| Front material | PPT |
| Enclosure Material | PPT |
| Marking | CE |
| Width | 5.1 in (130 mm) |
| Height | 4.09 in (104 mm) |
| Depth | 1.6 in (40 mm) |
| Product Weight | 2.2 lb(US) (1 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony XBTGT |
| Product or Component Type | Advanced touchscreen panel |
| Display Type | Backlit colour TFT LCD |
| Display colour | 65536 colours |
| Display Resolution | 800 x 600 pixels SVGA |
| Display size | 12.1 inch |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer |
| Operating System | Harmony |
| Processor name | CPU RISC |
| Processor frequency | 266 MHz |
| Memory description | 512 KB SRAM back up of data lithium battery 32 MB flash EPROM application memory |
| Integrated connection type | RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s) male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s removable screw terminal block power supply RJ45 Ethernet TCP/IP 3 removable screw terminal block digital output removable screw terminal block audio output removable screw terminal block digital input 2 USB type A master port (V1.1) |
| Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
| Cut-out dimensions | 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm |
Complementary
| Characteristic | Value(s) |
|---|---|
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours |
| Brightness | 8 levels via touch panel |
| Character font | Chinese (simplified Chinese) Korean ASCII (European characters) Japanese (ANK, Kanji) Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2â¦28.8 V |
| Inrush current | 30 A |
| Power Consumption in W | 30 W |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Number of pages | Limited by internal memory capacity |
| Downloadable protocols | Telemecanique Modicon FIPWAY Telemecanique Modicon Modbus Plus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE |
| Realtime clock | Built-in |
| Data storage equipment | 1 Compact Flash card >= 1 GB |
| Use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product mounting | Flush mounting |
| Fixing Mode | By 4 spring clips By 4 screw clamps |
| Front material | Aluminium alloy |
| Enclosure Material | PPT |
| Marking | CE |
| Width | 12.3 in (313 mm) |
| Height | 9.4 in (239 mm) |
| Depth | 2.2 in (56 mm) |
| Product Weight | 6.6 lb(US) (3 kg) |
Advanced hand-held panel - 640 x 480 pixels VGA - 5.7" - TFT LCD - 24 V DC
12"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC

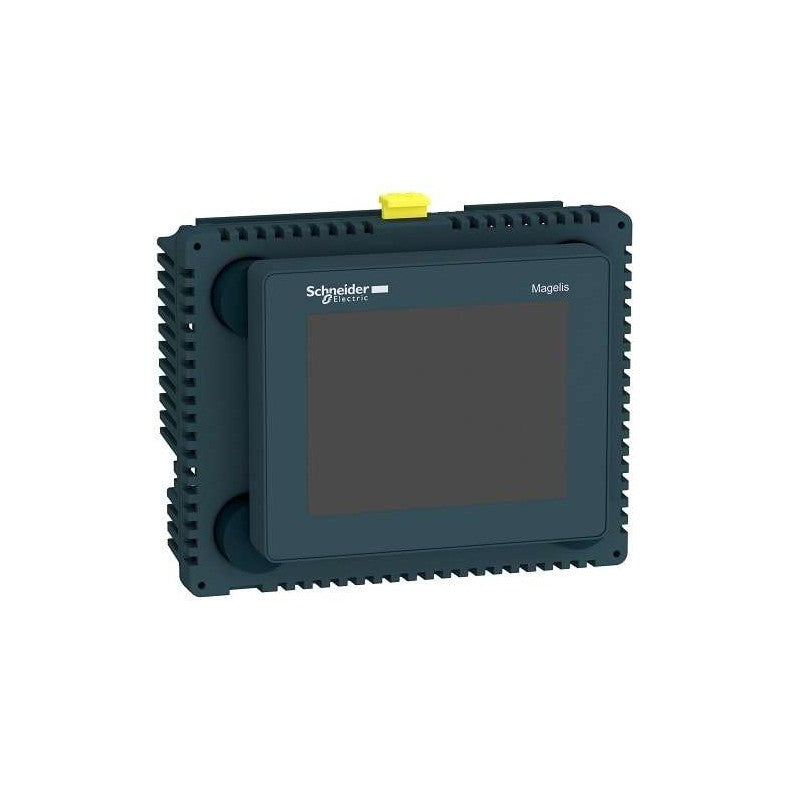

HMISTU655 Small 24 V DC Panel w 3.4 Color Touch Screen

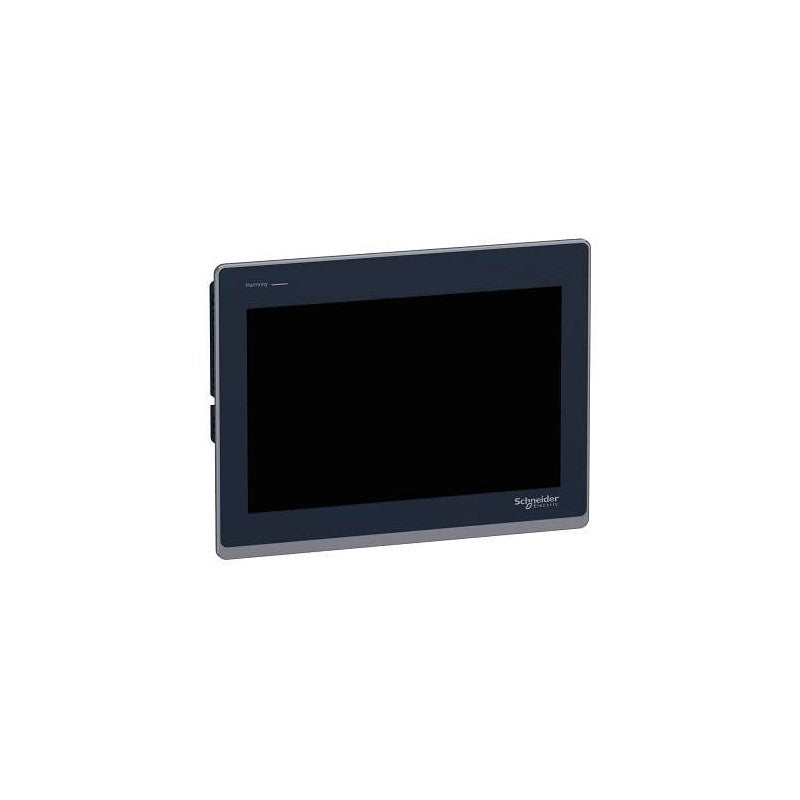

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and weighs 1.30Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony ST6 |
| Product or Component Type | Touch panel screen |
| Software package | EcoStruxure Operator Terminal Expert |
| Processor name | ARM Cortex-A8 |
| Processor frequency | 800 MHz |
| Memory description | 1 GB device memory 512 KB backup memory 128 MB user data memory |
Complementary
| Characteristic | Value(s) |
|---|---|
| Display size | 10 inch |
| Display Type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display Resolution | 1024 x 600 pixels WSVGA |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 50000 hours white |
| Brightness | 16 levels |
| Character font | ASCII ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Katakana Korean Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC +/- 20 %) |
| Power Consumption in W | 12.6 W |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady offline Status LED green, steady operating Status LED green, flashing operating Status LED green, faded stand-by Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED red, flashing operating Status LED red, off power supply (OFF) |
| Number of pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C 2400...115200 bps)bottom 1 COM2 serial link - female RJ45 - RS485 2400...115200 bps)back COM2 serial link 2400...187500 bps)back 1 USB 2.0 type Abottom 1 USB 2.0 type micro B 2 Ethernet |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C Built-in 10...90 % RH |
| Downloadable protocols | Modbus Uni-TE Third party protocols |
| Product brand | Schneider Electric Modicon Mitsubishi Melsec Omron Sysmac Rockwell Automation Allen-Bradley Siemens Simatic |
| Fixing mode | By 4 screws 1.6...5 mm thick panel UL 61010-2-201 By 4 screws IEC 61131-2 By 4 screws IEC 61000-6-2 |
| Enclosure Material | PC |
| Front material | Aluminium |
| Marking | CE |
| Cut-out dimensions | 255 x 185 mm panel cut dimension |
| Height | 8.0 in (203 mm) |
| Width | 10.7 in (273 mm) |
| Depth | 1.9 in (47 mm) |
| Product Weight | 2.9 lb(US) (1.3 kg) |
7"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC
This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 12.1" color TFT LCD display with 1024 x 768 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony GTU |
| Product or Component Type | Flat screen |
| Terminal type | Touchscreen display |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Supply voltage limits | 10.8â¦28.8 V |
| Power Consumption in W | 21 W |
| Inrush current | 30 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Integrated connection type | USB 2.0 type A USB 2.0 type mini B |
| Touchscreen resolution | 1024 x 1024 |
| Pixel resolution | 1024 x 600 |
| Display size | 12.1 inch |
| Aspect ratio | 4:3 |
| Display type | Colour TFT LCD |
| Display Resolution | 1024 x 768 pixels XGA |
| Display colour | 16 million colours |
| Backlight lifespan | 50000 hours |
| Touch panel | Multi touch analogue resistive |
| Function Available | Brightness sensor |
| Type of cooling | Natural convection |
| Type of Installation | Indoor installation |
| Cut-out dimensions | 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm |
| Width | 12.4 in (315 mm) |
| Height | 9.5 in (241 mm) |
| Depth | 2.6 in (67 mm) |
| Product Weight | 6.6 lb(US) (3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony GTUX |
| Product or Component Type | Base unit |
| Device short name | eXtreme Box |
| [Us] rated supply voltage | 12 V DC power supply |
| Power consumption in W | 20.0 W |
Complementary
| Characteristic | Value(s) |
|---|---|
| Integrated connection type | Ethernet TCP/IP 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T COM1 serial link RJ45 RS485 110...115200 bit/s COM1 serial link RJ45 RS485 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port 2 USB type A USB 2.0 port mini B USB |
| Communication Port Protocol | Modbus TCP/IP Modbus serial Uni-Telway |
| Operating system | Harmony |
| Software package | Vijeo Designer run time EcoStruxure Operator Terminal Expert |
| Processor name | CPU RISC 600 MHz |
| Data storage equipment | 1 GB SD card |
| Memory description | 256 MB RAM internal 2 x 13 mm board) 512 KB NVRAM backup memory |
| Number of slots | 2 slot(s) for SD card |
| type of cooling | Natural convection |
| Width | 7.4 in (188 mm) |
| Height | 5.2 in (131 mm) |
| Depth | 1.8 in (45 mm) |
| Product Weight | 2.0 lb(US) (0.9 kg) |

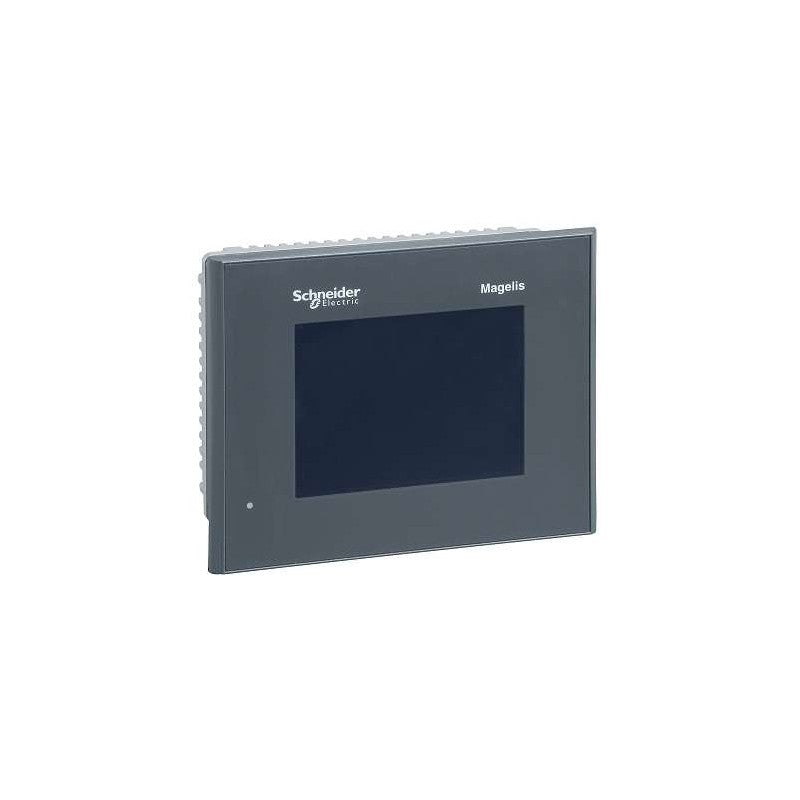

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony XBTGT |
| Product or Component Type | Advanced touchscreen panel |
| Display Type | Backlit monochrome STN LCD |
| Display colour | Amber or red 8 levels of grey |
| Display Resolution | 320 x 240 pixels QVGA |
| Display size | 3.8 inch |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer |
| Operating System | Harmony |
| Processor name | CPU RISC |
| Processor frequency | 200 MHz |
| Memory description | 512 KB SRAM back up of data lithium battery 32 MB flash EPROM application memory |
| Integrated connection type | removable screw terminal block power supply RJ45 COM1 serial link RS232C/RS485 <= 115.2 kbits/s USB type A master port (V1.1) Modicon M340 terminal port communication |
| Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
| Cut-out dimensions | 118 (+ 1/- 0) x 92.5 (+ 1/- 0) mm |
Complementary
| Characteristic | Value(s) |
|---|---|
| Touch panel | Analogue |
| Backlight lifespan | 10000 hours red 50000 hours amber |
| Brightness | 16 levels |
| Contrast | 8 levels via touch panel |
| Character font | Korean Japanese (ANK, Kanji) Chinese (simplified Chinese) Taiwanese (traditional Chinese) ASCII |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2â¦28.8 V |
| Inrush current | 60 A |
| Power Consumption in W | 13 W |
| Local signalling | 1 LED (green) for normal operation |
| Number of pages | Limited by internal memory capacity |
| Downloadable protocols | Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE |
| Realtime clock | Built-in |
| Product mounting | Flush mounting |
| Fixing Mode | By 4 screw clamps By 2 spring clips |
| Front material | PPT |
| Enclosure Material | PPT |
| Marking | CE |
| Width | 5.1 in (130 mm) |
| Height | 4.09 in (104 mm) |
| Depth | 1.6 in (40 mm) |
| Product Weight | 0.9 lb(US) (0.4 kg) |

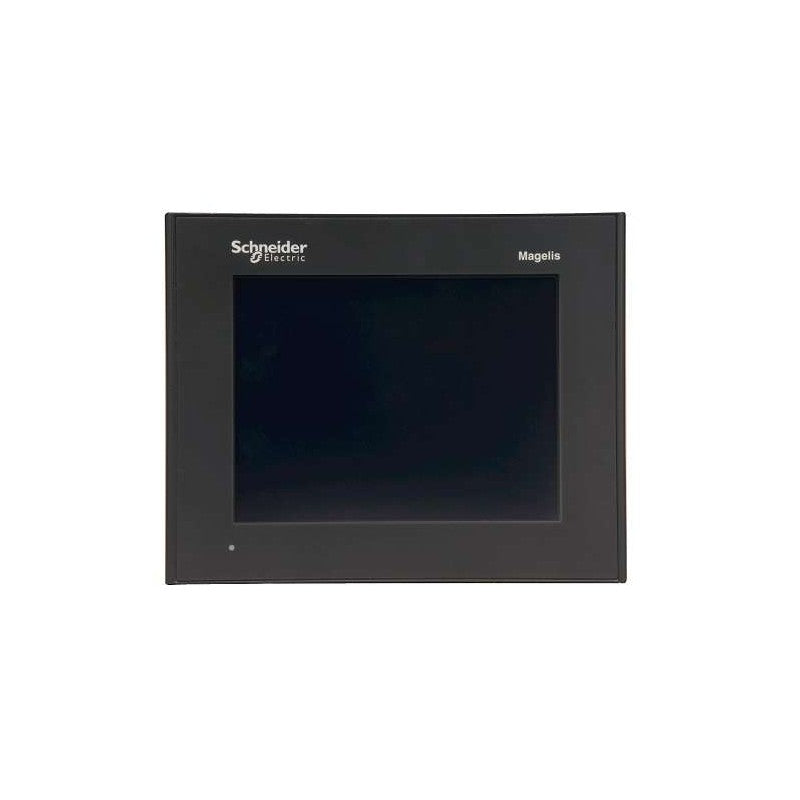

Advanced touchscreen panel - 320 x 240 pixels QVGA - 5.7" - 24 V
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony XBTGT |
| Product or Component Type | Advanced touchscreen panel |
| Display Type | Backlit monochrome STN LCD |
| Display colour | 8 levels of grey Amber or red |
| Display Resolution | 320 x 240 pixels QVGA |
| Display size | 3.8 inch |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer |
| Operating System | Harmony |
| Processor name | CPU RISC |
| Processor frequency | 200 MHz |
| Memory description | 512 KB SRAM back up of data lithium battery 32 MB flash EPROM application memory |
| Integrated connection type | removable screw terminal block power supply RJ45 Ethernet TCP/IP RJ45 COM1 serial link RS232C/RS485 <= 115.2 kbits/s USB type A master port (V1.1) Modicon M340 terminal port communication |
| Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
| Cut-out dimensions | 118 (+ 1/- 0) x 92.5 (+ 1/- 0) mm |
Complementary
| Characteristic | Value(s) |
|---|---|
| Touch panel | Analogue |
| Backlight lifespan | 10000 hours red 50000 hours amber |
| Brightness | 16 levels |
| Contrast | 8 levels via touch panel |
| Character font | Chinese (simplified Chinese) Korean Taiwanese (traditional Chinese) Japanese (ANK, Kanji) ASCII |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2â¦28.8 V |
| Inrush current | 60 A |
| Power Consumption in W | 13 W |
| Local signalling | 1 LED (green) for normal operation |
| Number of pages | Limited by internal memory capacity |
| Downloadable protocols | Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE |
| Realtime clock | Built-in |
| Port Ethernet | 100BASE-TX |
| Product mounting | Flush mounting |
| Fixing Mode | By 4 screw clamps By 2 spring clips |
| Front material | PPT |
| Enclosure Material | PPT |
| Marking | CE |
| Width | 5.1 in (130 mm) |
| Height | 4.09 in (104 mm) |
| Depth | 1.6 in (40 mm) |
| Product Weight | 0.9 lb(US) (0.4 kg) |

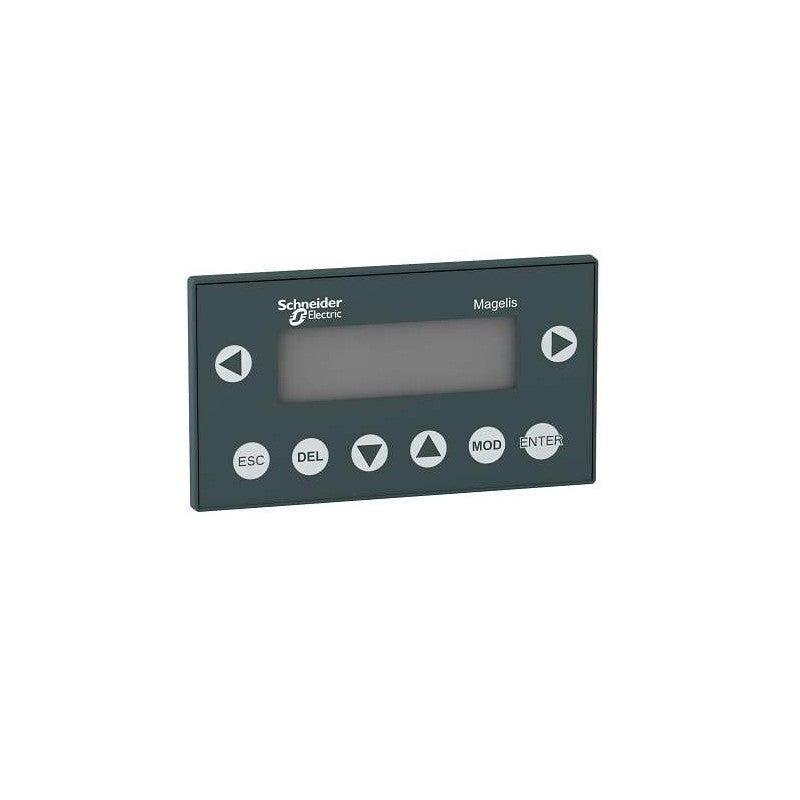

XBTN400 Small 5 V DC Panel w Green Matrix Touch Screen & Keypad

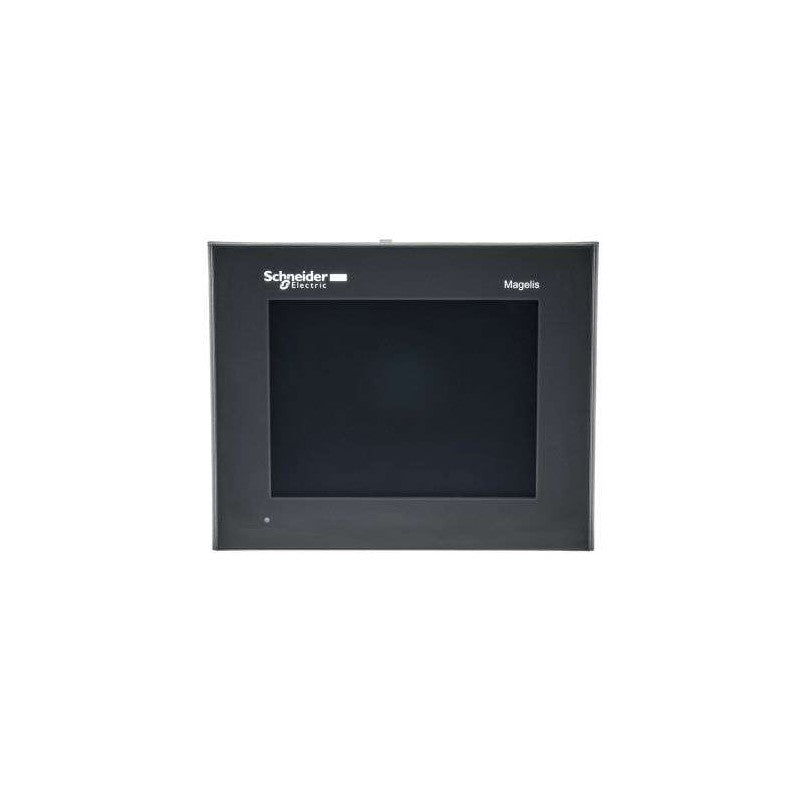

Advanced touchscreen panel - 320 x 240 pixels QVGA - 5.7" TFT LCD - 24 V DC
XBTGC1100T Small HMI Controller Panel IO Source w 3.8 STN Monochrome Touch Screen
