Drives - Motors - Circuits Protection

1561 products

Showing 49 - 72 of 1561 products

Showing 49 - 72 of 1561 products
View

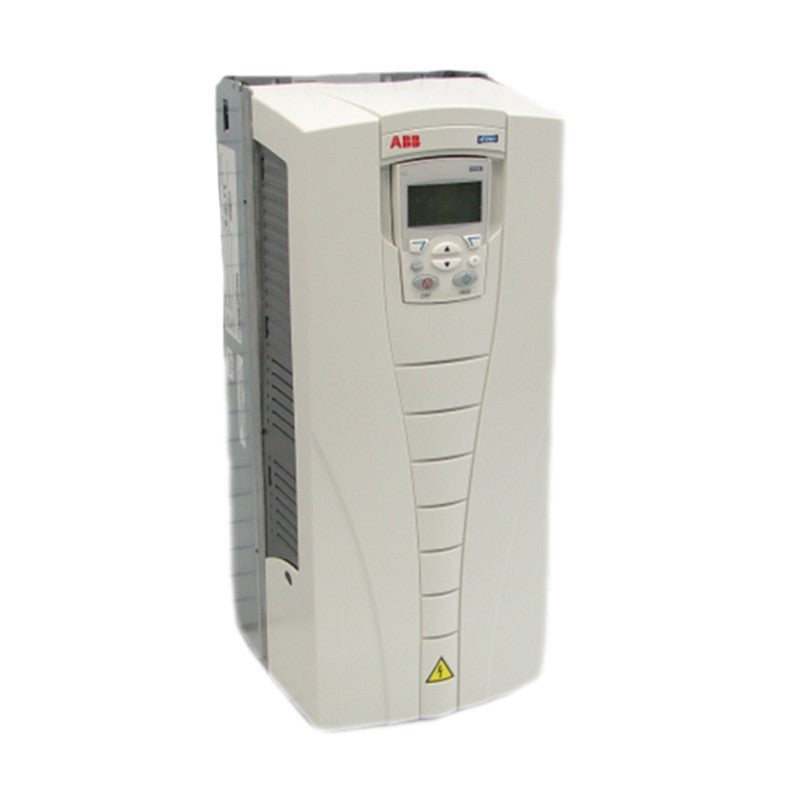

ACH550-UH-012A-2 ABB
ABB ACH550-UH-012A-2 ABB
$2,672.40
Only 3 units left

AC DRIVE, 550 SERIES, 3 PHASE, 208-240 V AC, 50/60 HZ, 11.8 A, 3 HP
ACS355-03E-04A1-4 ABB
ABB ACS355-03E-04A1-4 ABB
$585.00
In stock, 12 units

ACS355 1.5kW 400V 3ph AC Inverter Drive, STO, C3 EMC

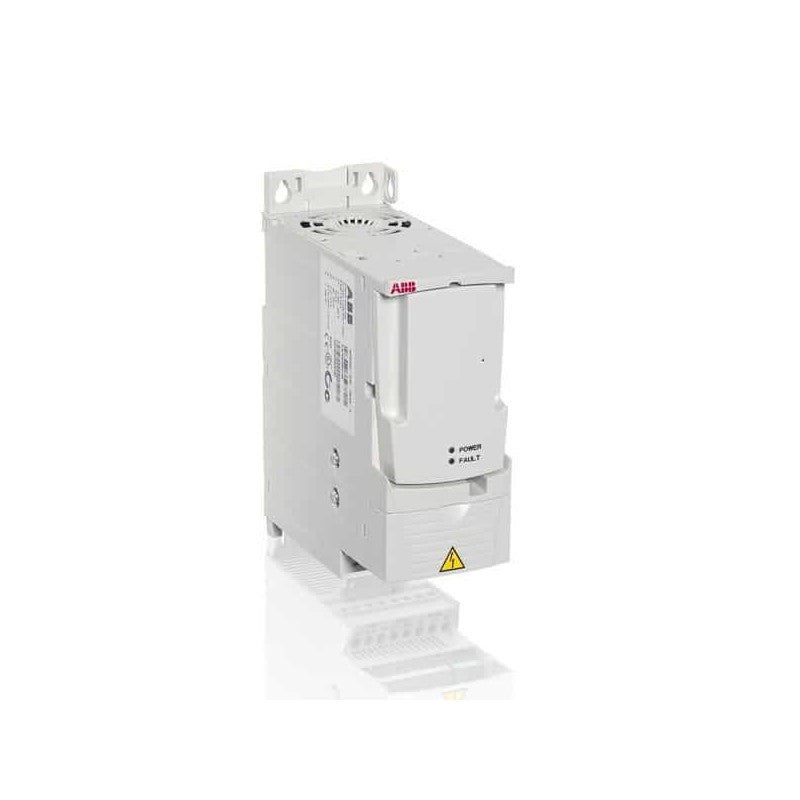

ACS355-03U-04A1-4 - ABB
ABB ACS355-03U-04A1-4 - ABB
$469.73
Only 7 units left

ACS355, 2HP, 3-Phase, 380-480V (Input), IP20 Enclosure, Variable Frequency Drives
ACS550-01-031A-4 ABB
ABB ACS550-01-031A-4 ABB
$1,240.00
In stock, 14 units

ACS550 IP21 11kW/15kW 400V 3ph AC Inverter Drive, HMI, C2 EMC
ACS550-01-015A-4 ABB
ABB ACS550-01-015A-4 ABB
$778.28
In stock, 14 units

ACS550 IP21 5.5kW/7.5kW 400V 3ph AC Inverter Drive, HMI, DBr, C2 EMC
ACS550-01-038A-4 ABB
ABB ACS550-01-038A-4 ABB
$1,408.91
In stock, 11 units

ACS550 IP21 15kW/18.5kW 400V 3ph AC Inverter Drive, HMI, C2 EMC
ACS880-01-156A-5 ABB
ABB ACS880-01-156A-5 ABB
$5,575.60
Only 8 units left

AC DRIVE, ACS880 SERIES, 3-PHASE, WALL MOUNTED, 156 AMP, 90 KW, 380-500 VAC, 50/60 HZ, FRAME SIZE R7
ACS880-01-096A-5 ABB
ABB ACS880-01-096A-5 ABB
$4,413.82
Only 9 units left

AC DRIVE, ACS880 SERIES, 3-PHASE, WALL MOUNTED, 96 AMP, 55 KW, 380-500 VAC, 50/60 HZ, FRAME SIZE R6
ACS580-01-09A4-4 ABB - 3AUA0000080491
ABB ACS580-01-09A4-4 ABB - 3AUA0000080491
$531.00
Only 7 units left

AC Drive, 3HP 460V

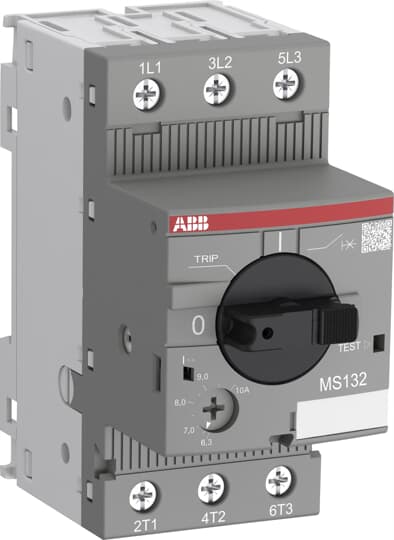

1SAM350000R1006 ABB - MS132-1.6
ABB 1SAM350000R1006 ABB - MS132-1.6
$117.13
Only 6 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362010

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals (Part 2):

Dimensions

Product Net Width:
45 mm
Product Net Height:
90 mm
Product Net Depth / Length:
86.75 mm
Product Net Weight:
0.265 kg

Technical

Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 100 kA
(250 V DC) 3 Poles in Series 10 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
(230 V AC) 100 kA
(250 V DC) 3 Poles in Series 10 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
(230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
Rated Instantaneous Short-Circuit Current Setting (Ii):
20 A
Setting Range:
1.0 ... 1.6 A
Rated Operational Power AC-3 (Pe):
(400 V) Three Phase 0.55 kW
Rated Operational Power AC-3e (Pe):
(400 V) Three Phase 0.55 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Main Circuit 250 V DC
Main Circuit 690 V AC
Main Circuit 250 V DC
Rated Operational Current (Ie):
1.6 A
Rated Operational Current AC-3 (Ie):
1.6 A
Rated Operational Current AC-3e (Ie):
1.6 A
Rated Operational Current DC-5 (Ie):
1.6 A
Rated Frequency (f):
Main Circuit 50 Hz
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit 60 Hz
Operating Frequency (fsw):
0 ... 400 Hz
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
690 V
Power Loss:
at Rated Operating Conditions per Pole 0.6 ... 1.7 W
Number of Poles:
3P
Conventional Free-air Thermal Current (Ith):
Main Circuit 1.6 A
Degree of Protection:
Housing IP20
Main Circuit Terminals IP10
Housing IP20
Main Circuit Terminals IP10
Pollution Degree:
3
Electrical Durability:
50000 cycle
Mechanical Durability:
Nr. Operations 100000 cycle
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Tightening Torque:
Main Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:
Main Circuit 9 mm
Recommended Screw Driver:
Pozidriv 2
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Minimum Mounting Distance:
Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
Electrical Conductive Board, Vertical 75 mm
Other Device Same Type, Horizontal 0 mm
Other Device Same Type, Vertical 150 mm
Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
Electrical Conductive Board, Vertical 75 mm
Other Device Same Type, Horizontal 0 mm
Other Device Same Type, Vertical 150 mm
Actuator Type:
Rotary Handle
Contact Position Indication:
ON / OFF / TRIP
Standards:
IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2L
IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2L
Remarks:
UL508 Self-Protected Combination Motor Controller (Type E) in combination with feeder block S1-M3-xx

Technical UL/CSA

Short-Circuit Current Rating (SCCR):
Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kA
Manual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA
Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kA
Manual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Horsepower Rating UL/CSA:
(440 ... 480 V AC) Three Phase 0.75 Hp
(550 ... 600 V AC) Three Phase 0.75 Hp
(440 ... 480 V AC) Three Phase 0.75 Hp
(550 ... 600 V AC) Three Phase 0.75 Hp
Full Load Amps Motor Use:
(200 V AC) Three Phase 1.6 A
(208 V AC) Three Phase 1.6 A
(220 ... 240 V AC) Three Phase 1.6 A
(440 ... 480 V AC) Three Phase 1.6 A
(200 V AC) Three Phase 1.6 A
(208 V AC) Three Phase 1.6 A
(220 ... 240 V AC) Three Phase 1.6 A
(440 ... 480 V AC) Three Phase 1.6 A
Locked Rotor Amps:
(200 V AC) Three Phase 9.6 A
(208 V AC) Three Phase 9.6 A
(220 ... 240 V AC) Three Phase 9.6 A
(440 ... 480 V AC) Three Phase 9.6 A
(550 ... 600 V AC) Three Phase 9.6 A
(200 V AC) Three Phase 9.6 A
(208 V AC) Three Phase 9.6 A
(220 ... 240 V AC) Three Phase 9.6 A
(440 ... 480 V AC) Three Phase 9.6 A
(550 ... 600 V AC) Three Phase 9.6 A
General Use Rating UL/CSA:
(600 V AC) 1.6 A
Connecting Capacity Main Circuit UL/CSA:
Flexible 1/2x 16-12 AWG
Stranded 1/2x 16-12 AWG
Flexible 1/2x 16-12 AWG
Stranded 1/2x 16-12 AWG
Tightening Torque UL/CSA:
Main Circuit 10 ... 12 in·lb

Environmental

Ambient Air Temperature:
Around the Enclosure 0 ... +40 °C
Operation -25 ... +70 °C
Operation Compensated -25 ... +60 °C
Storage -50 ... +80 °C
Around the Enclosure 0 ... +40 °C
Operation -25 ... +70 °C
Operation Compensated -25 ... +60 °C
Storage -50 ... +80 °C
Ambient Air Temperature Compensation:
Yes
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

LR Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
92 mm
Package Level 1 Depth / Length:
95 mm
Package Level 1 Height:
50 mm
Package Level 1 Gross Weight:
0.28 kg
Package Level 1 EAN:
4013614400063
Package Level 2 Units:
carton 40 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
11.586 kg
Package Level 2 EAN:
4013614408960

External Classifications and Standards

Object Classification Code:
F
ETIM 9:
EC000074 - Motor protection circuit-breaker
ETIM 10:
EC000074 - Motor protection circuit-breaker
eClass:
V11.0 : 27370401
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4731 >> Manual Starters
E-Number (Finland):
3705990
E-Number (Norway):
4364075
E-Number (Sweden):
3112122
ACS880-01-034A-5 ABB
ABB ACS880-01-034A-5 ABB
$2,253.69
In stock, 13 units

AC DRIVE, ACS880 SERIES, 3-PHASE, WALL MOUNTED, 34 AMP, 18.5 KW, 380-500 VAC, 50/60 HZ, FRAME SIZE R3
ACS143-4K1-3-U ABB
ABB ACS143-4K1-3-U ABB
$1,482.95
Only 6 units left

AC DRIVE, TYPE ACS140 FREQUENCY CONVERTER, FRAME SIZE D, 3 PHASE, 380-480 VAC INPUT, 50/60 HZ, 7.9 AMP, 0-300 HZ OUTPUT, 4.9 AMP, 2.2 KW / 3 HP
ACS150-03E-04A1-4 ABB
ABB ACS150-03E-04A1-4 ABB
$320.25
In stock, 12 units

ACS150 1.5kW 400V 3ph AC Inverter Drive, DBr, C3 EMC
ACS150-03E-03A3-4 ABB
ABB ACS150-03E-03A3-4 ABB
$297.57
Only 6 units left

ACS150 1.1kW 400V 3ph AC Inverter Drive, DBr, C3 EMC
ACS310-03E-01A3-4 ABB
ABB ACS310-03E-01A3-4 ABB
$355.50
In stock, 16 units

ACS310 HVAC IP20 0.37kW 400V 3ph AC Inverter Drive, C3 EMC
ACS550-U1-072A-4 ABB
ABB ACS550-U1-072A-4 ABB
$2,394.93
Only 4 units left

ACS550, 50HP, 3-Phase, 380-480V (Input), Nema 1 Enclosure, Variable Frequency Drives
ACS880-01-12A6-3 ABB
ABB ACS880-01-12A6-3 ABB
$1,126.74
In stock, 15 units

AC Drive, 3-Phase, 380 to 415V at 50/60 Hz, IP21, 5HP, 10A, 400V
ACS880-01-414A-5 ABB
ABB ACS880-01-414A-5 ABB
$12,411.08
Only 2 units left

AC DRIVE, ACS880 SERIES, 3 PHASE, 380-500 VAC, 350 HP, 414 AMP, 250 KW, 6000 WATT, 50/60 HZ, IP21
ACS580-01-033A-4 ABB
ABB ACS580-01-033A-4 ABB
$1,103.67
In stock, 14 units

ACS580 IP21 11kW/15kW 400V 3ph AC Inverter, HMI, DBr, STO, C2 EMC
ACS355-03U-23A1-4 - ABB
ABB ACS355-03U-23A1-4 - ABB
$1,537.07
Only 5 units left

ACS355, 15HP, 3-Phase, 380-480V (Input), IP20 Enclosure, Variable Frequency Drives
ACH550-PDR-072A-4 ABB
ABB ACH550-PDR-072A-4 ABB
$6,578.99
Only 1 unit left

AC DRIVE, 380-480V, 3PHASE
ACS310-03U-13A8-4 - ABB
ABB ACS310-03U-13A8-4 - ABB
$0.00
Sold Out

Variable Frequency Drive, 400 – 480 VAC 3 Phase Input, 480 VAC 3 Phase Output, 12.5 Amps
ACH550-UH-017A-2 ABB
ABB ACH550-UH-017A-2 ABB
$2,526.99
Only 3 units left

AC DRIVE, 550 SERIES, 3 PHASE, 208-240 V AC, 50/60 HZ, 16.7 A, 5 HP
ACH550-UH-045A-4 ABB
ABB ACH550-UH-045A-4 ABB
$3,523.90
Only 3 units left

AC DRIVE, 550 SERIES, 3 PHASE, 380-480 V AC, 50/60 HZ, 44 A, 30 HP

Recently viewed
