Drives - Motors - Circuits Protection

1561 products

Showing 337 - 360 of 1561 products

Showing 337 - 360 of 1561 products
View
E2B1600PR121/P-LSIIn=1600A4pWMP ABB - 1SDA055817R1
ABB E2B1600PR121/P-LSIIn=1600A4pWMP ABB - 1SDA055817R1
$0.00
Sold Out

E2B 1600 PR121/P-LSI In=1600A 4p W MP

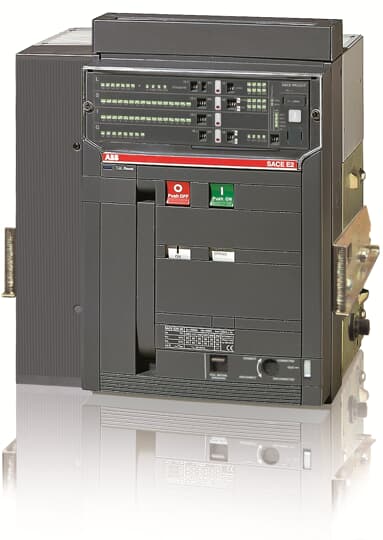

1SDA056040R1 ABB - E2S2000PR121/P-LIIn=2000A4pWMP
ABB 1SDA056040R1 ABB - E2S2000PR121/P-LIIn=2000A4pWMP
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:
8015644573805
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
414 mm
Product Net Height:
461 mm
Product Net Depth / Length:
396.5 mm
Product Net Weight:
61 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
615 mm
Package Level 1 Gross Weight:
73 kg
Package Level 1 EAN:
8015644573805

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
4P
Power Loss:
330 W
Rated Current (In):
2000 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
2000 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 65 kA
for 3 s 50 kA
for 1 s 65 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu):
2000 A
Rated Voltage (Ur):
690 V
Release:
PR121/P-LI
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
E2
Terminal Connection Type:
Withdrawable Circuit-Breakers

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

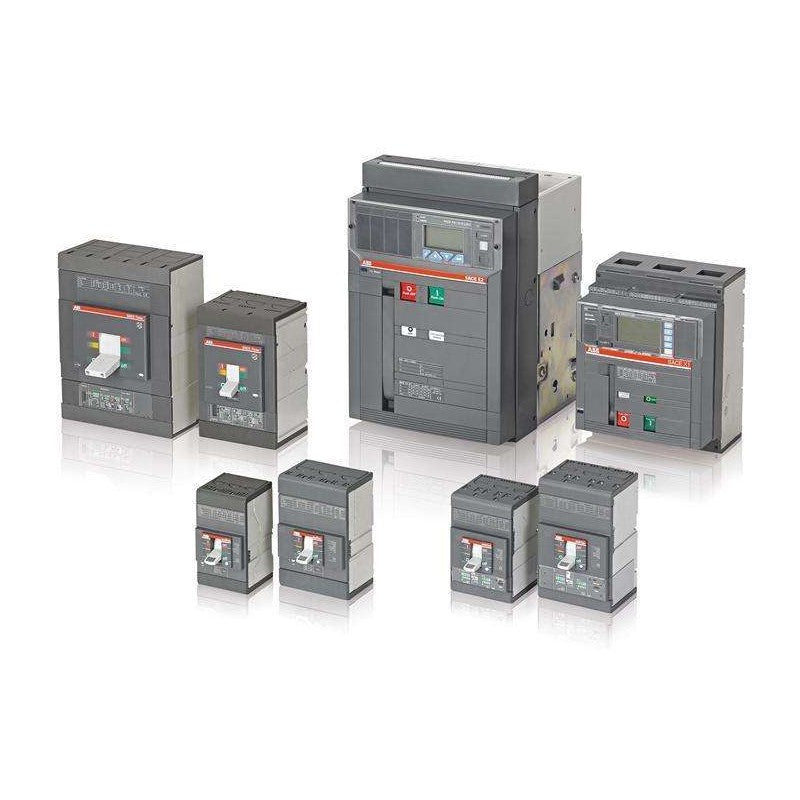

E2B1600PR121/P-LSIIn=1600A3pFHR ABB - 1SDA055793R1
ABB E2B1600PR121/P-LSIIn=1600A3pFHR ABB - 1SDA055793R1
$0.00
Sold Out

E2B 1600 PR121/P-LSI In=1600A 3p F HR
E2B2000PR122/P-LIIn=2000A4pWMP ABB - 1SDA055851R1
ABB E2B2000PR122/P-LIIn=2000A4pWMP ABB - 1SDA055851R1
$0.00
Sold Out

E2B 2000 PR122/P-LI IN=2000A 4P W MP
E2B1600PR122/P-LIIn=1600A4pFHR ABB - 1SDA055803R1
ABB E2B1600PR122/P-LIIn=1600A4pFHR ABB - 1SDA055803R1
$0.00
Sold Out

E2B 1600 PR122/P-LI In=1600A 4p F HR
E2B2000PR121/P-LIIn=2000A3pWMP ABB - 1SDA055840R1
ABB E2B2000PR121/P-LIIn=2000A3pWMP ABB - 1SDA055840R1
$0.00
Sold Out

E2B 2000 PR121/P-LI In=2000A 3p W MP

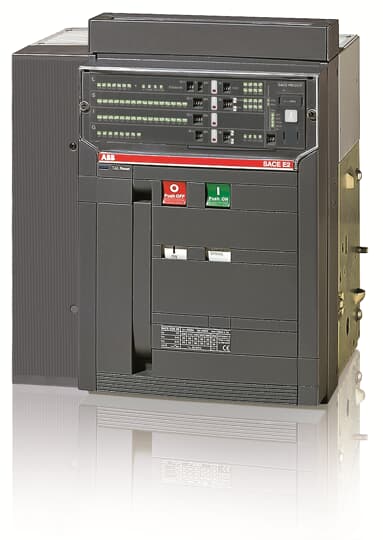

1SDA055865R1 ABB - E2N1250PR121/P-LSIIn=1250A4pFHR
ABB 1SDA055865R1 ABB - E2N1250PR121/P-LSIIn=1250A4pFHR
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:
8015644572051
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
386 mm
Product Net Height:
418 mm
Product Net Depth / Length:
302 mm
Product Net Weight:
56 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
615 mm
Package Level 1 Gross Weight:
68 kg
Package Level 1 EAN:
8015644572051

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Ue =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
4P
Power Loss:
70 W
Rated Current (In):
1250 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
1250 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 55 kA
for 3 s 42 kA
for 1 s 55 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Uninterrupted Current (Iu):
1250 A
Rated Voltage (Ur):
690 V
Release:
PR121/P-LSI
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E2
Terminal Connection Type:
Fixed Circuit-Breakers
Rear flat Horizontal
Fixed Circuit-Breakers
Rear flat Horizontal

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E2B1600PR121/P-LSIGIn=1600A4pWMP ABB - 1SDA055818R1
ABB E2B1600PR121/P-LSIGIn=1600A4pWMP ABB - 1SDA055818R1
$0.00
Sold Out

E2B 1600 PR121/P-LSIG In=1600A 4p W MP
E2B2000PR122/P-LSIIn=2000A4pFHR ABB - 1SDA055836R1
ABB E2B2000PR122/P-LSIIn=2000A4pFHR ABB - 1SDA055836R1
$0.00
Sold Out

E2B 2000 PR122/P-LSI In=2000A 4p F HR
E2B2000PR122/P-LSIIn=2000A3pFHR ABB - 1SDA055828R1
ABB E2B2000PR122/P-LSIIn=2000A3pFHR ABB - 1SDA055828R1
$0.00
Sold Out

E2B 2000 PR122/P-LSI IN=2000A 3P F HR

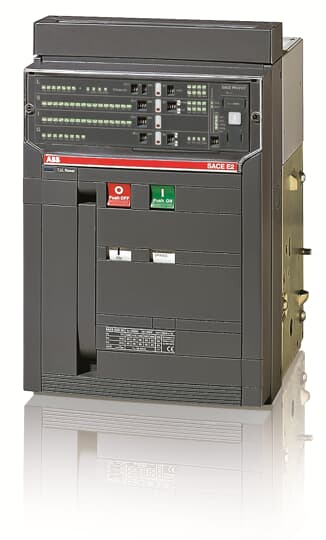

1SDA055826R1 ABB - E2B2000PR121/P-LSIGIn=2000A3pFHR
ABB 1SDA055826R1 ABB - E2B2000PR121/P-LSIGIn=2000A3pFHR
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
SCIP:
b7727ea7-9cbd-4701-970b-46a633690edd Italy
Simplified SCIP:
4d58aac3-c72e-4a26-b16b-b83481b97c3a Poland
e2e65a6c-9a29-4118-8cb8-fa60df2c08d5 Belgium
96be4de9-4379-4953-bb76-15ea2be7360e France
a5713139-6d99-402e-bda5-6ae550947292 Sweden
b1fbf218-51dd-4768-9608-ff86b32f496b Germany
bc19c316-cf5d-4f57-8c58-92fb5108921a Sweden
25f5d032-84d0-4bff-9e02-2a30cf5ae0fb Estonia
9c028653-8a33-4ec4-a9d9-599fe36968e8 Belgium
c14be696-2ef4-44b1-b2c6-d6a30098cdcf Greece
bd0d53dd-f5bd-471f-bc57-18738d9403b5 Germany
1c410924-aabb-4a8d-ad35-2100f6085d3a Hungary
11584053-4756-4daf-ae5d-50a6292e4f8c France
7ed90e83-3d28-4683-ba88-cd27b0feb5b7 Spain
f2809926-85b2-4cbe-aafa-33fb3228f75b Bulgaria
b91fbf06-52bf-49d2-8315-643cec6b446b Netherlands
c58054fa-cef3-4503-85c5-b5fef356821d Germany
fdc7a35a-b077-44fc-8332-f4a4a5124b7d Poland
e6af36e5-26b8-4e7d-b962-d8c41df17141 Poland
16fa91a4-d606-4861-b215-405867238043 Finland
1b493444-a607-4773-bc4c-6561fa8c90c7 Germany
793b561d-507d-436c-9031-9f81ddea25fb Norway
ef5dee0e-bb49-4425-aa16-88a0a5d4a96b Germany
a3b681e5-28ac-4ea5-9bdb-e4b10e46f02f Denmark
c033092e-af94-40c7-8ca2-b828621165fc Czech Republic
cf224856-bcf4-4f90-8091-f7a05e50947e Portugal
96770e0b-0b67-4ec2-ac19-1ea2d3f7b64f Hungary
2f335e32-349a-47d9-a338-69455e27f302 Croatia
4d58aac3-c72e-4a26-b16b-b83481b97c3a Poland
e2e65a6c-9a29-4118-8cb8-fa60df2c08d5 Belgium
96be4de9-4379-4953-bb76-15ea2be7360e France
a5713139-6d99-402e-bda5-6ae550947292 Sweden
b1fbf218-51dd-4768-9608-ff86b32f496b Germany
bc19c316-cf5d-4f57-8c58-92fb5108921a Sweden
25f5d032-84d0-4bff-9e02-2a30cf5ae0fb Estonia
9c028653-8a33-4ec4-a9d9-599fe36968e8 Belgium
c14be696-2ef4-44b1-b2c6-d6a30098cdcf Greece
bd0d53dd-f5bd-471f-bc57-18738d9403b5 Germany

Environmental

Environmental Information:

Ordering

EAN:
8015644571665
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
296 mm
Product Net Height:
418 mm
Product Net Depth / Length:
302 mm
Product Net Weight:
45 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
515 mm
Package Level 1 Gross Weight:
55 kg
Package Level 1 EAN:
8015644571665

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
180 W
Rated Current (In):
2000 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
2000 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 42 kA
for 3 s 42 kA
for 1 s 42 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu):
2000 A
Rated Voltage (Ur):
690 V
Release:
PR121/P-LSIG
Release Type:
EL
Short-Circuit Performance Level:
B
Standards:
IEC
Sub-type:
E2
Terminal Connection Type:
Fixed Circuit-Breakers
Rear flat Horizontal
Fixed Circuit-Breakers
Rear flat Horizontal

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E2B1600PR121/P-LIIn=1600A4pWMP ABB - 1SDA055816R1
ABB E2B1600PR121/P-LIIn=1600A4pWMP ABB - 1SDA055816R1
$0.00
Sold Out

E2B 1600 PR121/P-LI In=1600A 4p W MP
E2B2000PR121/P-LSIIn=2000A3pFHR ABB - 1SDA055825R1
ABB E2B2000PR121/P-LSIIn=2000A3pFHR ABB - 1SDA055825R1
$0.00
Sold Out

E2B 2000 PR121/P-LSI In=2000A 3p F HR
E2B2000PR121/P-LSIGIn=2000A4pWMP ABB - 1SDA055850R1
ABB E2B2000PR121/P-LSIGIn=2000A4pWMP ABB - 1SDA055850R1
$0.00
Sold Out

E2B 2000 PR121/P-LSIG In=2000A 4p W MP
E2N1250PR121/P-LSIGIn=1250A3pWMP ABB - 1SDA055874R1
ABB E2N1250PR121/P-LSIGIn=1250A3pWMP ABB - 1SDA055874R1
$0.00
Sold Out

E2N 1250 PR121/P-LSIG IN=1250A 3P W MP
E2N1250PR122/P-LIIn=1250A3pFHR ABB - 1SDA055859R1
ABB E2N1250PR122/P-LIIn=1250A3pFHR ABB - 1SDA055859R1
$0.00
Sold Out

E2N 1250 PR122/P-LI In=1250A 3p F HR
E2B2000PR121/P-LSIIn=2000A3pWMP ABB - 1SDA055841R1
ABB E2B2000PR121/P-LSIIn=2000A3pWMP ABB - 1SDA055841R1
$0.00
Sold Out

E2B 2000 PR121/P-LSI In=2000A 3p W MP
E2N1250PR121/P-LIIn=1250A3pWMP ABB - 1SDA055872R1
ABB E2N1250PR121/P-LIIn=1250A3pWMP ABB - 1SDA055872R1
$0.00
Sold Out

E2N 1250 PR121/P-LI In=1250A 3p W MP
E2B2000PR122/P-LIIn=2000A3pWMP ABB - 1SDA055843R1
ABB E2B2000PR122/P-LIIn=2000A3pWMP ABB - 1SDA055843R1
$0.00
Sold Out

E2B 2000 PR122/P-LI In=2000A 3p W MP
E2N1600PR121/P-LIIn=1600A3pFHR ABB - 1SDA055888R1
ABB E2N1600PR121/P-LIIn=1600A3pFHR ABB - 1SDA055888R1
$0.00
Sold Out

E2N 1600 PR121/P-LI IN=1600A 3P F HR
E2N1250PR122/P-LSIIn=1250A3pFHR ABB - 1SDA055860R1
ABB E2N1250PR122/P-LSIIn=1250A3pFHR ABB - 1SDA055860R1
$0.00
Sold Out

E2N 1250 PR122/P-LSI IN=1250A 3P F HR
E2B2000PR121/P-LSIIn=2000A4pFHR ABB - 1SDA055833R1
ABB E2B2000PR121/P-LSIIn=2000A4pFHR ABB - 1SDA055833R1
$0.00
Sold Out

E2B 2000 PR121/P-LSI IN=2000A 4P F HR
E2N1250PR122/P-LSIIn=1250A3pWMP ABB - 1SDA055876R1
ABB E2N1250PR122/P-LSIIn=1250A3pWMP ABB - 1SDA055876R1
$0.00
Sold Out

E2N 1250 PR122/P-LSI In=1250A 3p W MP
E2N1250PR121/P-LSIGIn=1250A4pFHR ABB - 1SDA055866R1
ABB E2N1250PR121/P-LSIGIn=1250A4pFHR ABB - 1SDA055866R1
$0.00
Sold Out

E2N 1250 PR121/P-LSIG In=1250A 4p F HR

Recently viewed
