AC Variable Frequency Drives

25001 products

Showing 145 - 168 of 25001 products

Showing 145 - 168 of 25001 products
View
CIMR-AU4A0072AAA Yaskawa
Yaskawa CIMR-AU4A0072AAA Yaskawa
$2,691.97
Only 5 units left

A1000 series - AC Drive - 380Vac-480Vac - 72A/60A - 50HP - 3-phase input (3P)
6SL3120-2TE21-0AD0 Siemens
Siemens 6SL3120-2TE21-0AD0 Siemens
$1,406.03
Only 10 units left
Product
Article Number (Market Facing Number) 6SL31202TE210AD0 | 6SL31202TE210AD0
Product Description SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3-PH 400V, 9A/9A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Additional Product Information
EAN 4034106439712
UPC 804766199493
Commodity Code 85044086
LKZ_FDB/ CatalogID D21MC
Product Group 9617
Group Code R220
Country of origin Germany
SCIP number Not available
Delivery information
Net Weight (lb) 10.362 lb
Package size unit of measure Not available
Packaging Quantity 1
6SL3201-0BE21-8AA0 Siemens
Siemens 6SL3201-0BE21-8AA0 Siemens
$348.64
Only 7 units left
Product
Article Number (Market Facing Number) 6SL32010BE218AA0 | 6SL32010BE218AA0
Product Description SINAMICS BRAKING RESISTOR R=75Ohm P_rated=375W P_max=7500W/12s/5% duty STANDALONE
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Additional Product Information
EAN 4042948660201
UPC 887621217785
Commodity Code 85332900
LKZ_FDB/ CatalogID D11.1SD
Product Group 9791
Group Code R220
Country of origin Germany
SCIP number Not available
Delivery information
Net Weight (lb) 6.019 lb
Package size unit of measure Inch
Packaging Quantity 1
6SE6440-2UD31-1CA1 Siemens
Siemens 6SE6440-2UD31-1CA1 Siemens
$1,105.67
In stock, 12 units
Product
Article Number (Market Facing Number) 6SE64402UD311CA1 | 6SE64402UD311CA1
Product Description
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
Additional Product Information
EAN 4019169450546
UPC 783087635760
Commodity Code 85044086
LKZ_FDB/ CatalogID DA51-E
Product Group 9848
Group Code R2S3
Country of origin Great Britain
SCIP number Not available
Delivery information
Net Weight (lb) 12.125 lb
Package size unit of measure Inch
Packaging Quantity 1
VFD110C43A-21 Delta
Delta VFD110C43A-21 Delta
$645.65
Only 10 units left

The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors. Features Include: Advanced Drive Controls For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode Versatile Drive Controls Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control Environmental Adaptability Built-in DC reactor | Built-in EMC filter | 50˚C operating temperature Modular Design Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan Others Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform

ACS355-03E-08A8-4 ABB
ABB ACS355-03E-08A8-4 ABB
$723.34
In stock, 17 units

ACS355 4kW 400V 3ph AC Inverter Drive, STO, C3 EMC

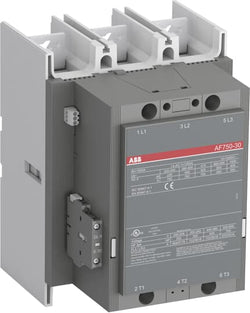

1SFL637001R7011 ABB - AF750-30-11-70
ABB 1SFL637001R7011 ABB - AF750-30-11-70
$2,203.29
Only 5 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Dimensions

Product Net Width:
210 mm
Product Net Depth / Length:
242 mm
Product Net Height:
283 mm
Product Net Weight:
13.6 kg

Technical

Number of Main Contacts NO:
3
Number of Main Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Number of Auxiliary Contacts NC:
1
Number of Poles:
3P
Rated Operational Voltage:
Main Circuit 1000 V
Rated Frequency (f):
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 1050 A
Rated Operational Current AC-1 (Ie):
(1000 V) 40 °C 1000 A
(1000 V) 55 °C 875 A
(1000 V) 70 °C 720 A
(690 V) 40 °C 1050 A
(690 V) 55 °C 875 A
(690 V) 70 °C 720 A
(1000 V) 40 °C 1000 A
(1000 V) 55 °C 875 A
(1000 V) 70 °C 720 A
(690 V) 40 °C 1050 A
(690 V) 55 °C 875 A
(690 V) 70 °C 720 A
Rated Operational Current AC-3 (Ie):
(415 V) 55 °C 750 A
(440 V) 55 °C 750 A
(500 V) 55 °C 750 A
(690 V) 55 °C 650 A
(1000 V) 55 °C 300 A
(380 / 400 V) 55 °C 750 A
(220 / 230 / 240 V) 55 °C 750 A
(415 V) 55 °C 750 A
(440 V) 55 °C 750 A
(500 V) 55 °C 750 A
(690 V) 55 °C 650 A
(1000 V) 55 °C 300 A
(380 / 400 V) 55 °C 750 A
(220 / 230 / 240 V) 55 °C 750 A
Rated Operational Current DC-1 (Ie):
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(850 V) 3 Poles in Series, 40 °C 1050 A
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(850 V) 3 Poles in Series, 40 °C 1050 A
Rated Operational Current DC-3 (Ie):
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
Rated Operational Current DC-5 (Ie):
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
Rated Operational Power AC-3 (Pe):
(415 V) 425 kW
(440 V) 450 kW
(500 V) 520 kW
(690 V) 600 kW
(1000 V) 400 kW
(380 / 400 V) 400 kW
(220 / 230 / 240 V) 220 kW
(415 V) 425 kW
(440 V) 450 kW
(500 V) 520 kW
(690 V) 600 kW
(1000 V) 400 kW
(380 / 400 V) 400 kW
(220 / 230 / 240 V) 220 kW
Rated Breaking Capacity AC-3:
8 x Ie AC-3
Rated Making Capacity AC-3:
10 x Ie AC-3
Short-Circuit Protective Devices:
gG Type Fuses 1000 A
Rated Short-time Withstand Current Low Voltage (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 7500 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 7000 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 7500 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 7000 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 8 kV
Maximum Electrical Switching Frequency:
(AC-1) 300 cycles per hour
(AC-2 / AC-4) 60 cycles per hour
(AC-3) 300 cycles per hour
(AC-1) 300 cycles per hour
(AC-2 / AC-4) 60 cycles per hour
(AC-3) 300 cycles per hour
Mechanical Durability:
3 million
Maximum Mechanical Switching Frequency:
300 cycles per hour
Coil Operating Limits:
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc):
50 Hz 100...250 V
60 Hz 100...250 V
DC Operation 100 ... 250 V
50 Hz 100...250 V
60 Hz 100...250 V
DC Operation 100 ... 250 V
Coil Consumption:
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage DC 5 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 880 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 880 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 880 V·A
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage DC 5 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 880 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 880 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 880 V·A
Power Loss:
at Rated Operating Conditions per Pole 50 W
Operate Time:
Between Coil De-energization and NC Contact Closing 50 ... 70 ms
Between Coil De-energization and NO Contact Opening 53 ... 73 ms
Between Coil Energization and NC Contact Opening 45 ... 115 ms
Between Coil Energization and NO Contact Closing 50 ... 120 ms
Between Coil De-energization and NC Contact Closing 50 ... 70 ms
Between Coil De-energization and NO Contact Opening 53 ... 73 ms
Between Coil Energization and NC Contact Opening 45 ... 115 ms
Between Coil Energization and NO Contact Closing 50 ... 120 ms
Connecting Capacity Main Circuit:
Bar 52 mm²
Rigid Al-Cable 3x185 mm²
Rigid Cu-Cable 300 mm²
Bar 52 mm²
Rigid Al-Cable 3x185 mm²
Rigid Cu-Cable 300 mm²
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 1x0.75 ... 2.5 mm²
Solid 2 x 1 ... 4 mm²
Stranded 1 x 1 .... 4 mm²
Flexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 1x0.75 ... 2.5 mm²
Solid 2 x 1 ... 4 mm²
Stranded 1 x 1 .... 4 mm²
Connecting Capacity:
Bar 52 mm²
Rigid Al-Cable 3x185 mm²
Rigid Cu-Cable 300 mm²
Bar 52 mm²
Rigid Al-Cable 3x185 mm²
Rigid Cu-Cable 300 mm²
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque:
Cable Lug 45 N·m
Main Circuit 45 N·m
Cable Lug 45 N·m
Main Circuit 45 N·m
Terminal Type:
Main Circuit: Bars
Product Name:
Block Contactor

Technical UL/CSA

NEMA Size:
7
Horsepower Rating NEMA:
(230 V AC) Three Phase 300 Hp
(460 V AC) Three Phase 600 Hp
(575 V AC) Three Phase 600 Hp
(230 V AC) Three Phase 300 Hp
(460 V AC) Three Phase 600 Hp
(575 V AC) Three Phase 600 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 1000 V
General Use Rating UL/CSA:
(1000 V AC) 900 A
(600 V AC) 900 A
(1000 V AC) 900 A
(600 V AC) 900 A
Horsepower Rating UL/CSA:
(200 V AC) Three Phase 250 hp
(208 V AC) Three Phase 250 hp
(220 ... 240 V AC) Three Phase 300 hp
(440 ... 480 V AC) Three Phase 600 hp
(550 ... 600 V AC) Three Phase 700 hp
(200 V AC) Three Phase 250 hp
(208 V AC) Three Phase 250 hp
(220 ... 240 V AC) Three Phase 300 hp
(440 ... 480 V AC) Three Phase 600 hp
(550 ... 600 V AC) Three Phase 700 hp
Full Load Amps Motor Use:
(440 ... 480 V AC) Three Phase 722 A
(550 ... 600 V AC) Three Phase 672 A
(440 ... 480 V AC) Three Phase 722 A
(550 ... 600 V AC) Three Phase 672 A

Environmental

Ambient Air Temperature:
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C
Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C
Close to Contactor for Storage -40 ... 70 °C
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C
Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C
Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible:
Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27:
Shock Direction: A 5 g
Shock Direction: B1 5 g
Shock Direction: B2 5 g
Shock Direction: C1 5 g
Shock Direction: C2 5 g
Shock Direction: A 5 g
Shock Direction: B1 5 g
Shock Direction: B2 5 g
Shock Direction: C1 5 g
Shock Direction: C2 5 g

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:
CSA Certificate:
Declaration of Conformity - UKCA:
DNV Certificate:
EAC Certificate:
GL Certificate:
LOVAG Certificate:
RMRS Certificate:
UL Listing Card:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
280 mm
Package Level 1 Depth / Length:
375 mm
Package Level 1 Height:
310 mm
Package Level 1 Gross Weight:
15 kg
Package Level 1 EAN:
7320500217702

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000066 - Power contactor, AC switching
ETIM 8:
EC000066 - Power contactor, AC switching
ETIM 9:
EC000066 - Power contactor, AC switching
eClass:
V11.0 : 27371003
UNSPSC:
39121529
IDEA Granular Category Code (IGCC):
4758 >> Iec Contactors
E-Number (Finland):
3709335
E-Number (Norway):
4115300
E-Number (Sweden):
3228366
ACS550-U1-097A-4 ABB
ABB ACS550-U1-097A-4 ABB
$3,332.16
Only 5 units left

ACS550, 75HP, 3-Phase, 380-480V (Input), Nema 1 Enclosure, Variable Frequency Drives
ACH550-UH-045A-4 ABB
ABB ACH550-UH-045A-4 ABB
$3,160.57
Only 1 unit left

AC DRIVE, 550 SERIES, 3 PHASE, 380-480 V AC, 50/60 HZ, 44 A, 30 HP
CIPR-GA50U4004ABAA Yaskawa
Yaskawa CIPR-GA50U4004ABAA Yaskawa
$346.85
In stock, 18 units

Yaskawa GA50U4004ABA 480 Volt Three Phase 4.1 Amp 2 HP Microdrive
CIMR-VC4A0038FAA Yaskawa
Yaskawa CIMR-VC4A0038FAA Yaskawa
$767.54
In stock, 12 units

Inverter Drive 31 380...480V Ac, 15Kw
6SL3120-2TE15-0AD0 Siemens
Siemens 6SL3120-2TE15-0AD0 Siemens
$1,226.82
In stock, 13 units
Product
Article Number (Market Facing Number) 6SL31202TE150AD0 | 6SL31202TE150AD0
Product Description SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A/5A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Additional Product Information
EAN 4034106439705
UPC 804766199486
Commodity Code 85044085
LKZ_FDB/ CatalogID D21MC
Product Group 9617
Group Code R220
Country of origin Germany
SCIP number 93397408-f418-448c-a800-8f22b48b7ade
Delivery information
Net Weight (lb) 10.362 lb
Package size unit of measure Not available
Packaging Quantity 1
6SL3120-1TE21-8AA4 Siemens
Siemens 6SL3120-1TE21-8AA4 Siemens
$2,069.19
In stock, 14 units
Product
Article Number (Market Facing Number) 6SL31201TE218AA4 | 6SL31201TE218AA4
Product Description ***spare part*** SINAMICS S120 Single Motor Module input: 600 V DC output: 400 V 3 AC, 18 A type of construction: booksize internal air cooling optimized pulse patterns and support of the extended Safety Integrated functions incl. DRIVE-CLiQ cable
Product family Not available
Product Lifecycle (PLM) PM490:Start of final year of support
Additional Product Information
EAN Not available
UPC 887621204082
Commodity Code 85044086
LKZ_FDB/ CatalogID D21MC
Product Group 9485
Group Code R2S3
Country of origin Germany
SCIP number 52e5ad74-b511-425b-9d09-b9bd43e665c2
Delivery information
Net Weight (lb) 11.155 lb
Package size unit of measure Not available
Packaging Quantity 1
6SL3210-5BB17-5UV1 Siemens
Siemens 6SL3210-5BB17-5UV1 Siemens
$161.46
Only 9 units left
Product
Article Number (Market Facing Number) 6SL32105BB175UV1 | 6SL32105BB175UV1
Product Description SINAMICS V20 200-240V 1AC -10/+10% 47-63Hz rated power 0.75 kW with 150% overload for 60 sec. unfiltered I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP protection: IP20/ UL open size: QB 68x142x128 (WxHxD)
Product family SINAMICS V20 basic converters
Product Lifecycle (PLM) PM300:Active Product
Additional Product Information
EAN 4042948669860
UPC 804766253300
Commodity Code 85044095
LKZ_FDB/ CatalogID SINAMICS V20
Product Group 5680
Group Code R220
Country of origin China
SCIP number Not available
Delivery information
Net Weight (lb) 1.764 lb
Package size unit of measure Inch
Packaging Quantity 1
6SL3210-1PE21-8UL0 Siemens
Siemens 6SL3210-1PE21-8UL0 Siemens
$430.58
Only 9 units left
Product
Article Number (Market Facing Number) 6SL32101PE218UL0 | 6SL32101PE218UL0
Product Description SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 5,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 7,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Additional Product Information
EAN 4042948666081
UPC 887621708542
Commodity Code 85044095
LKZ_FDB/ CatalogID D11.1SD
Product Group 9772
Group Code R220
Country of origin Great Britain
SCIP number Not available
Delivery information
Net Weight (lb) 6.614 lb
Package size unit of measure Inch
Packaging Quantity 1
DOP-107EG Delta
Delta DOP-107EG Delta
$337.50
In stock, 13 units

7”(800*600) 65,536 Colors TFT Cortex-A8 800MHz CPU 256 MB RAM 256 MB ROM Built-in Ethernet 2 sets of COM ports / 1 extension COM port USB Host USB Client Supports SD card CE / UL certified Operation Temperature: 0℃ ~ 50℃ Storage Temperature: -20℃ ~ 60℃ Pressing times: >10,000K times

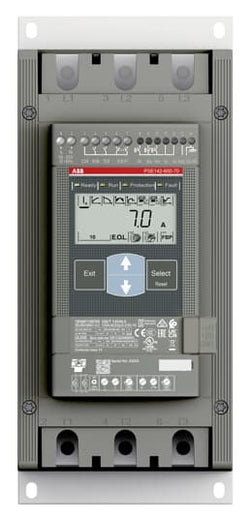

1SFA897110R7000 ABB
ABB 1SFA897110R7000 ABB
$1,387.84
Only 7 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
130 mm
Product Net Height:
295 mm
Product Net Depth / Length:
220 mm
Product Net Weight:
4.4 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 40 kW
(400 V) 75 kW
(500 V) 90 kW
(230 V) 40 kW
(400 V) 75 kW
(500 V) 90 kW
Rated Operational Current - In-Line Connection (Ie):
143 A
Service Factor Percentage:
100 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 18 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 18 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE142
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 40 Hp
(220 ... 240 V AC) Three Phase 50 Hp
(440 ... 480 V AC) Three Phase 100 Hp
(550 ... 600 V AC) Three Phase 125 Hp
(200 ... 208 V AC) Three Phase 40 Hp
(220 ... 240 V AC) Three Phase 50 Hp
(440 ... 480 V AC) Three Phase 100 Hp
(550 ... 600 V AC) Three Phase 125 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 159.3
Supply Circuit 4.4 in·lb
Control Circuit 4.4 in·lb
Main Circuit 159.3
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
203 mm
Package Level 1 Depth / Length:
282 mm
Package Level 1 Height:
363 mm
Package Level 1 Gross Weight:
5.4 kg
Package Level 1 EAN:
7320500400685
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
ACS355-03U-04A1-4 - ABB
ABB ACS355-03U-04A1-4 - ABB
$1,631.18
Only 9 units left

ACS355, 2HP, 3-Phase, 380-480V (Input), IP20 Enclosure, Variable Frequency Drives
ACS880-01-027A-5 ABB
ABB ACS880-01-027A-5 ABB
$2,041.48
In stock, 15 units

Drive, AC, 15HP, 480V, 21.0A, CT, N1 480Vin 3PH 20HP 27.0A VT W/DB Trans
6SL3210-1KE12-3UF2 Siemens
Siemens 6SL3210-1KE12-3UF2 Siemens
$362.45
Only 10 units left
Product
Article Number (Market Facing Number) 6SL32101KE123UF2 | 6SL32101KE123UF2
Product Description SINAMICS G120C rated power 3AC380-480V +10/-20% 47-63Hz low overload: 0,75kW at 150% 3s, 110% 57s, 100% 240s high overload: 0,55kW at 200% 3s, 150% 57s, 100% 240s unfiltered external 24V I/O interface: 6DI, 2DO,1AI,1AO, 1Mot_t Safe Torque Off integrated Fieldbus: PROFINET-PN Protection: IP20/ UL OPEN TYPE Size: FSAA 173X73X160(HXWXD)
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Additional Product Information
EAN 4042948668733
UPC 804766193927
Commodity Code 85044095
LKZ_FDB/ CatalogID D11.1SD
Product Group 5673
Group Code R220
Country of origin Great Britain
SCIP number Not available
Delivery information
Net Weight (lb) 2.646 lb
Package size unit of measure Inch
Packaging Quantity 1
6SE6440-2UD25-5CA1 Siemens
Siemens 6SE6440-2UD25-5CA1 Siemens
$911.62
In stock, 18 units
Product
Article Number (Market Facing Number) 6SE64402UD255CA1 | 6SE64402UD255CA1
Product Description
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
Additional Product Information
EAN 4019169450508
UPC 783087635746
Commodity Code 85044095
LKZ_FDB/ CatalogID DA51-E
Product Group 9848
Group Code R2S3
Country of origin Great Britain
SCIP number 3d1cd754-48ff-4561-bc75-67e58d6b2314
Delivery information
Net Weight (lb) 12.125 lb
Package size unit of measure Inch
Packaging Quantity 1
ACS380-040S-07A2-4 ABB
ABB ACS380-040S-07A2-4 ABB
$553.24
In stock, 13 units

ACS380-040S-07A2-4 PN: 3kW, IN: 7.2A; The ACS380 machinery drive comes in several variants, ensuring seamless integration into machines and connecting perfectly to automation systems. It’s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders, and textile machinery. With the integrated functional safety features, the ACS380 drive can be also part of the machine’s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive’s software can be easily customized with adaptive programming to match any specific application requirements.
ACS550-01-015A-4 ABB
ABB ACS550-01-015A-4 ABB
$807.10
In stock, 13 units

ACS550 IP21 5.5kW/7.5kW 400V 3ph AC Inverter Drive, HMI, DBr, C2 EMC
ACS320-03U-12A5-4 ABB
ABB ACS320-03U-12A5-4 ABB
$2,070.99
Only 6 units left

AC Drive 480VAC, Pn 7.5HP, I2LD 12.5 A, N0/IP20

Recently viewed
