Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital input kit |
| Kit composition | STBXTS2100, 6-terminal spring clamp connector STBXTS1100, 6-terminal screw type connector STBXBA1000 base STBDDI3230 module |
| Discrete input number | 2 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 11...30 V at state 1 -3...5 V at state 0 |
| Acceptable Input Voltage | 30 V |
| Absolute maximum voltage | 56 V 1.3 ms |
| Discrete input current | 7.5 mA |
| Current state 0 guaranteed | <= 2 mA |
| Current state 1 guaranteed | >= 6 mA |
| Discrete input logic | Positive or negative |
| Response time | 0.61 ms off-to-on 0.2 ms 0.625 ms on-to-off 0.2 ms |
| Protection type | Power protection integrated fuse on PDM time lag 10 A Input protection resistor-limited Reverse polarity protection |
| Insulation between channels and logic bus | 2000 V for 1 minute |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| Input filtering | 1 ms 2 ms 4 ms 8 ms 0.5 ms 16 ms +/- 0.1 ms 0.2 ms |
| Current supplied by sensor | 100 mA per channel |
| Product Compatibility | I/O base STBXBA1000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 55 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (IN1 to IN2) 1 LED (Red) module error (ERR) |
| Depth | 2.6 in (65.1 mm) |
| Height | 0.7 in (18.4 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.24 lb(US) (0.11 kg) |

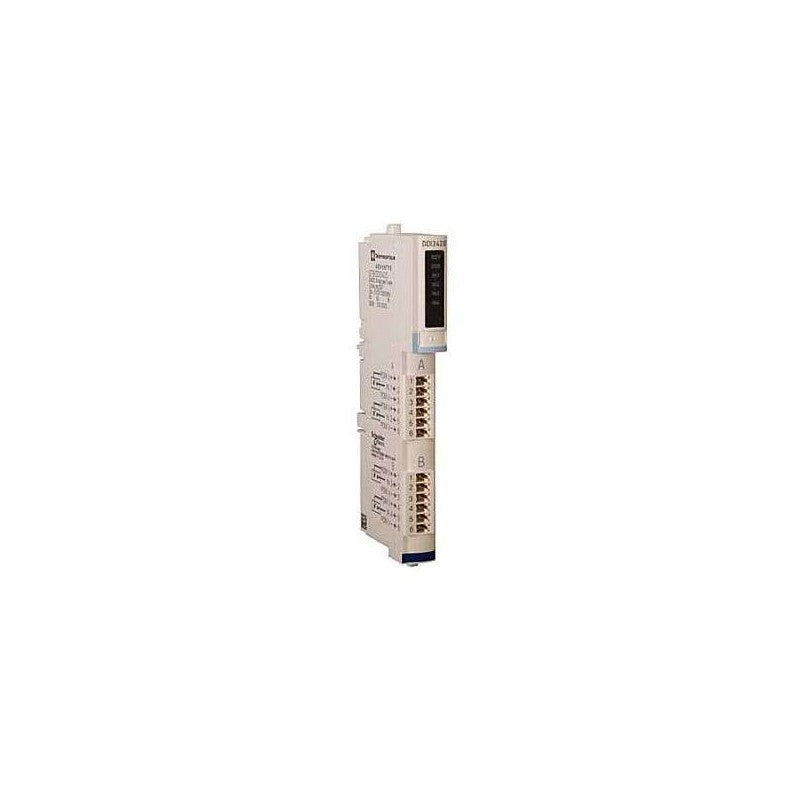

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital input kit |
| Kit composition | STBXTS2100, 6-terminal spring clamp connector STBDDI3420 module STBXTS1100, 6-terminal screw type connector STBXBA1000 base |
| Discrete input number | 4 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 11...30 V at state 1 -3...5 V at state 0 |
| Acceptable Input Voltage | 30 V |
| Absolute maximum voltage | 56 V 1.3 ms |
| Discrete input current | 8 mA |
| Current state 0 guaranteed | <= 1.2 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Discrete input logic | Positive or negative |
| Response time | 0.925 ms off-to-on 0.5 ms 1.35 ms on-to-off 0.5 ms |
| Protection type | Power protection integrated fuse on PDM time lag 10 A Input protection resistor-limited Reverse polarity protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| Input filtering | 1 ms 2 ms 4 ms 8 ms 0.5 ms 16 ms +/- 0.25 ms |
| Current supplied by sensor | 100 mA per channel |
| Product Compatibility | I/O base STBXBA1000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 45 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (IN1 to IN4) 1 LED (Red) module error (ERR) |
| Depth | 2.6 in (65.1 mm) |
| Height | 0.7 in (18.4 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.245 lb(US) (0.111 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Basic digital input kit |
| Kit composition | STBXBA1000 base STBDDI3425 module STBXTS2100, 6-terminal spring clamp connector STBXTS1100, 6-terminal screw type connector |
| Discrete input number | 4 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 11...30 V at state 1 -3...5 V at state 0 |
| Acceptable Input Voltage | 30 V |
| Absolute maximum voltage | 56 V 1.3 ms |
| Discrete input current | 8 mA |
| Current state 0 guaranteed | <= 1.2 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Discrete input logic | Positive |
| Response time | 3.5 ms off-to-on 3.8 ms on-to-off |
| Protection type | Power protection integrated fuse on PDM time lag 5 A Input protection resistor-limited Reverse polarity protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Cold swapping | Yes |
| hot swapping | Yes for basic NIMs |
| Input filtering | 3 ms |
| Current supplied by sensor | 50 mA per channel |
| Product Compatibility | I/O base STBXBA1000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 45 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (IN1 to IN4) |
| Depth | 2.6 in (65.1 mm) |
| Height | 0.7 in (18.4 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.245 lb(US) (0.111 kg) |

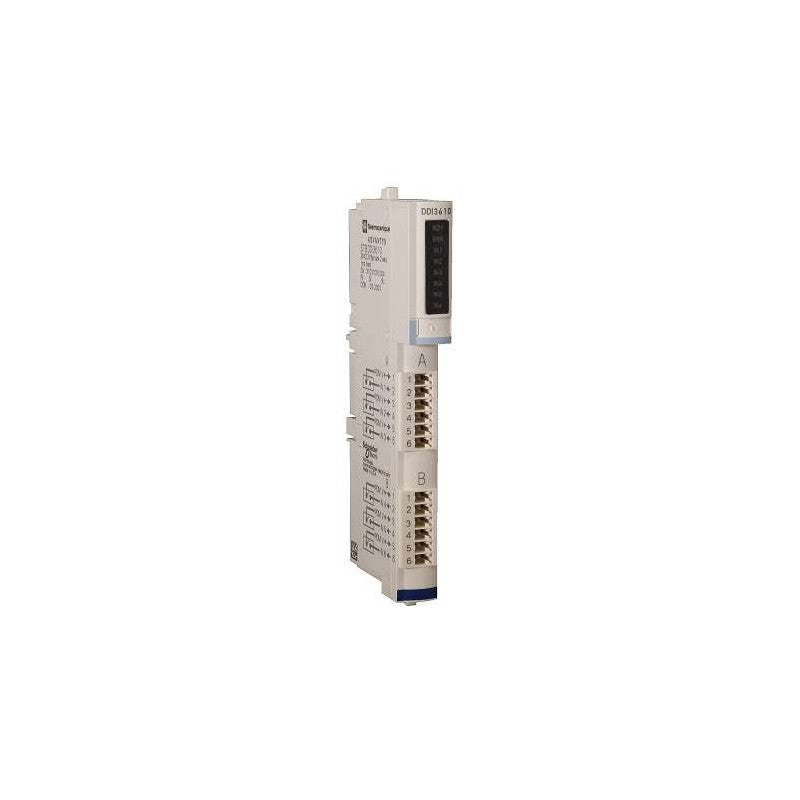

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital input module |
| Discrete input number | 6 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 15...30 V at state 1 -3...5 V at state 0 |
| Acceptable Input Voltage | 30 V |
| Absolute maximum voltage | 56 V 1.3 ms |
| Discrete input current | 4.5 mA |
| Current state 0 guaranteed | <= 0.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Discrete input logic | Positive or negative |
| Response time | 1.21 ms off-to-on 1.74 ms on-to-off |
| Protection type | Power protection integrated fuse on PDM time lag 10 A Input protection resistor-limited Reverse polarity protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| Input filtering | 1 ms |
| Product Compatibility | I/O base STBXBA1000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 55 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (IN1 to IN6) 1 LED (Red) module error (ERR) |
| Depth | 2.6 in (65.1 mm) |
| Height | 0.7 in (18.4 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.247 lb(US) (0.112 kg) |

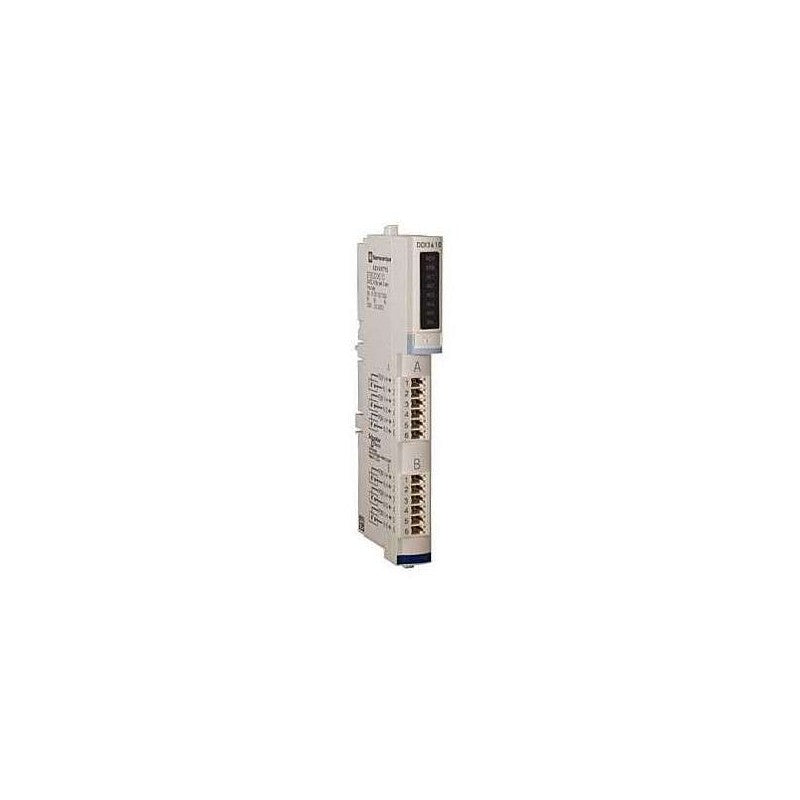

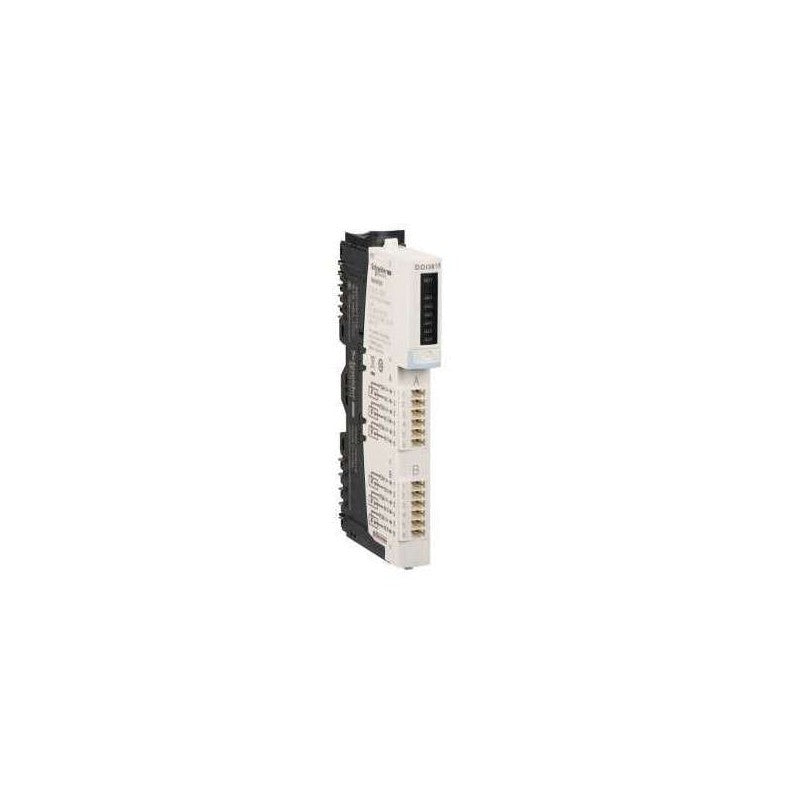

standard digital input kit STB - 24 V DC - 6 I
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Basic digital input kit |
| Kit composition | STBXTS1100, 6-terminal screw type connector STBDDI3615 module STBXBA1000 base STBXTS2100, 6-terminal spring clamp connector |
| Discrete input number | 6 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 15...30 V at state 1 -3...5 V at state 0 |
| Acceptable Input Voltage | 30 V |
| Absolute maximum voltage | 56 V 1.3 ms |
| Discrete input current | 4.5 mA |
| Current state 0 guaranteed | <= 0.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Discrete input logic | Positive |
| Response time | 5.25 ms off-to-on 5.75 ms on-to-off |
| Protection type | Power protection integrated fuse on PDM time lag 5 A Input protection resistor-limited Reverse polarity protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Cold swapping | Yes |
| hot swapping | Yes for basic NIMs |
| Input filtering | 5 ms |
| Product Compatibility | Power distribution module STBPDT3100/3105 I/O base STBXBA1000 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 45 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (IN1 to IN6) |
| Depth | 2.6 in (65.1 mm) |
| Height | 0.7 in (18.4 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.247 lb(US) (0.112 kg) |

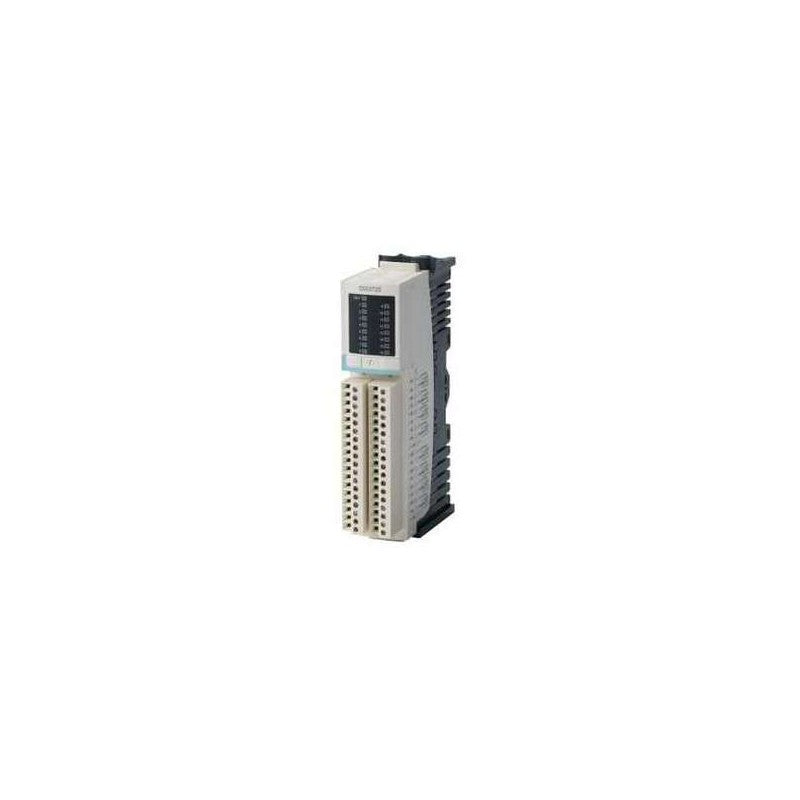

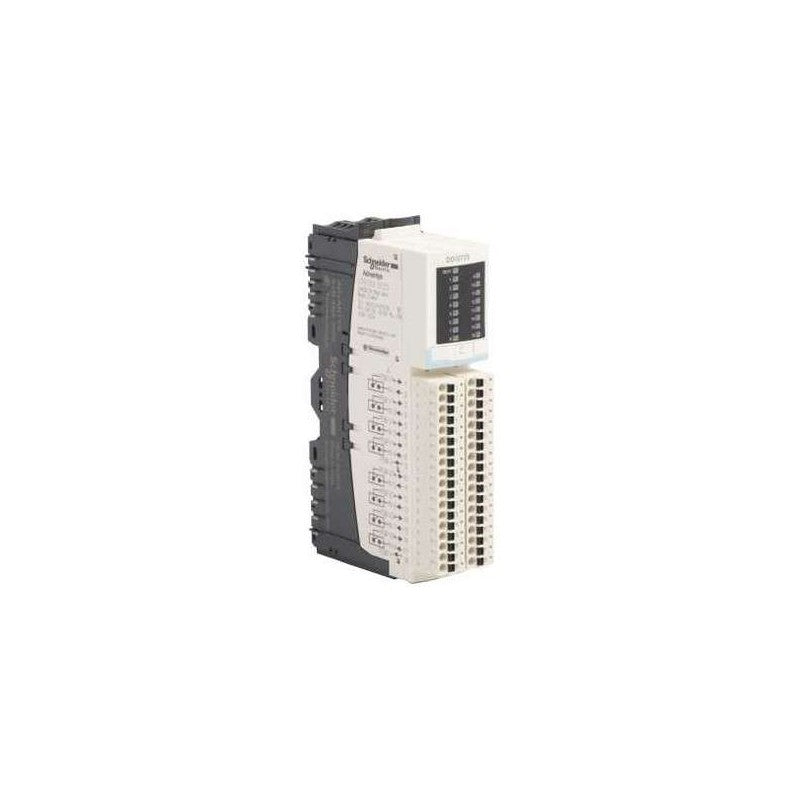

Basic digital input module STB - 24 V DC - 16 I
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 28.1mm (Length) x 65.1mm (width) x 125mm (depth) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2180, 18-terminal spring clamp connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Basic digital input kit |
| Kit composition | STBXTS2180, 18-terminal spring clamp connector STBDDI3725 module STBXBA3000 base |
| Discrete input number | 16 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 11...30 V at state 1 -3...5 V at state 0 |
| Acceptable Input Voltage | 30 V |
| Discrete input current | 4.5 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Discrete input logic | Positive |
| Response time | 2 ms off-to-on 2 ms on-to-off |
| Protection type | Power protection integrated fuse on PDM time lag 5 A Input protection resistor-limited Reverse polarity protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Cold swapping | Yes |
| hot swapping | Yes for basic NIMs |
| Product Compatibility | I/O base STBXBA3000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 100 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (IN1 to IN16) |
| Depth | 2.6 in (65.1 mm) |
| Height | 4.9 in (125 mm) |
| Width | 1.1 in (28.1 mm) |
| Product Weight | 0.190 lb(US) (0.086 kg) |
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1180, 18-terminal screw type connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Basic digital input kit |
| Kit composition | STBXTS1180, 18-terminal screw type connector STBDDI3725 module STBXBA3000 base |
| Discrete input number | 16 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 11...30 V at state 1 -3...5 V at state 0 |
| Acceptable Input Voltage | 30 V |
| Discrete input current | 4.5 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Discrete input logic | Positive |
| Response time | 2 ms off-to-on 2 ms on-to-off |
| Protection type | Power protection integrated fuse on PDM time lag 5 A Input protection resistor-limited Reverse polarity protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Cold swapping | Yes |
| hot swapping | Yes for basic NIMs |
| Product Compatibility | I/O base STBXBA3000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 100 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (IN1 to IN16) |
| Depth | 2.6 in (65.1 mm) |
| Height | 0.7 in (18.4 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.190 lb(US) (0.086 kg) |

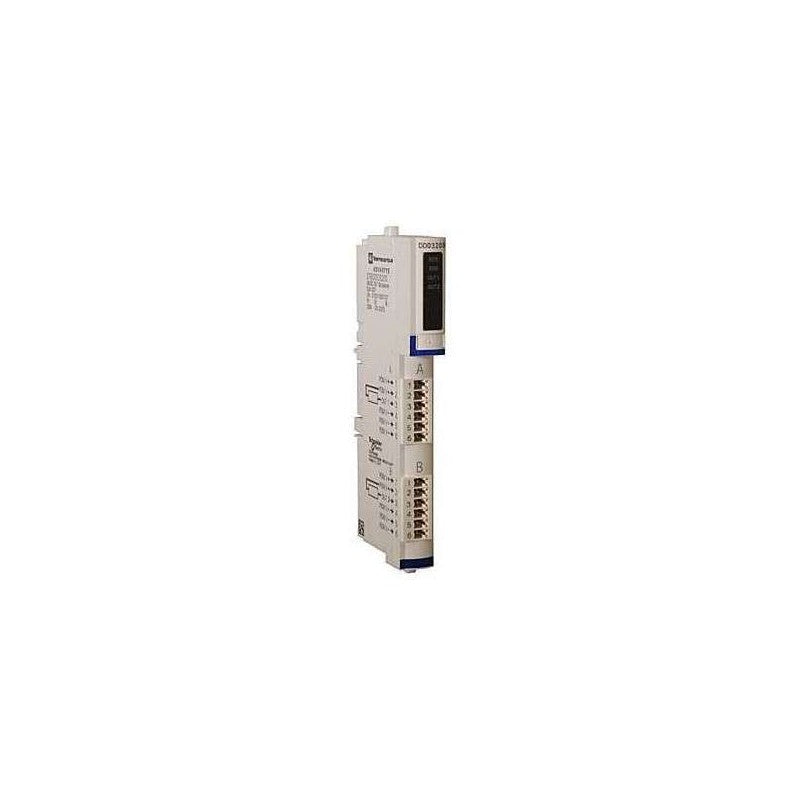

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital output kit |
| Kit composition | STBXTS2100, 6-terminal spring clamp connector STBXBA1000 base STBDDO3200 module STBXTS1100, 6-terminal screw type connector |
| Discrete output number | 2 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 500 mA |
| Discrete output logic | Positive or negative |
| Output voltage | 19.2...30 V DC |
| Absolute maximum voltage | 56 V 1.3 ms |
| Response Time | 575 µs on-to-off 620 µs off-to-on |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| fallback | State 0 basic NIMs User configurable standard NIMs |
| Protection type | Power protection integrated fuse on PDM time lag 10 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Maximum leakage current | 0.4 mA at state 0 30 V |
| Surge current | 5 A 0.5 ms |
| Maximum load capacitance | 50 µF |
| Maximum load inductance | 500 mH 4 Hz |
| Minimum load | 0.5 mA |
| Reset | Manual or automatic reset COM fault |
| Product Compatibility | I/O base STBXBA1000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 50 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT2) 1 LED (Red) module error (ERR) |
| Height | 0.5 in (13.9 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.247 lb(US) (0.112 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital output kit |
| Kit composition | STBXBA1000 base STBXTS2100, 6-terminal spring clamp connector STBXTS1100, 6-terminal screw type connector STBDDO3230 module |
| Discrete output number | 2 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 2000 mA |
| Discrete output logic | Positive or negative |
| Output voltage | 19.2...30 V DC |
| Absolute maximum voltage | 56 V 1.3 ms |
| Response Time | 520 µs off-to-on 720 µs on-to-off |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| fallback | State 0 basic NIMs User configurable standard NIMs |
| Protection type | Power protection 1 external fuse per output time lag 2.5 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels | 1500 V for 1 minute |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Maximum leakage current | 1 mA at state 0 30 V |
| Surge current | 10 A 0.5 ms |
| Maximum load capacitance | 50 µF |
| Maximum load inductance | 500 mH 4 Hz |
| Minimum load | 2 mA |
| Reset | Manual or automatic reset COM fault |
| Product Compatibility | Power distribution module STBPDT3100/3105 I/O base STBXBA1000 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 45 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT2) 1 LED (Red) module error (ERR) |
| Height | 0.5 in (13.9 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.256 lb(US) (0.116 kg) |

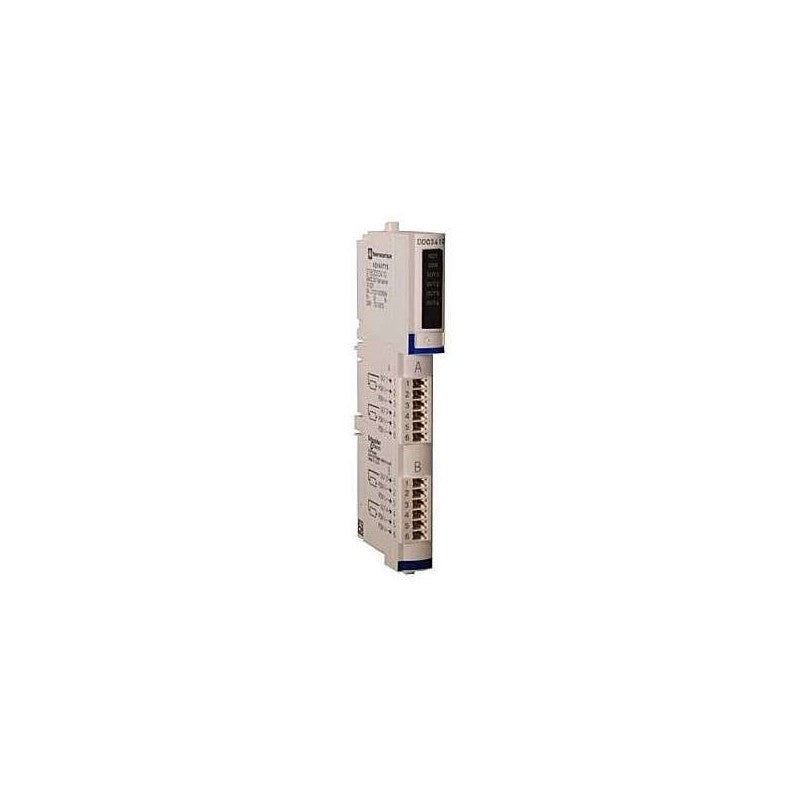

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital output kit |
| Kit composition | STBXTS1100, 6-terminal screw type connector STBXTS2100, 6-terminal spring clamp connector STBXBA1000 base STBDDO3410 module |
| Discrete output number | 4 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 500 mA |
| Discrete output logic | Positive or negative |
| Output voltage | 19.2...30 V DC |
| Absolute maximum voltage | 56 V 1.3 ms |
| Response Time | 560 µs off-to-on 870 µs on-to-off |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| fallback | State 0 basic NIMs User configurable standard NIMs |
| Protection type | Power protection integrated fuse on PDM time lag 10 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Maximum leakage current | 0.4 mA at state 0 30 V |
| Surge current | 5 A 0.5 ms |
| Maximum load capacitance | 50 µF |
| Maximum load inductance | 500 mH 4 Hz |
| Minimum load | 0.5 mA |
| Reset | Manual reset COM fault |
| Product Compatibility | Power distribution module STBPDT3100/3105 I/O base STBXBA1000 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 70 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT4) 1 LED (Red) module error (ERR) |
| Height | 0.5 in (13.9 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.24 lb(US) (0.11 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Basic digital output kit |
| Kit composition | STBXBA1000 base STBXTS1100, 6-terminal screw type connector STBXTS2100, 6-terminal spring clamp connector STBDDO3415 module |
| Discrete output number | 4 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 250 mA |
| Discrete output logic | Positive |
| Output voltage | 19.2...30 V DC |
| Absolute maximum voltage | 56 V 1.3 ms |
| Response Time | 560 µs off-to-on 870 µs on-to-off |
| Cold swapping | Yes |
| hot swapping | No for basic NIMs |
| Protection type | Power protection integrated fuse on PDM time lag 5 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Maximum leakage current | 0.4 mA at state 0 30 V |
| Surge current | 2.5 A 0.5 ms |
| Maximum load capacitance | 50 µF |
| Maximum load inductance | 500 mH 4 Hz |
| Reset | Manual or automatic reset COM fault |
| Product Compatibility | I/O base STBXBA1000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 70 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT4) |
| Height | 0.5 in (13.9 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.24 lb(US) (0.11 kg) |

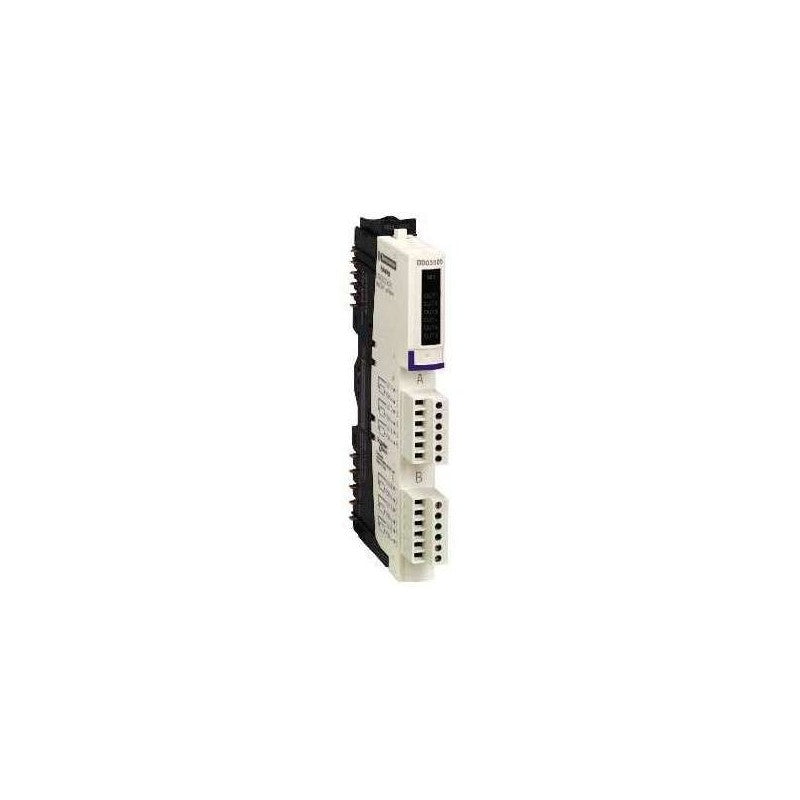

standard digital output kit STB - 24 V DC - 6 O
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Basic digital output kit |
| Kit composition | STBDDO3605 module STBXTS2100, 6-terminal spring clamp connector STBXBA1000 base STBXTS1100, 6-terminal screw type connector |
| Discrete output number | 6 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 250 mA |
| Discrete output logic | Positive |
| Output voltage | 19.2...30 V DC |
| Absolute maximum voltage | 56 V 1.3 ms |
| Response Time | 550 µs off-to-on 900 µs on-to-off |
| Cold swapping | Yes |
| hot swapping | No for basic NIMs |
| Protection type | Power protection integrated fuse on PDM time lag 5 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Maximum leakage current | 0.4 mA at state 0 30 V |
| Surge current | 2.5 A 0.5 ms |
| Maximum load capacitance | 50 µF |
| Maximum load inductance | 500 mH 4 Hz |
| Reset | Manual or automatic reset COM fault |
| Product Compatibility | I/O base STBXBA1000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 90 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT6) |
| Height | 0.5 in (13.9 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.251 lb(US) (0.114 kg) |
Basic digital output module STB - 24 V DC - 16 O
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBXBA3000 base, STBXTS2180, 18-terminal spring clamp connector and STBDDO3705 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Basic digital output kit |
| Kit composition | STBXBA3000 base STBXTS2180, 18-terminal spring clamp connector STBDDO3705 module |
| Discrete output number | 16 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 500 mA |
| Discrete output logic | Positive |
| Output voltage | 19.2...30 V DC |
| Absolute maximum voltage | 35 V 1.3 ms |
| Response Time | 2 ms off-to-on 2 ms on-to-off |
| Cold swapping | Yes |
| hot swapping | No for basic NIMs |
| Protection type | Power protection integrated fuse on PDM time lag 5 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Maximum leakage current | 0.4 mA at state 0 30 V |
| Maximum load capacitance | 10 µF |
| Maximum load inductance | 1000 mH 4 Hz |
| Reset | Manual reset COM fault |
| Product Compatibility | Power distribution module STBPDT3100/3105 I/O base STBXBA3000 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 135 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT16) |
| Height | 0.5 in (13.9 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.190 lb(US) (0.086 kg) |
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBDDO3705 module, STBXBA3000 base and STBXTS1180, 18-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Basic digital output kit |

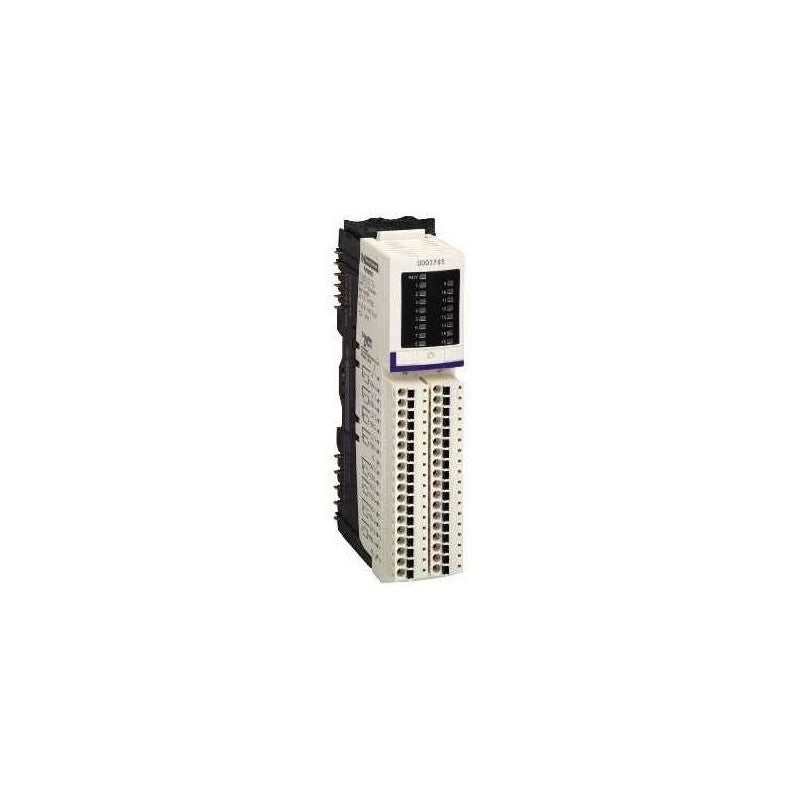

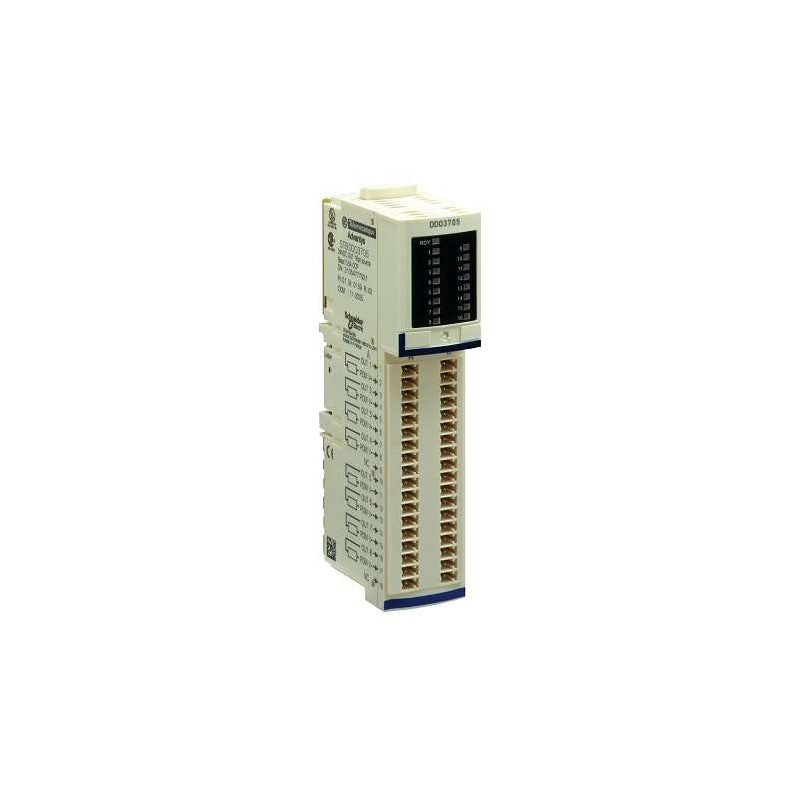

| Kit composition | STBDDO3705 module STBXBA3000 base STBXTS1180, 18-terminal screw type connector |
| Discrete output number | 16 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 500 mA |
| Discrete output logic | Positive |
| Output voltage | 19.2...30 V DC |
| Absolute maximum voltage | 35 V 1.3 ms |
| Response Time | 2 ms off-to-on 2 ms on-to-off |
| Cold swapping | Yes |
| hot swapping | No for basic NIMs |
| Protection type | Power protection integrated fuse on PDM time lag 5 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Maximum leakage current | 0.4 mA at state 0 30 V |
| Maximum load capacitance | 10 µF |
| Maximum load inductance | 1000 mH 4 Hz |
| Reset | Manual reset COM fault |
| Product Compatibility | Power distribution module STBPDT3100/3105 I/O base STBXBA3000 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 135 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT16) |
| Height | 0.5 in (13.9 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.190 lb(US) (0.086 kg) |

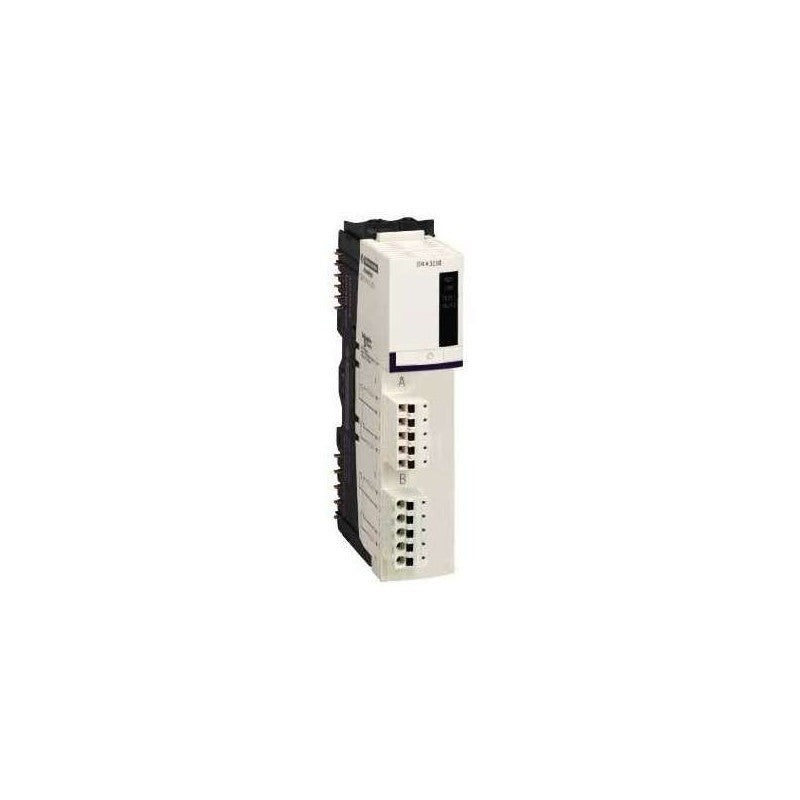

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital output kit |
| Kit composition | STBXTS1100, 5-terminal screw type connector STBXBA2000 base STBXTS2110, 5-terminal spring clamp connector STBDRA3290 module |
| Discrete output number | 2 |
| Discrete output type | Relay |
| Discrete output function | 1 NO + 1 NC |
| Discrete output voltage | 24 V 115...230 V |
| Discrete output voltage type | AC DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 7000 mA |
| Discrete output logic | Positive or negative |
| Output voltage | 20...250 V AC 5...30 V DC |
| Response Time | 10 ms off-to-on 10 ms on-to-off |
| Switching capacity in VA | 2100 VA resistive |
| Mechanical durability | 1000000 cycles |
| Electrical durability | 100000 cycles resistive |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| fallback | State 0 basic NIMs User configurable standard NIMs |
| Protection type | Coil protection integrated fuse on PDM time lag 10 A Output surge protection GMOV |
| Insulation between channels | 500 V for 1 minute |
| Insulation between channels and logic bus | 1780 V for 1 minute |
| Insulation between logic bus and actuator bus | 1500 V for 1 minute |
| Surge current | 20 A 10 ms capacitive |
| Minimum load | 50 mA |
| Reset | Manual reset COM fault |
| Product Compatibility | I/O base STBXBA3000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 55 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT2) 1 LED (Red) module error (ERR) |
| Height | 1.1 in (28.1 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.29 lb(US) (0.13 kg) |

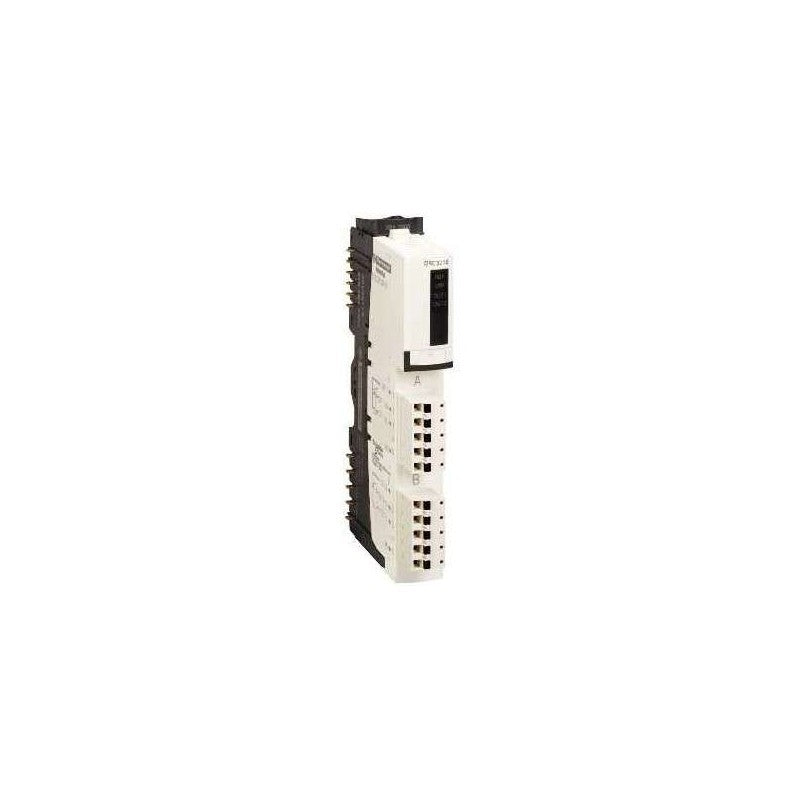

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard discrete output kit has 2 discrete outputs, 2 normally open/normally contacts with solid state relay. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 55mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2110, 5-terminal spring clamp connector, STBXTS1100, 5-terminal screw type connector, STBXBA3000 base and STBDRC3210 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital output kit |
| Kit composition | STBXTS2110, 5-terminal spring clamp connector STBXTS1100, 5-terminal screw type connector STBXBA3000 base STBDRC3210 module |
| Discrete output number | 2 |
| Discrete output type | Relay |
| Discrete output function | 2 NO/NC |
| Discrete output voltage | 24 V 115...230 V |
| Discrete output voltage type | AC DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 2000 mA |
| Discrete output logic | Positive or negative |
| Output voltage | 20...250 V AC 5...30 V DC |
| Response Time | 5.25 ms off-to-on 6.75 ms on-to-off |
| Switching capacity in VA | 600 VA resistive |
| Mechanical durability | 1000000 cycles |
| Electrical durability | 100000 cycles resistive |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| fallback | State 0 basic NIMs User configurable standard NIMs |
| Protection type | Coil protection integrated fuse on PDM time lag 10 A Output surge protection GMOV |
| Insulation between channels | 500 V for 1 minute |
| Insulation between channels and logic bus | 1780 V for 1 minute |
| Insulation between logic bus and actuator bus | 1500 V for 1 minute |
| Surge current | 20 A 10 ms capacitive |
| Minimum load | 50 mA |
| Reset | Manual reset COM fault |
| Product Compatibility | I/O base STBXBA2000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 55 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT2) 1 LED (Red) module error (ERR) |
| Height | 0.7 in (18.4 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.29 lb(US) (0.13 kg) |

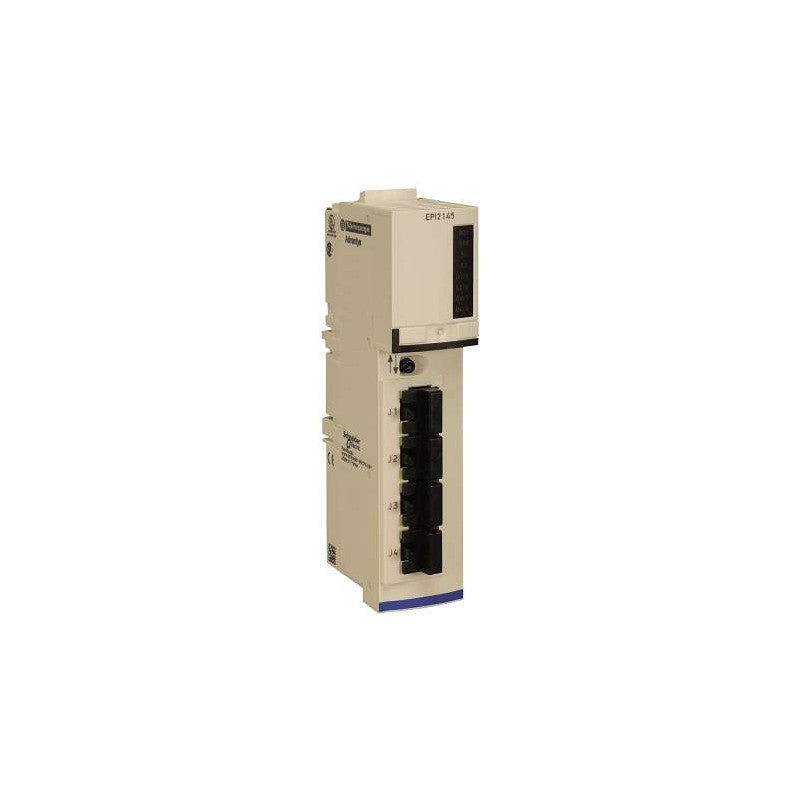

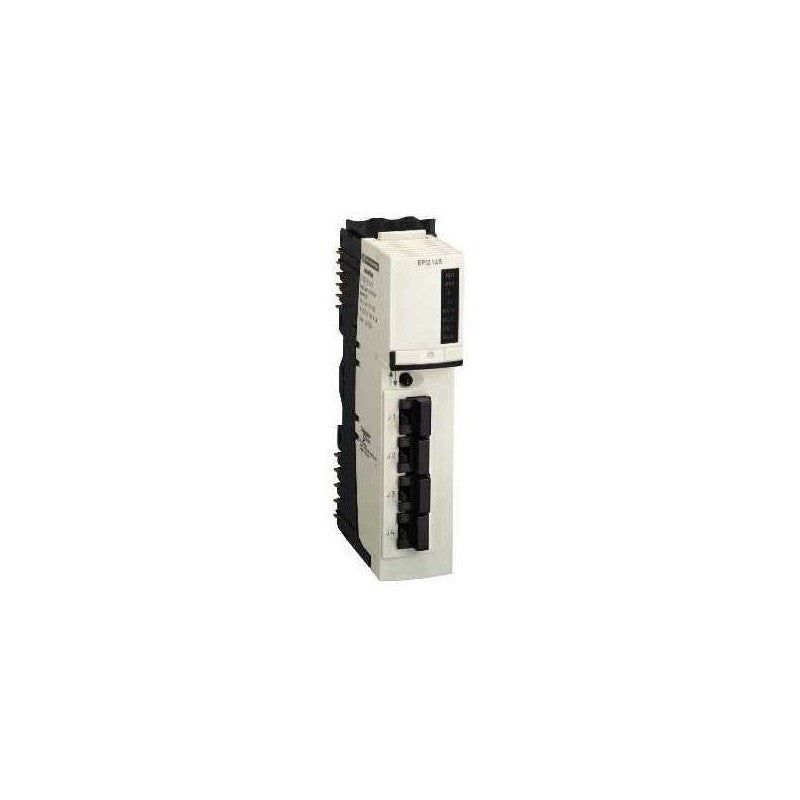

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Parallel interface module |
| Product Specific Application | TeSys U TeSys Quickfit |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of input channels | 12 |
| Input voltage | 24 V |
| Input voltage type | DC |
| Input voltage limits | 15...30 V at state 1 -3...5 V at state 0 |
| Current state 0 guaranteed | <= 0.5 mA |
| Current state 1 guaranteed | >= 2 mA |
| Number of output channels | 8 |
| Output voltage | 24 V |
| Output voltage type | DC |
| Protection type | Power protection integrated fuse on PDM time lag 10 A Overload protection Short-circuit protection Input protection resistor-limited |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| fallback | State 0 basic NIMs User configurable standard NIMs |
| Electrical Connection | 4 RJ45 connectors |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Product Compatibility | Mounting base STBXBA3000 Power distribution module STBPDT3100/3105 |
| Current consumption | <= 100 mA 24 V DC sensor bus <= 220 mA 24 V DC actuator bus for 150 ms 100 mA 5 V DC logic bus 50 mA 24 V DC actuator bus (with all 8 outputs at state 0) 80 mA 24 V DC actuator bus per output at state 1 |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED (Red) module error (ERR) 2 LEDs (Green) switch position (S1 and S2) 4 LEDs (Green) output status |
| Depth | 6.7 in (170 mm) |
| Height | 1.1 in (28.1 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.364 lb(US) (0.165 kg) |
parallel interface kit STB - 12 I CH - 8 O CH

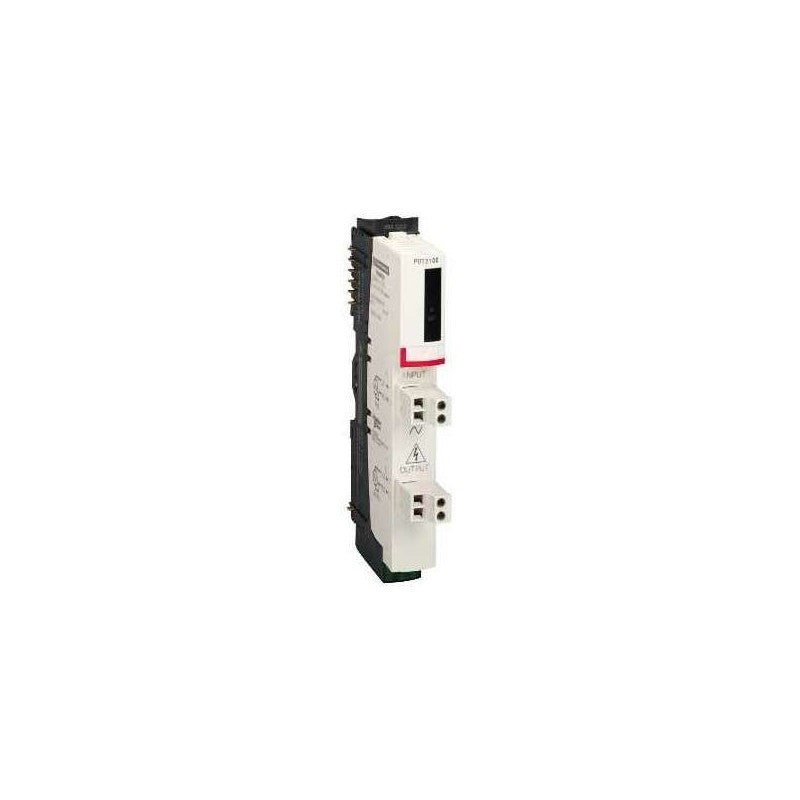

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard power distribution kit |
Complementary
| Characteristic | Value(s) |
|---|---|
| Kit composition | STBPDT2100 module STBXBA2200 base STBXTS2130, spring type connectors STBXTS1130, screw type connectors |
| [Us] rated supply voltage | 115...230 V |
| Supply circuit type | AC |
| Supply frequency | 50...60 Hz |
| Power supply output current | 0â¦10 A 86 °F (30 °C) output circuit) 0â¦2.5 A 140 °F (60 °C) input circuit) 0â¦5 A 86 °F (30 °C) input circuit) 0â¦5 A 140 °F (60 °C) output circuit) |
| Voltage range | 85...265 V AC sensor/actuator bus |
| Hot swapping fallback | Hot swapping illegal |
| Protection type | Built-in overcurrent protection, 10 A time-lag output circuit Built-in overcurrent protection, 5 A time-lag input circuit |
| Permissible current | 30 A for 2 minutes grounding terminal |
| Voltage detection threshold | < 50 V +/-5 AC IN/OUT LED non lit > 70 V +/-5 AC IN/OUT LED lit |
| Product Compatibility | Mounting base STBXBA2200 |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) actuator bus power supply (OUT) 1 LED (Green) sensor bus power supply (IN) |
| Depth | 2.6 in (65.1 mm) |
| Height | 0.7 in (18.4 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.284 lb(US) (0.129 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard power distribution module |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Us] rated supply voltage | 24 V |
| Supply circuit type | DC |
| Power supply output current | 10 A 113 °F (45 °C) input/output circuit) 12 A 86 °F (30 °C) input/output circuit) 6 A 158 °F (70 °C) input/output circuit) 8 A 140 °F (60 °C) input/output circuit) 0â¦4 A 86 °F (30 °C) input circuit) 0â¦8 A 86 °F (30 °C) output circuit) |
| Voltage range | 19.2...30 V DC sensor/actuator bus |
| Hot swapping fallback | Hot swapping illegal |
| Protection type | Built-in overcurrent protection, 10 A time-lag output circuit Built-in overcurrent protection, 5 A time-lag input circuit Reverse polarity actuator bus |
| Permissible current | 30 A for 2 minutes grounding terminal |
| Voltage detection threshold | < 15 V +/-1 DC IN/OUT LED lit >= 15 V +/-1 DC IN/OUT LED non lit |
| Product Compatibility | Mounting base STBXBA2200 |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) actuator bus power supply (OUT) 1 LED (Green) sensor bus power supply (IN) |
| Height | 0.7 in (18.4 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.29 lb(US) (0.13 kg) |
Modules
