| Characteristic | Value(s) |
|---|---|

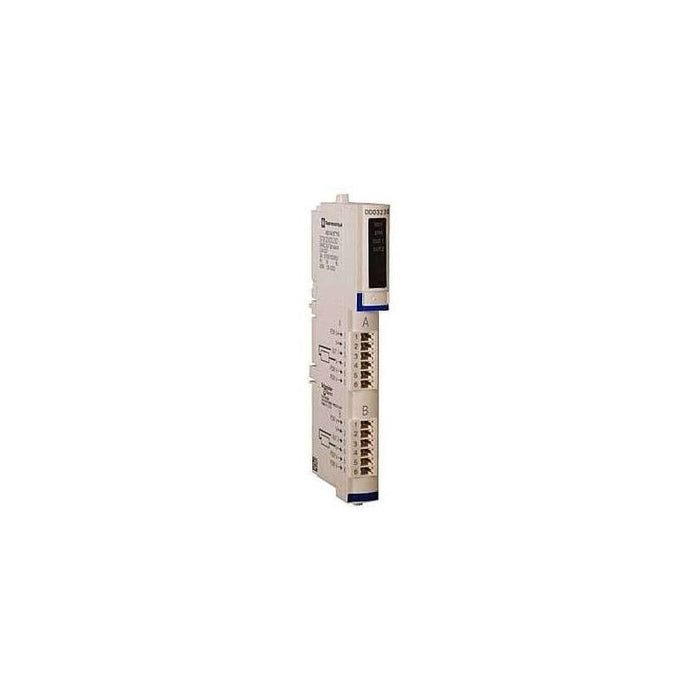

| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital output kit |
| Kit composition | STBXBA1000 base STBXTS2100, 6-terminal spring clamp connector STBXTS1100, 6-terminal screw type connector STBDDO3230 module |
| Discrete output number | 2 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 2000 mA |
| Discrete output logic | Positive or negative |
| Output voltage | 19.2...30 V DC |
| Absolute maximum voltage | 56 V 1.3 ms |
| Response Time | 520 µs off-to-on 720 µs on-to-off |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| fallback | State 0 basic NIMs User configurable standard NIMs |
| Protection type | Power protection 1 external fuse per output time lag 2.5 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels | 1500 V for 1 minute |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Maximum leakage current | 1 mA at state 0 30 V |
| Surge current | 10 A 0.5 ms |
| Maximum load capacitance | 50 µF |
| Maximum load inductance | 500 mH 4 Hz |
| Minimum load | 2 mA |
| Reset | Manual or automatic reset COM fault |
| Product Compatibility | Power distribution module STBPDT3100/3105 I/O base STBXBA1000 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 45 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT2) 1 LED (Red) module error (ERR) |
| Height | 0.5 in (13.9 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.256 lb(US) (0.116 kg) |
